Aero L-39 Albatros

L-39 Albatros

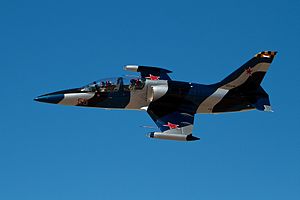

Picture - L-39C, Jet Class, Reno National Championship Air Races #58

Role: Military trainer aircraft Light ground-attack aircraft
Manufacturer: Aero Vodochody
First flight: 4 November 1968
Introduced: 1971
Status: 2,800 still in use in various air forces
Primary users: Soviet Air Force Czechoslovak Air Force Libyan Air Force Royal Thai Air Force
Produced: 1970s-1999
Unit cost: US$200,000-300,000
Developed from: Aero L-29 Delfx­n
Variants: Aero L-59 Super Albatros Aero L-159 Alca

The Aero L-39 Albatros is a high-performance jet trainer aircraft developed in Czechoslovakia to meet requirements for a "C-39" (C for cvičnż - trainer) during the 1960s to replace the L-29 Delfx­n. It was the first of the second-generation jet trainers, and the first turbofan-powered trainer produced, and was later updated as the L-59 Super Albatros and as the L-139 (prototype L-39 with engine Garrett TFE731). The design is still produced in an evolved state as the L-159 ALCA, while more than 2,800 L-39s still serve with over 30 air forces around the world. The Albatros - the most widely used jet trainer in the world - is versatile, seeing duty in light-attack missions as well as in basic and advanced pilot training.

Design and development

The L-39 (under the name Prototype X-02) first flew on 4 November 1969 and was piloted by Rudolf Duchoň, main factory's test pilot. Serial production began in 1971. The design is Czechoslovak (Czech) - the construction of Aero's chief designer Jan Vlček. The L-39 Albatros is a widely flown trainer/light attack aircraft similar in mission to the Italian MB339. Until now is in service with various former Soviet allies.

The low, slightly swept wing has a double-taper planform, 2½-deg dihedral from the roots, a relatively low aspect ratio, and 26½-gal US (100-liter) fuel tanks permanently attached to the wingtips . The trailing edge has double-slotted trailing edge flaps inboard of mass-balanced ailerons; the flaps are separated from the ailerons by small wing fences.

The tall, swept vertical tail has an inset rudder. Variable-incidence horizontal stabilizers with inset elevators are mounted at the base of the rudder and over the exhaust nozzle. Side-by-side airbrakes are located under the fuselage ahead of the wing's leading edge. Flaps, landing gear, wheel brakes and air brakes are powered by a hydraulic system. Controls are pushrod-actuated and have electrically powered servo tabs on the ailerons and rudder. Operational g-force limits at 9,259 lb (4,200 kg) are +8/-4 g.

A single turbofan engine, an Ivchenko AI-25TL (made in Soviet Union) is embedded in the fuselage and is fed through shoulder-mounted, semi-circular air intakes (fitted with splitter plates) just behind the cockpit; the engine exhausts below the tailplane. Five rubber bag fuel tanks are located in the fuselage behind the cockpit. The main, trailing-arm landing gear legs retract inward into wing bays; the nose gear retracts forward.

A long, pointed nose made of aluminum leads back to the tandem cockpit, in which the student and instructor sit under individual canopies that are hinged on the right. The rear (instructor's) seat is raised slightly; both ejection seats are made by Aero.

The basic trainer is not armed, but has two underwing pylons for drop tanks and practice weapons. Light-attack variants have four underwing hardpoints for ground attack stores; the ZA also has an underfuselage gun pod.

This model is no longer in production and is replaced by the L-159.

Operational history

Picture - Civil L-39 in fictional Soviet 84th Light Strike Squadron markings

Abkhazia

In the spring of 2008, a number of Georgian drones were shot down by Abkhaz separatist or Russian forces. In the first of these occasions, on April 20, 2008. Another was shot down by a Russian MiG-29 over Abkhazia region. The Abkhazian separatist forces claimed that one of its missile-equipped L-39 had downed a Georgian Hermes 450 unmanned reconnaissance drone. [1]

Popular warbird

While newer versions are now replacing older L-39s in service, thousands remain in active service as trainers, and many are finding new homes with private owners all over the world. This is particularly evident in the United States, where their $200,000-$300,000 price puts them in range of moderately wealthy pilots looking for a fast, agile personal jet. Their popularity led to a purely L-39 Jet class at the Reno Air Races (though it has since been expanded to include other, similar aircraft). As of mid-March 2006, there are 257 L-39s in the US Federal Aviation register. The first legally registered L-39 private aircraft was successfully flown on a cross country ferry flight in the US on December 9, 1992 with Pilot D. McCue and observer J. Yurick .

Picture - Royal Thai Air Force L-39ZA/ART in flight during SAREX 2007 at Wing41 Chiang Mai

Several display teams use the L-39 such as The Patriots Jet Team (4 L-39s) and the Breitling Jet Team (7 L-39s).

There are also several L-39 available for private jet rides: In the United States: in Florida, New York and California, in Czech Republic, Germany, Switzerland and Russia. Those L-39 jets are partly in private hands. But they can also belong to training facilities of the Ministry of Defense, this is the case in Vyazma, Russia.

In popular culture

A L-39 was used in the James Bond film, Tomorrow Never Dies, where the James Bond character steals the aircraft. The 2005 film Lord of War features a scene in which a L-39 intercepts an An-12 cargo plane.

It also features prominently in ArmA II Operation: Arrowhead as a fighter for the Takistani Airforce.

Variants

L-39X-01 - X-07
Five prototypes plus two static test airframes.
L-39C (C for Cvičnx¡ - training)
Standard basic trainer for Soviet Union, Czechoslovakia and export. Originally designated L-39, but renamed L-39C when later variants appeared. Two pylons under wing. Approximately 2,260 built.
L-39CM (CM for Cvičnx¡ modernizovanx¡ - modernised training)
Slovak upgraded C version.
L-39M1
Ukrainian upgraded C version with AI-25TLSh engines. The conversion is carried out by Odesaviaremservis and the first plane was ready in 2009. The upgrade of a further 7 L-39C's is planned.
L-39V (V for Vlečnx¡ - tug)
Single-seat target tug version for Czechoslovakia. Equipped to tow KT-04 target on 1,700 m (5,600 ft) cable. Prototype plus eight production aircraft built.
L-39ZO (Z for ZbranÄ› - weapons)
Interim weapon trainer variant for export. Four pylons stressed for 500 kg (1,100 lb) (inboard) and 250 kg (550 lb) (outboard), with total external load of 1,150 kg (2,500 lb). First flew 25 June 1975, with initial deliveries to Iraq in 1977. 337 built.
L-39ZA
Significantly upgraded L-39ZO for armed training and light attack, employing sturdier landing gear, a higher payload (total 1,290 kg (2,844 lb)) and notably provision for a GSh-23L 23 millimeter twin barreled cannon attached in a conformal pod under the pilots' compartment, having a 150 round magazine within the airframe. Outer pylons wired to carry K-13 or R-60) air-to-air missiles. Two prototypes, with first flying on 29 September 1976. 208 aircraft delivered.
L-39ZAM
Slovak upgraded ZA version.
L-39ZA/ART
Thai version of L-39ZA with Elbit avionics. 40 built.
L-39MS
The Aero L-39MS Super Albatros is a second generation military trainer aircraft developed from the firm's earlier L-39. Compared to its predecessor, it featured a strengthened fuselage, longer nose, a vastly updated cockpit, and a more powerful (21.6 kN (4,850 lbf)) Lotarev DV-2 engine, allowing operation at higher weights and speeds (max speed 872 km/h (542 mph)). First flight on 30 September 1986. It was later designated as the Aero L-59 .
L-139 Albatros 2000
Revised version with western avionics and 17.99 kN (4,045 lbf) Garrett TFE731-4-1T engine. Single prototype built.
L-159
Further modernised advanced trainer/combat aircraft with more modern, western avionics and Honeywell F124 engine.

Operators

Afghanistan
Algeria
Armenia
Azerbaijan
Bangladesh
Bulgaria
Cambodia
Cuba
Czech Republic
East Germany
Egypt
Estonia Two L-39s were rented from Czech Republic until 2008
Ethiopia
Georgia
Ghana
Hungary Withdrawn from use in 2009, to be replaced by L-159 ALCAs
Tunisia
Iraq
Kazakhstan

Kyrgyzstan
Libya
Lithuania New engines and avionics. Received offer to buy L-159 ALCAs
Tunisia
Nigeria
North Korea
Romania
Russia
Slovakia
Syria
Tajikistan
Thailand L-39ZA/ART (Westernized version, equipped with Israeli avionics)
Tunisia
Turkmenistan
Uganda
Ukraine
Uzbekistan
Vietnam
Yemen

Picture - An Estonian L-39 in flight

Notable incidents

24 January 2001 Atlas Air Founder, Chairman and CEO Michael A. Chowdry was killed Jan. 24 when his Czech L-39 jet trainer crashed into an open field near Watkins, Colorado, USA. Also killed was Wall Street Journal aerospace reporter Jeff Cole. Chowdry and Cole were making a planned flight from Front Range Airport.
2 July 2003 Elmo Hahn, 54, a developer and well-known pilot in Muskegon, Michigan, USA died soon after a crash of his L-39. Hahn was returning to Muskegon after filming a segment about the L-39 Albatross for CNN. He was lifting off in his aircraft and ejected from the plane due to an engine failure caused by ingestion of objects from the aircraft's baggage compartment, which had not been latched. Hahn did not survive.

Picture - A civil L-39C Albatros in Australia

25 January 2006 Major Stephen Freeman USMC, Retired was killed when he steered the L-39MS (N104XX) he was prepossessing away from a populated area in Ketchikan, Alaska, USA. The weather was a factor in the crash. Five people on the ground were injured.
16 March 2007 An L-39 crashed at the Tico Warbird air show at Space Coast Regional Airport in Titusville, Florida, USA killing the pilot. The pilot was identified as attorney Eilon Krugman-Kadi, 58, of Gainesville, Florida, USA. a former Israeli fighter pilot. The L-39 had been built for the Soviet air force in 1980, and was demilitiarized in 1999 from Ukraine.
13 September 2007 Air race pilot Brad Morehouse of Afton, Wyoming, USA was killed when his L-39 crashed in a race at the Reno Air Races. According to newspaper reports, it appeared that pilot lost control when the plane was caught in wake turbulence generated by other racers.
21 March 2010 An L-39 crashed in Cumana, Venezuela, killing the pilot (Walter Oravsky Brand, 72) and 6 people on the ground, 3 more reported wounded. It was caused by an engine failure. The pilot, reported the ATC his intentions to perform engine emergency procedures, a few minutes later the plane crashed.

Picture - A Slovak L-39ZA (1701) in Biele Albatrosy colors at Radom Air Show 2005

Specifications (L-39C)

Data from Jane's All The World's Aircraft 1988-89

General characteristics

Crew: 2
Length: 12.13 m (39 ft 9½ in)
Wingspan: 9.46 m (31 ft 0½ in)
Height: 4.77 m (15 ft 7¾ in)
Wing area: 18.8 m² (202 ft²)
Airfoil: NACA 64A012 mod
Empty weight: 3,455 kg (7,617 lb)
Max takeoff weight: 4,700 kg (10,362 lb)
Powerplant: 1x— Ivchenko AI-25TL turbofan, 16.87 kN (3,792 lbf)

Performance

Never exceed speed: Mach 0.80 (609 mph, 980 km/h)
Maximum speed: 750 km/h (405 knots, 466 mph) at 5,000 m (16,400 ft)
Range: 1,100 km (593 nmi, 683 mi) (internal fuel)
1,750 km, (944 nmi, 1,087 mi) (internal and external fuel)
Service ceiling: 11,000 m (36,100 ft)
Rate of climb: 13.5 m/s (4,130 ft/min)
Wing loading: 250.0 kg/m² (51.3 lb/ft²)
Thrust/weight: 0.37
Climb to 5,000 m (16,400 ft): 5 min
Endurance:
2 hr 30 min (internal fuel)
3 hr 50 min (internal and external fuel)
Take-off roll: 530 m (1,740 ft)
Landing roll: 650 m (2,140 ft)

Picture - A Ukrainian L-39 in museum

Armament

Up to 284 kg (626 lb) of stores on two external hardpoints
2x— wingtip fuel tanks

Related development

Aero L-59 Super Albatros
Aero L-159 ALCA

Comparable aircraft

Aermacchi MB-339
AIDC AT-3
ATG Javelin
BAe Hawk
CASA 101
Dassault/Dornier Alpha Jet
FMA IA 63 Pampa
Hongdu JL-8
IAR 99
Kawasaki T-4
PZL I-22 Iryda
Soko G-2 Galeb
Soko G-4 Super Galeb

Lake, Jon (2000). "Aero L-39 Albatros Family: Variant Briefing". World Air Power Journal (London: Aerospace Publishing) 43: 116-131. ISBN 1-86184-055-1.
Taylor, John W.R. Jane's All The World's Aircraft 1988-89. Coulsdon, UK:Jane's Defence Data, 1988. ISBN 0-7106-0867-5.
Mladějovskż, Josef (1988) (in Czech). Nebe pro Albatros: kapitoly o inženżru Janu Vlčkovi, českém leteckém konstruktéru (Sky for the Albatros: The Chapters About ing. Jan Vlček, Czech Aircraft Constructor). Praha: Naše vojsko.

Living Warbirds: The best warbirds DVD series.
