Avro Tudor Aircraft Information

Avro Tudor

Tudor

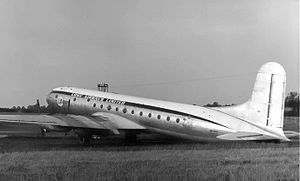

Warbird Picture - Avro Tudor 5 of Lome Airways (Canada) at London Stansted Airport in September 1953

Picture - Avro Tudor 5 of Lome Airways (Canada) at London Stansted Airport in September 1953

Role: Airliner
Manufacturer: Avro
Designed by: Roy Chadwick
First flight: 14 June 1945
Primary users: B.S.A.A BOAC
Produced: 1945 - 1949
Number built: 38
Developed from: Avro Lincoln
Developed into: Avro Ashton

Avro's Type 688 Tudor was a British piston-engined airliner based on their four-engine Lincoln bomber, itself a descendant of the famous Lancaster heavy bomber, and was Britain's first pressurised airliner. Despite having a reasonably long range, customers saw the aircraft as little more than a pressurised DC-4 Skymaster, and few orders were forthcoming, important customers preferring to buy US aircraft. The tailwheel undercarriage layout was also dated and a disadvantage.

Design and development

Avro began work on the Type 688 Tudor in 1943, following Specification 29/43 for a commercial adaptation of the Lancaster IV bomber, which was later renamed Lincoln. The specification was based on recommendations of the Brabazon Committee, which issued specifications for nine types of commercial aircraft for postwar use.

Avro first proposed to build the Avro 687 (Avro XX), which was a Lincoln bomber with a new circular section pressurized fuselage and a large single fin and rudder in place of the predecessor's double ones. During the design stage, the idea of a simple conversion was abandoned and the Avro 688 was designed, which retained the four Rolls-Royce Merlin engines. It was designed by Roy Chadwick who, due to wartime restrictions, could not design a completely new aircraft, but had to use existing parts, tools and jigs. Using the Lincoln's wing, Chadwick, who had worked on the Lancaster, designed the Tudor to incorporate a new pressurized fuselage of circular cross-section, with a useful load of 3,765 lb (1,705 kg) and a range of 3,975 mi (6,400 km).

Two prototypes were ordered in September 1944 and the first, G-AGPF, was assembled by Avro's experimental flight department at Manchester's Ringway Airport and first flew on 14 June 1945. It was the first British pressurised civilian aircraft, although the prototype initially flew unpressurised. The prototype Tudor I had 1,750 hp (1,305 kW) Rolls-Royce Merlin 102 engines, but the standard engines were 1,770 hp (1,320 kW) Merlin 621s.

Technical description

The Tudor was a low-wing cantilever monoplane with four engines, a single fin and rudder and a retractable tailwheel undercarriage (in its original configurations).

The wing was of NACA 23018 section at the root, and was a five-piece, all-metal, twin-spar structure. The untapered centre section carried the inboard engines and main undercarriage, while the inner and outer sections were tapered on their leading and trailing edges, with the inner sections carrying the outboard engines. The ailerons were fitted with trim and balance tabs, and there were hydraulically-operated split flaps in three sections on each side of the trailing edges of the centre section and inner wings. A 3,300 imp gal (4,000 US gal; 15,000 l) fuel capacity was given by eight bag tanks, one on either side of the fuselage in the centre section and three in both inner wings.

The all-metal tail unit had a dorsal fin integrated with the fuselage, and a 43 ft (13 m) twin-spar tailplane with inset divided elevators. The control surfaces were mass-balanced, and each had controllable trim and servo tabs.

The circular cross-section fuselage was an all-metal semi-monocoque structure, of 10 ft (3.0 m) diameter, fitted with kapok-filled inner and outer skins above floor level. The hydraulically-operated main-wheel units were similar to those of the Lancaster, had single Dunlop wheels and retracted rearward into the inboard engine nacelles. The twin tailwheels retracted rearward into the fuselage and were enclosed by twin longitudinal doors.

Operational history

Tudor I

The Tudor I was intended for use on the North Atlantic route. At the time, the US had the Douglas DC-4 and Lockheed Constellation, which could both carry more passengers than the Tudor's 12, and also weighed less than the Tudor's weight of 70,000 lb (32,000 kg). The Tudor's tailwheel layout was also a drawback. Despite this, the Ministry of Supply ordered 14 Tudor Is for BOAC, and increased the production order to 20 in April 1945.

The Tudor I suffered from a number of stability problems, which included longitudinal and directional instability. To cure this, a larger tailplane was fitted, and the original finely curved fin and rudder were replaced by larger vertical surfaces. BOAC added to the delays by requesting more than 340 modifications, and finally rejected the Tudor I on 11 April 1947, considering it incapable of North Atlantic operations. It had been intended that 12 Tudors would be built in Australia for military transport, but this plan was abandoned.

Twelve Tudor Is were built, of which three were scrapped, while others were variously converted to Tudor IVB and Tudor Freighter Is.

As a result of all the Tudor I's delays, BOAC - with the support of the Ministry of Civil Aviation - sought permission to purchase tried and tested aircraft such as the Lockheed Constellation and the Boeing Stratocruiser for its Atlantic routes instead of the Tudor. Despite BOAC's reluctance to purchase Tudors, the Ministry of Supply continued to subsidize the aircraft.

Tudor II

The passenger capacity of the Avro 688 was considered unsatisfactory, so a larger version was planned from the outset. Designated the Avro 689 (also Avro XXI), the Tudor II was designed as a 60-seat passenger aircraft for BOAC, with the fuselage lengthened to 105 ft 7 in (32.18 m) compared to the Tudor I's 79 ft 6 in (24.23 m) and the fuselage increased by 1 ft (0.30 m) to 11 ft (3.4 m) diameter, making it the largest UK airliner at the time.

At the end of 1944, while it was still in the design stage, BOAC, Qantas and South African Airways decided to standardise on the Tudor II for Commonwealth air routes, and BOAC increased its initial order for 30 examples to 79.

Airplane Picture - Tudor 2 of Air Charter Limited at London Stansted Airport in 1955

Picture - Tudor 2 of Air Charter Limited at London Stansted Airport in 1955

The prototype Tudor II G-AGSU first flew on 10 March 1946 at Woodford Aerodrome. The changes in design had however resulted in a loss of performance and the aircraft could not be used in hot and high conditions which resulted in Qantas ordering the Constellation and South African Airways, the Douglas DC-4 instead, with the total order reduced to 50.

During further testing, the prototype was destroyed on 23 August 1947 in a fatal crash which killed Roy Chadwick; air accident investigators later discovered that the crash was due to incorrect assembly of the aileron control circuit.

The engines on the second prototype were changed to Bristol Hercules radials and the aircraft became the prototype Tudor 7, which did not go into production. Unimpressed by the type's performance during further tropical trials, BOAC did not operate the Tudor II and only three production Tudor IIs were built. Six aircraft were built for British South American Airways (BSAA) as the Tudor V.

The second Tudor II to be completed, G-AGRY, went to Nairobi for tropical trials as VX202, but these were unsatisfactory and Tudor II orders were reduced to 18. Eventually, only four Tudor IIs were completed including the prototype.

From 1946 on, the potential purchase of US aircraft by operators such as BOAC led to criticism of government policy, because of the damage that could potentially be caused to Britain's civil aircraft industry by a failure to buy the Tudor. L.G.S. Payne, the Daily Telegraph's aeronautical correspondent, said that British government policy had led to the development of aircraft which were uncompetitive in price, performance and economy. He blamed the Ministry of Supply's planners for this failure, since the industry had effectively been nationalised and argued that the government should pursue the development of jet aircraft instead of "interim types" such as the Tudor.

BOAC cancelled its order for Tudors in 1947, instead taking delivery of 22 Canadair North Stars which they renamed C-4 Argonauts, and used them extensively between 1949 and 1960.

Six aircraft ordered as Tudor IIs were intended to be modified with tricycle landing gear, for use by BSAA as freighters, and designated the 711 Trader. They were not built, but a parallel design using the same landing gear was produced as the jet-powered Avro Ashton.

Tudor III

Two Tudor Is, G-AIYA and G-AJKC, were sent to Armstrong Whitworth for completion as VIP transports for cabinet ministers. They could accommodate 10 passengers and had nine berths. They were re-registered as VP301 and VP312, and both were acquired by Aviation Traders in September 1953, VP301 being reconverted into a Tudor I.

In 1955, G-AIYA and the Tudor I G-AGRG were lenghtened to Tudor IV standard. Together with the un-lengthened Tudor I G-AGRI, which had become a 42-seat passenger aircraft, they were used on the Air Charter Ltd Colonial Coach Services between the UK, Tripoli and Lagos.

Tudor IV

To meet a BSAA requirement, some Tudor Is were lengthened by 5 ft 9 in (1.75 m), powered by 1,770 hp (1,320 kW) Rolls-Royce Merlin 621s and 1,760 hp (1,310 kW) Rolls-Royce Merlin 623s. With 32 seats and no flight engineer position, these were known as Tudor IVs, and when fitted with a flight engineer's position and 28 seats, as Tudor IVBs.

BSAA's new flagships received mixed reviews from pilots. Some greeted it with enthusiasm, such as Captain Geoffrey Womersley, who described it as "the best civil airliner flying." Others rejected it as an unsound design. BSAA's chief pilot and manager of operations, Gordon Store, was unimpressed:

"The Tudor was built like a battleship. It was noisy, I had no confidence in its engines and its systems were hopeless. The Americans were fifty years ahead of us in systems engineering. All the hydraulics, the air conditioning equipment and the recircling [sic] fans were crammed together underneath the floor without any thought. There were fuel-burning heaters that would never work; we had the floorboards up in flight again and again.

"The Tudor was built like a battleship. It was noisy, I had no confidence in its engines and its systems were hopeless. The Americans were fifty years ahead of us in systems engineering. All the hydraulics, the air conditioning equipment and the recircling [sic] fans were crammed together underneath the floor without any thought. There were fuel-burning heaters that would never work; we had the floorboards up in flight again and again.

The first example, G-AHNJ "Star Panther", flew on 9 April 1947. The Tudor IV received its Certificate of Airworthiness on 18 July 1947, and on 29 September, BSAA took delivery of G-AHNK "Star Lion", the first of its six Tudor 4s to be delivered. It departed the next day from Heathrow on a flight to South America, and on 31 October began flights from London to Havana via Lisbon, the Azores, Bermuda and Nassau.

On the night of 29-30 January 1948, Tudor IV G-AHNP "Star Tiger", with 31 people on board, disappeared without trace between Santa Maria in the Azores and Bermuda. Tudors were temporarily grounded and while the cause of the accident was never determined, the type returned to service on 3 December 1948, when a weekly service was begun from London to Buenos Aires via Gander, Bermuda, and other stops, returning via the Azores.

Airplane Picture - Avro 688 Super Trader 4B

Picture - Avro 688 Super Trader 4B "Conqueror" of Air Charter Ltd at Manchester's Ringway Airport in June 1955

Disaster struck again on 17 January 1949, when Tudor IV G-AGRE "Star Ariel" also disappeared, this time between Bermuda and Kingston, Jamaica, with the loss of 20 people, and the Tudor IVs were once more grounded. The subsequent fleet shortage led to BSAA being taken over by BOAC. Pressurisation problems were suspected to be the cause of the two accidents, and the remaining aircraft were flown as unpressurised freighters under the designations Tudor Freighter IV and IVB.

After storage for some years at Manchester Airport, four ex-BSAAC Tudor IVs were bought by Air Charter in late 1953. They were fitted with 6 ft 10 in (2.08 m) by 5 ft 5 in (1.65 m) cargo doors aft by Aviation Traders and designated Super Traders IV or IVB, receiving their Certificate of Airworthiness in March 1955. These were operated by Air Charter Ltd on long distance freight flights as far as Christmas Island. Some remained in service until 1959, until G-AGRH "Zephyr" crashed in Turkey on 23 April 1959.

Tudor V

Airplane Picture - Tudor V ex BSAAC and BOAC in storage at London Stansted Airport in 1953

Picture - Tudor V ex BSAAC and BOAC in storage at London Stansted Airport in 1953

The Tudor V was a modified version of the stretched Tudor II equipped with 44 seats. BSAA acquired five which never entered passenger service with the airline. They were instead stripped of their fittings and used as fuel tankers on the Berlin Airlift. They completed a total of 2,562 supply sorties in 6,973 hours, carrying 22,125 tons (20,071 tonnes) of fuel into Berlin.

On 12 March 1950, G-AKBY, which had been returned to passenger service with Airflight Ltd, on a charter flight from Ireland, crashed at RAF Llandow, South Wales, with the resulting death of 80 of its passengers and crew.

In 1953, Lome Airways leased an ex BSAA Tudor 5 from Surrey Flying Services as CF-FCY for freight operations in Canada. It was retired at Stansted and scrapped in 1959.

Tudor VI

The Tudor VI was to be built for the Argentinian airline FAMA for South Atlantic service, with 32-38 seats or 22 sleeper berths, but none were built.

Tudor VII

The Tudor VII was the first production Tudor II fitted with Bristol Hercules air-cooled radial engines in an attempt to give better performance. The sole example built, G-AGRX, made its first flight on 17 April 1946, and was later fitted in June 1948 with shorter landing gear with the engines repositioned (inclined) to give better ground clearance. G-AGRX was used for cabin temperature experiments, and was finally sold for spares in March 1954.

Tudor 8

Airplane Picture - Avro Tudor 8 fitted with Nene jet engines at RAE Farnborough in September 1950

Picture - Avro Tudor 8 fitted with Nene jet engines at RAE Farnborough in September 1950

The second prototype Tudor I was rebuilt to Tudor IV standards. It was later fitted with four Rolls-Royce Derwent 5 turbojets in under-wing paired nacelles. Given the military identification VX195, The Tudor 8 carried out its first flight at Woodford on 6 September 1948, and a few days later, it was demonstrated at the SBAC Show at Farnborough. Later, the Tudor 8 was used for high-altitude experiments tests at Boscombe Down and RAE Farnborough before being broken up in 1951.

Tudor 9

Following tests of the Tudor 8, the Ministry of Supply ordered six Tudor 9s, based on the Tudor II but powered by four Rolls-Royce Nenes and utilizing a tricycle undercarriage. The original design was then modified and the type was produced as the Avro 706 Ashton with the first Ashton flying on 1 September 1950.

Variants

All built by Avro at Woodford Aerodrome.

688 Tudor 1
Production variant, 12 built, later conversion to other variants.
689 Tudor 2
Stretched version, five built.
688 Tudor 3
Tudor 1 modified by Armstrong Whitworth Aircraft as executive transport aircraft. It could seat up to nine passengers, two built.
688 Tudor 4
Stretched version of the Tudor 1 (but not the same as the Tudor 2 with the fuselage lengthened by only 6 ft/1.83 m). It could seat up to 32 passengers, 11 built.
688 Tudor 4B
As Tudor 4 but retained the Tudor 1's flight engineers station. Small number of Tudor 1s were converted into Tudor 4Bs.
689 Tudor 5
Tudor 2 for BSAA, powered by four 1,770 hp (1,320 kW) Rolls-Royce Merlin 621 piston engines, six built. One aircraft crashed in 1950 killing 80 in the Llandow Air Disaster.
689 Tudor 6
Ordered by the Argentinian airline FAMA, but the order was cancelled. None of the airframes were completed.
689 Tudor 7
Tudor 2 fitted with four 1,750 hp (1,305 kW) Bristol Hercules 120 radial piston engines, one prototype only.
688 Tudor 8
Jet-engined version of the Tudor 1. Tudor 1 VX195 was fitted with four Rolls-Royce Derwent Mk.V turbojet engines.
Tudor 9
Jet-engined version of the Tudor 2, became the 706 Ashton
Super Trader 4B
Re-engined version, fitted with four 1,760 hp (1,312 kW) Rolls-Royce Merlin 23 piston engines.
Tudor Freighter 1
Freight and cargo version, three aircraft were used by BOAC during the 1949 Berlin Airlift.
711 Trader
Proposed freighter development of the Tudor 2 fitted with a tricycle landing gear; not built.

Operators

Canada

Lome Airways

United Kingdom

Air Charter
Airflight
British Overseas Airways Corporation (BOAC) (freight only)
British South American Airways
Surrey Flying Services
William Dempster

Accidents and incidents

23 August 1947 - Tudor 2 prototype G-AGSU crashed on takeoff from Woodford.
30 January 1948 - Tudor 1 G-AHNP "Star Tiger" of British South American Airways disappeared in the western Atlantic.
17 January 1949 - Tudor 4B G-AGRE "Star Ariel" of British South American Airways disappeared in the western Atlantic.
12 March 1950 - Tudor 5 G-AKBY of Airflight Limited crashed on approach, Llandow, Wales.
26 October 1951 - Tudor 5 G-AKCC President Kruger of William Dempster Limited was damaged beyond repair landing at Bovingdon, Hertfordshire, United Kingdom.
27 January 1959 - Super Trader G-AGRG El Alamein of Air Charter destroyed by fire on takeoff from Brindisi, Italy.
23 April 1959 - Super Trader G-AGRH "Zephyr" of Air Charter flew into Mount Suphan, Turkey.

Specifications (Avro 688 Tudor 1)

Data from Jane's Fighting Aircraft of World War II

General characteristics

Crew: 5 (two pilots, flight engineer, radio operator, navigator)
Capacity: 24 passengers
Length: 79 ft 6 in (24.23 m)
Wingspan: 120 ft 0 in (36.58 m)
Height: 22 ft 0 in (6.71 m)
Wing area: 1,421 ft˛ (132 m˛)
Loaded weight: 66,000 lb (30,000 kg)
Max takeoff weight: 76,000 lb (34,500 kg)
Powerplant: 4x— Rolls-Royce Merlin 100 12-cylinder V12 engines, 1,770 hp (1,320 kW) each

Performance

Maximum speed: 320 mph (512 km/h) at 8,000 ft (2,440 m)
Cruise speed: 283 mph (453 km/h) at 12,000 ft (3,660 m)
Range: 3,630 mi (5,840 km)
Service ceiling: 30,100 ft (9,180 m)
Rate of climb: 990 ft/min (5 m/s)
Wing loading: 53.5 lb/ft˛ (261 kg/m˛)

Related development

Avro Lincoln
Avro Lancastrian
Avro Ashton

Comparable aircraft

Avro Canada Jetliner
Vickers VC.1 Viking

Bibliography

Angelucci, Enzo and Paolo Matricardi. World Aircraft - Commercial Aircraft 1935-1960. London: Sampson Low Guides, 1979. ISBN 0-562-00125-5.
Brookes, Andrew. Disaster in the Air. London: Ian Allen Publishing, 1992. ISBN 978-071102037-5.
Eastwood, Tony and John Roach. Piston Engine Airliner Production List. West Drayton, UK: Aviation Hobby Shop, 1991. ISBN 0-907178-37-5.
Geiger, Till. Britain and the Economic Problem of the Cold War. Farnham, Surrey, UK: Ashgate Publishing Ltd., 2004. ISBN 0-75460-287-7.
Holmes, Harry. Avro - The History of an Aircraft Company. Wiltshire, UK: Crowood Press, 2004. ISBN 1-86126-651-0.
Jackson, A.J. Avro Aircraft since 1908, 2nd edition. London: Putnam Aeronautical Books, 1990. ISBN 0-85177-834-8.
Jackson, A.J. British Civil Aircraft since 1919. London: Putnam & Company Ltd, 1973. ISBN 0-370-10006-9.
Jane, Fred T. “The Avro 688 Tudor I.” Jane’s Fighting Aircraft of World War II. London: Studio, 1946. ISBN 1-85170-493-0.
Ottaway, Susan and Ian. Fly With the Stars: A History of British South American Airways. Andover, Hampshire, UK: Speedman Press, 2007. ISBN 978-0-7509-4448-9.
Scholefield, R.A. Manchester Airport. Stroud, UK: Sutton Publishing Limited, 1997. ISBN 0-7509-1954-X.
Yenne, William. Classic American Airliners. St Paul, Minnesota: Zenith Imprint, 2005. ISBN 0-76031-931-6.
