Blackburn Firecrest Aircraft Information

Blackburn Firecrest

Blackburn B-48 Firecrest

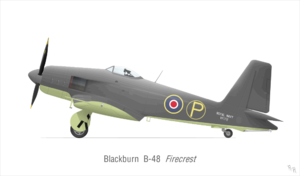

Warbird Picture - Firecrest prototype VF172

Picture - Firecrest prototype VF172

Role: Strike fighter
Manufacturer: Blackburn Aircraft
First flight: 1 April 1947
Primary user: Fleet Air Arm
Produced: 1947
Number built: 3
Developed from: Blackburn Firebrand

The Blackburn B-48 Firecrest, given the SBAC designation YA.1, was a single-engine naval strike fighter built by Blackburn Aircraft. It was a development of the troublesome B-35 Firebrand, designed to Air Ministry Specification S.28/43, for an improved Firebrand more suited to carrier operations.

Design

In October 1943, Blackburn's design staff, lead by G.E. Petty, started work on a development of the Firebrand, with a redesigned wing and improved pilot view, which lead to Specification S28/43 being issued by the Air Ministry on 26 February 1944 covering the new aircraft.

The new design, the Blackburn B-48, was known unofficially by Blackburns as the "Firecrest" but always known by its Specification number by the Air Ministry and Navy. The Firecrest had a redesigned, inverted gull wing of laminar flow aerofoil section and moved the pilot forwards and raised his position so that he was now looking over the leading edge, and down the nose, rather than along it. Four Fowler flaps were fitted to give good low-speed handling for landing and the wing had retractable dive brakes on both surfaces. The wing folded in two places to allow storage in carrier hangars. In other respects, the Firecrest was a conventional monoplane design with a tailwheel undercarriage and particularly clean lines.

The first prototype was rolled out in February 1947, and made its maiden flight on 1 April that year. By this time, however, the Air Ministry had concluded that the Firecrest would not be adequate for the Strike role, for which the Westland Wyvern was preferred, and work on the complete but unflown second and third prototypes was suspended in November. Later in the month, however, the third prototype was allocated to tests of powered aileron controls, as testing of the first prototype had shown that while adequate at cruise speed, the ailerons were heavy both at low and high speed. The second prototype was allocated to structural testing.

The third prototype made its maiden flight in early 1948, While the Firecrest was faster than the Firebrand, and gave its pilot a much better view from the cockpit, it was otherwise disappointing, with Test pilot Eric Brown claiming that the Firecrest was even less manoeuvrable than the sluggish Firebrand, while the powered ailerons gave lumpy controls, leading to instability in turbulent air.

Operational experience had found that Blackburn's Firebrand strike fighter to be far from suited to carrier operations. Particularly, the pilot sat behind the wing trailing edge, looking over a very long and wide nose, which gave a particularly poor view for landing.

The Firecrest had been rendered obsolete by the arrival of gas turbine engines, and while Blackburn did draw up proposals for turboprop powered derivatives of the Firecrest these went unbuilt, with orders instead going to Westland for the Wyvern. The two flying prototypes remained in use until 1949, being sold back to Blackburn in 1950, and were later scrapped.

Operators

United Kingdom

Fleet Air Arm (never entered service)

Specifications

Data from Blackburn Aircraft since 1909

General characteristics

Crew: One pilot
Length: 39 ft 3 in (11.98 m)
Wingspan: 44 ft 11 in (13.71 m)
Height: 14 ft 6 in (4.42 m)
Wing area: 361.5 ft (33.60 m)
Empty weight: 10,513 lb (4,779 kg)
Loaded weight: 15,280 lb (6,645 kg)
Powerplant: 1x Bristol Centaurus 59 18-cylinder radial engine, 2,475 hp (1,846 kW)

Performance

Maximum speed: 380 mph (330 knots, 612 km/h) at 19,000 ft (5,790 m)
Cruise speed: 213 mph (185 knots, 343 km/h) at 15,000 ft (4,600 m)
Range: 900 mi (783 nmi, 1,450 km)
Service ceiling: 31,600 ft (9,630 m)
Rate of climb: 2,500 ft/min (12.7 m/s)

Armament

Guns: Provision for 2x .50 in (12.7 mm) M2 Browning machine guns under or in wing (not fitted to prototypes)
Rockets: 8x RP-3 rocket projectiles on underwing rails
Bombs:
1x 2,097 lb (951 kg) torpedo, or
2x 250 lb (110 kg) bombs, one under each wing, in place of torpedo

Related development

Blackburn Firebrand

Comparable aircraft

Westland Wyvern
Douglas AD Skyraider
Martin AM Mauler

Related lists

List of aircraft of the Fleet Air Arm

Bibliography

Brown, Eric. "The Firebrand...Blackburn's baby 'battleship'". Air International, July 1978, Vol 15 No 1. Bromley, UK:Fine Scroll. pp. 25-31, 46-47.
Buttler, Tony. "Something Useful! Blackburn's 'Firecrest', Son of Firebrand". Air Enthusiast. No. 82, July/August 1999. Stamford, UK:Key Publishing. pp. 55-59. ISSN 0143-5450.
Jackson, A.J. Blackburn Aircraft since 1909. London:Putnam, 1968. ISBN 0 370 00053 6.
Mason, Francis K. The British Fighter since 1912. Annapolis, Maryland, USA:Naval Institute Press, 1992. ISBN 1-55750-082-7.
Williams, Ray. Fly Navy; Aircraft of the Fleet Air Arm since 1945. Airlife, 1989, ISBN 1-85310-057-9
