Blackburn Lincock Airplane Videos and Airplane Pictures

Blackburn Lincock Videos - Picture

Warbird Picture - Blackburn Lincock II

Blackburn Lincock Aircraft Information

Blackburn Lincock

F.2 Lincock

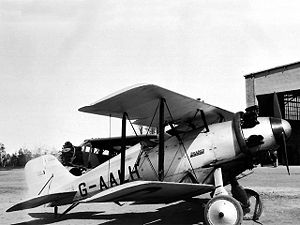

Warbird Picture - Blackburn Lincock II

Picture - Blackburn Lincock II

Role: Single-seat lightweight fighter
Manufacturer: Blackburn Aircraft Limited
First flight: 1928
Number built: 7

The Blackburn F.2 Lincock was a British single-seat lightweight fighter produced by Blackburn Aircraft Limited.

Design and development

In 1928 Blackburn designed and built a private venture lightweight biplane fighter powered by a Armstrong Siddeley Lynx IVC engine. The Blackburn F.2 Lincock was of wooden construction and first appeared in May 1928. It performed well in demonstrations but failed to gain any orders. The Canadian government showed an interest in the design, and a metal construction variant (the Lincock II) was built. It was tested in Canada at Camp Borden in 1930 who were interested in using the Lincock as an advanced trainer but the type was not ordered. It was later used to perform public aerobatic displays in 1933 and 1934.

The final version was the Lincock III of which five were produced, two were delivered to China, two to Japan and one retained as a demonstrator. Interest from Italy resulted in Piaggio acquiring a licence to produce a two-seat version as an aerobatic trainer, only one (the Piaggio P.11) was built.

Variants

Lincock I
Wooden-construction prototype, one built.
Lincock II
Metal-construction prototype, one built.
Lincock III
Production version, five built.
Piaggio P.11
two-seat aerobatic trainer, one built in Italy.
Piaggio P.11

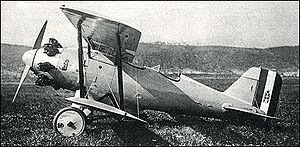

Airplane Picture - Piaggio P.11

Picture - Piaggio P.11

Operators

China

Chinese Nationalist Air Force received 2 aircraft.

Japan

Imperial Japanese Army Air Force received 2 aircraft.

Specifications (Lincock III)

General characteristics

Crew: 1
Length: 19 ft 6 in (5.94 m)
Wingspan: 22 ft 6 in (6.86 m)
Height: 7 ft 4 in (2.24 m)
Wing area: 170 ft (15.79 m)
Empty weight: 1,326 lb (601 kg)
Max takeoff weight: 2,082 lb (944 kg)
Powerplant: 1x Armstrong Siddeley Lynx Major radial piston, 270 hp (201 kw)

Performance

Maximum speed: 164 mph (264 km/h)
Range: 380 mi (612 km)
Service ceiling: 23,000 ft (7,010 m)
Rate of climb: 1,660 ft/m (506 m/m)

Armament

2 x forward-firing .303 in (7.7 mm) Vickers machine guns.

The Illustrated Encyclopedia of Aircraft (Part Work 1982-1985). Orbis Publishing.
