The Boeing A160 Hummingbird (military designation: YMQ-18A) is an unmanned aerial vehicle (UAV) helicopter. Its design incorporates many new technologies never before used in helicopters, allowing for greater endurance and altitude than any helicopter currently in operation.

The development of Hummingbird was begun by Frontier Aircraft. In May 2004, the company was acquired by Boeing and integrated into Boeing Phantom Works and then into the Advanced Systems group of Boeing Integrated Defense Systems.

The A160 continues with developmental flight tests in 2010, but test flights have already demonstrated greater endurance, higher altitudes, more extensive autonomy, and greater payload. The program has ambitious goals of a 2,500-mile (4,000 km) range, 24-hour endurance, and 30,000 ft (9,100 m) altitude. Flights are largely autonomous, with the aircraft making its own decisions about how to fly itself so as to meet certain objectives, rather than relying on real-time human control. Maximum speeds are over 140 knots. The aircraft is 35 ft (11 m) from nose to tail and has a rotor diameter of 36 ft (11 m). Early A160s were powered by modified Subaru automotive engines, but newer versions use Pratt & Whitney PW207D turboshaft engines.

Design and development

Maverick and Renegade UAVs

During the initial development of the A160 airframe and rotor system in 1999-2000, Frontier Systems simultaneously designed the Maverick VTOL UAV as a testbed for avionics, software and flight control systems. The Maverick was a highly modified version of the Robinson R22 light civilian helicopter. By using a proven helicopter airframe, engineers were able to focus on developing systems that could be later transferred to the A160.

The Maverick program began in 1998, and the first flight took place less than a year later in 1999. Although the R22 is a two-seat manned helicopter in its original configuration, the Maverick was significant for never using a "safety pilot" (a human pilot riding on board and capable of recovering the aircraft in the event of a failure of the unmanned flight control system). Even its very first flight was truly unmanned. Since much of the software and avionics systems were shared between Maverick and A160, Maverick remained in service long after A160 began flight operations. After acquiring Frontier Systems in 2004, Boeing halted most development of Maverick, but it continued flying as a training asset and for reducing risk in technology development for the A160.

Four Mavericks are flown by the US Navy, carrying Wescam Electro-Optical/Infrared sensor system, possibly among other sensors. Since being acquired by the military, most Maverick operations have remained unpublicized.

March 2006 saw the completion of the Software Enabled Control program sponsored by the Defense Advanced Research Projects Agency(DARPA). With the help of researchers from UC Berkeley, MIT, and Georgia Tech, Boeing developed a variant of its Maverick UAV platform, which became known as the Renegade UAV. This aircraft successfully performed various maneuvers and flew routes without real-time human input.

A160

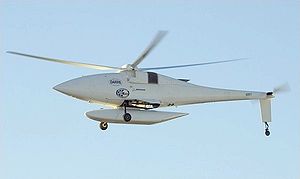

Airplane Picture - The A160 during ground runs at the Victorville, CA airport

Picture - The A160 during ground runs at the Victorville, CA airport

The development program for the A160 began when DARPA awarded a 30-month technology demonstration contract to San Diego-based Frontier Systems in March 1998. In June 1999, Frontier tested the autonomous fight control system with the Maverick-A, a modified lightweight Robinson R-22 helicopter. This test bed was lost during an accident in 2000, after having flown for 215 hours. The first prototype, a three-bladed A160, demonstrated a brief hover on December 7, 2001 and performed its first forward flight on January 29, 2002.

A four-blade version of the A160 flew in November 2002 using a Subaru four-cylinder engine. Frontier Systems was awarded a contract for four more A160s in October 2003. A total of three vehicles were produced by Frontier Systems. Vehicles 1 and 3 were lost in crashes. Frontier began a planned KW600 diesel engine for the vehicle, but never completed it. A diesel engine would have nearly doubled the vehicle endurance due to lower fuel consumption.

Frontier Aircraft, and then Boeing, have carried out the A160 program as part of a series of contracts with DARPA, the US Army, and the US Navy from 2003. In September 2003, DARPA awarded Frontier a $75 million contract for the design, development and testing of four A160s.

In May 2004, the U.S. Army Communications-Electronics Command awarded Syracuse Research Corp. a $13.3 million contract for the ultra high frequency, foliage penetrating, real-time moving target indicator/synthetic aperture radar for use in the A160.

The A160's rotor includes blades whose stiffness and cross-section vary along their length. Their low loading and rigid, hingeless design allows for changing RPM (not just blade pitch as in conventional helicopters) to optimize efficiency at different speeds and altitudes. It is primarily because of these features that the Hummingbird can fly with less power - and thus use less fuel - than comparable helicopters.

In August 2005, Frontier Systems - by then a Boeing subsidiary - received a $50 million contract from the Naval Air Warfare Center Aircraft Division "to assess the military utility and affordability of a long-range VTOL UAV employing a wide variety of adaptable payloads".

In October 2007, DARPA awarded Boeing a $6.3 million contract to deliver an A160T aircraft and modified pod for the Autonomous Real-time Ground Ubiquitous Surveillance-Imaging System (ARGUS-IS) program.

Operational history

Flight testing

The Hummingbird made its first flight in January 2002, using a 4-cylinder Subaru engine. On September 20, 2004, the Hummingbird made its first flight since Boeing took over the program the previous May. The test program has been operated from the Southern California Logistics Airport near Victorville, California.

In August 2005, the Hummingbird was flown around Victorville in a 1,200-mile course at 60 knots and 4000 feet. This was one of the longest helicopter flights. A mechanical failure caused the helicopter to crash near the end of the flight. Flight testing continued some months later after the crash investigation was concluded. On November 30, 2005, the aircraft successfully completed its first flight with a new 290 kW (390 hp) 6-cylinder gasoline-powered piston engine, hovering about the airfield for about half an hour.

A follow-up turboshaft-powered version, the A160T, was first flown on June 15, 2007. The A160T was flown for 8 hours while carrying a 1000-pound payload on September 27, 2007. The aircraft flew for 12 hours while carrying a 500-pound payload, simulating a multi-sensor military recon mission on October 12. This latter flight used up less than 60% of the Hummingbird's maximum fuel load.

On December 10, 2007, one of the A160T prototypes crashed during a flight test at Boeing Advanced Systems' test facility in Victorville. A Boeing investigation determined the incident was caused when sensor data stopped being updated to the flight computer. With the feedback loop for the control system effectively cut, the helicopter "departed controlled flight and impacted the ground at a near-vertical angle." Much of the forensic evidence was burned in the post-crash fire. A number of potential areas that could have caused the software feedback update thread to stop were found, and those known problem areas have been addressed. Flight testing resumed on March 26, 2008.

On May 9, 2008, at Yuma Proving Ground in Arizona, the A160T demonstrated its ability to hover out of ground effect (HOGE) at 15,000 feet to meet its DARPA milestone. It then surpassed the milestone during the same flight by repeating the HOGE at 20,000 feet altitude. A week later, starting the night of May 14, the A160T demonstrated its un-refueled endurance capabilities with an 18.7-hour flight, landing with over 90 minutes of fuel still on board. It was the longest un-refueled flight of any rotorcraft, and the Fédération Aéronautique Internationale(FAI) has awarded Boeing the official endurance record in the 500 kg to 2,500 kg autonomously controlled UAV class for the flight. In August 2008, the A160T began flight testing the DARPA FORESTER radar system.

In August 2009, the A160T was chosen by the US Marine Corps along with the Kaman K-MAX to demonstrate the ability to move 6,000 lb (2,722 kg) of cargo in less than 6 hours for three consecutive days. The A160T successfully completed the re-supply demonstration in early March 2010. In December 2010, NAVAIR awarded a $29.9 million contract to Boeing for two A160Ts and control systems. Kaman received a similar contract worth $46M.

On 28 July 2010 an A160T crashed at Southern California Logistics Airport. It autorotated to the ground then rolled on its side.

In August 2010 the A160T Hummingbird underwent jungle test flights in Belize. Two airframes were involved with the tests which were to test the ability of DARPA FORESTER foliage-penetrating radar to penetrate jungle cover. The tests were ended one week early when one aircraft crashed on 4 September 2010 at the Central Farm airfield in Cayo, Belize.

Specifications

General characteristics

Crew: 0
Length: 35 ft 0 in (10.7 m)
Main rotor diameter: 36 ft 0 in (11 m)
Empty weight: 2,500 lb (1,134 kg)
Gross weight: 6,500 lb (2,948 kg) each

Performance

Maximum speed: 160+ mph (258+ km/h)
Endurance: 20+ hours
Service ceiling: 20,000-30,000 ft (6,100-9,150 m)

Unmanned aerial vehicle
MQ-8 Fire Scout
Boeing X-45
