Brewster F2A Buffalo

F2A Buffalo

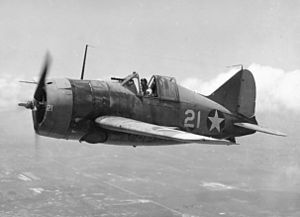

Picture - Brewster F2A-3 in flight.

Role: Single seat carrier-based fighter
National origin: United States
Manufacturer: Brewster Aeronautical Corporation
First flight: 2 December 1937
Introduced: April 1939
Retired: 1948
Status: retired
Primary users: United States Navy Finnish Air Force Royal Air Force Royal Australian Air Force
Produced: 1938-1941
Number built: 509

The Brewster F2A Buffalo was an American fighter aircraft which saw limited service early in World War II. Though the Buffalo won a competition against the Grumman F4F Wildcat in 1939 to become the US Navy's first monoplane fighter aircraft, it turned out to be a big disappointment. Several nations, including Finland, Belgium, Britain and the Netherlands, ordered the Buffalo to bolster their struggling air arms, but of all the users, only the Finns seemed to find their Buffalos effective, flying them in combat with excellent results. During the Continuation War of 1941-1944, the B-239's (a de-navalized F2A-1) operated by the Finnish Air Force proved capable of engaging and destroying most types of Soviet fighter aircraft operating against Finland at that time, achieving, in the first phase of that conflict, a kill-ratio of 32:1, 32 Soviet aircraft shot down for every B-239 lost and producing 36 Buffalo "aces".

When World War II began in the Pacific in December 1941, Buffalos operated by both British Commonwealth (B-339E) and Dutch (B-339D) air forces in South East Asia suffered severe losses in combat against the Japanese Navy's Mitsubishi A6M Zero and the Japanese Army's Nakajima Ki-43 "Oscar". The British attempted to lighten their Buffalos by removing ammunition and fuel and installing lighter guns in order to increase performance, but it made little difference.

The Buffalo was built in three variants for the U.S. Navy, the F2A-1, F2A-2 and F2A-3. (In foreign service, with lower horsepower engines, these types were designated respectively, B-239, B-339, and B-339-23.) The F2A-3 variant saw action with United States Marine Corps (USMC) squadrons at the Battle of Midway. Shown by the experience of Midway to be no match for the Zero, the F2A-3 was derided by USMC pilots as a "flying coffin." The F2A-3, however, was significantly inferior to the F2A-2 variant used by the Navy before the outbreak of the war.

Design and development

United States Navy

In 1935, the U.S. Navy issued a requirement for a carrier-based fighter intended to replace the Grumman F3F biplane. The Brewster XF2A-1 monoplane, designed by a team led by Dayton T. Brown, was one of two aircraft designs that were initially considered. The XF4F-1 with a double-row radial engine was a "classic" biplane. The U.S. Navy competition was re-opened to allow another competitor, the XFNF-1, a navalized Seversky P-35, eliminated early on when the prototype could not reach more than 267 mph (430 km/h). The XF2A-1 first flew on 2 December 1937 and early test results showed it was far in advance of the Grumman biplane entry. While the XF4F-1 would not enter production, it would later re-emerge as a monoplane, the Wildcat.

It was manufactured at the Brewster Building in Long Island City, New York.

Picture - Brewster XF2A-1 prototype

The new Brewster fighter had a modern look with a stubby fuselage, mid-set monoplane wings and a host of advanced features. It was all-metal, with flush-riveted, stressed aluminum construction, although control surfaces were still fabric-covered. The XF2A-1 also featured split flaps, a hydraulically-operated retractable main undercarriage (and partially retractable tail wheel), and a streamlined framed canopy. However, the aircraft lacked self-sealing tanks and pilot armor. Fuel was only 160 U.S. gal (606 l), stored in the fuselage. Powered by an 950 hp (708 kW) single-row Wright R-1820-22 Cyclone radial engine, it had an impressive initial climb rate of 2,750 ft/min and a top speed of 277.5 mph (447 km/h), later boosted to 304 mph (489 km/h) at 16,000 ft (4,879 m) after improvements were made to the cowling streamlining and carburetor/oil cooler intakes. With only a single-stage supercharger, high-altitude performance fell off rapidly. Fuselage armament was one fixed .50 in (12.7 mm) M2 Browning machine gun with 200 rounds and one fixed .30 in (7.62 mm) AN Browning machine gun with 600 rounds, both in the nose. The Navy awarded Brewster Aeronautical Corporation a production contract for 54 aircraft as the F2A-1.

While Service testing of the XF2A-1 prototype began in January 1938 and in June, production started on the F2A-1. They were powered by the 940 hp (701 kW) Wright R-1820-34 engine and had a larger fin. The added weight of two additional .50 in (12.7 mm) Browning wing guns and other equipment specified by the Navy for combat operations reduced the initial rate of climb to 2,600 ft/min. Plagued by production difficulties, Brewster only delivered 11 F2A-1 aircraft to the Navy; the remainder of the order was later diverted to the Finnish Air Force in modified form under the export designation Model 239.

Picture - Lt. Thach tipped this F2A-1 onto its nose on Saratoga, March 1940.

A later variant, the F2A-2, of which 43 were ordered by the U.S. Navy, included a more powerful R-1820-40 engine of 1,200 hp (895 kW), a better propeller, and integral flotation gear, but still lacked pilot armor and self-sealing fuel tanks. The increase in engine power was welcomed, but to some extent offset by the increased loaded weight (5,942 lb/2,701 kg) of the aircraft; while top speed was increased to a respectable 323 mph (520 km/h) at 16,500 ft (5,029 m), initial climb rate dropped to 2,500 ft/min. Both the F2A-1 and the F2A-2 variants of the Brewster were liked by early Navy and Marine pilots, including Pappy Boyington, who praised the good turning and maneuvering abilities of the aircraft. "Pappy" Boyington observed: "But the early models, before they weighed it all down with armor plate, radios, and other [equipment], they were pretty sweet little ships. Not real fast, but the little [aircraft] could turn and roll in a phone booth." This might be expected from the low wing loading, only 24.1 pounds per square foot, only 10% higher than that of the Zero.

Picture - F2A-3s serving as U.S. Navy training aircraft at NAS Miami, 1942-1943.

The F2A-3 was the last version of the Buffalo to enter service with the U.S. Navy and Marine Corps. A total of 108 examples were ordered in January 1941. By this time, the Navy had become disenchanted with the Buffalo, and had become especially annoyed at Brewster Aeronautical Corporation`s frequent production delays and its seemingly never-ending management difficulties. This order was seen more as a way of keeping Brewster's production lines running (they would eventually build Corsair fighters for the navy) as well as Buccaneer/Bermuda dive bombers. The F2A-3s were conceived as a long range reconnaissance fighter with a new wet wing with self-sealing features and a larger fuselage tank which provided increased fuel capacity and protection, but this also increased the aircraft's weight by more than 500 lb (227 kg). The wing and enlarged fuselage tank carried an additional 80 U.S. gal (300 L) of fuel; at 6 lb/U.S. gal (0.72 kg/L), the fuel alone weighed nearly 500 lb (227 kg). The addition of armor plating for the pilot and increased ammunition capacity further increased the aircraft's weight, resulting in a reduced top speed and rate of climb, while substantially degrading the Brewster's turning and maneuvering capability. The Navy found that the added weight of the F2A-3 also aggravated the problem of landing gear failure during carrier landings. However, the Curtiss engine in the F2A-3 was an excellent "cruising" engine and as such the F2A-3 had some value and saw initial service on the carriers Saratoga and Lexington.

Even in late 1940 it was apparent that the Buffalo was rapidly becoming obsolete. It badly needed a more powerful engine, but the limits of the airframe had been reached, making installation of a larger engine impossible. Soon after deliveries of the F2A-3 began, the Navy decided to eliminate the type altogether. By then, considered a second line aircraft, some were transferred to the U.S. Marine Corps, which deployed two F2A-3 squadrons to the Pacific, one at Palmyra Atoll, and another at Midway Island. Those which still remained on board aircraft carriers narrowly missed a combat opportunity when a relief mission was dispatched to Wake island, but the relief force was withdrawn before completing the mission. Shortly thereafter, F2A-3s still in naval service were transferred to training squadrons for use as advanced trainers.

Operational history

The first unit to be equipped with the F2A-1 was Lt Cdr Warren Harvey’s VF-3, assigned to USS Saratoga air group. On 8 December 1939, VF-3 received 10 of the 11 Buffalos delivered to the U.S. Navy. The remaining 43 F2A-1s were declared surplus and sold to Finland. Although it was becoming clear the F2A was inferior to the latest German fighters, in the early years of World War II, all modern monoplane fighter types were in high demand, including the F2A. Consequently, the United Kingdom, Belgium, and the Netherlands East Indies purchased several hundred export models of the Buffalo.

Belgium

Just before the start of World War II, Belgium sought more modern aircraft to expand and modernize its air force. Belgium ordered 40 Brewster B-339 aircraft, a de-navalized F2A-2, fitted with the Wright R-1820-G-105 engine approved for export use. The G-105 engine had a power output of 1,000 hp/746 kW (peak) at takeoff, some 200 hp (149 kW) less than the engine fitted to the U.S. Navy F2A-2. The arrestor hook and life raft container were removed, and the aircraft was modified with a slightly longer tail.

Only one aircraft reached France by the time Germany launched its Blitzkrieg in the West on 10 May 1940. The Buffalo was later captured intact by the Germans.

Six more Belgian Brewsters were offloaded in the French Caribbean island of Martinique and languished on a coastal hillside, never flown. The rest of the order went to the RAF.

British Commonwealth (Malaya)

Picture - Brewster Buffalo Mk Is being inspected by RAF personnel at RAF Sembawang, Singapore on 12 October 1941.

Facing a shortage in combat aircraft in January 1940, the British government established the British Purchasing Commission to acquire U.S. aircraft that would help supplement domestic production. Among the U.S. fighter aircraft that caught the Commission's attention was the Brewster. The remaining 32 B-339 aircraft ordered by the French, suspended at the fall of France, were passed on to the United Kingdom. Appraisal by Royal Air Force acceptance personnel criticized it on numerous points including lack of armament and pilot armor, poor high-altitude performance, engine overheating, maintenance issues, and cockpit controls, while it was praised for its handling, roomy cockpit, and visibility. With a top speed of about 323 mph (520 km/h) at 21,000 ft (6,400 m), but with fuel starvation issues over 15,000 ft (4,600 m), it was considered unfit for duty in western Europe. Still desperately in need of fighter aircraft in the Pacific and Asia for British and Commonwealth air forces, the UK ordered an additional 170 aircraft under the type specification B-339E. The aircraft were sent to Royal Australian Air Force, RAF and Royal New Zealand Air Force fighter squadrons in Singapore, Malaya and Burma, shortly before the outbreak of war with Japan.

Picture - Brewster B-339E (serial AN196) of No. 243 Squadron RAF. This aircraft was captured by the Japanese at Kota Bharu, Malaya, in December 1941.[18]

The B-339E, or Brewster Buffalo Mk I as it was designated in British service, was initially intended to be fitted with an export-approved Wright R-1820-G-105 Cyclone engine with a 1,000 hp/746 kW (peak takeoff) engine. The Brewster aircraft delivered to British and Commonwealth air forces were significantly altered from the B-339 type sold to the Belgium and French forces in accordance with their purchase order. The Brewster factory removed the Navy life raft container and arrestor hook, while adding many new items of equipment, including a British Mk III reflector gun sight, a gun camera, a larger fixed pneumatic tire tail wheel, fire extinguisher, engine shutters, a larger battery, and reinforced armor plating and armored glass behind the canopy windshield.

The Brewster Model B-339E, as modified and supplied to Great Britain was distinctly inferior in performance to the F2A-2 (Model B-339) from the original order. It had a less powerful (1,000 hp/746 kW) engine compared to the F2A-2's 1,200 hp (895 kW) Cyclone, yet was substantially heavier due to all of the additional modifications (some 900 lb/400 kg). The semi-retractable tail wheel had been exchanged for a larger fixed model, which was also less aerodynamic. Top speed was reduced from 323 mph (520 km/h) to 313 mph (504 km/h) at combat altitudes,.

Picture - Brewster B339E wrecks cannibalized for parts, probably in Singapore circa late January 1942. Two of the Buffalos, serials W8156 and W8207, were operated by 453 Squadron RAAF.[18]

In its original form, the B-339 had a theoretical maximum speed of 323 mph (520 km/h) at a rather unrealistic 21,000 ft (6,400 m), but fuel starvation problems and poor supercharger performance at higher altitudes meant that this figure was never achieved in combat; the B-339E was no different in this regard. Its maneuverability was severely impaired (the aircraft was unable to perform loops), and initial rate of climb was reduced to 2,300 ft/min. The Wright Cyclone 1890-G-105 engine designated for use in the Brewster Mk I was in short supply; many aircraft were fitted with secondhand Wright engines sourced from Douglas DC-3 airliners and rebuilt to G105 or G102A specifications by Wright. In service, some effort was made by at least one Brewster squadron to improve the type's sluggish performance; a few aircraft were lightened by some 1,000 lb (450 kg) by removing armor plate, armored windshields, radios, gun camera, and all other unnecessary equipment, and by replacing all .50 in (12.7 mm) machine guns with two .303 in (7.7 mm) nose-mounted guns. The fuselage tanks were filled with a minimum of fuel, and run on high-octane aviation petrol where available. At Alor Star airfield in Malaya, the Japanese captured over 1,000 barrels (160 m) of high-octane aviation petrol from British forces, which they promptly used in their own fighter aircraft.

Picture - Buffalo Mk I formation over Malaya, late 1941.

Many of the pilots assigned the Buffalo lacked adequate training and experience in the type. A total of 20 of the original 169 Buffalos were lost in training accidents during 1941. By December 1941, approximately 150 Buffalo B-339E aircraft made up the bulk of the British fighter defenses of Burma, Malaya and Singapore. The two RAAF, two RAF, and one RNZAF squadrons, during December 1941-January 1942, were beset with numerous problems, including: poorly-built and ill-equipped aircraft. Aviation historian Dan Ford characterized it as: "The performance... was pathetic." Inadequate spare parts and support staff, airfields that were difficult to defend against air attack, lack of a clear and coherent command structure, a Japanese spy in the Army air liaison staff, antagonism between RAF and RAAF squadrons and personnel, and inexperienced pilots lacking appropriate training would lead to disaster. Although the Mk I had .50-inch guns, many aircraft were equipped with .30 Browning mounts and electric firing solenoids, which tended to fail in service.

When the Japanese invaded northern Malaya on 8 December 1941, the B-339E initially performed adequately. Against the Nakajima Ki-27 "Nate", the overloaded Brewsters could at least hold their own if given time to get to altitude, and at first achieved a respectable number of kills. However, the appearance of ever greater numbers of Japanese fighters, including markedly superior types such as the Nakajima Ki-43 "Oscar" soon overwhelmed the Buffalo pilots, both in the air and on the ground. Another significant factor was the Brewster engine's tendency to overheat in the tropical climate, which caused oil to spray over the windscreen, usually forcing an aborted mission and greatly complicating attempts to intercept and destroy enemy aircraft. In the end, more than 60 Brewster Mk I (B-339E) aircraft were shot down in combat, 40 destroyed on the ground, and approximately 20 more destroyed in accidents. Only about 20 Buffalos survived to reach India or the Dutch East Indies.

Picture - Buffalos of No. 453 Squadron RAAF lined up at RAF Sembawang, circa November 1941.

It is not entirely clear how many Japanese aircraft the Buffalo squadrons shot down, although RAAF pilots alone managed to shoot down at least 20. Eighty were claimed in total, a ratio of kills to losses of just 1.3 to 1. Additionally, most of the Japanese aircraft shot down by the Buffalos were bombers. The Hawker Hurricane, which fought in Singapore alongside the Buffalo from 20 January, also suffered severe losses from ground attack; most were destroyed. The Fleet Air Arm also used the Buffalo in the Mediterranean in the Battle of Crete in early 1941.

The Brewster Mark I produced four Commonwealth aces: Geoff Fisken, Maurice Henry Holder, Alfred Wattle Benjamin Clare and Richard Douglas Vanderfield. New Zealander Fisken, the top-scoring pilot, later flew RNZAF P-40s and became the highest-scoring Commonwealth pilot within the Pacific theatre.

Netherlands East Indies

Picture - Lt. August Deibel of 2-VlG V with his Dutch Buffalo (serial B-3110)[18]

The Militaire Luchtvaart van het Koninklijk Nederlands-Indisch Leger ("Military Air Service of the Royal Netherlands East Indian Army", ML-KNIL) had ordered 144 Brewster B-339C and 339D models, the former with rebuilt Wright G-105 engines supplied by the Dutch and the latter with new 1,200 hp (895 kW) Wright R-1820-40 engines Brewster purchased from Wright. At the outbreak of war, only 71 had arrived in the Dutch East Indies, and not all were in service. A small number served briefly at Singapore before being withdrawn for the defense of Java.

As the Brewster B-339 aircraft used by the ML-KNIL were lighter than the modified B-339E Brewster Mark Is used by British, Australian, and New Zealand air forces, they were able at times to successfully engage the Japanese Army Ki-43 "Oscar", although both the "Oscar" and the Japanese Navy's A6M Zero still out-climbed and out-turned the B-339 at combat altitudes (the Zero was faster as well).

Picture - Brewster Buffalos of the ML-KNIL

Apart from their role as fighters, the Brewster fighters were also used as dive bombers against Japanese troopships. Although reinforced by British Commonwealth Brewster Mk I (B-339E) aircraft retreating from Malaya, the Dutch squadrons faced superior numbers in the air, and were too few in number to stem the advance of Japanese ground forces.

In a major engagement above Semplak on 19 February 1942, eight Dutch Brewster fighters intercepted a formation of about 35 Japanese bombers with an escort of about 20 Zeros. The Brewster pilots destroyed 11 Japanese aircraft and lost four Brewsters; two Dutch pilots died.

The Brewsters flew their last sortie on 7 March. Altogether, 17 ML-KNIL pilots were killed, and 30 aircraft shot down; 15 were destroyed on the ground, and several were lost to misadventure. Dutch pilots claimed 55 enemy aircraft destroyed. Two Dutch pilots, Jacob van Helsdingen and August Deibel, scored highest with the Buffalo with three victories each.

Following the surrender of the Netherlands East Indies on 8 March 1942, 17 ML-KNIL Buffalos were transferred to the USAAF and RAAF in Australia (see below).

U.S. Marine Corps

Picture - VMF-211 F2A-3 being shipped to Midway, in early 1942.

At Midway Island, United States Marine Corps fighter group VMF-221 operated a mixed group of 20 Brewster F2A-3 Buffalos and six Grumman F4F-3 Wildcats. The squadron first saw action on 10 March 1942 when a Kawanishi H6K "Mavis" flying boat was shot down by Captain James L. Neefus near Midway, the Buffalo's first kill in US service.

During the Battle of Midway in 1942, VMF-221 was destined to participate in one of the few aerial combats involving the Buffalo in U.S. military service. The initial Buffalo interception of the first Japanese air raid was led by Major Floyd B. Parks, whose 13-aircraft division did not fly in paired flights of mutually supporting aircraft. After attacking a formation of 30-40 Aichi D3A1 "Val" dive bombers escorted by 36 Zeros, the Marines, flying in two divisions of aircraft, downed several Japanese bombers before the escorting Zeros reacted; a furious dogfight developed. Thirteen out of 20 Buffalos were lost; of the six Wildcats, only two remained flyable at the end of the mission. The losses included the Marine air commander, Major Parks, who bailed out of his burning Buffalo, only to be strafed by Zeros after parachuting into the sea.

Picture - F2A-3, probably from VMF-212, at Marine Corps Air Station Ewa, Hawaii, 25 April 1942.

The Marine pilots who managed to shake off the Zeros used high speed split-s turns or very steep dives. These maneuvers were later found to be the best means to evade pursuit by the highly maneuverable Japanese fighters. One F2A-3 pilot, Marine Captain William Humberd, dove away from his pursuers, then attacked a Zero in a head-on pass, shooting his opponent down. In the battle, some F2A-3s suffered from inoperative guns. The nose-mounted guns' occasional failure to fire was noticed by other users as well; the phenomenon may have been caused by frayed electrical wires in the mechanism that synchronized the nose guns with the propeller. Other Buffalos had not been fitted with plate armor behind the pilot, making them vulnerable to even a single bullet or shell. Losses were aggravated due to the Japanese practice of strafing pilots who had bailed out. Second Lt. Charles S. Hughes, whose Buffalo was forced to retire at the start of the raid due to engine trouble, had a ringside view of the aerial combat:

The Zeros came in strafing immediately afterward. I saw two Brewsters trying to fight the Zeros. One was shot down and the other was saved by ground fires covering his tail. Both looked like they were tied to a string while the Zeros made passes at them.

The Zeros came in strafing immediately afterward. I saw two Brewsters trying to fight the Zeros. One was shot down and the other was saved by ground fires covering his tail. Both looked like they were tied to a string while the Zeros made passes at them.

Second Lt. Charles M. Kunz reported that after successfully downing two Val bombers, he was attacked by Japanese fighters:

I was at an altitude of about 9,000 ft, and shoved over in a dive trying to shake the plane on my tail until I was about 20 feet from the water. I was making radical turns hoping the pilot couldn't get steadied on me. I glanced out of the rear and saw that it was a [Mitsubishi A6M Zero] fighter. I continued flying on a rapid turning course at full throttle when I was hit in the head by a glancing bullet. After he fired a few short burst he left as I had been in a general direction of 205 degrees heading away from the island. My plane was badly shot up... In my opinion the [Zero] fighter has been far underestimated. I think it is probably one of the finest fighters in the present war. As for the F2A-3, (or Brewster trainer) it should be in Miami as a training plane, rather than used as a first line fighter.

I was at an altitude of about 9,000 ft, and shoved over in a dive trying to shake the plane on my tail until I was about 20 feet from the water. I was making radical turns hoping the pilot couldn't get steadied on me. I glanced out of the rear and saw that it was a [Mitsubishi A6M Zero] fighter. I continued flying on a rapid turning course at full throttle when I was hit in the head by a glancing bullet. After he fired a few short burst he left as I had been in a general direction of 205 degrees heading away from the island. My plane was badly shot up... In my opinion the [Zero] fighter has been far underestimated. I think it is probably one of the finest fighters in the present war. As for the F2A-3, (or Brewster trainer) it should be in Miami as a training plane, rather than used as a first line fighter.

The poor performance of the Buffalo at Midway later prompted Finnish Air Force ace Hans Wind to develop new combat tactics for the FAF Brewster, which were later used with remarkable success in 1942 and 1943 against the Soviet Air Force during the Continuation War. Wind's combat tactics, which emphasized diving speed and zoom climbs, were much the same as Claire Chennault's advice for employing the Curtiss P-40 against the A6M Zero in Burma and China. Chennault's report on the Zero and air combat reached Washington in 1941, where it was disseminated to aviation forces of the U.S. Army and Navy. This information, along with the development of two-plane mutual defensive formations and tactics, were incorporated into U.S. and Marine Corps air combat training doctrine by some prescient U.S. commanders, including Lieutenant Commander "Jimmy" Thach. The Thach Weave was developed for use by Wildcat pilots against the Zero, and was later adopted by other Wildcat squadrons in the Pacific.

With the emergence of new tactics for the F4F-3 and F4F-4 Wildcat (which was superior in all respects to the F2A-3 Buffalo, with the sole exception of maximum range), the Battle of Midway marked the end of the Buffalo in both U.S. Navy and Marine Corps fighting squadrons. Surviving F2A-3 aircraft were hastily transported to the U.S. mainland, where they were used as advanced trainers. The introduction in late 1943 of vastly superior American carrier-borne fighters such as the F6F Hellcat and Vought F4U Corsair soon relegated the Brewster F2A-3 to a distant, if painful memory.

USAAF/RAAF in Australia

Following the surrender of the Netherlands East Indies in 1942, 17 Buffalos belonging to the KNIL-ML were transferred to the U.S. Fifth Air Force in Australia.

All of these USAAF aircraft were lent to the RAAF, with which they were used mainly for air defence duties outside frontline areas, photo-reconnaissance snd gunnery training. Buffalos served with 1 PRU, 24 Sqn, 25 Sqn, 85 Sqn and the RAAF Gunnery Training School.

Between August 1942 and November 1943, 10 of these Buffalos constituted the air defence force for Perth, Western Australia, while assigned to 25 and 85 Sqns at RAAF Pearce and RAAF Guildford.

In 1944, all of the surviving aircraft were transferred to the USAAF.

Finland

Picture - Finnish Air Force Brewster B-239

In April 1939, the Finnish government contacted the Roosevelt administration in a search to hastily acquire modern combat aircraft for its air force. On 17 October that same year, the Finnish Embassy in Washington, DC, received a telegram clearing the purchase of fighter aircraft. Prompt availability, and compatibility with 87-octane fuel, were the only requirements stipulated by the Finns. The U.S. Navy and State Department arranged to divert the remaining F2A-1 fighter aircraft, in exchange for its order of F2A-2 Buffalos scheduled to be delivered later (and hence sent to the U.S. Navy, instead).

Consequently, on 16 December, the Finns signed a contract to purchase 44 Model 239 fighters. The total agreed price was US $3.4 million, and the deal included the provision of spare parts, ten replacement engines and twenty Hamilton Standard propellers. The Buffalo fighters that were sent to Finland were de-navalized; before these fighters were placed onto ships for delivery to Finland, Brewster Company employees removed all the naval equipment on the fighters, such as their tailhooks and life-raft containers, resulting in a somewhat lighter aircraft. The Finnish F2A-1s further lacked self-sealing fuel tanks and cockpit armor.

These F2A-1 Buffalos, given the export number Model B-239, were equipped with an export-approved Wright R-1820-G5 nine-cylinder radial engine of 950 hp (708 kW). After their delivery to Finland, the Finnish Air Force added armored backrests for their pilots, metric flight instruments, the Finnish Vx¤isx¤lx¤ T.h.m.40 gunsight, and four .50 in (12.7 mm) machine guns. The top speed of the Finnish Buffalos, as modified, was 297 mph (478 km/h) at 15,675 ft (4,750 m), and their loaded weight was 5,820 lb (2,640 kg).

Built in four batches, the "Finnish" Brewsters were loaded aboard four merchant ships in New York and shipped for Bergen, in Norway, in January-February 1940. The crates with the fighters were sent by railway to Sweden and assembled by SAAB, near Gothenburg.

In February 1940, Finnish Air Force pilot Lieutenant Jorma "Joppe" Karhunen flight tested the first Buffalo. Unfamiliar with the aircraft, he accidentally burned out the engine while flying very low at high speed; crashing on a snow-covered field, damaging the propeller and some belly panels. Initially unimpressed, the Finns later witnessed a demonstration by a Brewster Company factory test pilot Robert A. Winston, who was able to stay on the tail of an Finnish Fiat G.50 Freccia fighter from Italy; although the Fiat fighter was slightly faster in level flight, the Brewster could out-turn it.

The Finns were overjoyed, and they began flying their new fighter. Of the six Buffalo B-239 fighters delivered to Finland before the end of the Winter War of 1939-1940, five of them became combat-ready, but they did not enter combat before this war ended.

The Brewster B-239E fighter aircraft was never referred to as the "Buffalo" in Finland; it was known simply as the "Brewster" or sometimes by the nicknames Taivaan helmi ("Sky Pearl") or Pohjoisten taivaiden helmi ("Pearl of the Northern Skies"). Other nicknames were Pylly-Valtteri ("Butt-Walter"), Amerikanrauta ("American hardware" or "American car") and Lentx¤vx¤ kaljapullo ("flying beer-bottle"). The 44 Buffalo Model B-239 (export) fighters used by the FAF received serial numbers BW-351 to BW-394.

Picture - Finnish Air Force's Brewster B-239 formation during the Continuation War

In Finnish Air Force service, the B-239s were regarded as being very easy to fly, a "gentleman's plane." The Buffalo was also popular within the FAF because of its relatively long range and flight endurance, and also because of its low-trouble maintenance record. This was in part due to the efforts of the Finnish engine mechanics, who solved a problem that plagued the Wright Cyclone engine simply by inverting one of the piston rings in each cylinder. This had a positive effect on engine reliability. The cooler weather of Finland was also a plus for the engine. In the end, the Brewster Buffalo gained a reputation in Finnish Air Force service as one of their more successful fighter aircraft. In service from 1941-1945, Buffalos of Lentolaivue 24 (Fighter Squadron 24) claimed 477 Soviet Air Force warplanes destroyed, with the combat loss of just 19 Buffalos, an outstanding victory ratio of 26:1. However, substantiation of this claim from Luftwaffe and Soviet Air Force records (matching Finnish reported kills to the enemy's acknowledged losses) has not been completed as of 2007. These figures also do not specify the number of bombers and the number of fighter aircraft destroyed.

During the Continuation War, Lentolaivue 24 (Fighter Squadron 24) was equipped with the B-239s until May 1944, when the Buffalos were transferred to Hx¤vittx¤jx¤lentolaivue 26 (Fighter Squadron 26).

The Brewsters had their baptism by fire in Finland on 25 June 1941 when a pair of Buffalos from 2/LLv24 intercepted 27 Soviet SBs from 201st SBAP over Turku. Cpl Heimo Lampi and SSgt Kinnunen shot down five Tupolev SBs. Subsequent attacks were repelled by LLv24 pilots who by dusk had flown 77 missions.

Many Finnish pilots racked up enormous scores on the Finnish/Soviet front by using formulaic defensive tactics against Soviet planes. The default tactic was the four-plane "parvi" (swarm) with a pair flying low (but visible, not too close to the terrain) as the bait, and a pair flying high to dive on the eventual interceptors. In the long run, the Soviet Air Force on the Finnish front never developed an efficient approach to counter this tactic. According to some reports, this tactic also inspired the German Luftwaffe's kette. Most of the pilots of Lentolaivue 24 were Winter War combat veterans. This squadron achieved a total of 459 Soviet aircraft kills with B-239s, while losing 15 Buffalos in combat.

While the remarkable Finnish accomplishments in the Buffalo are undeniable, aviation historian Dan Ford points out that Stalin's purges and recent expansion of the Soviet Air Force resulted in many new, inexperienced pilots while simultaneously discouraging combat initiative. The result was pilots who failed to scan the airspace behind them, and also Soviet air formations that held their positions in defensive circles while the diving Finnish pilots picked them off one-by-one. The Soviet fighter aircraft used in the early years on the Finnish front also included some obsolescent models such as the Polikarpov I-15 and I-153. After the end of hostilities, Karhunen, the captain and commander of the 3rd flight of LeLv 24, recalled:

"The Brewster model 239 was good against the older Russian fighters, Polikarpov I-153 Chaika (Gull) and I-16. Hence the period 1941-42 was the best time for us. In 1943 it was already significantly more difficult when the Russians began to use their newer fighters against us... Later, with the Yaks, Hurricanes, Tomahawks, LaGG-3 and MiGs, it became a fight to the death."

"The Brewster model 239 was good against the older Russian fighters, Polikarpov I-153 Chaika (Gull) and I-16. Hence the period 1941-42 was the best time for us. In 1943 it was already significantly more difficult when the Russians began to use their newer fighters against us... Later, with the Yaks, Hurricanes, Tomahawks, LaGG-3 and MiGs, it became a fight to the death."

The top-scoring Buffalo pilot was Hans Wind, with 39 kills in B-239s. Wind scored 26 of his kills while flying aircraft BW-393, while Eino Luukkanen scored seven more in the same aircraft. After evaluation of claims against Soviet actual losses, aircraft No. BW-364 was credited with 42½ kills in total by all pilots operating it, possibly making it the highest-scoring fighter airframe in the history of air warfare. The top scoring Finnish ace, Ilmari Juutilainen, scored 34 of his 94½ kills in B-239s, including 28 in BW-364.

Capt. Jorma Karhunen was another of the top-scoring Buffalo pilots. By 4 May 1943, he had achieved 25½ aerial victories in the Buffalo B-239 fighter, out of his 31½ total kills. One of his major missions took place on 17 December 1941, when two sections of Brewsters encountered nine Soviet Hurricanes and I-153s in reconnaissance over Maaselkx¤ isthmus. The Hawker fighters were from 152ndIAP. The Finns shot down five aircraft, two of which fell to Karhunen in BW-366. On 18 August 1942 he was involved in one of the most successful sorties involving the Buffalo fighter. Lt Hans Wind with six other Buffalos of LeLv 24 intercepted some 60 Soviet aircraft near Kronstad. Two Russian Pe-2 bombers, one Soviet Hurricane fighter, and 12 I-16s were shot down with the loss of just one Buffalo B-239 (BW-378).

During the Continuation War, Finnish designers devised a new aircraft, the Humu, based on the Brewster Buffalo, which was to be produced in Finland from cheaper materials such as plywood, instead of costly aluuminum alloys. Only a single prototype was ever built, since it had become clear that this fighter was already obsolete in 1943. By late 1943, the lack of spare parts, aircraft wear-and-tear, and the improvement of Soviet fighters greatly reduced the effectiveness of the Finnish Buffalo. LeLv 26 pilots still scored some 35 victories against Soviet aircraft in mid-1944. The last aerial victory by a Buffalo against the Soviet Union was scored over the Karelian Isthmus on 17 June 1944.

After Finland made a separate peace with the Soviet Union, they were forced to drive Finland's former ally, Nazi Germany out of the country. During the so-called "Lapland War," the only clash with the Luftwaffe took place on 3 October 1944 when HLeLV 26 intercepted a formation of Junkers Ju 87s, heading for a Finnish convoy in the Bay of Bothnia. A Buffalo pilot, Lt. Erik Teromaa (with 11 kills), claimed a Ju 87, and SSgt Oiva Hietala was credited with the second Stuka to fall to the unit. These two victories were the last to be made by Brewster pilots in World War II. Only eight Buffalo B-239s were left at the end of that war in Lapland.

Before Finland had switched sides in the war, its air force had received some Messerschmitt Bf 109s from Germany, and this much-superior fighter aircraft was subsequently used to equip most of the Finnish Air Force fighter squadrons. The five remaining Brewster Buffalos flew until the autumn of 1948, when they were returned to storage. The last flights of Finnish Brewsters by the Finnish Air Force were performed on 14 September 1948 by BW-377 and BW-382. They were all scrapped in 1953.

Buffalo aces

The Finnish Air Force produced 36 Buffalo aces. The top scorer was Capt. Hans H. Wind with 39 Buffalo air victories (out of 75); second was WO Eino Ilmari Juutilainen, with 34 (out of 94) and third highest score was Capt. Jorma Karhunen (25.5 out of 31.5). First Lt Lauri V. Nissinen also had victories on the type (22.5 out of 32.5). Other non-Finnish Buffalo aces were Commonwealth pilots Geoff Fisken from the RNZAF, with six air victories, Richard Douglas Vanderfield (RAAF) with five individual kills, plus one shared, and Alfred Wattle Benjamin Clare and Maurice Henry Holder, with five victories each.

Variants

Picture - Brewster Buffalo F2A-2

XF2A-1
Prototype
F2A-1
(with R-1830-34 engine and two guns) for the United States Navy, 11 built.
F2A-2
(with R-1820-40 engine and four guns) for the United States Navy and Marines, 43 built.
F2A-3
Improved F2A-2 for the United States Navy with longer range and provision to carry two underwing 100 lb (45 kg) bombs, 108 built.
B-239
Export version for Finland (with R-1820-G5 engines and four guns), 44 built.
B-339B
Export version for Belgium, 40 built (only two delivered to Belgium, rest to United Kingdom Fleet Air Arm)
B-339C
Export version for the Netherlands East Indies with Wright G-105 engine; 24 built.
B-339D
Export version for the Netherlands East Indies with 1,200 hp (895 kW) Wright R-1820-40 engine; 48 built.
B-339E
Export version for the British Royal Air Force with Wright G-105 engine as the Buffalo Mk I; 170 built (also used by the RAAF and RNZAF)
B-339-23
Export version for the Netherlands East Indies with 1,200 hp (895 kW) GR-1820-G205A engine, 20 built, (17 later to the RAAF, some used by the USAAF)
Buffalo Mark I
United Kingdom designation of the Model B339E

Operators

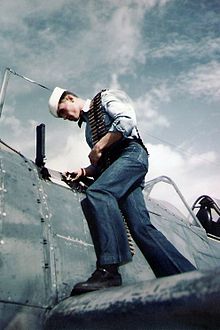

Picture - US Navy Ordnance man loads guns of a F2A fighter, 1943.

Australia
Royal Australian Air Force
No. 21 Squadron RAAF
No. 24 Squadron RAAF
No. 25 Squadron RAAF (ex-Dutch)
No. 43 Squadron RAAF
No. 85 Squadron RAAF (ex-25 Sqn.)
No. 453 Squadron RAAF
No. 452 Squadron RAAF
No. 1 PRU RAAF (ex-Dutch, Photo Reconnaissance Unit)

No. 21 Squadron RAAF
No. 24 Squadron RAAF
No. 25 Squadron RAAF (ex-Dutch)
No. 43 Squadron RAAF
No. 85 Squadron RAAF (ex-25 Sqn.)
No. 453 Squadron RAAF
No. 452 Squadron RAAF
No. 1 PRU RAAF (ex-Dutch, Photo Reconnaissance Unit)

Finland
Finnish Air Force
No. 24 Squadron (1941-1944)
No. 26 Squadron (1944-1945)

No. 24 Squadron (1941-1944)
No. 26 Squadron (1944-1945)

Indonesia In 1942, Indonesian pro-independence guerrillas captured a small number of aircraft at numerous air bases during the invasion of Japan to Dutch East Indies and saved them in remote areas for the preparation for incoming war. Most aircraft were destroyed in military conflicts between the Netherlands and the newly proclaimed-Republic of Indonesia during the Indonesian National Revolution of 1945-1949.

Picture - Captured Dutch Buffalo displayed as a war trophy with Japanese roundels.[53]

Japan
Captured Buffalos were repaired and test flown, both in Japanese markings, and - starring in recreated combat footage - in incorrect RAF markings.

Netherlands Militaire Luchtvaart KNIL
Vliegtuiggroep IV, 3e Afdeling (3-VLG-IV: 3rd Squadron, IV Group)
Vliegtuiggroep V, 1e Afdeling (1-VLG-V)
Vliegtuiggroep V, 2e Afdeling (2-VLG-V, helped defend Singapore)
Vliegtuiggroep V, 3e Afdeling (3-VLG-V)

Vliegtuiggroep IV, 3e Afdeling (3-VLG-IV: 3rd Squadron, IV Group) Vliegtuiggroep V, 1e Afdeling (1-VLG-V)

Vliegtuiggroep V, 2e Afdeling (2-VLG-V, helped defend Singapore)
Vliegtuiggroep V, 3e Afdeling (3-VLG-V)

New Zealand
Royal New Zealand Air Force
No. 14 Squadron RNZAF
No. 488 Squadron RNZAF

No. 14 Squadron RNZAF
No. 488 Squadron RNZAF

United Kingdom
Royal Air Force
No. 60 Squadron RAF
No. 67 Squadron RAF (ex-60 Sqn., most pilots were RNZAF)
No. 71 Squadron RAF
No. 146 Squadron RAF (ex-67 Sqn.)
No. 243 Squadron RAF (most pilots were RNZAF)
Royal Navy Fleet Air Arm
711 Naval Air Squadron
759 Naval Air Squadron
760 Naval Air Squadron
804 Naval Air Squadron
805 Naval Air Squadron
813 Naval Air Squadron
885 Naval Air Squadron

No. 60 Squadron RAF
No. 67 Squadron RAF (ex-60 Sqn., most pilots were RNZAF)
No. 71 Squadron RAF
No. 146 Squadron RAF (ex-67 Sqn.)
No. 243 Squadron RAF (most pilots were RNZAF)

711 Naval Air Squadron
759 Naval Air Squadron
760 Naval Air Squadron
804 Naval Air Squadron
805 Naval Air Squadron
813 Naval Air Squadron
885 Naval Air Squadron

United States
United States Army Air Force
5th Air Force, Australia (ex-Dutch)
United States Marine Corps
VMF-211, based at Palmyra Atoll
VMF-221, used in Battle of Midway
United States Navy
VF-2
VF-3
VS-201
Trainers at Pensacola

5th Air Force, Australia (ex-Dutch)

VMF-211, based at Palmyra Atoll
VMF-221, used in Battle of Midway

VF-2
VF-3
VS-201
Trainers at Pensacola

Survivors

Picture - Lauri Pekuri's FAF BW-372 on display at the Aviation Museum of Central Finland

Surviving Brewster Buffalo are extremely rare, as their construction quality was generally poor; most were quickly sold off for scrap or service in other countries. There are currently three surviving Buffalos (one Finnish, one ML-KNIL and one US Navy), of which two are replicas.

Besides the Humu prototype, the hood and fin (with 41 kills) of FAF BW-393 survive in a Finnish museum; FAF BW-372 is on display at the Keski-Suomen Ilmailumuseo (Aviation Museum of Central Finland).

In mid-1998, a Finnish B-239 (serial no. BW-372) crash-landed by FAF Lt. Lauri Pekuri was discovered in a lake, Big Kolejx¤rvi, about 31 mi (50 km) from Segezha, Russia. The aircraft was recovered from the lake in 1998, and was transported to the National Museum of Naval Aviation in Pensacola, Florida, USA on 18 August 2004. In early 2008 the aircraft was sent to the Aviation Museum of Central Finland for the 90th anniversary of the Finnish Air Force.

In July 2008, a replica B-339C was completed by the Cradle of Aviation Museum in Long Island, New York. The aircraft carries the markings of an ML-KNIL fighter flown by Lt. Gerard Bruggink (two kills). It was built for the Militaire-Luchtvaartmuseum (Military Aviation Museum) at Soesterberg, the Netherlands. The Cradle of Aviation Museum houses a replica F2A-2, carrying the markings of unit '201-S-13' from VS-201, aboard USS Long Island.

Specifications (F2A-1)

Data from

General characteristics

Crew: One, pilot
Length: 26 ft (7.9 m)
Wingspan: 35 ft (10.7 m)
Height: 11 ft 11 in (3.63 m)
Wing area: 208.9 ft² (19.408 m²)
Empty weight: 3,785 lb (1,717 kg)
Loaded weight: 5,040 lb (2,286 kg)
Powerplant: 1 x— Wright R-1820-34 Cyclone Air-cooled radial, 940 hp (701 kW)

Performance

Maximum speed: 301 mph at 17,000 ft (484 km/h at 5,200 m)
Cruise speed: 258 mph (415 km/h)
Range: 1,000 mi (1,600 km)
Service ceiling: 33,000 ft (10,100 m)
Rate of climb: 3,060 ft/min (933 m/min)
Wing loading: 24.1 lb/ft² (117.8 kg/m²)

Armament

1 x— 0.30 in Browning AN machine gun and 1 x— 0.50 in M2 Browning machine gun in the fuselage, with additional 2 x— 0.50 in M2 wing-mounted machine guns for combat operations
In Finnish service: 4 x— 0.50 in (12.7 mm) Browning M2 machine guns

Specifications (F2A-3)

Data from United States Navy Aircraft since 1911

General characteristics

Crew: One, pilot
Length: 26 ft 4 in (8.03 m)
Wingspan: 35 ft 0 in (10.67 m)
Height: 12 ft 0 in (3.66 m)
Wing area: 209 ft² (19.4 m²)
Empty weight: 4,732 lb (2,146 kg)
Max takeoff weight: 7,159 lb (3,254 kg)
Powerplant: 1 x— Wright R-1820-40 Cyclone 9 nine-cylinder single-row air-cooled radial engine, 1,200 hp (895 kW)

Performance

Maximum speed: 321 mph (279 knots, 517 km/h) at 16,500 ft (5,030 m)
Cruise speed: 161 mph (140 knots, 259 km/h)
Range: 965 mi (839 nmi, 1,554 km)
Service ceiling: 33,200 ft (10,600 m)
Rate of climb: 2,440 ft/min (744 m/min)

Armament

Guns:
2 x— 0.50 in (12.7 mm) nose-mounted M2 machine guns
2 x— 0.50 in (12.7 mm) wing-mounted machine guns

Comparable aircraft

Grumman F4F Wildcat
Hawker Sea Hurricane
Mitsubishi A6M Zero

Related lists

List of military aircraft of the United States
List of fighter aircraft

Citations

Bibliography

Byk, Gary. Buffalo Down Under: The Modeller's Guide to Australia's Inherited Fighter. Glen Waverly, Victoria, Australia: Red Roo Models Publication, 1998.
Cull, Brian, Paul Sortenhaug and Mark Haselden. Buffaloes over Singapore: RAF, RAAF, RNZAF and Dutch Brewster Fighters in Action over Malaya and the East Indies 1941-1942. London: Grub Street, 2003. ISBN 1-90401-032-6.
Dennis, Peter et al. The Oxford Companion to Australian Military History. Melbourne: Oxford University Press Australia & New Zealand, 2008 (Second edition). ISBN 978-0195517842.
Drendel, Lou. U.S. Navy Carrier Fighters of World War II. Carrollton, Texas: Squadron/Signal Publications Inc., 1987. ISBN 0-89747-194-6
Ford, Daniel. "The Sorry Saga of the Brewster Buffalo". Air&Space/Smithsonian. July 1996.
Green, William. "Brewster F2A (Buffalo)". 'War Planes of the Second World War, Volume Four: Fighters. London: Macdonald & Co., 1961, pp. 28-33. ISBN 0-356-01448-7.
Green, William and Gordon Swanborough. "Brewster F2A Buffalo". WW2 Fact Files: US Navy and Marine Corps Fighters. London, UK: Macdonald and Jane's, 1976, pp. 5-15. ISBN 0-356-08222-9.
Huggins, Mark. "Falcons on Every Front: Nakajima's KI-43-I Hayabusa in Combat." Air Enthusiast, Issue 131, September/October 2007.
Keskinen, Kalevi, Kari Stenman and Klaus Niska. Brewster B-239 ja Humu (in Finnish). Espoo, Finland: Tietoteos, 1977. ISBN 951-9035-16-8. Expanded and revised edition published in two parts:
Brewster Model 239: Suomen Ilmavoimien Historia 1A. Espoo, Finland: Kari Stenman Publishing, 2005. ISBN 952-99432-3-7.
Brewster Model 239: Suomen Ilmavoimien Historia 1B. Espoo, Finland: Kari Stenman Publishing, 2005. ISBN 952-99432-4-5.
Lundstrom, John B. The First Team: Pacific Naval Air Combat from Pearl Harbor to Midway. Annapolis, MA: Naval Institute Press, 2005. ISBN 978-1591144717.
Maas, Jim. F2A Buffalo in action. Carrollton, Texas: Squadron/Signal Publications Inc., 1988. ISBN 0-89747-196-2.
Neulen, Hans Werner. In the Skies of Europe. Ramsbury, Marlborough, UK: The Crowood Press, 2000. ISBN 1-86126-799-1.
O'Leary, Michael. United States Naval Fighters of World War II in Action. Poole, Dorset, UK: Blandford Press, 1980. ISBN 0-7137-0956-1.
Pacco, John. "Brewster B-339" Belgisch Leger/Armee Belge: Het militair Vliegwezen/l'Aeronautique militaire 1930-1940. Artselaar, Belgium, 2003, pp. 70-71. ISBN 90-801136-6-2.
Raunio, Jukka. Lentx¤jx¤n nx¤kx¶kulma 2 - Pilot's viewpoint 2 (in Finnish). Self published, 1993. ISBN 951-96866-0-6.
Shores, Christopher. The Brewster Buffalo (Aircraft in Profile 217). Windsor, Berkshire, UK: Profile Publications Ltd., 1971.
Stanaway, John. Nakajima Ki.43 "Hayabusa": Allied Code Name "Oscar". Bennington, VT: Merriam Press, 1998. ISBN 978-1576381410.
Stenman, Kari and Andrew Thomas. Brewster F2A Buffalo Aces of World War 2 (Aircraft of the Aces). Oxford, UK: Osprey Publishing, 2010. ISBN 978-1-84603-481-7.
Stenman, Kari and Kalevi Keskinen. Finnish Aces of World War 2. Botley, Oxford, UK: Osprey Publishing, 1998. ISBN 978-18553278-3-2.
Swanborough, Gordon and Peter M. Bowers. United States Navy Aircraft since 1911. London: Putnam, Second Edition, 1976. ISBN 0 370 10054 9.
Taylor, John W.R. "Brewster F2A Buffalo." Combat Aircraft of the World from 1909 to the present. New York: G.P. Putnam's Sons, 1969. ISBN 0-425-03633-2.
Winchester, Jim. "Brewster Buffalo." The World's Worst Aircraft: From Pioneering Failures to Multimillion Dollar Disasters. London: Amber Books Ltd., 2005. ISBN 1-904687-34-2.
Wixey, Ken. "A Rotund New Yorker: Brewster's Embattled Buffalo." Air Enthusiast, Issue 105, May/June 2003.
Zbiegniewski, Andre R. Brewster F2A Buffalo (bilingual Polish/English). Lublin, Poland: Kagero, 2003. ISBN 83-89088-14-2.

Brewster F2A Buffalo Pictures

More airplane videos.

Source: WikiPedia
