Convair XB-46

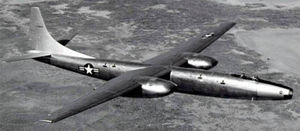

Airplane Picture -

Role: Medium bomber
Manufacturer: Consolidated Vultee
First flight: 1947-04-02
Status: Cancelled in 1947
Primary user: United States Air Force
Number built: 1
Unit cost: US$4.9 million for the program

The Convair XB-46 was a single example of an experimental medium jet bomber which was developed in the mid-1940s but which never saw production or active duty. In 1944 the U.S. War Department was aware of aviation advances in Nazi Germany and issued a requirement for a range of designs for medium bombers weighing from 80,000 to more than 200,000 pounds (36,000 to over 90,000 kg). Consolidated Vultee Aircraft (Convair) responded with their Model 109, a 90,000 pounds (41,000 kg) design which was accepted by the USAAF in November 1944 and designated the B-46. Other designs resulting from this competition included the North American XB-45, the Boeing XB-47 and the Martin XB-48.


Procurement began with a letter contract (cost-plus-fixed-fee) on 17 January 1945 with mock-up inspection and approval in early February. Orders for three prototypes followed on 27 February 1945 with certain changes recommended by the board. Serials 45-59582 to 59584 were assigned. Budgetary concerns also led to the contract being changed to a fixed-price type.

In the fall of 1945, Convair found it was competing with itself when the USAAF became interested in an unorthodox canard jet attack design, the XA-44-CO that the company had also been working on. With the end of World War II severely curtailing budgets, the company considered canceling the XB-46 in favor of the other project as there was insufficient funding for both. Company officials argued that it made more sense to allow them to complete the XB-46 prototype as a stripped-down testbed omitting armament and other equipment and for the AAF to allow them to proceed with two XA-44 airframes in lieu of the other two XB-46s on contract. In June 1946, the AAF agreed to the substitution but that project was ultimately cancelled in December 1946 before the prototypes were completed. The B-46 would be completed with only the equipment necessary to prove its airworthiness and handling characteristics.

The XB-46 was a graceful design and had a long streamlined oval torpedo-shaped fuselage, long narrow straight shoulder-mounted wings with four Chevrolet-built J35-C3 axial-flow eleven stage turbojets of 3,820 pounds-force (17.0 kN) static thrust paired in an integral nacelle under each wing. The fuselage turned out to be a problem, as it distorted under flight loads. The pilots sat in tandem in a pressurized fighter-style cockpit under a single Plexiglas teardrop canopy with the bombardier-navigator-radio operator in a transparent Plexiglas nose section.

The straight wing had an aspect ratio of 11.6, and was equipped with Fowler flaps which extended over 90 percent of the span, in four sections. The flaps extended via electrical actuators, and had very small ailerons. Each wing had five spoilers made of perforated magnesium alloy. The engine air intakes were flat oval inlets, with a duct curving downward in a flat “S” to the engines, which were mounted behind the trailing edge of the wing.

Production versions were to be equipped with a pair of .50 caliber machine guns in a tail turret designed by Emerson Electric Company and provision was made for an APG-27 remote control optics and sighting system, but no weaponry was fitted into the prototype. Likewise, production aircraft were intended to be built with the General Electric J47 engines with 5,200 lbf (23 kN) static thrust rather than the J35s used on the prototype.


The XB-46's first flight occurred 2 April 1947 after a month of taxi testing, and lasted ninety minutes as the bomber departed the Convair plant in San Diego, California for Muroc Army Airfield in the high desert. The pilot praised its handling qualities. Basic flight testing took place for five months and by September 1947 it was concluded after 127 hours aloft on 64 flights by both Convair company and AAF test pilots. Stability and control were excellent but there were engineering problems with engine de-icing, the cabin air system, and vertical oscillations caused by harmonic resonance between the wing and spoilers. There was also concern regarding the ability of the three man crew to exit the aircraft in case of an emergency, as it relied on the pneumatic system to hold the main door open against the air stream. The aircraft was accepted on 7 November and delivered on 12 November 1947.


The B-46 program was cancelled in August 1947 even before flight testing had been completed as it was already obsolete. The North American B-45 Tornado already had production orders and even it would be eclipsed by the Boeing B-47 Stratojet's superior performance. Furthermore, the bulky radar fire-control system which was not installed in the XB-46 prototype would have undoubtedly forced an expensive redesign of the slender fuselage. Subsequent testing involved noise measurements, tail vibration investigation, and stability and control, and were conducted at Palm Beach Air Force Base, Florida between August 1948 and August 1949. After 44 additional flight hours the XB-46 was taken out of service as the cost of support and maintenance coupled with a lack of spare parts had become prohibitive. After sitting idle for a year it was flown to Eglin Air Force Base, Florida in July 1950 where its pneumatic system was tested under the coldest conditions in the large climatic facility there. When this concluded in November 1950 the Air Force no longer had need for it and on 13 January 1951 the nose section was sent to the U.S. Air Force Museum at Wright-Patterson Air Force Base, Ohio. The rest of the airframe was scrapped 28 February 1952.

Specifications (XB-46)

Data from General Dynamic Aircraft and their Predecessors

General characteristics

Crew: 3
Length: 105 ft 9 in (32.24 m)
Wingspan: 113 ft 0 in (34.45 m)
Height: 27 ft 11 in (8.51 m)
Wing area: 1,285 ft (119.4 m)
Empty weight: 48,018 lb (21,826 kg)
Loaded weight: 91,000 lb (41,364 kg)
Max takeoff weight: 95,600 lb (43,455 kg)
Powerplant: 4x Allison J35-A-3 turbojets, 4,000 lbf (17.8 kN) each


Maximum speed: 545 mph (474 knots, 877 km/h) at 15,000 ft (4,580 m)
Cruise speed: 439 mph (382 knots, 707 km/h) at 35,000 ft (10,700 m)
Range: 2,870 mi (2,496 nm, 4,621 km)
Service ceiling: 40,000 ft (12,200 m)
Climb to 35,000 ft (10,700 m): 19 min


Guns: 2x .50 in (12.7 mm) M2 Browning machine guns
Bombs: 22,000 lb (10,000 kg)

Comparable aircraft

B-45 Tornado
B-47 Stratojet
English Electric Canberra
Ilyushin Il-22
Martin XB-48
