Curtiss YP-20

Curtiss YP-20

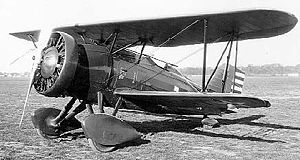

Warbird Picture - Parked YP-20

Picture - Parked YP-20

Role: Biplane fighter
Manufacturer: Curtiss
Primary user: United States Army Air Service
Number built: 1

Curtiss YP-20 was a United States Army Air Service biplane fighter project.

In 1929, three Curtiss P-11 Hawks were ordered with 600 hp (447 kW) Curtiss H-1640 Chieftain engines. This proved a failure, and before completion, the third was converted to use a 9 cylinder 575 hp (429 kW) Wright Cyclone, being completed as the YP-20. Testing with the R1820 was prolonged, so the Army's intention to promptly switch to a Curtiss V-1570 Conqueror engine and redesignate the aircraft XP-22 was dropped; another P-11 was chosen for that instead.

Except for the engine change and its Townend ring cowling, the YP-20 was not drastically different from the P-6 from which both it and the P-11 derived, though the YP-20 had more fin and less rudder area, and featured a steerable tailwheel, rather than the original skid. Later, a crankcase cover, gear strut fairings, and wheel pants were added.

In June 1931, the AAC held a competition to evaluate the P-6, P-12, XP-22, and YP-20. The XP-22 came out the winner, but the YP-20 was given a nose and landing gear graft from the XP-22, becoming the XP-6E (P-6E prototype). With the addition of a supercharger and an enclosed cockpit, it was tested as the XP-6F.

Operators

United States

United States Army Air Service

Specifications (original YP-20)

Data from U.S.Fighters, Lloyd Jones, Aero Publishers 1975.

General characteristics

Crew: one pilot
Length: 23 ft 9 in ()
Wingspan: 31 ft 6 in (9.6 m)
Height: 8 ft 10 in (2.69 m)
Wing area: 252 ft (23.41 m)
Empty weight: 2,447 lb (1,110 kg)
Max takeoff weight: 3,233 lb ()
Powerplant: 1x R-1820 Cyclone air-cooled 9-cylinder radial engine, 575 hp (429 kW)

Performance

Maximum speed: 215 mph (187 kn, 346 km/h)
Range: 285 mi (248 nmi, 459 km)
Service ceiling: 24,700 ft (7,529 m)

Armament

2 x 0.30 in (7.62 mm) M1919 Browning machine guns (cowl)

Fitzsimons, Bernard, ed. Illustrated Encyclopedia of Weapons and Warfare. Volume 12, pp.1255-6, "Hawk, Curtiss Models 34 and 35 (P-1 to P-6 and F6C". London: Phoebus Publishing, 1978.
Donald, David, ed. Encyclopedia of World Aircraft. Etobicoke, ON: Prospero Books, 1997.
Jones, Lloyd S. U.S. Fighters. Fallbrook, CA: Aero Publishers, 1975.
