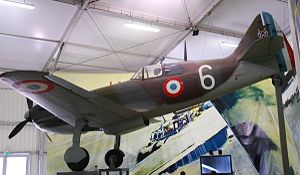

Warbird Picture - D.520 of the Dewoitine D.520 preserved at Musée de l'Air et de l'Espace

Picture - D.520 of the Dewoitine D.520 preserved at Musée de l'Air et de l'Espace

Role: Fighter aircraft
Manufacturer: SNCAM / SNCASE
First flight: 2 October 1938
Introduced: January 1940
Retired: 1953
Primary users: Armée de l'Air Luftwaffe Regia Aeronautica Bulgarian Air Force
Number built: ≈900

The Dewoitine D.520 was a French fighter aircraft that entered service in early 1940, shortly after the opening of World War II. Unlike the Morane-Saulnier M.S.406, which was at that time the Armée de l'Air's most numerous fighter, the Dewoitine D.520 came close to being a match for the latest German types, such as the Messerschmitt Bf 109. It was slower than the Bf 109E but superior in manoeuvrability. Because of a delayed production cycle, only a small number were available for combat with the Luftwaffe.

The D.520 was designed in response to a 1936 requirement from the Armée de l'Air for a fast, modern fighter with a good climbing speed and an armament centred around a 20 mm cannon. At the time the most powerful V 12 liquid cooled engine available in France was the Hispano-Suiza 12Y, which was less powerful, but lighter, than contemporary engines such as the Rolls-Royce Merlin and Daimler-Benz DB 601. Other fighters were designed to meet the specifications but none of them entered service, or entered service in small numbers and too late to play a significant role during the Battle of France.

Development

In response to a specification for a new fighter promulgated by the l'Air Ministry on 15 June 1936, the design of the D.520 started in September 1936, at the private design firm led by x‰mile Dewoitine. The specifications called for a maximum speed of 500 km/h (310 mph) at 4,000 m (13,000 ft), the ability to climb to 8,000 m (26,000 ft) in less than fifteen minutes, with take-off and landing runs not exceeding 400 m (1,300 ft). The armament was to be two 7.5 mm (.295 in) machine guns and one 20 mm Hispano-Suiza HS.9 cannon, or two HS.9 cannon. Dewoitine had been disappointed with the performance of his last design, the Dewoitine D.513, which was rejected by the Armée de l'Air in favour of the Morane-Saulnier M.S.406, and decided to respond to the specifications with a design using the latest construction techniques and the most powerful available engine, the new 660 kW (890 hp) Hispano-Suiza 12Y-21 liquid-cooled engine. The first design was rejected by the l'Air Ministry, which, after being impressed by the British Hawker Hurricane and Supermarine Spitfire, then uprated the specifications to include a maximum speed requirement of 500 km/h (310 mph). In response, Dewoitine renamed the further development, the "D.520".

Other aircraft designed to the same specification included the Morane-Saulnier M.S.450, the Loire-Nieuport 60 (later C.A.O 200, and the Caudron-Renault C.770, none of which either left the drawing board or entered service. Two other concurrent French designs, the Bloch MB.152.01 and Bloch MB.155.C1 series and the Arsenal VG.33 entered service in small numbers with the Armée de l'Air during the Battle of France, but too late to play a significant role.

In March 1937 the firm was conglomerated into one of a number of design-and-manufacturing pools, in this case SNCAM. Because of this and continued changes in the Armée de l'Air's manufacturing programmes, work on the design of the D.520 was suspended throughout much of 1937, and it was not until January 1938 that a small number of draughtsmen started work on the first detail drawings for the prototype. This prototype, D.520-01, powered by a Hispano 12Y-21 temporarily driving a fixed-pitch, two bladed wooden propeller, first flew on 2 October 1938, but only managed to reach 480 km/h (300 mph) in flight tests, and suffered from dangerously high engine temperatures. Most of the problem was judged to come from greater than expected drag from the underwing radiators, which exhausted across the upper wing surface, and these were replaced with a single radiator unit hosed under the fuselage in a streamlined fairing. After minor damage in a landing accident, further modifications included changing the engine to a newer -29 model and incorporating exhaust ejectors for added thrust, along with a three-blade variable pitch propeller. These changes were enough to allow the aircraft to reach its design speed, achieving 530 km/h (330 mph). The maximum diving speed was 825 km/h (513 mph).

The prototype was followed in 1939 by two examples: D.520-02 and 03, first flown on 9 January and 5 May 1939 respectively, featuring new sliding canopies, a larger tail unit, and longer Olaer manufactured undercarriage legs; they also omitted the Handley-Page slats fitted to the outer wings on 01. These prototypes were armed with the 20 mm Hispano-Suiza HS.9 cannon in a moteur-canon mount in which the barrel was mounted in a sleeve between the cylinder banks and fired through the propeller spinner. and two MAC 1934 7.5 mm (.295 in) machine guns, each initially with 300 rounds per gun, housed in small pods under the wing. The third prototype also introduced a small tailwheel instead of the original skid. The second prototype was later fitted with a 12Y-31 model engine and achieved a maximum speed of 550 km/h (340 mph) and reached 8,000 m (26,000 ft) in 12 minutes 53 seconds. Flight tests proceeded successfully, resulting in a contract issued in March 1939 for 200 production machines to be powered by the newer -31 engine (later replaced by the -45). A contract for an additional 600 aircraft was issued in June, albeit reduced to 510 in July 1939.

With the outbreak of war, a new contract brought the total of D.520s on order to 1,280, with the production rate to be 200 aircraft per month from May 1940. The Aéronautique Navale then ordered 120. Another Armée de l'air order in April 1940 brought the total to 2,250 and increased production quotas to 350 a month.

The first production D.520 flew in October 1939. On production aircraft, the rear fuselage was extended by 51 cm (20 in), the engine cowling panels were redesigned, the curved, one-piece windshield was replaced by one containing an optically flat panel and armour plate was fitted behind the pilot's seat. Most production examples were powered by the 935 CV (922 hp) Hispano-Suiza 12Y-45 with the new Szydlowski-Planiol supercharger, although later production versions used the 960 CV (950 hp) -49. The production standard armament was a 20 mm HS.404 cannon firing through the propeller hub and four belt-fed MAC 1934 M39 7.5 mm (.295 in) machine guns in the wings.

As the first batch of D.520s rolled off the production lines, they failed acceptance tests due to insufficient top speed and troublesome cooling. Redesigned compressor intakes, a modified cooling circuit and propulsive exhaust pipes proved to be effective remedies for these shortcomings, but as early examples had to be retrofitted with these improvements, the type was not declared combat ready until April 1940.

Design

The D.520 was a modern fighter type, but was considered more difficult to fly than the older MS.406. An all metal structure was used, except for fabric-covered ailerons and tail surfaces. The wing, even if single-spar, was a solid and rigid unit with a secondary spar and many reinforced parts. The inwardly retracting undercarriage had a wide 2.83 m (9.3 ft) track, and was fitted with wide, low pressure tyres. A self-sealing fuel tank with a capacity of 396 l (87 imp gal) was mounted between the engine and cockpit, along with two wing tanks which, combined, carried another 240 l (53 imp gal), for a total of 636 (131 imp gall); this was considerably more than the contemporary Bf 109E, Spitfire I and early Italian fighters, each with about 400 l (88 imp gal) fuel capacity. The ferry range was from 1,300 km (810 mi) to 1,500 km (930 mi) at 450 km/h (280 mph) which, from June 1940, allowed D.520s to escape to North Africa when France fell. The handling changed according to the amount of fuel carried; using the fuselage tank alone fuel consumption had no appreciable affect on handling because the tank was on the centre of gravity, but, with full wing tanks, directional control was compromised, especially in a dive. The flight controls were well harmonized and the aircraft was easy to control at high speed. The maximum dive speed tested was 830 km/h (520 mph) with no buffeting and excellent stability both in the dive (depending on fuel load) and as a gun platform.

The H.S. 12Y-45 engine was an underpowered, older design, with 850 CV (840 hp) at takeoff at 2,400 rpm, or 935 CV (922 hp) emergency power at 2,520 rpm and at a height of 1,900 m (6,200 ft). The Hispano engine had some advantages over some later engines; for example, the weight was only 515 kg (1,140 lb), compared to the 620 kg (1,400 lb) of the Merlin III. Fuel was fed via six Solex S.V. 56 carbureteurs mounted on an inlet manifold which directed compressed air from the supercharger to the engine cylinders; the 12Y-45 and -49s fitted to production D.520s used either 92 or 100 octane fuel. The -45 drove an electrically operated Ratier Type 1606M three-bladed, 3 m (9.8 ft) diameter, variable pitch propeller, while D.520s from № 351 were fitted with the 12Y-49 960 CV (950 hp) engine driving a Chauvix¨re type 3918 pneumatically operated propeller, also 3 m (9.8 ft) in diameter.

The D.520 had a fire suppression system with a fire extinguisher activated from the cockpit. The engine was started by a simple but effective system, operating with compressed air, a system that made the D.520 essentially a "compressed air fighter". A Viet 250 air compressor charged several air bottles (one with 12 l capacity, as well as another 8 l tank, three smaller 1 l units matched to the weapons). The 12 l air bottle was used for the brakes and later, for the Chauvix¨re propeller's constant speed adjustment. The small air bottles provided up to 12 seconds at 9,000 m (30,000 ft) or 20 seconds pressure at low level, before the Viet air compressor re-charged them. The pilot had a complete set of cockpit instruments, and a 10 l oxygen bottle located in the fuselage just behind his seat, with either Munerelle or Gourdou oxygen regulator systems mounted on the right instrument panel. Equipment included a Radio Industrie Type Rl 537 radio-receiver set, an OPL RX 39 optical gun-sight (less effective than the Revi system), a height adjustable seat, and a sliding canopy with large, clear panels. Except over the long nose, the pilot's view was good, since the pilot was seated quite high over the forward fuselage, however, no rear-facing mirrors were fitted.

Production-standard armament consisted of a 20 mm HS.404 moteur-canon, with an ammunition capacity of 60 rounds, firing through the propeller hub, and four belt-fed MAC 1934 M39 7.5 mm (.295 in) machine guns in the wings, each with 675 rounds per gun. The MAC 1934 machine guns had a high rate of fire of 1,200 rounds per minute (rpm), while the effective HS.404 fired at 600 rpm and was accurate up to 500 m (1,600 ft); the ammunition capacity meant that the MAC 1934s could be fired for a total of 30 seconds, while the HS. 404 had 10 seconds worth of ammunition. In combat the MS.406 had only two 7.5 mm and was, therefore, at a disadvantage when the HS.404 had used up its ammunition, while a D.520 could continue to fight effectively because it had four fast-firing machine guns (over 80 rounds/sec), with 20+ seconds of ammunition still available. The D.520 had provisions for two BE33 "illuminating bombs", useful for nocturnal interception missions, but these were rarely used because French fighters rarely flew night-time missions.

The D.520 was designed to be maintained easily with many inspection panels, a rare feature for its time. Re-charging the D.520 ammunition was swift and easy; the machine gun magazines required five minutes each and three minutes for the 20 mm cannon. To fill the machine gun ammunition boxes took 15 minutes, while five minutes were needed to empty the 20 mm box (the cartridges were not expelled).

Production was optimized with a reduced 7,000 man/hour each, roughly half the time compared to the previous D.510 and MS.406, and far less many other fighters of the time, such as the MC.200/202 (21,000 hours), but around 50% more than a Bf 109E (4,500 hours). The French Air Ministry planned for over 300 aircraft/month and managed to reach this goal, especially in June 1940, but it was too late to affect the tide of battle.

Operational history

France

Battle of France

The Groupe de Chasse I/3 was the first unit to get the D.520, receiving its first aircraft in January 1940. These were unarmed and used for pilot training. In April and May 1940, operational units received 34 production D.520s; the type proving to be very popular with the pilots. In comparative trials on 21 April 1940 at CEMA at Orleans-Bricy against a captured Bf 109E-3, the German aircraft had a 32 km/h (20 mph) speed advantage owing to its more powerful engine. However, the D.520 had superior maneuverability, matching the turning circle although displaying nasty departure characteristics, spinning out of the turn repeatedly during the tests while the Bf 109, owing to its slats, could easily sustain the turn on the edge of a stall.

By 10 May 1940, when Germany invaded France and the Low Countries, 228 D.520s had been manufactured, but the Armée de l'Air had only accepted 75, as most others had been sent back to the factory to be retrofitted to the new standard. As a result, only GC I/3 was fully equipped, having 36 aircraft. They met the Luftwaffe on 13 May, shooting down three Henschel Hs 126s and one Heinkel He 111 without loss. GC II/3, GC III/3, GC III/6 and GC II/7 later completed conversion and all took part in the Battle of France. A naval unit, the 1 Flotille de Chasse, was also equipped with the D.520. GC II/6 and GC III/7 converted to the D.520 too late to see action.

By the armistice at the end of June 1940, 437 D.520s had been built with 351 delivered. In air combat, mostly against Italians, the Dewoitine 520s scored 114 homologated air victories, plus 39 probables, losing 54 to enemy action. When French resistance collapsed in the middle of June, GC I/3, II/3, III/3, III/6 and II/7 flew their aircraft to Algeria to avoid capture. Three more, from GC III/7, escaped to Britain and were delivered to the Free French. A total of 153 D.520s remained in mainland France. One of the most successful D.520 pilots was Pierre Le Gloan, who shot down 18 aircraft (four Germans, seven Italian and seven British), scoring all of his kills with the D.520, and ranked as the fourth-highest French ace of the war.

Under Vichy

In April 1941, the German armistice commission authorized Vichy authorities to resume production of a batch of 1,000 military aircraft for their own use, under the condition that 2,000 German-designed aircraft would later be manufactured in France and delivered to Germany. As part of this agreement, 550 examples of the D.520 were ordered to replace all other single-seat fighters in service. The plan was to have the Dewoitine eventually equip a total of 17 Groupes with 442 aircraft, three escadrilles of the Aéronautique navale with 37 aircraft each, plus three training units with 13 aircraft. The agreement stated that aircraft of this new batch were to be similar to the ones already in service. . From serial number 543 on, however, D.520s used the 12Y49 engine that had a slightly higher rated performance than the 12Y45, although the German Armistice Commission explicitly prohibited replacing the original engines with the more powerful 12Y51 or 12Z engines.

In 1941, D.520s of GC III/6, II/3 and naval escadrille 1AC fought the Allies during the Syria-Lebanon campaign.. The Vichy French Air Force (Armée de l'Air de Vichy) was already relatively strong, but several units were sent to reinforce it. D.520s were the only French single-seat fighters capable of making the trip to Syria. The GC III/6 was sent first. The ferry trip was very difficult for a 1940 interceptor and the pilots pushed their planes as far as their fuel tanks would allow them to. They flew from France to Syria with intermediate stops at Rome, Brindisi or Catania. Another route was available through Germany and Greece (Athens), but it was seldom used. The trip always included a stopover in Rodhes (once an Italian base), before the final flight to Syria. This meant several thousands of kilometers were flown over mountains and sea. The most demanding part was Catania-Rhodes, which entailed no less than 1,200 km flown over the sea. Even the trip from Rhodes to Syria was 800 km. LeO 451s and Martin 167F bombers had few problems, but D.520s were forced to fly a strenuous and dangerous mission, without any help or external assistance. Of the 168 French aircraft (of all types) sent to Syria, 155 accomplished their mission and successfully arrived. The Vichy Air force was numerically strong, but with very few ground crew and spare parts, so the operational flying time for the D.520s was very limited. D.520s of GC III/6 first saw action against British aircraft on 8 June 1941, when they shot down three Fairey Fulmars, losing one D.520 with its pilot taken prisoner). Over the following days several escort missions were made to protect Martin, LeO and Bloch 200 (3/39 Esc) aircraft from British Royal Navy fighters. On 9 June, Two Hurricanes were shot down (with another D.520 lost).

In total, during the Syria campaign 266 missions were flown by the Vichy French Air Force: 99 of them were made by D.520s, nine by MS.406s, 46 by Martin 167s and 31 by LeO 451s. The D.520s were therefore the most active of the French aircraft in the campaign, where they claimed 31 kills over British and Australian units while losing 11 of their own in air combat and a further 24 to AA fire, accidents and attacks on their airfields.. On 10 July, five D.520s attacked Bristol Blenheim bombers from No. 45 Squadron RAF that were being escorted by seven Mk I Curtiss Tomahawks from No. 3 Squadron RAAF (3 Sqn). ). The French pilots claimed three Blenheims, but at least four of the D.520s were destroyed by the Australian escorts, including two by F/O Peter Turnbull. . The following day, a Dewoitine pilot shot down a P-40 from 3 Sqn, the only Tomahawk lost during the campaign. . This Dewoitine was in turn shot down by F/OBobby Gibbes. The initial advantage that the Vichy French Air Force enjoyed did not last long, and they lost most of their aircraft during the campaign. The majority of the lost aircraft were destroyed on the ground where the flat terrain, absence of infrastructure and absence of modern anti-aircraft (AA) artillery made them vulnerable to air attacks. On June 26, a strafing run by Tomahawks of No. 3 Squadron Royal Australian Air Force (3 Sqn), on Homs airfield, destroyed five Dewoitine D.520s of Fighter Squadron II/3 (Groupe de Chasse II/3) and damaged six more.

On 10 July, five D.520s attacked Bristol Blenheim bombers from No. 45 Squadron RAF, which were being escorted by seven Tomahawks from 3 Sqn. The French pilots claimed three Blenheims, but at least four D.520s were destroyed by the Australians. The following day a Dewoitine pilot shot down a P-40 from 3 Sqn, the only Tomahawk lost in that war, in which it displayed an overall superiority over the D.520.

By the end of the campaign, the Vichy forces had lost 179 aircraft from the approximately 289 committed to the Levant. Remaining aircraft with the range to do so evacuated to Rhodes. The known French losses of fighter aircraft were 26 in air combat and 45 in strafing and bombing action. Allied forces lost 41 planes, 27 of those shot down by French fighters. During Operation Torch, GC III/3 (previously known as GC I/3) was engaged in combat with the Allies over Oran. Flotille 1F saw action versus the United States Navy F4F Wildcat squadron VF-41 (from the carrierUSS Ranger), over Casablanca. One D.520 was among 14 US victory claims with the only Allied losses being due to ground and friendly fire. Other Dewoitine-equipped units in North Africa such as GC II/7 or GC II/3 did not to take part in the fighting. Overall, the known D.520 air strength in North Africa was 173 D.520s (143 combat ready) of GC II/3, III/3, III/6, II/7 and II/5, another 30 were in Senegal with GC II/6. The Navy had Esc 1AC and 2AC. Many D.520s were destroyed on the ground by Allied bombing. French Air Force lost 56 aircraft, among them 13 D.520s, the Navy lost 19 D.520s aircraft. Among the 44 kills that French scored overall, there was an entire squadron of nine Fairey Albacore, from the HMS Furious, all shot down by D.520s of GC III/3.

Free French Dewoitines

A very small number of D.520s were briefly operated by Free French Forces for training purposes. Along with the three examples that had flown to Britain in June 1940, two other D.520s were recovered from retreating Vichy forces in Rayak, Lebanon. These D.520s were flown by pilots of the Normandie-Niemen unit before the unit was sent to the USSR, where they flew the Yakovlev Yak-1 that had many similarities with the D.520.

With the Allies

In December 1942, as French forces formerly under Vichy sided with the Allies, there were 153 D.520s left in French hands in North Africa. They flew a few patrols during the Battle of Tunisia, but were considered obsolete, and their radio sets were incompatible with Allied equipment. From early 1943 on, they were relegated to training duties at the fighter school in Meknes, and progressively replaced by Spitfires and P-39s in combat units.

During the liberation of France, a few D.520s abandoned by the Germans were used by ad hoc units in ground attacks against the isolated German pockets of resistance on the Western coast.

Foreign users

As German forces invaded Vichy's so-called "free zone" in November 1942, they captured 246 D.520s; additionally, a batch of 62 was completed under German occupation. Some were used by the Luftwaffe for training purposes. The Germans also transferred 120 D.520s to Bulgaria and 60 to Italy for use in combat. Numerous sources have mentioned use of the D.520 by the Romanian Air Force, but no evidence has ever been provided. One source claims the so-called Romanian Dewoitines were, in fact, in transit to Bulgaria and only flew over Romania in order to get to their final destination. This seems the most reliable explanation, viewed against the numbers of Dewoitines actually available.

About 60 D.520s were acquired by Regia Aeronautica. Italian pilots appreciated the aircraft's capabilities and Hispano-Suiza HS.404 cannon, at least by 1940-1941 standards. The first three D.520s were assigned to 2° Stormo based at the Torino-Caselle airfield, where they were used for the defence of Torino's industrial area. Other D.520s were captured in Montélimar, Orange, Istres and Aix-en-Provence.

At the beginning of 1943, the Italian ace Luigi Gorrini ferried D.520s taken as prizes of war to Italy to be used for defence. "I have collected several dozen Dewoitines from various French airfields and the Toulouse factory", he recalled later. "At the time, when we were still flying the Macchi C.200, it was a good, if not very good, machine. Compared to the Macchi 200, it was superior only in one point: its armament of the Hispano-Suiza HS 404 20 mm cannon.". Italian pilots liked the 20 mm gun, the modern cockpit, the excellent radio set and the easy recovery from a spin but they also complained about the weak undercarriage and the small ammunition drum capability; the ammunition was not available in quantities (the HS.404 wasn't compatible with Breda and Scotti 20 mm guns, so everything depended on France's depots). Some D.520s were delivered to 22rd Gruppo (359a Squadriglia), led by Major Vittorio Minguzzi. At that time, B-24s frequently bombed Naples, so an effective interceptor was badly needed, and D.520s were all that were available in early 1943. The 359a pilots used Dewoitines with some success, On 21 May 1943, Regia Aereonautica and the Luftwaffe agreed to exchange 39 Lioré et Olivier LeO 451s, captured by Italians at the SNCASE factory in Ambérieu-en-Bugey (Lyon), with a stock of 30 D.520s. Subsequently, in spring-summer 1943, the Dewoitines were used by 161° Gruppo Autonomo, based in southern Italy with 163a Squadriglia in Grottaglie, 162a Squadriglia in Crotone and 164a Squadriglia in Reggio Calabria. On 31 July 1943, Regia Aeronautica had still 47 Dewoitines in service. After the armistice of 8 September 1943, three D.520s, previously in service with 24° Gruppo, were used by the air force of Repubblica Sociale Italiana for training.

Postwar service

After the war, the D.520s that remained in France were used as trainers. One example was field-modified as a two-seater in late 1945. In March 1946, after further experiments, the Armée de l'air ordered a further batch of 20 D.520s to be converted; however, only 13 of these D.520 DC conversions were completed. The last flight of an operational D.520 was made on 3 September 1953 with EPAA (Esquadrille de Presentation de l'Armée de l'Air). Initially this unit had flown Yak-3s, formally of the Normandie-Niemen fighter squadron; these were later replaced with seven D.520s, three of them being two-seaters.

Variants

D.520

Main production version, sometimes designated D.520 S (for série - production) or D.520 C1 (for chasseur - fighter, single-seat).

Direct derivatives

In 1940, SNCAM had several projects to fit the D.520 airframe with more powerful engines. These developments were halted by the June armistice.

D.521

engine replaced by a Rolls-Royce Merlin III, one example built, project cancelled.

D.522

engine replaced by a Allison V-1710 C-1, project abandoned after the armistice (22 June 1940).

D.523

engine replaced by slightly different sub-variants of the 820 kW (1,100 hp) 12Y51, with Szydlowski-Planiol supercharger. D.523 Prototype was completing pre-production trials in June 1940.

D.524

Version powered by Hispano-Suiza 12Y-89ter engine. One prototype built, never flew.

D.525

development version of the D.523

D.530

planned version with a 1,044 kW (1,400 hp) Rolls-Royce Merlin or a 1,342 kW (1,800 hp) Hispano-Suiza 12Y.

Related pre-war projects

HD.780

Seaplane derivative of the D.520, one prototype built, never flew, development cancelled with the armistice.

D.790

Carrier-borne derivative project, none built.

D.550

Unarmed aircraft built for speed record attempt, with airframe loosely based on the D.520 but using weight-saving construction techniques. One example built.

D.551 & D.552

Military developments of the D.550. 12 examples built, none flew. Development was resumed in 1941, but quickly terminated by the Germans.

Post-armistice developments

Several projects were initiated after the June 1940 armistice. They all were terminated with the German occupation of Southern France in November 1942.

D.520 amélioré

Single production D.520 experimentally fitted with minor improvements so as to improve top speed with unchanged engine.

D.520 Z

D.520 airframe with 12Z engine and minor improvements. One example built. Development resumed after the war (as SE.520Z), but eventually cancelled in 1949.

M.520 T

Different airframe loosely based on the D.520. None built.

Postwar derivative

D.520 DC (double commande - dual control)

Two-seater trainer conversion, at least 13 built.

Markings

Apart from the first prototype and postwar examples, D.520s sported the usual French camouflage of dark blue-grey, khaki, and dark brown with light blue-grey undersurfaces. The camouflage pattern was not standardized. The national markings were the standard light blue-white-red roundels on the wingtips, as well as on the rear fuselage, and the rudder flag.

Specific markings were applied during the Vichy era, consisting of white outlined fuselage roundels with a white fuselage stripe, and from mid-1941 on, the infamous "slave's pajamas" with red and yellow stripes on the engine cowling and tail surfaces.

An Allied test pilot opinion

Capt. Eric Brown, CBE, DSC, AFC, RN, Chief Naval Test Pilot and C.O. Captured Enemy Aircraft Flight, tested the D.520 in RAE Farnborough. “It was a nasty little brute. Looked beautiful but didn’t fly beautifully. Once you get it on the ground, I was told not to leave the controls until it was in the hangar and the engine stopped. You could be taxiing toward the hangar and sit back when it suddenly it would go in a right angle.”

Operators

Main operators

Bulgaria

Bulgarian Air Force

France

Armée de l'Air
Aéronautique navale

Free France Forces Aériennes Franx§aises Libres (as trainers only) Germany

Luftwaffe

Italy

Regia Aeronautica

Intended operators

Romania

Romanian Air Force

Survivors

Dewoitine D.520 n°408 Was restored to flying condition in the 1970s. Delivered in 1940, it fought against Allies in 1942, survived the war and many years later was rebuilt as the N.90, a famous D.520 flown with GC II/3. It was overhauled in 1977-80, and it flew at Le Bourget airshow in 1980. It performed at various airshows in Europe, but was destroyed in a fatal crash in 1986. Dewoitine D.520 n°603 On display at the Conservatoire de l'air et de l'espace d'Aquitaine in Bordeaux-Mérignac. Dewoitine D.520 n°655 Under restoration at the Naval Museum in Rochefort. Dewoitine D.520 n°862 Currently on display at the Musée de l'Air et de l'Espace. It has been repainted as n°277 used by GC III/6 in June 1940.

Specifications (Dewoitine D.520C.1)

Data from Le Dewoitine D.520

General characteristics

Crew: 1
Length: 8.6 m (28 ft 3 in)
Wingspan: 10.2 m (33 ft 5⅓ in)
Height: 2.57 m (8 ft 5 in)
Wing area: 15.87 m² (171 ft²)
Empty weight: 2,123 kg (4,680 lb)
Loaded weight: 2,677 kg (5,902 lb)
Max takeoff weight: 2,785 kg (6,140 lb)
Powerplant: 1x— Hispano-Suiza 12Y-45 liquid-cooled V12 engine, 690 kW (930 hp)

Performance

Maximum speed: 560 km/h (302 kn, 347 mph)
Range: 1,250 km (675 nmi, 777 mi)
Service ceiling: 10,000 m (33,000 ft)
Rate of climb: 14.3 m/s (2,820 ft/min)
Wing loading: 167 kg/m² (34.2 lb/ft²)
Power/mass: 257 W/kg (0.156 hp/lb)

Armament

Guns:
1 x— 20 mm Hispano-Suiza HS.404 (60-round drum) cannon
4 x— 7.5 mm (0.295 in) MAC 1934 (675 rpg) machine guns

Related development

D.521
D.522
D.523
D.524
D.525
D.530

Comparable aircraft

Arsenal VG.33 C1
Caudron C.714 C1 "Cyclone"
SNCAO 200
Bloch MB.155 C1
Curtiss P-40
Hawker Hurricane
Messerschmitt Bf 109
Rogozarski IK-3
Supermarine Spitfire
Yakovlev Yak-1
Mikoyan-Gurevich MiG-3
Lavochkin LaGG-3

Citations

Bibliography

Angelucci, Enzo and Paolo Matricardi. World Aircraft: World War II, Volume I (Sampson Low Guides). Maidenhead, UK: Sampson Low, 1978. ISBN 0-562-00096-8.
Avions Militaires 1919-1939 - Profiles et Histoire. Paris: Connaissance de l’Histoire Hachette, 1979.
Bączkowski, W. Dewoitine D.520 (in Polish). Warsaw, Poland: Books International, 1998.
Belcarz, Bartłomiej. Dewoitine D 520. Sandomierz, Poland/Redbourn, UK: Mushroom Model Publications, 2005. ISBN 83-89450-09-7.
Breffort, Dominique and André Jouineau. French Aircraft from 1939 to 1942, Volume 2: From Dewoitine to Potez. Paris: Histoire & Collections, 2005. ISBN 2-915239-49-5.
Brindley, John F. French Fighters of World War Two, Volume One. Windsor, UK: Hylton Lacy Publishers Ltd., 1971. ISBN 0-85064-015-6.
Brown, Russell. Desert Warriors: Australian P-40 Pilots at War in the Middle East and North Africa, 1941-1943. Maryborough, Australia: Banner Books, 1983. ISBN 1-875593-22-5.
"Caccia Assalto 5." Dimensione Cielo Aerei italiani nella 2° guerra mondiale (in Italian). Rome: Edizioni Bizzarri, 1972.
Caruana, Richard. "Allez le Gosse:The Dewoitine D.520." Scale Aviation Modeller International, Volume 4, Issue 11, October 1998.
Danel, Raymond. The Dewoitine 520 (Aircraft in Profile number 135). Windsor, Berkshire, UK: Profile Publications Ltd., 1971 (reprint from 1966).
Danel, Raymond and Jean Cuny. Docavia n°4: le Dewoitine D.520 (in French). Paris: Editions Larivix¨re, 1966.
Dewoitine D 520 (bilingual French/English: various authors). Brussels, Belgium: DTU, 1997. ISBN 2-912749-00-X.
Ehrengardt, Christian-Jacques. Les avions franx§ais au combat: le Dewoitine D.520 (in French). Paris: Aéro-Editions, 2004.
Green, William. War Planes of the Second World War, Volume One; Fighters. London: Macdonald & Co.(Publishers) Ltd., 1960 (tenth impression 1972). ISBN 0-356-01445-2.
Herington, John. Second World War Volume III - Air War Against Germany and Italy, 1939-1943 Canberra: Australian War Memorial (Australian official history), First edition, 1954.
L'aviazione encyclopedia, De Agostini, 1986 (original opera: 'The illustrated encyclopedia of aircraft, Aerospace Publishing, London)
Marchand, Patrick. Dewoitine D.520 (Ailes de Gloire nr. 8) (in French). Le Muy, France: Les éditions Along, 2002. ISBN 2-914403-11-9.
Neulen, Hans Werner. In the Skies of Europe. Ramsbury, Marlborough, UK: The Crowood Press, 2000. ISBN 1-86126-799-1.
Pelletier, Alain. French Fighters of World War II in Action (Aircraft Number 180). Carrollton, TX: Squadron/Signal Publications, Inc., 2002. ISBN 0-89747-440-6.
Tillman, Barrett. Wildcat Aces of World War 2. Oxford, UK: Osprey Publishing. 1995. ISBN 1-85532-486-5.
Thompson, J. Steve with Peter C. Smith. Air Combat Manoeuvres. Hersham, Surrey, UK: Ian Allan Publishing, 2008. ISBN 978-1-903223-98-7.
Winchester, Jim. "Dewoitine D.520." Fighters: The World's Finest Combat Aircraft: 1914 to the Present Day. Bath, UK: Parragon Publishing, 2003. ISBN 1-4054-3843-6.
