Douglas O-38

O-38

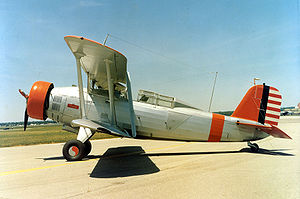

Aircraft Picture - Douglas O-38F at National Museum of the United States Air Force in 2005

Picture - Douglas O-38F at National Museum of the United States Air Force in 2005

Role: Observation plane
Manufacturer: Douglas Aircraft Company
Primary user: United States Army Air Corps
Produced: 1931-1934
Number built: 156
Unit cost: $12,000

The Douglas O-38 was an observation airplane used by the United States Army Air Corps.

Between 1931 and 1934, Douglas built 156 O-38s for the Air Corps, eight of which were O-38Fs. Some were still in service at the time of the Pearl Harbor Attack in 1941.

Variants

Aircraft Picture - O-38Bs from the 112th Observation Squadron, Ohio National Guard, in 1936.

Picture - O-38Bs from the 112th Observation Squadron, Ohio National Guard, in 1936.

O-38
derivative of the O-25 but with the 525-hp (391-kW) Pratt & Whitney R-1690-3 radial engine and Townend ring cowling; the National Guard received all 44 production aircraft
O-38A
single unarmed O-38 staff liaison machine for the National Guard
O-38B
derivative of the O-38 with the R-1690-5 engine; total production was 63, comprising 30 for USAAC observation squadrons and 33 for the National Guard
O-38C
single aircraft similar to the O-38B for use by US Coast Guard
O-38E
model with a wider and deeper fuselage on the lines of the private-venture O-38S, with a sliding canopy over the cockpits and the powerplant of one 625-hp (466-kW) R-1690-3 radial engine driving a metal propeller; could be operated on twin Edo floats; the National Guard took delivery of 37 such aircraft
O-38F
eight unarmed staff liaison aircraft delivered to the National Guard in 1933 with the powerplant of one R-1690-9 engine and a revised, fully enclosed canopy
O-38P
Almost identical to the E/F series. Six aircraft delivered to Perxº in February 1933, fitted with Edo floats; Three took part in the conflict against Colombia, and took part in air combats against Colombian Curtiss F-11C Hawk IIs, one being lost as consequence of damage received during those clashes. Survivors were converted to wheels, and served as trainers until 1940.
O-38S
private-venture development of the O-38 with a wider and deeper fuselage, crew canopy and smooth-cowled 575 hp (429 kW) Wright R-1820-E Cyclone radial engine; in effect was the prototype of the O-38E
A-6
proposed use of the O-38 as a radio-controlled target drone (cancelled)

Survivors

The sole surviving example of an O-38 is on display at the National Museum of the United States Air Force at Wright-Patterson AFB near Dayton, Ohio. For several decades it was believed that no examples of this aircraft survived, until the wreckage of an O-38F was located in Alaska in the late 1960s. This aircraft was the first airplane to land at Ladd Field near Fairbanks, Alaska, in October 1940. It had gone down on June 16, 1941 as a result of engine failure, and made a soft landing in the Alaskan wilderness about 70 miles (110 km) southeast of Fairbanks. Both crewmen survived the landing unhurt, and hiked to safety after supplies were dropped to them, but the aircraft's location was considered too remote for it to be salvaged. The wreckage was eventually rediscovered nearly thirty years later during an aerial survey of the area, and the plane's type was soon identified. The staff of the Air Force Museum recognized it as the last surviving example, and quickly assembled a team to examine the aircraft for possible retrieval and restoration. Upon arriving at the crash site they found the aircraft surprisingly well preserved, with only the two seats and the tail wheel curiously missing. The team was even able to light their campfires using the aircraft's remaining fuel. Plans were soon made to remove the aircraft by helicopter, and in June 1968 it was transported back to Dayton, Ohio. Meanwhile, the missing seats were found in the shack of a local frontiersman where they were being used as chairs. The missing tail wheel was taken because he thought he might build a wheelbarrow someday. The restoration by the museum's staff took several years, and many structural pieces of the wings had to be reverse engineered from original plans and damaged parts. The finished aircraft with its original engine was completed and placed on display in 1974. It is currently displayed hanging in the museum's Interwar Years Gallery.

Operators

Peru

Peruvian Navy

United States

United States Army Air Corps

Specifications (O-38B)

Data from "United States Military Aircraft Since 1909" by F. G. Swanborough & Peter M. Bowers (Putnam New York, ISBN 085177816X) 1964, 596 pp.

General characteristics

Crew: two
Length: 32 ft (9.75 m)
Wingspan: 40 ft (12.2 m)
Height: 10 ft 8 in (3.25 m)
Wing area: 371 ft (34.5 m)
Empty weight: 3,072 lb (1,393 kg)
Loaded weight: 4,458 lb (2,022 kg)
Max takeoff weight: 5,401 lb maximum (2,500 kg)
Powerplant: 1x Pratt & Whitney R-1690-5, 525 hp (391.5 kW)

Performance

Maximum speed: 149 mph (240 km/h)
Cruise speed: 128 mph (206 km/h)
Range: 563 miles (906 km)
Service ceiling: 19,750 ft (6,020 m)
Rate of climb: 943.4 ft/min (287.5 m/min)

Armament

2 x .30-cal (7.62 mm) machine guns, one fixed forward-firing and one flexible plus 4 x 100 lb bombs

The complete Encyclopedia of World Aircraft cover Editors: Paul Eden & Soph Moeng, (Amber Books Ltd. Bradley's Close, 74-77 White Lion Street, London, N1 9PF, 2002, ISBN 0760734321), 1152 pp.
