Fairchild AC-119

AC-119G Shadow and AC-119K Stinger

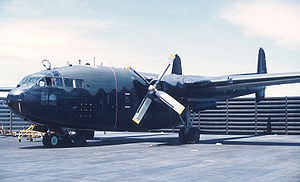

Warbird Picture - An AC-119G gunship on the tarmac

Picture - An AC-119G gunship on the tarmac

Role: Fixed-wing gunship
Manufacturer: Fairchild Aircraft
Introduced: November 1968
Retired: USAF: 1971 RVNAF: 1975
Primary users: United States Air Force South Vietnam Air Force
Number built: 52
Developed from: C-119 Flying Boxcar

The Fairchild AC-119G Shadow and AC-119K Stinger were twin-engine piston-powered gunships developed by the United States during the Vietnam War. They replaced the inadequate AC-47 Spooky and operated alongside the early versions of the AC-130 Spectre gunship.

Design and development

By late 1967, the idea of the fixed-wing gunship had been proven so successful that the United States Air Force was having a difficult time keeping up with demand. The newer AC-130s that had been created under Project Gunship II were effective, but were being mostly used for interdiction of the Ho Chi Minh trail. Furthermore, the C-130 airframe was in active service as a transport, vital to the war effort in Southeast Asia. The Air Force desperately needed a new gunship to replace the vulnerable and underpowered AC-47 in the close air support role (CAS), as well as supplementing the AC-130 in attacking targets on the Ho Chi Minh Trail.

The C-119 Flying Boxcar presented an obvious choice, having been phased out of frontline service in favor of the C-123 and C-130, and with the stock of available airframes in U.S. Air Force Reserve being sufficient. In February 1968, under the USAF program Project Gunship III, 26 C-119Gs were converted to AC-119G standard, initially taking on the name "Creep," but later assigned the callsign "Shadow." These aircraft were primarily intended to replace the AC-47 in the CAS role.

In addition, Fairchild-Hiller, which was contracted for all the conversions, converted another 26 C-119Gs into AC-119Ks primarily for the "truck hunter" role over the Ho Chi Minh Trail. These aircraft were called "Stingers" primarily in reference to the two M61 Vulcan 20 mm cannons they carried in addition to the AC-119G's four GAU-2/A miniguns. The AC-119K could be visually distinguished by the addition of two General Electric J85 turbojet engines in underwing pods. The conversions were completed at Fairchild-Hiller's facility in St. Augustine, Florida.

Project Gunship III, being a follow-on to the success of the AC-130 series, meant that the AC-119 was a more advanced aircraft in both its iterations than the AC-47. Even the TIC AC-119G featured some of the most up-to-date ECM and radar equipment, as well as more basic technology including an AVQ-8 Xenon light, a Night Observation Sight (NOS) and an LAU-74/A flare launcher.

The AC-119K, designed to hit trucks on the Ho Chi Minh Trail, was more advanced. Included in the conversion was the AN/APN-147 Doppler Navigation radar, AN/AAD-4 Forward Looking Infrared (FLIR), AN/APQ-133 side-looking beacon tracking radar and AN/APQ-136 search radar.

The armament scheme for both aircraft was simpler than that of the AC-130. The AC-119G had a total of four GAU-2A/A miniguns in SUU-11A/A pods, all on mounts similar to those used on early AC-47s. Like late model AC-47s, these were soon changed to the purpose-built MXU-470/A minigun modules. The AC-119K, needing a more powerful and longer range "punch" to take out vehicles, featured two M61 20 mm cannons in addition to the four Miniguns of the AC-119G.

Operational history

By November 1968, the aircraft had deployed to Vietnam and joined the 14th Special Operations Wing at Nha Trang. The AC-119Gs were placed in the 71st Special Operations Squadron which was formed from the activated 71st Troop Carrier Squadron, of the Air Force Reserves located in Columbus, Indiana. When the 71 SOS reserves returned to the states, in 1969, the gunships were taken over by the newly formed 17 SOS.

The AC-119Ks were placed in the 18th Special Operations Squadron. With the addition of the two types, the 14 SOW for a time in 1968 was flying eight different aircraft from ten different bases in South Vietnam. The 14 SOW was deactivated in 1971. Limited numbers continued to be operated out of Hurlburt Field, Florida as late as the fall of 1972, but the AC-119 was phased out shortly after from the US Air Force. The AC-119G and 119K continued to serve in extremely small numbers with the Republic of Vietnam Air Force (VNAF) until the de facto reunification of the country in 1975. During the Vietnam War, only five AC-119 Gunship IIIs were lost to all causes.

Operators

South Vietnam

South Vietnam Air Force

United States

United States Air Force

Survivors

Two AC-119 aircraft are known to be on public display, one in the collection of the National Museum of the United States Air Force at Wright-Patterson AFB, Ohio and the other at Air Commando Heritage Park at Hurlburt Field, Florida.

Specifications (AC-119G)

General characteristics

Crew: 6 (day), 8 (night)
Length: 86 ft 5 in (26.36 m)
Wingspan: 109 ft 3 in (33.31 m)
Height: 26 ft 7 in (8.12 m)
Wing area: 1,400 ft (130 m)
Empty weight: 40,125 lb (18,200 kg)
Max takeoff weight: 62,000 lb (28,100 kg)
Powerplant: 2x Wright R-3350-85 "Duplex Cyclone" radial engines, 3,500 hp (2,610 kW) each

Performance

Maximum speed: 180 knots (210 mph, 335 km/h)
Cruise speed: 130 knots (150 mph, 240 km/h)
Range: 1,680 nm (1,930 mi, 3,100 km)
Service ceiling: 23,300 ft (7,100 m)

Armament

4x GAU-2/A 7.62 mm (0.30 in) miniguns, 1,500 rounds/gun
2x M61 Vulcan 20 mm (0.787 in) 6-barreled gatling cannon (AC-119K variant only)
60x Mk 24 flares in an LAU-74/A flare launcher

Related development

C-119 Flying Boxcar

Comparable aircraft

Alenia AC-27J
AC-47 Spooky
Lockheed AC-130

Bibliography

Hobson, Chris. "Vietnam Air Losses, USAF/USN/USMC, Fixed-Wing Aircraft Losses in Southeast Asia, 1961-1973." North Branch, Minnesota: Specialty Press, 2001. ISBN 1-85780-1156.
Petrie, Bill. AC-119G Shadow (USAF AC-119 Gunships). AC-119 Gunship Association, updated: 12 January 2006.Retrieved: 11 April 2007.
Petrie, Bill. AC-119K Stinger (USAF AC-119 Gunships). AC-119 Gunship Association, updated: 27 February 2006. Retrieved: 11 April 2007.
