Fairchild Super 71

Fairchild Super 71

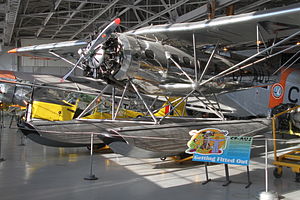

Warbird Picture - Restored Fairchild Super 71

Picture - Restored Fairchild Super 71

Role: Cargo transport
Manufacturer: Fairchild Aircraft Ltd. (Canada)
First flight: 31 October 1934
Number built: 4
Variants: Fairchild 71

The Fairchild 71 was a Canadian parasol-mounted high wing monoplane cargo transport aircraft built by Fairchild Aircraft Ltd. (Canada). The Super 71 was an entirely new design that was the first "purpose-built" civilian bush plane for use in remote and northern locales in Canada.

Airplane Picture - Fairchild Super 71 model

Picture - Fairchild Super 71 model

Design and development

In 1933, the Fairchild Aircraft Company undertook a study of new designs based on their Model 71. A decision to mount a parasol wing above the fuselage coupled with a rear cockpit position, clearly distinguished this model from the rest of the Fairchild 71 series, although the company designation maintained the family lineage. The choice of the unusual cockpit was predicated on the need to have a large front cargo compartment as well as considering the load distribution in normal operation. In use, pilots found that forward vision was compromised to such an extent that few operators favoured the installation and when the Royal Canadian Air Force ordered the type, the specifications included a new cockpit position directly behind the engine.

The design featured a first-of-its-kind (for Canada) duralumin monocoque fuselage with a streamlined oval shape and strut-braced metal wing and tail surfaces. Wind-tunnel testing not only was used to model the fuselage shape but influenced the placement of the tailplane which was altered from its original T-tail position to a high-mounted tailplane intended to keep the tailplane out of the water spray on takeoff. Engine choices varied with as many as six different powerplants being offered: the 493 hp Armstrong Siddeley Jagaur, 520 hp Pratt & Whitney T1D1 Wasp, 525 hp Pratt & Whitney S1D1 Wasp, 560 hp Pratt & Whitney SD-1 Hornet, 585 hp Wright SR-1820-F-41 Cyclone and 610 hp Wright SR-1820-F-42 Cyclone.

Airplane Picture - Fairchild Super 71P

Picture - Fairchild Super 71P

Operational history

Equipped with floats and powered by the 525 hp S1D1 Wasp, the Super 71 prototype, CF-AUJ, flew for the first time on 31 October 1934. After the aircraft completed airworthiness tests. it was loaned to Canadian Airways which conducted operational trials in both Quebec and Ontario before the aircraft was written off after running into a submerged log and sinking off Sioux Lookout, Ontario on 3 October 1940. Although the airframe was salvaged, Fairchild did not replace the aircraft with a completed Super 71 still at the factory, as the company was involved in a complete redesign based on the Super 71P (for photographic) variant that had been developed for the RCAF. A new wing mount and the change to a front cockpit were the two visible changes but the variant also had provision for multiple cameras and additional radio equipment. Two examples were built and placed in service in 1936.

The 71P had a chequered history as the type performed poorly in its aerial survey role with No. 666 crashing on 6 August 1937. The list of problems included structural problems with the floats, engine overheating (the prototype had the bottom half of the cowling removed to aid air circulation), adverse handling on the water and on the ground, and problems with the brakes.

The remaining aircraft, No. 665, was assigned to RCAF Station Trenton as an air ambulance but was not used extensively in this role.

Airplane Picture - Fairchild Super 71 under restoration

Picture - Fairchild Super 71 under restoration

The only surviving airframe is the prototype presently on display at the Western Canada Aviation Museum in Winnipeg, Manitoba.

Variants

Fairchild Super 71
Prototype (second airframe completed but not flown)
Fairchild Super 71P
Production series with new cockpit location on the fuselage and new wing mounting (2 built)

Operators

Canada

Royal Canadian Air Force
Canadian Airways

Specifications (Super 71)

Data from Canadian Aircraft Since 1909

General characteristics

Crew: 1
Length: 35 ft 6 in (10.82 m)
Wingspan: 58 ft 0 in (17.67 m)
Height: 10 ft 6 in (3.2 m)
Wing area: 392 ft (34.56 m)
Empty weight: 3,817 lb (1,733 kg)
Gross weight: 7,000 lb (3,178 kg)
Powerplant: 1 x Pratt & Whitney Wasp T1D1 9-cylinder radial piston, 525 hp (388 kW) each

Performance

Maximum speed: 139 mph (223.6 km/h)
Cruise speed: 125 mph (201.1 km/h)
Range: 817 miles (1,314 km)
Rate of climb: 800 ft/min ( m/s)

Bibliography

Bourgeois-Doyle, Richard I. Her Daughter the Engineer: The Life of Elsie Gregory MacGill. Ottawa: NRC Research Press, 2008. ISBN 978-0-660-19813-2.
Donald, David, ed. The Encyclopedia of World Aircraft. Etobicoke, Ontario, Canada: Prospero Books, 1997. ISBN 1-85605-375-X.
Milberry, Larry. Aviation In Canada. Toronto: McGraw-Hill Ryerson Ltd., 1979. ISBN 0-07-082778-8.
Molson, Ken M. and Harold A. Taylor. Canadian Aircraft Since 1909. Stittsville, Ontario: Canada's Wings, Inc., 1982. ISBN 0-920002-11-0.
