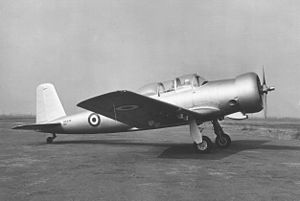

Airplane Picture - Fiat G-49 ver.1

Fiat G.49 Aircraft Information

Fiat G.49

Airplane Picture - Fiat G-49 ver.1

Picture - Fiat G-49 ver.1

Role: Two-seat basic trainer
Manufacturer: Fiat
Designer: Giuseppe Gabrielli
First flight: 1952
Primary user: Aeronautica Militare

The Fiat G.49 was an Italian two-seat basic trainer designed by Giuseppe Gabrielli and built by Fiat.

Design and development

The G.49 was designed as a replacement for the World War II-era US North American T-6 advanced trainer by Gabrielli and was first flown in September 1952. The G.49 was an all-metal low-wing cantilever monoplane with retracting tailwheel landing gear. It had an enclosed cockpit with raised canopy for a pupil and instructor in tandem. Two variants were built with different engine installations; the G.49-1 with an Alvis Leonides radial engine and the G.49-2 with a Pratt & Whitney radial engine.

Operational history

The aircraft did not sell and only a small number were operated by the Aeronautica Militare.

Variants

G.49-1
Variant powered by a 425 kW (570 hp) Alvis Leonides 502/4 Mk 24 radial engine. G.49-2
Variant powered by a 455 kW (610 hp) Pratt & Whitney R-1340 radial engine.

Operators

Italy

Aeronautica Militare

Specifications (G.49-2)

Data from The Illustrated Encyclopedia of Aircraft (Part Work 1982-1985), 1985, Orbis Publishing, Page 1798

General characteristics

Crew: 2 (pupil, instructor)
Length: 9.50 m (31 ft 2 in)
Wingspan: 13 m (42 ft 7 in)
Height: 2.65 m (8 ft 8 in)
Empty weight: 2,240 kg (4,983 lb)
Gross weight: 2,860 kg (6,305 lb)
Powerplant: 1 x Pratt & Whitney R-1340-S3H1 Wasp 9-cylinder radial piston engine, 455 kW (610 hp)

Performance

Maximum speed: 370 km/h (230 mph)
Range: 1,900 km (1,181 miles)
Service ceiling: 6,800 m (22,310 ft)

The Illustrated Encyclopedia of Aircraft (Part Work 1982-1985), 1985, Orbis Publishing, Page 1798
