Fiat G.50 Aircraft Information

Fiat G.50

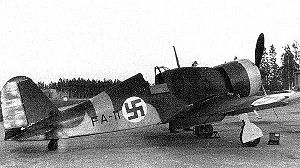

Airplane Picture - Fiat G.50 in Finnish markings

Picture - Fiat G.50 in Finnish markings

Role: Fighter aircraft
Manufacturer: FIAT
Designed by: Giuseppe Gabrielli
First flight: 26 February 1937
Introduced: 1938
Retired: 1946 Finnish Air Force
Primary users: Regia Aeronautica Finnish Air Force Ejército del Aire Luftwaffe
Number built: 791
Variants: Fiat G.55

The Fiat G.50 Freccia ("Arrow") was a World War II Italian fighter aircraft. First flown in February 1937, the G.50 was Italy’s first single-seat, all-metal monoplane with an enclosed cockpit and retractable landing gear to go into production. Pilots disliked the sliding cockpit canopy, which was not easy to open quickly and interfered with vision, so in later production series, an open cockpit was adopted. In early 1938, the Freccias served in the Regia Aeronautica including with the Aviazione Legionaria in Spain, where they proved to be fast and, typical of most Italian designs, very manoeuvrable, however, the aircraft had inadequate armament (two Breda-SAFAT 12,7 mm machine guns). The Fiat G.50 was also used in small numbers by the Croatian Air Force and 35 were flown to Finland where they served with distinction.

Design and development

The Fiat G.50 was designed by Giuseppe Gabrielli, who started design of a single-engined monoplane fighter in April 1935. Production started in mid-summer 1936. Construction was entrusted to the workshops of CMASA (Costruzioni Meccaniche Aeronautiche S.A.) at Marina di Pisa. The prototype first flew on 26 February 1937, with Comandante Giovanni de Briganti at the controls. In his first flight, de Briganti reached a top speed of 472 km/h and managed to climb to 6,000 meters in 6 minutes and 40 seconds. The G.50 was the first front line Italian monoplane fighter with retractable undercarriage, and with these improvements, its maximum speed was 33 km/h (21 mph) faster than its contemporary, the biplane Fiat CR.42. Both types were powered by the 626 kW (840 hp) Fiat A.74 RC38, 14-cylinder, air-cooled radial engine.

In 1937, along with the first pre-series machines, a Gruppo sperimentale was formed. The first versions could have different armament: one or two 12.7 mm (.5 in) Breda-SAFAT machine guns on the nose and two more 7.7 mm (.303 in) Breda-SAFAT in the wings. Later versions were also distinguished by a larger rudder.

In September 1937, Fiat received a first order for 45 aircraft. Before a larger order was placed, the Air Ministry decided to hold a comparative test with the new Macchi MC.200. On 20 October 1937, Comandante Giovanni de Briganti, Chief Test Pilot of the Fiat G.50 program, was killed on the sixth evaluation flight of the second prototype (M.M.335) when the aircraft did not recover from a high speed dive. At Guidonia, flight tests showed the aircraft easily entered into autorotation (uncontrolled spinning), a highly dangerous trait especially at low level, where recovery was impossible.

During a visit by Italian King Victor Emmanuel III and Prime Minister Benito Mussolini, another tragedy occurred in Guidonia. While performing a low, fast pass, three G.50s flown by the experienced pilots, Major Mario Bonzano and Lieutenants Beretta and Marasco encountered difficulty. Beretta's aircraft spun uncontrollably and crashed into the ammunition laboratory, killing the pilot. Despite the crashes, flight tests were satisfactory and the "Freccia" proved to be more maneuverable than the faster Macchi MC.200 which was declared the winner of the Caccia I ("Fighter One") competition on 9 June 1938. On account of its maneuverability, the Regia Aeronautica Commission decided to order the Fiat as well, while the third participant aircraft, the IMAM Ro. 51, was rejected.

In early 1938, the first examples were delivered to the Regia Aeronautica. Italian pilots did not like the enclosed canopy because it could not be opened quickly and because it was constructed from plexiglass of very poor quality prone to cracking, limiting visibility. Consequently, in the second batch of 200 machines, an open cockpit was installed. After 1939, the main production was shifted to the CMASA factory in Marina di Pisa, Tuscany.

In 1938, the Regia Aeronautica requested a two-seater trainer which was designated the G.50/B (Bicomando Bc.). The first were built in the second half of 1939. The student pilot sat in the front in a closed cockpit with two roll bars. The first five aircraft were part of the 1a serie ("first series"). Successive production was entrusted to CMASA who completed 106 G.50/Bs. A G.50/B was later transformed into a reconnaissance aircraft, equipped with planimetric camera. Another G.50/B was adapted with a hook to operate as a naval reconnaissance aircraft intended for the aircraft carrier Aquila, which was never completed . In September 1940 a slightly improved version appeared, the G.50 bis. Its main advantage was extended combat range due to an additional tank of 104 litres (27 USgal), increasing range from 645 km to 1,000 km.

The last version was the G.50/V (Veloce) built in mid-1941 by CMASA, equipped with a DB.601 engine of 1,075 CV. During tests at Fiat Aviazione's airfield in Turin, it reached a top speed of 570 km/h in level flight and managed to climb to 6,000 meters in 5 minutes 30 seconds. Nonetheless, Gabrielli had already designed the Fiat G.55 and Fiat had already obtained the licence to build the 1,475 CV Daimler Benz 605, so the G.50/V was used for tests with new equipment and then was scrapped.

Total G.50 production was 784 aircraft, 426 built by Fiat Aviazione and 358 coming from CMASA. Exports included 58 G.50s: 13 to Spain, 35 to Finland and 10 to Croatia.

Operational history

In 1938, the first operational Fiat G.50 aircraft were delivered to the Regia Aeronautica. During the Spanish Civil War, about a dozen G.50s were sent to Spain to reinforce the Aviazione Legionaria. The type proved extremely maneuverable, it was one of Italy's best fighters, yet by the time World War II began, it was considered to be underpowered and underarmed.

World War II

There were 118 G.50s available when Italy entered World War II (97 in front line duty), most assigned to the 51° Stormo based in Ciampino airport, just outside Rome and in Pontedera, with 22° Gruppo of 52° Stormo. On 10 June 1940, when Italy declared war against France, 22° Gruppo G.50s went into action, followed by the 48 aircraft of 20° Gruppo.

Battle of Britain

In September 1940, 20° Gruppo (Squadriglie 351/352/353), commanded by Maggiore Mario Bonzano, equipped with Fiat G.50 was part of the 56° Stormo formed to operate during the Battle of Britain as part of the Corpo Aereo Italiano based in Belgium, with 18° Gruppo (Fiat CR.42). Their use was hampered by their slow speed, open cockpits and short range. At the beginning of 1941, the C.A.I. came back in Italy, except for two G.50 Squadriglie that stayed in Belgium with Luftflotte 2, until April. While with the C.A.I. the Fiats flew 429 missioni-velivoli (missions), 34 escorts and 26 scrambles but could not manage to engage enemy aircraft. One aircraft was lost and seven more were damaged. While with Luftflotte 2, 20° Gruppo lost four additional fighters and two pilots were killed (Roncali (13 February 1941) and Meneghini (3 April), both of 352a Squadriglia), while two G.50s were damaged by German fighters and flak.

The experiences of the early series G.50s over Britain showed the inadequacies of the type. Its operations were almost useless in the campaign because they were too short-ranged and stationed too away from England. The G.50s had limited endurance, with missions rarely exceeding one hour. The G.50bis with larger fuel tanks was already in production, but it was not sent to 20° Gruppo in time. Performance was also lacking; when 22 Fiat G.50s intercepted several Hawker Hurricanes on 5 November 1940, the RAF fighters easily escaped. On 21 November, when a Bristol Blenheim attacked the Medgelem airfield two G.50s scrambled, but lost the bomber in the clouds. On 23 November, G.50s followed four Hurricanes, but were unable to close on them. Another fruitless intercept took place on 31 January, when G.50s lost a Blenheim that escaped into the clouds. The last sighting of enemy aircraft (fighters) occurred on 8 April 1941, when, once again, the elusive targets were not intercepted.

The G.50s were early models with an open canopy, useful in Mediterranean climes, but the pilots suffered heavily in the bad weather of northern Europe. The aircraft was also under-equipped, with a mediocre radio set (powered by batteries, prone to freeze at altitude) and lacking any armour protection. In Belgium, 20° Gruppo had the opportunity to see the Bf 109 in action with several G.50 pilots trained to fly the type with two Bf 109Es sent to the Gruppo in mid-January 1941.

The G.50s returned to Italy and later the 20° Gruppo had the G.50bis that had the endurance required for operational missions utilizing an extra fuel tank in the internal fuselage section originally configured as a bomb bay, but this series was primarily utilized over Africa. In the second half of the war, the G.50 operated as a multirole fighter/ground attack aircraft, with external bombs only. During the opening phase of the Allied invasion of Sicily, the G.50 was the most numerous aircraft used by the Regia Aeronautica to counter attack the Allied landings. Just before the invasion, the Regia Aeronautica moved to Southern Italy. 50° Stormo Assalto, a specialized ground attack unit was equipped with Fiat G.50bis fighter-bombers. As soon the invasion started, on 10 July 1943, further units were rushed to the area. With other Italian and German ground attack units, 45 Fiat G.50bis of 158° and 159° Gruppi Assalto, from Pistoia were committed to attack ships, landing craft and troops. On 11 July, 10 of them were in action with Re.2002s (escorted by five Re.2005s of 362a Squadriglia), when they were intercepted by an overwhelming fighter “umbrella”. Three G.50s were shot down, including Tenente Colonnello Guido Nobili, commander of 5° Stormo Assalto. The remainder landed on an airfield but were destroyed by an incoming air attack.

By the time of the Italian Armistice with the Allies, only a few G.50s were left in Italian service. Some were used as part of the Italian Co-Belligerent Air Force, while four others were used by the Aeronautica Nazionale Repubblicana as fighter trainers.

World War 1 Picture - A Regia Aeronautica G.50 flying with a Luftwaffe Messerschmitt Bf 110 over North Africa in 1941.

Picture - A Regia Aeronautica G.50 flying with a Luftwaffe Messerschmitt Bf 110 over North Africa in 1941.

The top scoring Italian pilot in a Fiat G.50 was Furio Lauri, who was credited with 11 "kills" before the end of 1941 with a final score of 18.

North Africa

The first 27 Fiat G.50s, belonging to Squadriglie 150a and 152a from 2° Gruppo Autonomo C.T., arrived in Libya on 27 December 1940, operating from Brindisi and Grottaglie airfields. They flew their first combat mission on 9 January 1941 when Capitano Pilota Tullio Del Prato (already known to have been a Reggiane Test pilot), Comandante of 150a Squadriglia encountered a Hawker Hurricane Mk I on the front line that attacked him, forcing the Fiat to crash-land in the desert. On 25 January 1941, a new unit, 20° Gruppo Autonomo C.T., with 351a, 360a and 378a Squadriglie, commanded by Maggiore pilota Pietro Bianchi, arrived in Libya, with 31 brand new Fiat monoplanes. On 27 May, 20° Gruppo was reinforced by 151a Squadriglia, equipped with the new Fiat G.50bis version. Caught up in the chaotic retreat of Italian army in the winter of 1940-41, the Fiat G.50s saw little action.

In Africa, although the G.50s were mainly outperformed, G.50 pilots sometimes managed to shoot down the faster and better armed Hurricanes and P-40s. G.50s were faster than biplanes, as showed in 1939 air exercises, so they could be useful against British bombers, even if their armament was relatively weak and often insufficient to shot down their target. At that time, the G.50s were the better -bis version, that was also heavier although the extra fuel provided almost two hours of flight time. The G.50s did not carry bombs, but used HE and incendiary bullets. Their usual tactic with the G.50 was to dive from 1,500 meters but the type never flew very high over Africa, with the usual ceiling not exceeding 4,500 m. The aircraft were still lacking radios and the desert sand, despite their air filter, could cut the engine lifespan to only 70-80 hours.

In the hands of expert pilots, the Fiat G.50 could score multiple kills in a single action. On the evening of 9 July 1941, Sergente Maggiore Aldo Buvoli of 378a Squadriglia, 155° Gruppo Autonomo, took off from Castel Benito airfield to patrol Tripoli harbour, and duly intercepted seven Blenheim light bombers that were performing a low-level attack on the ships, already pursued by two Fiat CR.42 biplanes from 151° Gruppo. Buvoli attacked the bombers shooting at each of them, in sequence. One Blenheim ditched in the sea while another was shot down a few miles north of Tripoli. Two more Blenheims flown never returned to Luqa airfield in Malta and were posted as missing. For these successes Buvoli was awarded with the Medaglia d’argento al Valor Militare and was subsequently credited with four kills, No. 110 Squadron RAF reporting the loss of a similar number of Blenheims IVs on its very first mission since arriving in Malta from UK in early July.

One of the units fielded by the Regia Aeronautica was the 155° Gruppo, based at Derna airfield. One of the few first claims by "Freccias" pilots was on 9 April 1941, when Tenente Pilota Carlo Cugnasca (an expert pilot, and the first one that delivered a G.50 in Finland), attacked three Hurricanes Mk Is from No. 73 Squadron RAF, claiming one although this air victory was not confirmed. In return, he was forced to crash-land his G.50, flipping over the airstrip, but remaining unharmed. At low level, the clashes were often confused and with unpredictable effects, and the tactical surprise was often what made the difference, as the next battle showed. Cugnasca was still in action 14 April; that day, 66 Axis aircraft attacked Tobruk. They were mainly Ju.87 Stukas (42 from Lutftwaffe III./StG 1 and II./StG 2, and seven from 96° Gruppo), escorted by eight G.50s (155° Gr), four C.R.42s (18° Gr) and five Bf 110 (III.ZG 26). The defenders were too few, being only those of 73° Sqn. RAF Hurricanes had to attack the bombers without much care about Axis fighters. But Stukas were too dangerous to leave free, being so precise and lethal machines. Cugnasca and Marinelli attacked H.G. Webster, when he was shooting to a Stuka. Hurricanes with Stokes air-filter were only marginally faster than a G.50, so Webster was followed and finally shot down and killed (Hurricane V7553) over Tobruk. "Smudgeon" Smith, a Canadian ace (with five victories) saw what was going on, and attacked both Cugnasca and Marinelli, shooting down and killed them. Finally, Smith attacked and damaged another G.50, but commander Fanello saw him and saved the third G.50, surprising and shooting down Smith. That day was a draw, with two G.50 and two Hurricane lost. Both Smith and Cugnasca were well known and respected, so it was also a human heavy loss for both sides.

G.50s operated from Martuba airfield with the first attack over Sidi el Barrani airfield made seven days later. On 4 July 1941, six G.50s attacked again, strafing aircraft and ground equipment. G.50s continued in operations, with the worst day for them during 'Operation Crusader'. On 18 November, the Desert Air Force destroyed 13 aircraft on the Ain el Gazala airfields; 10 of them were G.50s. On 19 November, 20° Gruppo was based at Sid el Rezegh. That day, British armoured forces (40 Crusaders of 6th RTR and several units of 3rd Brigade, South African Regiment, both part of 7th Armoured Brigade) suddenly attacked the airfield. Of the 19 G.50s, only three escaped from the airfield, where 80 pilots and ground crew were taken as POW. In only two days, Regia Aeronautica lost 34 aircraft. In total, G.50s losses were no less but 26, and the 20° Gruppo was almost destroyed, since it had only 36 G.50s with 27 of them serviceable. Tente Col Mario Bonzano, commander of 20° Groupo, was among the captured, while his vice, Furio Niclot Doglio, was almost shot down since he was not aware of the British operation. Several G.50s were captured almost intact and at least one was taken from No. 260 and later passed to No. 272 Sqn.

After 1941, G.50s played a minor role in the Regia Aeronautica. In June 1942, British intelligence estimated the 12° Gruppo having 26 G.50s (10 serviceable), while the backbone of 5a Squadra Aerea were 104 C.202s, 63 C.200s, 32 Z.1007 and 31 S.79s.

Aegean theater

After the Italian declaration of war against Greece, the Freccia began operations on 28 October 1940 in the Balkans and Aegean Sea theater. The 48 I^ serie G.50s were from 24° Gruppo (Squadriglie 354 and 355, based at Berat) and 54° Gruppo (Squadriglie 361 and 395, based at Devoli). The 2° Gruppo, commanded by Maggiore Giuseppe Baylon (Squadriglie 150 and 152) with a mixed component of 12 Fiat monoplanes and CR.32s was based on Bari-Grottaglie airfield.

During the Greece campaign, adverse weather conditions hampered the air operations for the most part of the time; but nevertheless, there were several days in which fierce battles were fought, often with a large amount of overclaiming made by both sides. Early on 20 February 1941, Hawker Hurricane fighters were engaged in their first aerial combat over the Balkans when seven 54° Gruppo G.50s scrambled from Devoli to intercept a formation of RAF bombers with their Hurricane escorts. A few days earlier, a British cargo ship had delivered six Hurricanes and several Wellingtons to Paramythia and these few aircraft boosted the RAF power in the region. "Freccias" claiming a bomber and a fighter while the British claimed four G.50s. On the same day, in the afternoon, 15 G.50s engaged a large mixed formation of RAF Gloster Gladiators claiming 10 aircraft for the loss of one Fiat. RAF claimed three G.50s without any losses. Postwar records showed only a Bristol Blenheim and a G.50 lost for the day. On 28 February 1941 another massive air battle had RAF units intercepting Italian bombers and escorts, claiming five BR.20, three Sm.79s, 13 CR.42s and six G.50s, plus several others damaged. Italians claimed six Gladiators and one Spitfire. The recorded losses were one Gladiator (No.112 Sqn) and eight Italian aircraft, included two G.50bis (24o Gruppo) and four BR.20s (many more were damaged). After this aerial battle, the Regia Aeronauticawas no longer effective in the theatre.

On 4 March 1941, a Fiat G.50 bis shot down the Hurricane V7288 of Australian RAF ace Flight Lieutenant Nigel "Ape" Cullen (credited with 15/16 victories) off Valona coast (Albania), while he was flying as wingman for ace Marmaduke "Pat" Pattle. In the Greek campaign, the Fiat losses of 10 fighters included combat losses and others destroyed in accidents and in the bombing of Italian airfields.

In Finnish service

The G.50 saw its longest and most successful service in the two Finnish wars against the Soviet Union, the Winter War 1939-1940 and the Continuation War 1941-1944. Before the outbreak of hostilities, Finland ordered 35 Fiat G.50s at the end of 1939. The first 10 aircraft were to be delivered before February 1940, consequently a group of Finnish pilots arrived in Rome for a training course of 10 hours at Guidonia airport and later at Fiat Aviazione in Turin. On a training flight, Lieutenant Tapani Harmaja during a dive from 3,500 meters, reached an estimated speed of 780 km/h, considered excessive for the structural integrity of the aircraft (the windscreen was damaged in the process)

Germany hindered the transit of the aircraft, consequently, the Fiats were disassembled and embarked in La Spezia on the Norwegian ship Braga, that set sail on 20 January, bound for Turku, Finland. Due to this delay the first Fiat fighters did not reach HLevLv 26 at Utti, until February 1940, too late to affect the course of the winter battles that year. The first kill was achivied on 26 February.

The Fiat fighters saw little action although on 27 February 1940, Lieutenant Malmivuo was the first Finnish pilot to be killed in a G.50 (FA.12), when his fighter crashed after a combat with Soviet aircraft. At this stage, Finnish pilots preferred the Hurricane, the French Morane-Saulnier M.S.406 and even the Brewster Buffalo to the Fiat G.50. Overall, HLeLv 26 archivied 11 kills vs one loss (plus another in an accident, as there were two Finnish pilots killed). Freccia's were numbered FA-1/FA-35, but it seems that only 33 were delivered (13 in February, 17 in March an one in June). The G.50s were taken from the 235 made by CMSA, both Serie I and Serie II aircraft but all had the open cockpit of the Serie II, a feature that Finnish pilots didn't like, especially in the winter. There were some attempts to improve the aircraft; one was tested with an enclosed cockpit, another with a D.XXI ski-undercarriage, but none of the modifications were accepted in service. Better protection for the propellers (with problems at extremely low temperatures) and few other changes were introduced. The speed of the Finnish G.50s was around 430-450 km/h, much lower than the standard series could achieve.

The first demonstration of the Finnish Air Force's effectiveness came on 25 June 1941, thanks to the Fiat G.50 fighters from HLeLv 26, downing 13 out of 15 Soviet SB bombers. A total of 13 aerial victories were achieved, with Captain O. Ehrnrooth, Lieutenant Olli Puhakka and Sergeant L. Aaltonen being the most successful Fiat pilots with two victories each.

During the Continuation War, the Fiat fighters were most successful during the Finnish offensive of 1941, after that they became increasingly less effective. In 1941, the Fiat squadron, LLv 26, claimed 52 victories against the loss of only two fighters. The Soviets were able to bring better, newer fighter types into the front lines during 1942 and 1943, while the Fiats were becoming old and run-down, and the lack of spare parts meant that pilots were restricted to only a minimal number of sorties. Nevertheless, between 30 November 1939 and 4 September 1944, HLeLv 26's G.50s shot down 99 enemy aircraft, shooting down more modern aircraft, such as the British fighters sent to URSS. In the same period, Finnish squadrons lost 41 aircraft (12 were G.50s and 10 more lost flak and non combat causes), including Bulldog IIAs, Fokker D.XXIs, Gloster Gladiators and Brewster B-239s. The most successful Fiat G.50 fighter pilots were O. Tuominen (23 victories with G.50s), Capt Risto O. Puhakka (11), N. Trontti (six), O. Paronen (four), U. Nieminen (four) and L. Lautamx¤ki (four). The Finnish Fiats were finally phased out of front line duty in summer 1944. They were not more than 10-12 and, even as trainers, they lasted not too long, since lacked spare parts. Differently than the older MS.406, there was no effort to change their engine making them better and faster, and probably at the end of the war they were already phased-out.

In Croatian service

In October 1941, the Croatian Air Force Legion requested a certain amount of arms from Italy, among them a number of fighters. Italy agreed to deliver 10 Fiat G.50s (nine single seaters and one two seater) along with parachutes, radios and spare parts including four Fiat A.74/RC.38 engines and a stock of ammunition. On 12 June 1942 the Fiat G.50bis fighters took off from Turin-Fiat Aviazione bound for Croatia, but before crossing the border they were stopped by an order from Capo di Stato Maggiore Ugo Cavallero, who was afraid that Croatian pilots could defect once equipped with the new Fiat aircraft. The G.50s had to wait until 25 June before being delivered to the Croatian Air Force. The aircraft were delivered at the end of June 1942 and were allocated to the 16th Jato at Banja Luka and were intensively used until 1945 against Yugoslav Partisans, at first in Bosnia and Herzegovina, then in Serbia, Croatia and Dalmatia.During 1942, a Croatian squadron, equipped with G.50bis, was transferred from Northern Yougoslavia on Ukrainian Front, flanking 4th Luftflotte. On 25 June 1943, the Zrakoplovstvo Nezavisne Drzave Hrvatske (ZNDH), the Air Force of Independent State of Croatia, received nine G.50bis fighters and one G.50B. They were based, in October, at Zaluani airfield, in Banja Luka, and they flew many strafing mission against partisans, for almost a year.

After the Italian armistice of 8 September 1943, the Luftwaffe supplied the Croatian Air Force Legion with about 20-25 Fiat G.50s captured by German troops on Regia Aeronautica airfields in the Balkans. These Fiat aircraft equipped two Croatian fighter units By the end of 1943, the ZNDH had ten G.50s at its disposal. Three G.50s captured after the Armistice were loaned to Kro JGr 1 at the beginning of 1944. In 1944 some of the G.50s were transferred to the training school in Brezice until 1945, when they were captured by Yugoslav Partisans. In postwar service, the Fiat G.50s were in use for some time in the newly formed Yugoslav Air Force (SFR), the last G.50s in active service.

Variants

G.50
First production version.
G.50 bis
Development of the G.50 version with extended range, 421 built.
G.50ter
More powerful version with a 746 kW (1,000 hp) Fiat A.76 engine, one built.
G.50V
Liquid-cooled V12 variant with a Daimler-Benz DB 601 engine, one built.
G.50bis A/N
Two-seat fighter-bomber prototype, one built.
G.50B
Two-seat trainer version.

Operators

Croatia

Air Force of the Independent State of Croatia received 15+ aircraft.

Finland

Finnish Air Force received 35 aircraft.
No. 26 Squadron, Finnish Air Force

Germany

Luftwaffe

Italy

Regia Aeronautica

Italian Social Republic

Aeronautica Nazionale Repubblicana

Spain

Ejército del Aire

Yugoslavia

SFR Yugoslav Air Force 1 ex-Croatian.

Survivors

Currently, the only known G.50 bis still in existence is undergoing restoration in the Museum of Aviation, in SurÄŤin, at Nikola Tesla Airport, Serbia.

Specifications (G.50)

Data from Fiat G.50 Freccia (Arrow) Specifications

General characteristics

Crew: 1
Length: 7.79 m (25 ft 7 in)
Wingspan: 10.96 m (35 ft 11 in)
Height: 2.96 m (9 ft 9 in)
Wing area: 18.2 m˛ (196 ft˛)
Empty weight: 1,975 kg (4,354 lb)
Loaded weight: 2,706 kg (5,965 lb)
Max takeoff weight: 2,415 kg (5,324 lb)
Powerplant: 1 x— Fiat A.74 RC38 radial engine, 625 kW (838 hp)

Performance

Maximum speed: 484 km/h (301 mph) at 5,000 m
Range: 670 km (418 miles)
Service ceiling: 9,835 m (32,258 ft)
Rate of climb: 13.7 m/s (2,694 ft/min)
Wing loading: 148 kg/m˛ (30 lb/ft˛)
Power/mass: 230 W/kg (0.30 hp/lb)

Armament

Guns: 2 x— 12.7 mm (0.50 in) Breda-SAFAT machine guns

Related development

Fiat G.55

Comparable aircraft

Bloch MB.150
Curtiss P-36
Nakajima Ki-43
Macchi C.200
Polikarpov I-16
IAR 80
Seversky P-35

Citations

Bibliography

Arena, Nino. I caccia a motore radiale Fiat G.50 (in Italian). Modena: Mucchi editore, 1996. NO ISBN
Avions Militaires 1919-1939 - Profils et Histoire (in French). Paris: Hachette, Connaissance de l'histoire, 1979.
Cattaneo, Gianni. "The Fiat G.50." Aircraft in Profile Number 188. Leatherhead, Surrey, UK: Profile Publications Ltd. , 1967.
Dunning, Chris. Solo Coraggio! La storia completa della Regia Aeronautica dal 1940 al 1943 (in Italian). Parma, Italy: Delta Editrice, 2000. NO ISBN.
Ethell, Jeffrey L. Aircraft of World War II. Glasgow: HarperCollins/Jane’s, 1995. ISBN 0-00-470849-0.
Gunston, Bill. Fighting Aircraft of World War II. London: Salamander Book Limited, 1988. ISBN 1-84065-092-3.
Gunston, Bill. Gli Aerei della Seconda Guerra Mondiale (in Italian). Alberto Peruzzo Editore, .
Keskinen, Kalevi, Kari Stenman and Klaus Niska. Fiat G.50, Suomen Ilmavoimien Historia 8 (in Finnish). Espoo, Finland: Tietoteos, 1977. ISBN 951-9035-26-5.
Malizia, Nicola. Fiat G-50 (Aviolibri Records No. 2) (in Italian/English). Roma-Nomentano, Italy: Istituto Bibliografico Napoleone, 2005. ISBN 88-7565-002-0.
Malizia, Nicola. Ali sulla steppa. La Regia Aeronautica nella campagna di Russia (in Italian). Rome: IBN Editore, 2008. ISBN 88-7565-049-7.
Massimello, Giovanni. Furio Nicolot Doglio Un pilota eccezionale (in Italian). Milano: Giorgio Apostolo editore, 1998.
Massimello, Giovanni and Giorgio Apostolo. Italian Aces of World War Two. Oxford/New York, Osprey Publishing, 2000. ISBN 978-1-84176-078-0.
Mattioli, Marco. "Il G.50 nella Guerra d'Inverno" (in Italian). Aerei nella Storia magazine, Parma, January 2000
Mondey, David. The Concise Guide to Axis Aircraft of World War II. New York: Bounty Books, 1996. ISBN 1-85152-966-7.
Neulen, Hans Werner. In the Skies of Europe: Air Forces Allied to the Luftwaffe 1939-1945. Ramsbury, Marlborough, UK: The Crowood Press, 1998. ISBN 1-86126-799-1.
Rocca, Gianni. I disperati (in Italian). Milan: Arnoldo Mondadori Editore, 1991.
Santoni, Alberto. "L'Ultra vola in alto" (in Italian). Storia Militare, Albertelli editions, Parma, July 2007.
Savic, D. and B. Ciglic. Croatian Aces of World War II (Osprey Aircraft of the Aces 49). Oxford, UK: Oxford, 2002. ISBN 1-84176-435-3.
Sgarlato, Nico. G.50/55 (in Italian). Parma, Italy: Delta editions 2004.
"A Second String Arrow" Part 1. Air International, May 1988, Vol. 34, No 5, pp. 251-258. Bromley, UK: Fine Scroll. ISSN 0306-5634.
"A Second String Arrow" Part Two. Air International, June 1988, Vol. 34, No 6, pp. 295-298, 308-311. Bromley, UK:Fine Scroll. ISSN 0306-5634.
Shores, Christopher. Ground Attack Aircraft of World War II. London: Macdonald and Jane’s, 1977. ISBN 0356-0838-1.
Shores, Christopher, Air Aces , Greenwich, CT, Bison Books, 1983. ISBN 0-86124-104-4.
Spick, Mike. The Complete Fighter Ace: All the World's Fighter Aces, 1914-2000. London: Greenhill Books, 1999. ISBN 1-85367-374-9.
Taylor, John W. R. "Fiat G.50 Freccia (Arrow)". Combat Aircraft of the World from 1909 to the Present. New York: G.P. Putnam's Sons, 1969. ISBN 0-425-03633-2.
Tonizzo, Pietro. Fiat G.50 Freccia (Le Macchine e la Storia 9) (in Italian). Modena, Italy: Editore Stem-Mucchi. No ISBN.
Waldis, Paolo. Fiat G 50, Ali e Colori 3 (in Italian/English). Torino, Italy: La Bancarella Aeronautica, 2000.
