Fleet Model 1

Model 1

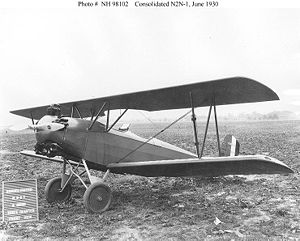

Warbird Picture - US Navy N2Y-1

Picture - US Navy N2Y-1

Role: Recreational and training aircraft
Manufacturer: Consolidated, Fleet
Designed by: Reuben Fleet
First flight: 9 November 1928

The Fleet Model 1 (originally the Consolidated Model 14 Husky Junior) and its derivatives were a family of two-seat trainer and sports plane produced in the United States and Canada in the 1920s and 30s. They all shared the same basic design and varied mainly in their powerplants. They were all orthodox biplanes with staggered, single-bay wings of equal span and fixed tailskid undercarriage. Accommodation was provided for two in tandem, originally sharing a single open cockpit, but in most examples in separate open cockpits. The fuselage was made of welded steel tube and the wings had a wooden spar with duralumin ribs, the entire aircraft being fabric-covered. Despite a superficial resemblance to Consolidated's highly successful Trusty and Husky designs (hence the "Husky Junior" nickname), the Model 14 was an all-new design.

Originally created as a means for Consolidated to enter the civil market, the company abandoned this ambition shortly before the completion of the first prototype. The manufacturing rights were purchased by designer and Consolidated company president Reuben Fleet to put into production himself under a new enterprise, Fleet Aircraft. It was an immediate success, and in the first year of production alone, over 300 machines were sold. Consolidated quickly responded by buying Fleet Aircraft and retaining it as a subsidiary while opening a second production line at Fort Erie, Ontario, Canada. Canadian manufacturing was a great success, with some 600 examples built for the Royal Canadian Air Force as the Fleet Fawn (Model 7) and Fleet Finch (Model 16).

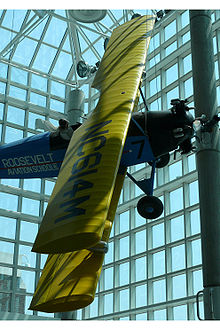

Airplane Picture - Fleet Model 2 on display in the Cradle of Aviation Museum.

Picture - Fleet Model 2 on display in the Cradle of Aviation Museum.

A small number of US-built machines were purchased by the US military, including a batch evaluated by the United States Army Air Corps as the PT-16 but not bought in quantity, and six specialised N2Y trainers for the United States Navy equipped with hooks to catch the trapeze on aircraft-carrying airships and train F9C Sparrowhawk pilots.

US manufacturing rights were eventually sold to Brewster, which intended to produce the Brewster B-1 based on the Canadian Model 16F.

Variants

Airplane Picture - Fleet Model 7

Picture - Fleet Model 7

Consolidated Model 14 Husky Junior - prototypes (ca. 5 built)
Fleet Model 1 - initial production version with Warner Scarab engine (ca. 90 built)
Fleet Model 2 - initial production version with Kinner K-5 engine (203 built)
PT-6 - USAAC designation for Model 2 (16 built)
N2Y-1 - USN version with trapeze hook for airship docking training (5 built)
Fleet Model 3 - version with Wright J-6 engine (1 converted from Model 2)
Fleet Model 4 - version with Curtiss Challenger engine (1 built)
Fleet Model 5 - version with Brownback C-400 engine (1 built)
Fleet Model 6 - improved version for USN as XN2Y-2, later further modified as an autogiro by Pennsylvania Aircraft with the upper wing replaced by a rotor, it was redesignated XOZ-1 (1 built)
Fleet Model 7 - version with Kinner B-5 engine (48 built, plus several converted from Model 2 by Fleet in Canada)
Fleet Model 7A
Fleet Model 7B - Canadian production version
Fleet Model 7C - Canadian production version with Armstrong Siddeley Civet engine
Fleet Model 7G - Canadian production version with de Havilland Gipsy III engine
XPT-6 - One Model 7 acquired by the US Army Air Corps for service tests. Version with 100-hp Kinner R-370-1 (Kinner K5) engine
YPT-6 - ten aircraft similar to the XPT-6, used by the US Army Air Corps for service tests and evaluation
YPT-6A - modified version of the Model 7 fitted with an enlarged cockpit. Used by the US Army Air Corps for service tests and evaluation
Fleet Model 8 - three-seat version similar to Model 7 (7 built)
Fleet Model 9 - refined version of Model 8 (12 built)
Fleet Model 10 - refined version of Model 7 for export to Europe
Fleet Model 10A - version with 100 hp Kinner engine
Fleet Model 10B - version with 125 hp Kinner engine
Fleet Model 10D - version with 160 hp Kinner engine
Fleet Model 10-32D - generally similar to the Model 10D, but with an increased 4-ft 0-in (1.22-m) wingspan
Fleet Model 10E - version with 125 hp Warner engine
Fleet Model 10F - version with 145 hp Warnerengine
Fleet Model 10G - version with de Havilland Gypsy Major engine for governments of Portugal and Romania (ca. 70 built)
Fleet Model 10H - version with Menasco C-4S engine
Fleet Model 11 - version with Kinner R-5 engine; some exported to China and Mexico
Fleet Model 14 - Model 2 modified for participation in Guggenheim Safe Aircraft Competition but disqualified. ca. 300 licence-built in Romania.
Fleet Model 16 - Fleet Finch - strengthened Canadian production version with sliding canopy, powered by a 130 hp de Havilland Gipsy Major engine (ca. 600 built)
Fleet Model 16B - Fleet Finch Mk II - Strengthened Canadian production version, powered by a Kinner B5 engine
Fleet Model 16D - similar to the Model 16B, but fitted with a Kinner B5 engine
Fleet Model 16F - prototype for Brewster B-1
Fleet Model 16R - Fleet Finch Mk I - designation of the Fleet 16D built in Canada for the RCAF
Fleet Model 21 - armed version built in Canada for Mexican Air Force (11 built)
Fleet Model 21M - designation for a one-off demonstration aircraft
Fleet Model 21K - redesignation of the Model 21M, after it was subsequently sold to a private buyer

Operators

Canada

Royal Canadian Air Force

Mexico

Mexican Air Force

United States

United States Army Air Corps

Specifications (Model 2)

General characteristics

Crew: One pilot
Capacity: 1 passenger
Length: 21 ft 8 in (6.61 m)
Wingspan: 28 ft 0 in (8.54 m)
Height: 7 ft 9 in (2.36 m)
Wing area: 194 ft (18.0 m)
Powerplant: 1 x Kinner K-5, 100 hp (75 kW)

Performance

Maximum speed: 105 mph (169 km/h)
Range: 350 miles (560 km)
Service ceiling: 12,200 ft (3,700 m)

Taylor, Michael J. H. (1989). Jane's Encyclopedia of Aviation. London: Studio Editions. pp. 263. ISBN 0710607105.
World Aircraft Information Files. London: Bright Star Publishing. File 894 Sheets 24-25.
Aerofiles.com
Howard, Frederic (June 1967). "The History Of The 1930 Fleet". American Aviation Historical Society Journal.
Shattuck, Lemuel C. (December-January 2008). "Restoration: Fleet Model 8". Air & Space.
