Fokker S-13

Fokker S.13

Aircraft Picture - Fokker S.13 Universal Trainer

Picture - Fokker S.13 Universal Trainer

Role: training aircraft
Manufacturer: Fokker
Number built: 1

The Fokker S.13 Universal Trainer is a dual engine propellor aircraft for training purposes designed and manufactured by the former Dutch aircraft manufacturer Fokker.

History

In the early years after World War II, Fokker was resurrected with help from the national institute for aircraft development, the Nederlands Instituut voor Vliegtuigontwikkeling (NIV). Fokker expected strong demand for training aircraft, and therefore a range of designs was worked out. One of those became known as the S.13. This model, dubbed Universal Trainer, was meant to be trainer for multiple engine training, navigation training, paradropping training and training in radiotelephony.

The prototype with registration PH-NEI made its maiden flight in 1949. The aircraft proved to be easy handling and strong. Flight testing was successful and the Dutch armed forces intended to buy the aircraft. Shortly before deciding upon procurement, the Dutch armed forces were provided with Beechcraft Model 18s under the Mutual Defense Assistance Pact (MDAP), almost for free. As other parties did not show interest in the S.13, Fokker terminated the programme. The only existing S.13 was transferred to the NIV in 1953. Years afterwards, the airframe was donated to the aerospace faculty of the TH Delft, today known as Delft University of Technology.

Tactical history

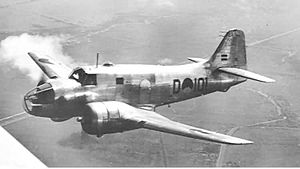

Although the Dutch armed forces never took the S.13 into service, Fokker operated the S.13 prototype in military livery. Therefore the S.13 has flown as D-101. During the severe floodings of February 1953, the D-101 was used for photoreconnaissance from naval air station Valkenburg.

Remains

There are some S.13-relics in existence today. The cockpit section is displayed in the Aeronautical & War Museum at Texel Airport. The tailsection is owned by Aviodrome aviation museum, but currently it is not on display.

Specifications (Fokker S-13)

Data from Jane's All The World's Aircraft 1953-54

General characteristics

Length: 13.6 m (44 ft 7 in)
Wingspan: 19.2 m (63 ft)
Height: 5.5 m (18 ft)
Wing area: 46 m (495 ft)
Empty weight: 4,185 kg (9,225 lb)
Loaded weight: 5,775 kg (12,735 lb)
Powerplant: 2x Pratt & Whitney Wasp S1H1-G 9-cylinder air cooled radial engine, 450 kW (600 hp) each

Performance

Maximum speed: 335 km/h (220 mph)
Cruise speed: 320 km/h (200 mph)
Service ceiling: 6,500 m (21,300 ft)

Bridgman, Leonard (ed.) (1953). Jane's All The World's Aircraft 1953-54. London: Jane's.
