Gloster III Aircraft Information

Gloster III

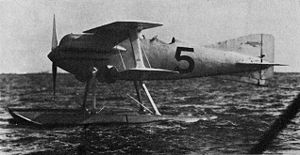

Warbird Picture - Gloster IIIA at 1925 Schneider Trophy

Picture - Gloster IIIA at 1925 Schneider Trophy

Role: Racing seaplane
National origin: United Kingdom
Manufacturer: Gloster Aircraft Company
Designed by: Henry Folland
First flight: 1925
Introduced: 1925
Primary user: Royal Air Force
Number built: 2

The Gloster III was a British racing floatplane of the 1920s intended to compete for the Schneider Trophy air race. A single-engined, single seat biplane, two were built, with one finishing second in the 1925 race.

Design and development

In 1924, the Gloster Aircraft Company designed and built the Gloster II, a development of the Gloster I racing aircraft to compete in that year's Schneider Trophy air race. The first aircraft was written off during trials, however, and as there were no other competitors, the American Aero Club postponed the competition to 1925.

In order to compete in the 1925 race, the British Air Ministry placed an order with Gloster for the design and build of two examples of a new racing seaplane in February 1925. The resulting design, the Gloster III, like the Gloster II, was a wooden biplane with single bay wings and powered by a 700 hp (522 kW) Napier Lion VII engine. The aircraft was fitted with Lamblin radiators on the leading edge of the lower wings. With a 20 ft (6.1 m) wingspan, the Gloster was the smallest British aircraft ever built with that power at that time.

The first prototype, with the serial number N194 was flown by Hubert Broad on 29 August 1925, with the second aircraft (with the civil registration G-EBLJ and the military serial N195) being flown a few days later by Bert Hinkler.

Operational history

The pilots had little time to practice flying the Gloster IIIs, with N194 only flying four times and N195 flying once before being departing for America. When the Supermarine S.4 crashed during navigation trials on 23 October 1925, N195, which was brought as a reserve was prepared to take part in the race instead of the Supermarine monoplane, to be flown by Hinkler. On the morning of the race, however, N195 was damaged during taxiing tests, leaving Broad in N194 to carry British hopes in the afternoon's race.

When the race took place, the Gloster III was outclassed by the Curtiss R3Cs of the United States, with the race being won by Lieutenant James Doolittle, flying a Curtiss R3C at an average speed of 232.573 mph (374.443 km/h), 33 mph (53 km/h) faster than Broad, who recorded a speed of 199.091 mph (320.537 km/h), with De Briganti in the Macchi M.33 finishing third and the remaining two Curtiss R3Cs failing to finish.

Following the race, the two Gloster IIIs were returned to the United Kingdom. After modification, they were used for training pilots of the RAFs High Speed Flight in preparation for the 1927 race.

Variants

Gloster III Original variant, powered by 700 hp (522 kW) Napier Lion. Two built. Gloster IIIA Modified tail to resolve stability problems encountered on first flight. Gloster IIIB Modification of N195 following return of aircraft from 1925 Schneider Trophy.Low drag surface radiators fitted to all four wings and modified cantilevered tail. Maximum speed increased to 252 mph (406 km/h).

Operators

United Kingdom

Royal Air Force
High Speed Flight RAF

Specifications (Gloster IIIA)

Data from Gloster Aircraft since 1917

General characteristics

Crew: One
Length: 26 ft 10 in (8.1 m)
Wingspan: 20 ft 0 in (6.09 m)
Height: 9 ft 8 in (2.94 m)
Wing area: 152 ft (14.1 m)
Empty weight: 2,028 lb (920 kg)
Loaded weight: 2,687 lb (1,218 kg)
Powerplant: 1x Napier Lion VII 12-cylinder water cooled W block engine, 700 hp (522 kW)

Performance

Maximum speed: 225 mph (196 knots, 362 km/h)
Wing loading: 17.7 lb/ft (86.4 kg/m)
Power/mass: 0.26 hp/lb (430 W/kg)

Schneider Trophy

Related development

Gloster II
Gloster IV

Comparable aircraft

Supermarine S.4
Curtiss R3C

In addition, the Air Ministry also placed an order with Supermarine for the S.4 monoplane.

Bibliography

"The Schneider Cup Seaplane Race: British Representatives Leave on Saturday ". Flight. 24 September 1925. pp.609-614.
"The 1925 Schneider Trophy Race". Flight. 29 October 1925. p.703.
"The 1925 Schneider Trophy Race:Average Speed Raised from 45.75 m.p.h. in 1913 to 232.573 m.p.h. in 1925". Flight. 5 November 1925. pp.726-732.
"The 1925 Schneider Trophy Race:"Flight" Correspondent's Special Account". Flight. 12 November 1925. pp.747-752.
"THE SCHNEIDER CUP RACE, 1925.
Donald, David (editor). The Encyclopedia of World Aircraft. Leicester, UK: Blitz, 1997. ISBN 1-85605-375-X.
Jackson, A.J. British Civil Aircraft since 1919: Volume 2. London:Putnam, Second edition 1973. Pages 454-455. ISBN 0 370 10010 7.
James, Derek M. Gloster Aircraft since 1917. London:Putnam, 1971. ISBN 0 370 00084 6.
