Gloster Nightjar Aircraft Information

Gloster Nightjar

Airplane Picture - GLoster Nightjar

Role: Fighter
Manufacturer: Gloster Aircraft Company
Designed by: Henry Folland
First flight: 1921
Introduced: 1922
Retired: 1924
Primary user: Royal Air Force
Number built: 22
Developed from: Nieuport Nighthawk

The Nightjar was a British carrier based fighter aircraft of the early 1920s. It was a modification of the earlier Nieuport Nighthawk fighter produced by Gloster after the Nieuport & General company, who designed the Nighthawk closed down. 22 were converted, serving with the British Royal Air Force from 1922 to 1924.

Design and development

The Nieuport & General Aircraft Co Ltd was formed before the start of the First World War to license produce French Nieuport aircraft. During 1917, hiring Henry Folland as chief designer, the company started to design its own aircraft, with the first type, the Nieuport B.N.1 fighter flying early in 1918.

Folland designed the Nieuport Nighthawk fighter to meet the requirements of RAF Specification Type 1 which specified using the ABC Dragonfly radial engine, first flying in April 1919. During initial evaluation, this showed excellent performance, and was ordered into production. The Dragonfly engine, however, proved hopelessly unreliable, and none of the Dragonfly powered Nighthawks that were completed entered service.

Nieuport & General closed down in August 1920, and the rights to the Nighthawk were purchased by the Gloster Aircraft Company, who hired Folland as chief designer. Gloster proceeded to produce a number of derivatives of the Nighthawk, calling them Gloster Mars, with variants being sold to Japan (Gloster Sparrowhawk) and Greece, and being evaluated by the RAF.

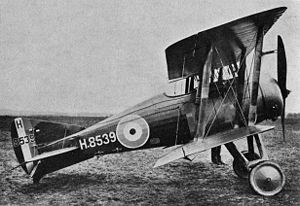

Airplane Picture - Nightjar during evaluation at Farnborough in 1922 - Note arrestor jaws on undercarriage

Picture - Nightjar during evaluation at Farnborough in 1922 - Note arrestor jaws on undercarriage

The final derivative of the Nighthawk was the Gloster Mars X, also known as the Nightjar. This was intended as a single seat shipboard fighter to replace Sopwith Camels aboard the Royal Navy's aircraft carriers. It was a simple conversion of surplus Nighthawks, with the Bentley BR2 rotary engine (which was readily available from surplus stocks) replacing the Dragonfly. The Nightjar was a two-bay biplane of wooden construction, and was fitted with a new, wide-track undercarriage, with jaws fitted to act as Arresting gear for use with the fore and aft arrestor cables then in use on British aircraft carriers.

The first Nightjar was delivered for evaluation by the Aeroplane and Armament Experimental Establishment in May 1921. A total of 22 Nighthawks were converted to Nightjars in 1922.

Operational history

The Nightjar entered service with 203 Squadron at RAF Leuchars in June 1922 . Six Nightjars of 203 Squadron were deployed aboard HMS Argus in September 1922, when Argus sailed for the Dardanelles during the Chanak Crisis.

The Nightjar continued to serve with fighter flights aboard Royal Navy aircraft carriers until replaced by the Fairey Flycatcher in 1924.

Operators

United Kingdom

Royal Air Force
No. 203 Squadron RAF

Specifications (Nightjar)

Data from British Naval Aircraft since 1912

General characteristics

Crew: One
Length: 19 ft 2 in (5.84 m)
Wingspan: 28 ft 0 in (8.54 m)
Height: 9 ft 7 in (2.92 m)
Wing area: 270 ft (25.1 m)
Empty weight: 1,765 lb (802 kg)
Loaded weight: lb (kg)
Useful load: lb (kg)
Max takeoff weight: 2,165 lb (984 kg)
Powerplant: 1x Bentley BR2 rotary engine, 230 hp (172 kW)

Performance

Maximum speed: 104 knots (120 mph, 193 km/h) at sea level
Service ceiling: 19,000 ft (5,800 m)
Wing loading: 8.01 lb/ft (39.2 kg/m)
Power/mass: 0.11 hp/lb (170 W/kg)
Endurance: 2 hours
Climb to 15,000 ft (4,600 m): 20 min

Armament

Two fixed forward firing .303 in Vickers machine guns.

Related development

Nieuport Nighthawk
Gloster Sparrowhawk

Comparable aircraft

Fairey Flycatcher

Bibliography

James, Derek N. Gloster Aircraft since 1917. London: Putnam and Company Ltd., 1987. ISBN 0-85177-807-0.
