Role: Experimental Fighter
Manufacturer: Grumman
First flight: 1984
Status: Retired
Primary user: DARPA
Number built: 2

The Grumman X-29 was an experimental aircraft that tested a forward-swept wing, canard control surfaces, and other novel aircraft technologies. The aerodynamic instability of this arrangement increased agility but required the use of computerized fly-by-wire control. Composite materials were used to control the aeroelastic divergent twisting experienced by forward-swept wings, also reducing the weight. The X-29 first flew in 1984 and two X-29s were flight tested over the next decade.

Design and development

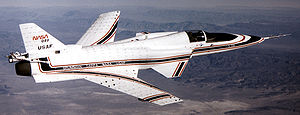

Airplane Picture - The X-29 in flight

Picture - The X-29 in flight

Two X-29As were built by Grumman Aerospace Corporation from two existing Northrop F-5A Freedom Fighter airframes (63-8372 became 82-0003 and 65-10573 became 82-0049) after the proposal had been chosen over a competing one involving a General Dynamics F-16 Fighting Falcon. The X-29 design made use of the forward fuselage and nose landing gear from the F-5As with the control surface actuators and main landing gear from the F-16. The technological advancement that made the X-29 a plausible design was the use of carbon-fiber composites. The wings of the X-29, made partly of graphite epoxy, were swept at more than 33 degree forward. The Grumman internal designation for the X-29 was "Grumman Model 712" or "G-712".

Airplane Picture - X-29 cockpit

Picture - X-29 cockpit

The X-29A demonstrated high maneuvering and control in flight testing. A maximum angle of attack of 67° was reached. The configuration, combined with a CG well aft of the aerodynamic center, made the craft inherently unstable. Stability was provided by the computerized flight control system making 40 corrections per second. The flight control system was made up of three redundant digital computers backed up by three redundant analog computers; any of the three could fly it on its own, but the redundancy allowed them to check for errors. Each of the three would "vote" on their measurements, so that if any one was malfunctioning it could be detected. It was estimated that a total failure of the system was as unlikely as a mechanical failure in an airplane with a conventional arrangement.

Aeroelastic considerations

In a forward swept wing configuration, the aerodynamic lift produces a twisting force which rotates the wing leading edge upward. This results in a higher angle of attack, which increases lift, twisting the wing further. This aeroelastic divergence can quickly lead to structural failure. With conventional metallic construction, a torsionally very stiff wing would be required to resist twisting; stiffening the wing adds weight, which may make the design unfeasible.

The X-29 design made use of the anisotropic elastic coupling between bending and twisting of the carbon fiber composite material to address this aeroelastic effect. Rather than using a very stiff wing, which would carry a weight penalty even with the relatively light-weight composite, the X-29 used a laminate which produced coupling between bending and torsion. As lift increases, bending loads force the wing tips to bend upward. Torsion loads attempt to twist the wing to higher angles of attack, but the coupling resists the loads, twisting the leading edge downward reducing wing angle of attack and lift. With lift reduced, the loads are reduced and divergence is avoided.

Operational history

The first X-29 was taken aloft on 14 December 1984 from Edwards AFB with Grumman's Chief Test Pilot Chuck Sewell at the controls. On 13 December 1985, one of the X-29s became the first forward swept wing aircraft to fly in supersonic, level flight. (The earlier Junkers Ju 287 had been the first jet aircraft with forward-swept wings.)

The X-29 began a NASA test program only four months after its first flight. The X-29 proved very reliable, and by August 1986 was involved in flying research missions lasting more than three hours. The first X-29 was not equipped with a spin recovery parachute, as it was not expected to go into a spin. The second X-29 was given such a parachute and was involved in a high angle-of-attack research program. The NASA test program continued from 1984 to 1991. By the time the first X-29 was retired in 1986, it had been flown 242 times.

Aircraft on display

The first X-29 produced is now on display in the National Museum of the United States Air Force at Wright-Patterson Air Force Base near Dayton, Ohio. The other craft is on display at the Dryden Flight Research Center on Edwards Air Force Base. A full scale model is on display at the National Air and Space Museum's National Mall building in Washington, DC.

Airplane Picture - Grumman X-29A at the National Museum of the United States Air Force

Picture - Grumman X-29A at the National Museum of the United States Air Force

Specifications (X-29)

Data from NASA X-Planes Donald, Winchester

General characteristics

Crew: one pilot
Payload: 4,000 lb (1,810 kg)
Length: 48 ft 1 in (14.7 m)
Wingspan: 27 ft 2 in (8.29 m)
Height: 14 ft 9 in (4.26 m)
Wing area: 188.8 ft² (17.54 m²)
Empty weight: 13,800 lb (6,260 kg)
Max takeoff weight: 17,800 lb (8,070 kg)
Powerplant: 1x— General Electric F404 turbofan, 16,000 lbf (71.2 kN)

Performance

Maximum speed: Mach 1.8 (1,100 mph, 1,770 km/h at 33,000 ft (10,000 m))
Range: 350 mi (560 km)
Service ceiling: 55,000 ft (16,800 m)

Forward-swept wing
Junkers Ju 287

Related development

Northrop F-5

Comparable aircraft

Su-47

Bibliography
