Hawker Heron Aircraft Information

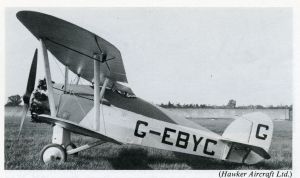

Hawker Heron

Airplane Picture -

Role: Biplane fighter
National origin: United Kingdom
Manufacturer: Hawker Aircraft
First flight: 1925
Status: Prototype
Number built: 1

The Hawker Heron was the first fighter aircraft designed at Hawker Aircraft with a basically metal structure. Sydney Camm was the chief designer that introduced what became the typical structure for all Hawker aircraft until the introduction of the jet-powered Hawker P.1040. This structure consisted of metal tubes (steel or aluminium) with their ends swaged so that they could be connected to each other by means of "fishplates" and bolts (sometimes with ferrules to protect the tubes).

Design

The design was produced in 1924 as a private venture version of the Hawker Woodcock fighter with the wooden structure of the Woodcock replaced by a mainly metal structure, but as the design developed, the use of a metal structure resulted in an entirely new aircraft.

The Heron was a single bay biplane with a metal structure as described above and fabric covered. It was powered by a 455 hp (339 kW) Bristol Jupiter VI engine driving a two-bladed wooden propeller. (A metal propeller was also flown but showed no improvement of performance). There was provision for two .303 in (7.7 mm) Vickers machine guns.

The first flight, flown by P.S.W. Bulman was made in 1925. Despite being heavier than the similar powered Woodcock, it was 15 mph (24 km/h) faster and was praised by the pilots that flew it for its excellent handling properties. Due to little interest from the Air Ministry, only one aircraft was built.

Specifications

Data from Hawker Aircraft since 1919

General characteristics

Crew: 1
Length: 22 ft 3 in (6.78 m)
Wingspan: 31 ft 10 in (9.70 m)
Height: 9 ft 9 in (2.97 m)
Wing area: 291 ft (27.0 m)
Empty weight: 2,120 lb (960 kg)
Loaded weight: 3,126 lb (1,460 kg)
Powerplant: 1x Bristol Jupiter VI radial piston engine, 455 hp (339 kW)

Performance

Maximum speed: 156 mph (136 kn, 251 km/h) at 9,800 ft (2,987 m)
Service ceiling: 23,300 ft (7,102 m)
Wing loading: 10.7 lb/ft (54.1 kg/m)
Power/mass: 0.15 hp/lb (0.23 kW/kg)
Endurance: 3 hr 30 sec
Climb to 10,000 ft (3,050 m): 5 min 30 sec

Armament

2 x .303 in (7.7 mm) Vickers machine guns

Related development

Hawker Woodcock

Mason, Francis K Hawker Aircraft since 1920 London:Putnam, 1991. ISBN 0 85177 839 9.
Fozzard,John W. (editor) Sydney Camm & the Hurricane.Shrewsbury, UK: Airlife, 1991. ISBN 1853102709
