Hawker Horsley

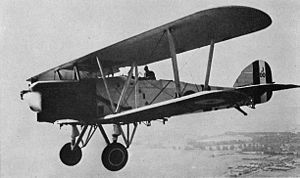

Warbird Picture - A Hawker Horsley of No. 100 Squadron, RAF

Picture - A Hawker Horsley of No. 100 Squadron, RAF

Role: Medium bomber
Manufacturer: Hawker Aircraft
First flight: 1925
Introduced: January 1927
Retired: 1935
Primary user: RAF
Number built: 124

The Hawker Horsley was a British single engined biplane bomber of the 1920s. It was the last all wooden aircraft built by Hawker Aircraft, and served as a medium day bomber and torpedo bomber with Britain's Royal Air Force between 1926 and 1935, also serving with the Navies of Greece and Denmark.

Design and development

The Horsley (named after Sir Thomas Sopwith's home of Horsley Towers) was originally designed to meet Air Ministry Specification 26/23 for a day bomber powered by a single Rolls-Royce Condor engine. While the specification called for any production aircraft to be of metal construction, Hawker proposed to built the prototype of wooden construction, gradually switching to a metal structure during production. This was acceptable to the Air Ministry, and an order for a single prototype was placed. The first prototype was flown in March 1925, powered by a 650 hp (485 kW) Condor III engine, and was delivered to the Aeroplane and Armament Experimental Establishment at Martlesham Heath on 4 May 1925.

Meanwhile, the Air Ministry revised its requirements, producing Specification 23/25 which increased the required payload from one to two 551 lb (250 kg) bombs. At the same time, it also issued Specification 24/25 for a torpedo bomber, required to carry a 2,150 lb (975 kg) torpedo. The Horsley's ability to cope with the increased loads required to meet these new specifications lead to the design being favoured by the RAF, with an initial order of forty aircraft, consisting of 10 wooden Mk Is and 30 Mk IIs of mixed metal and wood construction, being placed.

Description

The Horsley was a large single-engined two-bay biplane. It had a crew of two, comprising a pilot and a gunner/bomb-aimer/radio operator, who had a .303 in (7.7 mm) Lewis gun mounted in a Scarff ring in the rear cockpit and a prone position for bomb aiming. The rear cockpit was also fitted with dual controls. The payload included two 551 lb (250 kg) bombs, one 1,500 lb (680 kg) bomb or a torpedo weighing 2,800 lb (1,270 kg).

The structure was originally all wood, but before production was complete an all-metal structure was introduced, made in what became the famous Hawker system of metal construction. Unofficially the three methods of construction were designated; Horsley Mk I for the all wooden, Horsley Mk II for the mixed material, and Horsley III for the all-metal aircraft. Some aircraft were fitted with floats.

Two aircraft, powered by Leopard II engines were sold to the Danish Government, but these aircraft were known as Hawker Dantorp and had a slightly different fuselage, accommodating a third crew member. The Danes also purchased a license to build a further 10 aircraft at the Danish Naval Workshops (Orlogsvaerftet), but these were not built owing to a shortage of funds.

While production aircraft were powered by the Condor IIIA, the Horsley was much used as a flying test-bed for other engines. Engines tested included the Napier Lion, Rolls-Royce Buzzard, Rolls-Royce Eagle, the Armstrong Siddeley Leopard radial engine, the Junkers Jumo diesel engine and early vesions of the Rolls-Royce Merlin.

Operational history

The first aircraft were delivered to No 100 (Bomber) Squadron of the Royal Air Force in September 1927, with two more squadrons, No. 15 and No. 11 Squadrons receiving Horsleys by the end of the year, replacing the Fairey Fawn. The Horsleys proved greatly superior to the Fawn, carrying up to three times the bomb load over greater ranges and at higher speeds, while also being agile for their size, and proving popular with its pilots.

In October 1928, No. 36 Squadron formed at Donibristle, Fife, Scotland as a torpedo-bomber squadron. It was transferred to Singapore in 1930, helping to suppress a rebellion in Burma as well as maintaining its torpedo bombing skills. 100 Squadron converted to the torpedo bombing role in 1930 to fill the gap in home based defences.

The Horsley was chosen to attempt a non-stop flight to India, with a specially modified aircraft, carrying much more fuel and taking off at a weight of over 14,000 lb (6,350 kg) took off from RAF Cranwell on 20 May 1927, flown by Flight Lieutenants Roderick Carr and L.E.M Gillmann. It ran out of fuel en route, however, ditching in the Persian Gulf near Bandar Abbas, Iran. Despite this it had covered a distance of 3,420 mi (5,506 km), which was sufficient to set a new world distance record, but was beaten in turn within a few hours by Charles Lindbergh solo Atlantic flight between New York and Paris in the Spirit of St. Louis, covering 3,590 mi (5,780 km).

The Horsleys remained in service in the day-bombing role until 1934, with 504 Squadron's Horsleys being replaced by Westland Wallaces in March 1934. No 36 Squadron at Singapore retained the Horsely in the Torpedo bomber role until July 1935. The last Horsley, a Merlin powered test bed flew its final flight at RAE Farborough on 7 March 1938.

A total of 124 Horsleys were built, including six aircraft for the Greek Naval Air Service and the two Dantorps built for Denmark.

Operators

Airplane Picture - Hawker Dantorp

Picture - Hawker Dantorp

Denmark

Marinens Flyvevx¦sen

Greece

Greek Naval Air Service

United Kingdom

Royal Air Force
No. 11 Squadron RAF
No. 15 Squadron RAF
No. 25 Squadron RAF
No. 33 Squadron RAF
No. 36 Squadron RAF
No. 100 Squadron RAF
No. 504 Squadron RAF
No 1 Flying Training School
Royal Air Force College Cranwell
Anti-Aircraft Co-operation Flight

Specification (Horsley II day bomber)

Data from Hawker Aircraft since 1919

General characteristics

Crew: two, pilot and bombardier/gunner
Length: 38 ft 10 in (11.83 m)
Wingspan: 56 ft 5¾ in (17.22 m)
Height: 13 ft 8 in (4.16 m)
Wing area: 693 ft² (64.38 m²)
Empty weight: 4,760 lb (2,164 kg )
Loaded weight: 7,800 lb (3,545 kg)
Powerplant: 1x— Rolls-Royce Condor III V-12, 650 hp (485 kW)

Performance

Maximum speed: 125 mph at 6,000 ft (201 km/h at 1,829 m)
Range: 900 mi (783 nmi, 1,449 km)
Service ceiling: 14,000 ft (4,267 m)
Climb to 10,000 ft (3,045 m) : 14 minutes 20 seconds
Endurance : approx. 10 hours

Armament

1 x— forward-firing .303 in (7.7 mm) Vickers machine gun
1 x— rear-mounted .303 in (7.7 mm) Lewis Gun
1,500 lb (680 kg) bombload or 1 x— torpedo

Comparable aircraft

Handley Page Handcross
Bristol Berkeley
Westland Yeovil

Bibliography

Jarrett, Philip. "By Day and By Night: Hawker Horsley part 1". Aeroplane Monthly, Volume 21 No 10, Issue 246, October 1993. pp.32-40.
Mason, Francis K. Hawker Aircraft since 1920. London:Putnam, Third edition, 1991. ISBN 0 85177 839 9.
Mason, Francis K. The British Bomber since 1912. London:Putnam, 1994. ISBN 0 85177 861 5.
Thetford, Owen."By Day and By Night: Hawker Horsley part 2". Aeroplane Monthly, Volume 21 No 11, Issue 246, November 1993. pp.24-30.
