Kawasaki Ki-45 Aircraft Information

Kawasaki Ki-45 "Toryu"

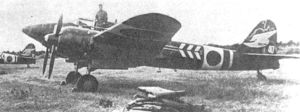

Warbird Picture - Kawasaki Ki-45 Toryu (Allied code name

Picture - Kawasaki Ki-45 Toryu (Allied code name "Nick")

Role: Twin-engine heavy fighter
Manufacturer: Kawasaki
Designed by: Takeo Doi
First flight: May 1941
Introduced: October 1941
Retired: 1945
Primary users: Imperial Japanese Army Air Force People's Liberation Army Air Force
Number built: 1,691

The Kawasaki Ki-45 Toryu ( 龍, "Dragon Slayer") was a two-seat, twin-engine fighter used by the Imperial Japanese Army in World War II. The army gave it the designation "Type 2 Two-Seat Fighter"; the Allied codename was "Nick".

Design and development

In response to the rapid emergence in Europe of twin-engine heavy fighters such as the Messerschmitt Bf 110, the army ordered development of a twin-engine, two-seat fighter in 1937, and assigned the proposal by Kawasaki Shipbuilding the designation of Ki-38. This only went as far as a mock up, but by December of that year, the army ordered a working prototype as the Ki-45, which first flew in January 1939. Results from the test flights, however, did not meet the army's expectations. The Ha-20 Otsu engine was underpowered and failure-prone, while the airframe suffered from nacelle stall.

The Ki-45 did not enter use, but the army, insistent on having a working twin-engine fighter, ordered Kawasaki to continue development. Kawasaki responded by replacing the engines with the proven Nakajima Ha-25. Flight tests were promising.

In October 1940, the army ordered continued improvements such as switching to 805 kW (1,080 hp) Mitsubishi Ha-102 engines. This craft, designated Ki-45 Kai, was complete in September 1941 and was officially adopted for use by the army in February 1942 as the "Type 2 Two-Seat Fighter".

Operational history

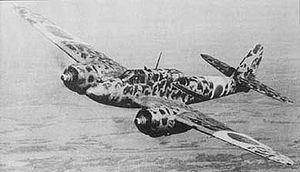

Airplane Picture - Kawasaki Ki-45 KAIc Army Type 2 Two-seat fighter Model C of the 53th Hiko Sentai[3]

Picture - Kawasaki Ki-45 KAIc Army Type 2 Two-seat fighter Model C of the 53th Hiko Sentai[3]

The Ki-45 was initially used as a long-range bomber escort. The 84th Independent Flight Wing (Dokuritsu Hikō Chutai) used them in June 1942 in attacks on Guilin, where they encountered, but were no match for Curtiss P-40s flown by the Flying Tigers. In September of the same year, they met P-40s over Hanoi with similar results. It became clear that the Ki-45 could not hold its own against single-engine fighters in aerial combat.

It was subsequently deployed in several theaters in the roles of interception, ground, ship attack and fleet defense. Its greatest strength turned out to be as an anti-bomber interceptor, as was the case of the Bf 110 in Europe. In New Guinea, the JAAF used the aircraft in an anti-ship role, where the Ki-45 was heavily armed with one 37 mm (1.46 in) and two 20 mm cannons and could carry two 250 kg (550 lb) bombs on hard points under the wings. 1,675 Ki-45s of all versions were produced during the war.

The first production type (Ko) was armed with two 12.7 mm (.50 in) machine gun in the nose, a single 20 mm cannon in the belly, and a trainable 7.92 mm (.312 in) machine gun in the rear cabin, and this was followed with the Otsu with the lower 20 mm cannon replaced by a 37 mm (1.46 in) tank gun, to counter B-17 Flying Fortress bombers. While the firepower was devastating, manual reloading meant that only two rounds could be fired per minute. The next type (Hei) restored the 20 mm cannon, and this time placed an automatic 37 mm (1.46 in) gun in the nose. A later addition was twin obliquely-firing 20 mm cannon behind the cockpit and removal of the underside 20 mm guns.

Soon after entering service, the Ki-45 was assigned to home defense, and several were dispatched against the Doolittle raid, though they did not see action. The craft's heavy armament proved to be effective against the B-29 Superfortress raids which started in June 1944. However, its performance was insufficient to counter B-29s flying at 10,000 m (32,800 ft). Modifications such as reduction of fuel and ordnance were attempted to raise performance to little avail, and in the end aircraft were used effectively in ramming attacks. An example of a ramming attack was the kamikaze attack on USS Dickerson on 2 April 1945 off Okinawa. The commanding officer and 54 crew were killed when a Toryu clipped the stacks from astern, and rammed the bridge. A second Toryu hit the foredeck, opening a 7 m (23 ft) hole in the deck. The ensuing fires demolished the ship, and after the surviving crew was rescued by fellow fast transports and ex-destroyers Bunch and Herbert, the ship was towed out to sea and scuttled.

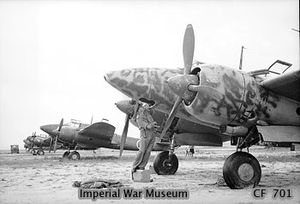

Airplane Picture - Ki-45 Toryu fighters captured at Kallang Airfield during the liberation of Singapore

Picture - Ki-45 Toryu fighters captured at Kallang Airfield during the liberation of Singapore

In 1945, the forward and upward-firing guns showed some results with the commencement of night time bombing raids, but the lack of radar was a considerable handicap. By the spring of 1945, the advent of American carrier-based fighters and Iwo Jima-based P-51s escorting B-29s over the skies of Japan brought the Ki-45's career to an end.

The next version, the Kawasaki Ki-45 KAIc, was developed specifically as a night fighter, which were supposed to be equipped with centimetric radar in the nose; due to production difficulties, this did not occur. The aircraft took part in night defense of the Home Islands and equipped four sentais from the autumn of 1944 to the War's end. They obtained notable successes, and one Ki-45 sentai claimed 150 victories and of these claimed eight USAAF B-29 Superfortresses in their first combat.

The Ki-45 was to be replaced in the ground-attack role by the Ki-102, but was never wholly supplanted by the wars' end.

Three Ki-45s fell into communist Chinese hands after World War II. Unlike most captured Japanese aircraft that were employed in the training role, the three Ki-45s were assigned to the 1st Squadron of the Combat Flying Group in March 1949 and were used in combat missions. These aircraft were retired in the early 1950s.

Variants

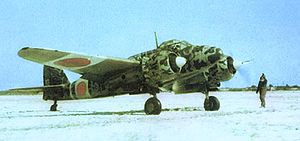

Airplane Picture - Another Kawasaki Ki-45 of the 53th Hiko Sentai, active on Home Defence, as depicted by the white band along the Hinomaru

Picture - Another Kawasaki Ki-45 of the 53th Hiko Sentai, active on Home Defence, as depicted by the white band along the Hinomaru

Ki-45 Prototype aircraft KI-45 Type 1 Modified operative models Ki-45 KAI Prototype aircraft Ki-45 KAI Pre-series aircraft Ki-45 KAIa Toryu Two-seat fighter Type 2 of Army (Mark A) initial model of series Ki-45 KAIb Mark B version against land or naval objectives; engines, Mitsubishi Ha-102 of 780 kW (1,050 hp). Ki-45 KAIc Mark C, a modified Model B, night fighter version, equipped with one 37 mm (1.46 in) Ho-203 cannon in ventral tunnel, two fixed 20 mm Ho-5 cannons in dorsal frontal position, and one 7.92 mm (.312 in) Type 89 machine gun in back position. Ki-45 KAId Mark D version against naval objectives, two 20 mm cannons and one 37 mm (1.46 in) cannon in the ventral position, one 7.92 mm (.312 in) machine gun in the back position. Ki-45 II Prototype only, completed as the experimental prototype Ki-96.

Total production: 1,691 or 1701 units.

Operators

Japan

Imperial Japanese Army Air Force
No. 25 Dokuritsu Hikō Chutai IJAAF
No. 71 Dokuritsu Hikō Chutai IJAAF
No. 84 Dokuritsu Hikō Chutai IJAAF
No. 4 Hikō Sentai IJAAF
No. 5 Hikō Sentai IJAAF
No. 13 Hikō Sentai IJAAF
No. 16 Hikō Sentai IJAAF
No. 21 Hikō Sentai IJAAF
No. 27 Hikō Sentai IJAAF
No. 45 Hikō Sentai IJAAF
No. 53 Hikō Sentai IJAAF
No. 65 Hikō Sentai IJAAF
No. 70 Hikō Sentai IJAAF
Akeno Army Fighter Training School

China

People's Liberation Army Air Force

Specifications (Ki-45 KAIc)

Data from Japanese Aircraft of the Pacific War

General characteristics

Crew: Two
Length: 11.00 m (36 ft 1 in)
Wingspan: 15.02 m (49 ft 4 in)
Height: 3.70 m (12 ft 2 in)
Wing area: 32.0 m (344 ft)
Empty weight: 4,000 kg (8,820 lb)
Loaded weight: 5,500 kg (12,125 lb)
Powerplant: 2x Mitsubishi Ha-102 14-cylinder radial engines, 783 kW (1,050 hp) each

Performance

Maximum speed: 540 km/h (292 kn, 336 mph)
Range: 2,000 km (1,081 nmi, 1,243 mi)
Service ceiling: 10,000 m (32,800 ft)
Rate of climb: 11.7 m/s (2,300 ft/min)
Wing loading: 171.9 kg/m (35 lb/ft)
Power/mass: 0.26 kW/kg (0.16 hp/lb)

Armament

Ko: 1 x 20 mm, 2 x 12.7 mm (.50 in), 2 x 7.92 mm (.312 in)
Otsu: 1 x 37 mm (1.46 in), 2 x 12.7 mm (.50 in), 1 x 7.92 mm (.312 in)
Hei: 1 x 37 mm (1.46 in), 1 x 20 mm, 1 x 7.92 mm (.312 in)
Tei: 1 x 37 mm (1.46 in), 2 x 20 mm
Bo: 1 x 40 mm (1.57 in)

Comparable aircraft

Fw 187
Messerschmitt Bf 110
Westland Whirlwind

Bibliography

Francillon, Ph.D., Ren J. Japanese Aircraft of the Pacific War. London: Putnam & Company Ltd., 1979. ISBN 0-370-30251-6.
Francillon, Ph.D., Ren J. The Kawasaki Ki-45 Toryu (Aircraft in Profile no. 105). Leatherhead, Surrey, UK: Profile Publications Ltd., 1966.
Green, William. Warplanes of the Second World War, Volume Three: Fighters. London: Macdonald & Co. (Publishers) Ltd., 1961 (seventh impression 1973). ISBN 0-356-01447-9.
Green, William and Gordon Swanborough. WW2 Aircraft Fact Files: Japanese Army Fighters, part 2. London: Macdonald and Janes's, 1977. ISBN 0-354-01068-9.
