Lavochkin La-7 Aircraft Information

Lavochkin La-7

La-7

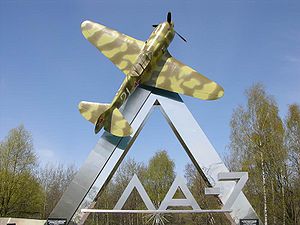

Warbird Picture - La-7 at Khimki

Picture - La-7 at Khimki

Role: Fighter
Manufacturer: Lavochkin OKB
First flight: February 1944
Introduced: 1944
Primary user: Soviet Air Forces
Number built: 5,753
Developed from: Lavochkin La-5

The Lavochkin La-7 was a Soviet fighter developed during World War II. It was a development and refinement of the Lavochkin La-5, and the last in a family of aircraft that had begun with the LaGG-1 in 1938.

Design and development

By 1943, the La-5 had become a mainstay of the Soviet Air Forces, yet both its head designer, Semyon Lavochkin, as well as the engineers at the Central Aerohydrodynamics Institute (Russian: TsAGI), felt that it could be improved upon. TsAGI refined earlier studies of aerodynamic improvements to the La-5 airframe in mid-1943 and modified La-5FN c/n 39210206 to evaluate the changes. These included complete sealing of the engine cowling, rearrangement of the wing center section to accommodate the oil cooler and the relocation of the engine air intake from the top of the cowling to the bottom to improve the pilot's view.

The aircraft was evaluated between December 1943 and February 1944 and proved to have exceptional performance. Using the same engine as the standard La-5FN c/n 39210206 had a top speed of 684 kilometers per hour (425 mph) at a height of 6,150 metres (20,177 ft), some 64 kilometers per hour (40 mph) faster than the production La-5FN. It took 5.2 minutes to climb to 5,000 meters (16,404 ft). It was faster at low to medium altitudes than the La-5 that used the more powerful prototype Shvetsov M-71 engine.

On display at Moscow museum

Lavochkin had been monitoring TsAGI's improvements and began construction in January 1944 of an improved version of the La-5 that incorporated them as well as lighter, but stronger, metal wing spars to save weight. The La-5, as well as its predecessors, had been built mostly of wood to conserve strategic materials such as aircraft alloys. With Soviet strategists now confident that supplies of these alloys were unlikely to become a problem, Lavochkin was now able to replace some wooden parts with alloy components. In addition Lavochkin made a number of other changes that differed from c/n 39210206. The engine air intake was moved from the bottom of the engine cowling to the wing roots, the wing/fuselage fillets were streamlined, each engine cylinder was provided with its own exhaust pipe, the engine cowling covers were reduced in number, a rollbar was added to the cockpit, longer shock struts were fitted for the main landing gear while that for the tail wheel was shortened, an improved PB-1B(V) gunsight was installed, and a new VISh-105V-4 propeller with a Mach-resistant airfoil was fitted. Three prototype 20 mm (0.79 in) Berezin B-20 autocannon armed the 1944 standard-setter (Russian: etalon), as the modified aircraft was designated.

The etalon only made nine test-flights in February and March 1944 before testing had to be suspended after two engine failures, but quickly proved itself to be the near-equal of c/n 39210206. It was 180 kilograms (397 lb) lighter than the earlier aircraft, which allowed the etalon to outclimb the other aircraft (4.45 minutes against 5.2 minutes climb to 5,000 meters). However it was 33 kilometres per hour (20.5 mph) slower at sea-level, but only 4 kilometers per hour (2.5 mph) slower at 6,000 meters (19,685 ft). The flight-tests validated Lavochkin's modifications and it was ordered into production under the designation of La-7, although the B-20 cannon were not yet ready for production and the production La-7 retained the two 20-mm ShVAK cannon armament of the La-5.

Five La-7s were built in March by Factory (Russian: Zavod) Nr. 381 in Moscow and three of these were accepted by the Air Force that same month. The Moscow factory was the fastest to complete transition over to La-7 production and the last La-5FN was built there in May 1944. Zavod Nr. 21 in Gorky was considerably slower to make the change as it did not exhaust its stock of wooden La-5 wings until October. The quality of the early production aircraft was significantly less than the etalon due to issues with the engine, incomplete sealing of the cowling and fuselage, and defective propellers. One such aircraft was tested, after these problems had been fixed, by the Flight Research Institute (Russian: Lyotno-Issledovatel'skiy Institut) and proved to be only 6 kilometers per hour (3.7 mph) slower than the etalon at altitude. Aircraft from both factories were evaluated in September by the Air Force Scientific Test Institute (Russian: NII VVS) and the problems persisted as the aircraft could only reach 658 kilometers per hour (409 mph) at a height of 5,900 meters (19,357 ft) and had a time to altitude of 5.1 minutes to 5,000 meters.

Combat trials began in mid-September 1944 and were generally very positive. However four aircraft were lost to engine failures and the engines suffered from numerous lesser problems, despite its satisfactory service in the La-5FN. One cause was the lower position of the engine air intakes in the wing roots of the La-7 which caused the engine to ingest sand and dust. One batch of flawed wings was built and caused six accidents, four of them fatal, in October which caused the fighter to be grounded until the cause was determined to be a defect in the wing spar.

Production of the first aircraft fitted with three B-20 cannon began in January 1945 when 74 were delivered. These aircraft were 65 kilograms (140 lb) heavier than those aircraft with the two ShVAK guns, but the level speed was slightly improved over the original aircraft. However, the time to climb to 5000 meters increased by two-tenths of a second over the older model. More than 2000 aircraft were delivered before the war's end, most by Zavod Nr. 21. A total of 5753 aircraft had been built by Zavod Nr. 21, Nr. 381, and Nr. 99 in Ulan-Ude, when production ended in early 1946.

Operational history

Airplane Picture - A La-7 of the Czech Air Force on display at the Prague Aviation Museum, Kbely

Picture - A La-7 of the Czech Air Force on display at the Prague Aviation Museum, Kbely

The 63rd Guard Fighter Aviation Corps began combat trials of the La-7 in mid-September 1944 in support of the 1st Baltic Front. Thirty aircraft were provided for the trials, which lasted one month. During this time the new fighters made 462 individual sorties and claimed 55 aerial victories while losing four aircraft in combat. Four other La-7s were lost to non-combat causes, mostly related to engine problems. A total of three pilots were killed during the trials to all causes.

One regimental commander, Colonel Ye. Gorbatyuk, a Hero of the Soviet Union, commented: "The La-7 exhibited unquestionable advantages over German aircraft in multiple air combats. In addition to fighter tasks, photo reconnaissance and bombing were undertaken with success. The aircraft surpasses the La-5FN in speed, manoeuverability, and, especially, in the landing characteristics. It requires changes in its armament, and urgent fixing of its engine." The twin ShVAK armament inherited from the La-5 was no longer powerful enough to bring down later, more heavily armored German fighters, especially the Focke-Wulf Fw 190, in a single burst, even when Soviet pilots opened fire at ranges of only 50-100 meters (160-330 ft).

The 156th Fighter Air Corps of the 4th Air Army was the next unit to receive the La-7 in October 1944. At one point during the month, they had fourteen aircraft simultaneously unserviceable with engine failures. By 1 January 1945 there were 398 La-7s in front-line service of which 107 were unserviceable. By 9 May 1945 this had increased to 967 aircraft, of which only 169 were unserviceable. For the invasion of Japanese Manchuria 313 La-7s were assigned and only 28 of these were unserviceable on 9 August 1945.

The La-7 was flown by the top Soviet ace of the war, Ivan Nikitovich Kozhedub. The Ukrainian-born Kozhedub, nicknamed "Ivan the Terrible", a three-time Hero of Soviet Union, scored his last 17 air victories in 1945 in the La-7 numbered 27, which is now preserved in the Central Air Force Museum at Monino on the outskirts of Moscow. The last German aircraft that he shot down was the Messerschmitt Me-262, of Sergeant (German: Unteroffizier) Kurt Lange from 1./KG(J)54, over Frankfurt an der Oder on 15 February 1945.

One fighter regiment of the 1st Czech Composite Aviation Division was equipped with the La-7 and participated in the Slovak National Uprising of August-October 1944. It remained in service with the Czechs until 1950 and was designated postwar by them as the S-97. One of these aircraft survives in the Prague Aviation Museum, Kbely.

Two La-7s from the People's Liberation Army Air Force shot down a Cathay Pacific airliner off the coast of Hainan Island on 23 July 1954.

Production of the La-7 amounted to 5,753 aircraft, plus 584 La-7UTI trainers. Those aircraft still in service after the end of the war were given the NATO reporting name Fin.

The follow-up model, the La-9, despite its outward similarity, was a completely new design.

Tactical significance

The La-7 ended the superiority in vertical maneuverability that the Messerschmitt Bf 109G had previously enjoyed over other Soviet fighters. Furthermore, it was fast enough at low altitudes to catch, albeit with some difficulties, Focke Wulf Fw 190 fighter-bombers that attacked Soviet units on the frontlines and immediately headed for German-controlled airspace at full speed. The Yakovlev Yak-3 and the Yakovlev Yak-9U with the Klimov VK-107 engine lacked a large enough margin of speed to overtake the German raiders. Only 115 La-7s were lost in air combat, only half the number of Yak-3s.

Variants

La-7TK

One aircraft used to evaluate the TK-3 turbosupercharger in July 1944 in the hopes of improving high-altitude performance. It was destroyed when the TK-3 disintegrated in flight.

La-7R

Testbed for a tail-mounted liquid-fuelled RD-1KhZ rocket engine. The rocket was rated at 300 kilograms-force (660 lbf) of thrust and its fuel (90 liters (20 imp gal; 24 U.S. gal) of kerosene and 180 liters (40 imp gal; 48 U.S. gal) of red fuming nitric acid) was expected to last between three and three and a half minutes. While the rocket was firing it increased the fighter's speed by 80 kilometers per hour (50 mph), but the aircraft's other flying qualities deteriorated. Fifteen flights were made in the first quarter of 1945, although the rocket exploded on the ground on 12 May. The aircraft was repaired, but later had an explosion in flight although the pilot managed to land it safely. Details of any later flights are unknown, but the La-7R was displayed at the August 1946 Tushino Airshow with the rocket firing.

La-7PVRD

Testbed for two underwing ramjet engines. The aircraft was expected to reach a speed of 800 kilometers per hour (497 mph) at a height of 6,000 metres (19,685 ft), but could not exceed 670 kilometers per hour (416 mph) due to the high drag of the ramjets.

La-7/M-71

One aircraft was fitted with the Shvetsov M-71 for trials in 1944. However the engine was not yet ready for service and the program was cancelled.

La-7UTI

Two-seat trainer version. Armament reduced to a single 20 mm gun and the oil cooler was relocated underneath the engine cowling. Fitted with a radio compass and gun camera. Considerably heavier than the fighter at 3,500 kilograms (7,716 lb), but it retained the flying characteristics of the single-seat aircraft. 584 built, the last two delivered in 1947.

Operators

Czechoslovakia

Czech Air Force

China

People's Liberation Air Force

Soviet Union

Soviet Air Forces

North Korea

North Korean Air Force

Specifications (1945 production model)

Data from

General characteristics

Crew: 1
Length: 8.6 m (28 ft 3 in)
Wingspan: 9.8 m (32 ft 2 in)
Height: 2.54 m (8 ft 4 in)
Wing area: 17.59 m (189.3 sq ft)
Gross weight: 3,315 kg (7,308 lb)
Powerplant: 1 x— Shvetsov ASh-82FN 14-cylinder, two-row, air-cooled radial, 1,096 kW (1,470 hp)
Propellers: 3-bladed VISh-105V-4

Performance

Maximum speed: 661 km/h (411 mph; 357 kn) @ 6,000 meters (19,685 ft)
Range: 665 km (413 mi; 359 nmi) (1944 model)
Service ceiling: 10,450 m (34,285 ft)
Time to altitude: 5.3 minutes to 5,000 meters (16,404 ft)

Armament

Guns: 2 x— 20 mm ShVAK cannons with 200 rounds per gun or 3 x— 20 mm Berezin B-20 cannons with 100 rpg
Bombs: 200 kg (440 lb) of bombs

Related development

LaGG-1
LaGG-3
La-5
La-9
La-11

Comparable aircraft

Focke-Wulf Fw 190
Hawker Tempest
Hawker Sea Fury
P-47 Thunderbolt
Kawasaki Ki-100
Yak-3U

Footnotes

Bibliography

Gordon, Yefim (2003). Lavochkin's Piston-Engined Fighters. Red Star. 10. Earl Shilton, Leicester, UK: Midland Publishing. ISBN 1-85780-151-2.
Gordon, Yefim (2008). Soviet Airpower in World War 2. Hinckley, UK: Midland Publishing. ISBN 978-1-85780-304-4.
Gunston, Bill (1995). The Osprey Encyclopedia of Russian Aircraft from 1875 - 1995. London: Osprey Aerospace. ISBN 1-85532-405-9.

Additional sources

Abanshin, Michael E. and Nina Gut. Fighting Lavochkin, Eagles of the East No.1. Lynnwood, WA: Aviation International, 1993.
Gordon, Yefim and Dmitri Khazanov. Soviet Combat Aircraft of the Second World War, Volume One: Single-Engined Fighters. Earl Shilton, Leicester, UK: Midland Publishing Ltd., 1998. ISBN 1-85780-083-4.
Green, William. Warplanes of the Second World War, Volume Three: Fighters. London: Macdonald & Co. (Publishers) Ltd., 1961 (seventh impression 1973). ISBN 0-356-01447-9.
Green, William and Gordon Swanborough. WW2 Aircraft Fact Files: Soviet Air Force Fighters, Part 1. London: Macdonald and Jane's Publishers Ltd., 1977. ISBN 0-354-01026-3.
Gunston, Bill. Aircraft of World War Two. London: Octopus Books Limited, 1980. ISBN 0-7064-1287-7.
Jane, Fred T. “The La-7.” Jane’s Fighting Aircraft of World War II. London: Studio, 1946. ISBN 1-85170-493-0.
Liss, Witold. The Lavochkin La 5 & 7 (Aircraft in Profile number 149). Leatherhead, Surrey, UK: Profile Publications Ltd., 1967.
Morgan, Hugh. Soviet Aces of World War 2. London: Osprey Publishing, 1997. ISBN 1-85532-632-9.
Stapfer, Hans-Heiri. La 5/7 Fighters in Action (Aircraft in Action Number 169). Carrollton, TX: Squadron/Signal Publications, Inc., 1998. ISBN 0-89747-392-2.
Veštšx­k, Miloš. LavoÄŤkin La-7 (in Czech/English). Prague, Czech Republic: MBI-Miroslav BxŤLxť Books, 2000 (reprinted 2003, ISBN 80-86524-05-1). ISBN 80-902238-7-7.
