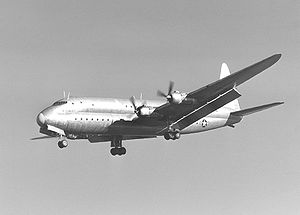

Warbird Picture - The XR6O/XR6V Lockheed Constitution landing at Moffett Field

Picture - The XR6O/XR6V Lockheed Constitution landing at Moffett Field

Role: Transport aircraft
Manufacturer: Lockheed
First flight: 9 November 1946
Primary user: U.S. Navy
Number built: 2

R6V redirects here. For the video game, go to Rainbow Six Vegas.

The Lockheed R6V Constitution was a large, propeller-driven, double-decker transport aircraft developed in the 1940s by Lockheed as a long-range, high capacity transport and airliner for the U.S. Navy and Pan American Airways. (The Constitutions were identified as R6O until 1950.) Only two of the aircraft were ever built, both prototypes. Although these two planes went into service with the Navy, the Constitution design ultimately proved underpowered and too large for practical airline use at the time. The Constitution remains the largest fixed-wing aircraft type ever operated by the U.S. Navy.

Design and development

The Lockheed Constitution began life in 1942 as a joint study by the U.S. Navy, PanAm, and Lockheed. The design requirements, initially designated Lockheed Model 89, called for a large transport aircraft to improve upon the Navy's fleet of flying boats. PanAm was involved in the study because such an aircraft had potential use as a commercial airliner. This transport would carry 17,500 pounds of cargo 5,000 miles (8,000 km) at a cruising altitude of 25,000 feet (7,600 m) and a speed greater than 250 mph (400 km/h). The aircraft would be fully pressurized and large enough so that most major components could be accessed and possibly repaired in flight. For instance, tunnels led through the thick wings to all four engines.

The aircraft was designed by a team of engineers led by Willis Hawkins and W.A. Pulver of Lockheed and Commander E. L. Simpson, Jr. of the Navy. The name Constitution was given to the project by Lockheed president Robert E. Gross.

The Constitution design had a "double bubble" fuselage, the cross section of which was a "figure eight". This unorthodox design utilized the structural advantages of a cylinder for cabin pressurization, without the wasted space that would result from a single large cylinder of the same volume.

The original contract from the Bureau of Aeronautics called for 50 Constitutions for a total price tag of $111,250,000. On VJ Day, however, the contract was scaled back to $27,000,000 for only two aircraft.

Operational history

Ship No. 1

Airplane Picture - 1946 newsreel

Picture - 1946 newsreel

The first Constitution, BuNo 85163, was built in the summer of 1946 at the Lockheed plant in Burbank, California. Because of the aircraft's large size-the tail towered 50 feet (15 m)-Lockheed had to build a special hangar for final assembly. The $1,250,000 hangar, Lockheed-California's Building 309, measured 408 feet (124 m) long, 302 feet (92 m) wide, and the equivalent of six stories tall. The footprint of the hangar covered 4 acres (16,000 m).

Airplane Picture - BuNo. 85163 at NAS Jacksonville in 1949

Picture - BuNo. 85163 at NAS Jacksonville in 1949

The R6O made its first flight on 9 November 1946, powered by interim 3,000 hp R-4360-18 radials. Joe Towle and Tony LeVier (Rudy Thornen, flight engineer and Jack Frick, Dick Stanton, assistant flight engineers made up the rest of the flight crew) flew the plane on a leisurely course to Muroc Air Force Base. Once there, the aircraft underwent a carefully documented test program. At this time, electronic data recording technology was not well developed, so instrument readings were recorded by a movie camera pointed at the instrument panel. Additional movie cameras were carried to record test results.

The first Constitution made a nonstop flight from Moffett Field to NAS Patuxent River on 25 July 1948, (2,460 mi.). The pilot for the flight was Commander William Collins (USN) and the copilot was Roy Wimmer, Lockheed engineering test pilot. Four days later, the ship was formally christened by Mrs. John L. Sullivan, wife of the Secretary of the Navy, at Washington National Airport.

The first test flights revealed that the aircraft was underpowered and a substitution of 3,500 hp (with water injection) R-4360-22-W powerplants was made. The R6O also tested JATO takeoffs with six rockets mounted on the rear of the fuselage. At full gross weight, the rockets shortened the takeoff run by 24%.

Ship No. 1 was delivered to Navy Transport Squadron VR-44, based at NAS Alameda, on 2 February 1949. Both it and its sister ship, Ship No. 2 (which followed six months later), flew the route between California and Hawaii, (approximately 2,460 mi).

Ship No. 2

Airplane Picture - The two XR6V Constitutions in flight over San Francisco in 1950

Picture - The two XR6V Constitutions in flight over San Francisco in 1950

The second Constitution, BuNo 85164, first flew on 9 June 1948. This aircraft, like its predecessor, had a double-deck configuration. The second aircraft, however, had an upper deck fully furnished as a luxury passenger transport, with accommodations for 92 passengers and 12 crew. (Accommodations on the upper deck of the first Constitution were decidedly more spartan.) The upholstery on the upper deck was light gray with Navy blue trim. On the back of the forward bulkhead, in front of the spiral staircase leading to the lower deck, a permanent display case was occupied by a scale model of the original USS Constitution sailing ship.

The lower deck had 7,373 cubic feet (208.8 m) of cargo space, and it was loaded by an electrical hoist. The lower deck could also be converted to seat an additional 76 passengers.

The second Constitution, like its predecessor, also made a nonstop transcontinental flight. On 3 February 1949, the aircraft flew its 16 crew and 74 members of the press from Moffett Field to Washington National Airport. At the time, this was the largest number of people flown across the United States in a single flight. This flight inaugurated six months of regular service between Washington, D.C. and San Francisco.

In the early 1950s, Ship No. 2 made a Navy recruiting tour of 19 cities. The side of the fuselage proudly advertised "YOUR NAVY-AIR AND SEA." Some 546,000 toured the aircraft's interior.

Final disposition

The Constitution had operational difficulties which prevented it from meeting its original design objectives. The four Pratt & Whitney R-4360s did not offer the power needed by such a large aircraft. The engine also had cooling problems, which was corrected by flying with engine cooling gills partially open. This added drag and decreased the overall range.

The Navy operated the two Constitution prototypes through the end of the 1940s and into the 1950s. By 1949, however, the Navy announced that it could no longer afford to operate these aircraft, and offered them to airlines on a five-year lease. No airlines expressed interest in using the Constitutions (the airline version was named the Model 189), so the Navy retired both aircraft in 1953. They went into storage at Litchfield Park, Arizona in 1955. Both aircraft and 13 spare engines were sold for $97,785. Lockheed proposed the Model 389 and Model 489 airliners based on the Constitution, which would have accommodated up to 169 passengers. Neither of these "paper" projects received much interest from civil operators.

The first Constitution was brought to Las Vegas, where it served as an enormous billboard for Alamo Airways, before getting scrapped by Howard Hughes when he acquired the property. The second Constitution was flown to Opa-Locka Airport, Florida, where it was stored on the airfield before being towed to a scrap yard and became the object of interest of vandals who torched the aircraft, resulting in its final demise in 1979.


United States

United States Navy
VR-5 Squadron
VR-44 Squadron

Specifications (R6V BuNo 85164)

Data from

General characteristics

Crew: 12
Capacity: 168 passengers
Length: 156 ft 1 in (47.6 m)
Wingspan: 189 ft 1 in (57.6 m)
Height: 50 ft 4.5 in (15.4 m)
Wing area: 3,610 ft² (335.4 m²)
Empty weight: 113,780 lb (51,610 kg)
Loaded weight: 160,000 lb (72,600 kg)
Max takeoff weight: 184,000 lb (83,460 kg)
Powerplant: 4x— Pratt & Whitney R-4360 radial engine, 3,000 hp (2,240 kW) each


Maximum speed: 303 mph (490 km/h) at 25,000 ft (7,600 m)
Cruise speed: 260 mph (418 km/h)
Range: 5,390 mi (8,670 km)
Service ceiling: 28,600 ft (8,700 m)
Rate of climb: 700 ft/min (210 m/min)

Comparable aircraft

Bristol Brabazon
Convair XC-99
Saunders-Roe Princess


Boyne, Walter J. Beyond the Horizons: The Lockheed Story. New York: St. Martin's Press, 1998. ISBN 978-0312244385.
Francillon, René J. Lockheed Aircraft since 1913. Annapolis, Maryland: Naval Institute Press, 1987. ISBN 0-87021-897-2.
"Lockheed Constitution Development Story." Society of Automotive Engineers, SAE Preprint #556, December 1950.
McLarren, Robert. "Design Analysis: Lockheed Constitution Transport." Aviation Week, 30 August 1948, pp. 20-27.
Wainwright, Marshall. "Burbank Behemoth." Air Classics, Volume 45, No. 6, June 2009.
Yenne, Bill. Lockheed. New York: Crescent Books, 1987. ISBN 0-51760-471-X.
