Macchi M.53

Macchi M.53 Aircraft Information

Macchi M.53

Macchi M.53

Macchi M.53

Role: Reconnaissance floatplane
National origin: Italy
Manufacturer: Macchi
Primary user: Regia Marina

The Macchi M.53 was an Italian reconnaissance floatplane designed and built in the late 1920s by Macchi for the Regia Marina (Italian Royal Navy).

Design and development

Macchi designed the M.53 to meet a Regia Marina requirement for a small reconnaissance seaplane that could operate from the large submarine Ettore Fieramosca. The aircraft had to be designed so that it could be stowed disassembled in a watertight, cylindrical hangar aboard the submarine. In order to minimize danger to the submarine and the aircraft during flight operations -- which required Ettore Fieramosca to loiter on the surface while the aircraft was being assembled or disassembled -- the aircraft also had to be designed so that it could be assembled quickly for flight operations and disassembled quickly after recovery for stowage in its hangar.

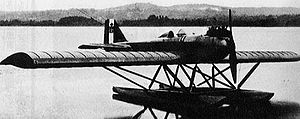

The M.53 was a single-seat low-wing monoplane floatplane with twin floats mounted beneath its fuselage. Its 60-kilowatt (80-horsepower) Blackburn Cirrus IV engine drove a two-bladed propeller and gave it a top speed of 144 kilometers per hour (89.5 miles per hour).

Operational history

The M.53 was among various small seaplanes considered for use aboard Ettore Fieramosca, which was commissioned in 1930. None of the aircraft were deployed aboard the submarine, and Ettore Fieramosca's hangar was removed in 1931.

Operators

Italy

Regia Marina

Specifications

Data from members.jcom.home.ne.jp Seaplane/flying boat

General characteristics

Crew: 1
Length: 5.675 m (18 ft 7.4 in)
Wingspan: 10.76 m (35 ft 3.6 in)
Wing area: 16 m (172.218 ft)
Empty weight: 484 kg (1,067 lb)
Gross weight: 684 kg (1,508 lb)
Powerplant: 1 x Blackburn Cirrus IV, 60 kW (80 hp)

Performance

Maximum speed: 144 km/h (89 mph)
Endurance: 4 hours
Service ceiling: 4,000 m (13,123 ft)
Climb rate: 12 minutes to 1,000 m (3,281 ft)

Italian submarine Ettore Fieramosca

Comparable aircraft

Piaggio P.8
