Macchi M.6 Airplane Videos and Airplane Pictures

Macchi M.6 Video - Picture

Macchi M.6

Macchi M.6 Aircraft Information

Macchi M.6

Macchi M.6

Macchi M.6

Role: Flying boat fighter prototype
National origin: Italy
Manufacturer: Macchi
First flight: 1917
Primary user: Italy
Number built: 1
Variants: Macchi M.5

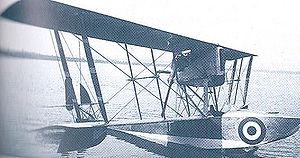

The Macchi M.6 was an Italian flying boat fighter prototype of 1917.

Design and development

In 1917, Nieuport-Macchi built the M.6. for comparison with its Macchi M.5 flying boat fighter, which went into service that year and operated successfully over the Adriatic Sea against Austro-Hungarian forces during World War I. The M.6 was identical to the M.5 in most respects; like the M.5, it was a single-seat wooden biplane flying boat fighter with plywood and fabric skin, it was powered by a 139-kilowatt (187-brake horsepower) Isotta-Fraschini V.4B engine mounted on struts above the hull and below the upper wing and driving a pusher propeller, its cockpit was beneath the radiator, it was armed with a single 7.7-millimeter (0.303-inch) Vickers machine gun, and its hull was of the same design. It differed from the M.5 in having a different wing cellule; instead of the interplane Vee struts used in the M.5 to brace the wings and the smaller Vee struts used in the M.5 to support the overhanging leading edge of the upper wing, the M.6 had parallel steel tube struts. The outermost of set of parallel struts were placed farther outboard in the M.6 than the Vee struts in the M.5, and the M.6 had additional parallel struts closer to the hull.

Comparative trials were held between the M.6 prototype and standard M.5 aircraft to evaluate whether the M.6's revised wing cellule provided any advantage over the that of the M.5 fighter. It did not, so further development of the M.6 was abandoned and no more M.6 aircraft were built.

Operators

Italy

Specifications

Data from Green, William, and Gordon Swanborough The Complete Book of Fighters: An Illustrated Encyclopedia of Every Fighter Aircraft Built and Flown, New York: SMITHMARK Publishers, 1994, ISBN 0-8317-3939-8

General characteristics

Crew: 1
Length: 8.15 m (26 ft 8⅞ in)
Height: 3.00 m (9 ft 10 in)
Wing area: 29.00 m (312.16 ft)
Empty weight: 760 kg (1,675 lb)
Gross weight: 1,030 kg (2,271 lb)
Powerplant: 1 x Isotta-Fraschini V.4B six-cylinder piston, 139 kW (187 hp) each

Performance

Maximum speed: 189 km/h (117 mph)
Endurance: 3 hours

Armament

1 x 7.7-millimeter (0.303-inch) Vickers machine gun

Notes:

Time to 4,000 m (13,123 ft): 20 min

Alenia Aermacchi

Comparable aircraft

Macchi M.5

Green, William, and Gordon Swanborough. The Complete Book of Fighters: An Illustrated Encyclopedia of Every Fighter Aircraft Built and Flown. New York: SMITHMARK Publishers, 1994. ISBN 0-8317-3939-8.
