Macchi M.67 Aircraft Information

Macchi M.67

Macchi M.67

Macchi M.67

Role: Racing seaplane
National origin: Italy
Manufacturer: Macchi
Designed by: Mario Castoldi (1888-1968)
First flight: 1929
Number built: 3
Developed from: Macchi M.39

The Macchi M.67, was an Italian racing seaplane designed by Mario Castoldi (1888-1968) and built by Macchi for the 1929 Schneider Trophy race.

Design and development

Castoldi based the design of the M.67-a single-seat, low-wing, monoplane, twin-float floatplane -- on that of his Macchi M.39, which had competed for Italy in the 1926 and 1927 Schneider Trophy races, following the M.39's layout but strengthening the M.67 so that it could be fitted with the 18-cylinder, 57.26-liter, 1,341-kilowatt (1,800-horsepower) Isotta-Fraschini Asso ("Ace") 1000 V18 engine, a much bigger and more powerful engine than the Fiat AS.2 V12 fitted to the M.39. The M.67 carried fuel in its floats; the powerful engine drove a three-bladed propeller which created a large amount of torque and to counter the torque more fuel was carried in one float than in the other, but this increased weight of one float made takeoffs dangerous.

Although the Italian public expressed a great deal of concern that the Asso 1000 engine was not ready for Schneider Trophy competition-Isotta-Fraschini built 27 of them for the 1929 Schneider Trophy race, but some exploded during testing-the Italian Air Minister, Italo Balbo (1896-1940), believed that the M.67 had the best chance of winning the race and selected it to represent Italy. Macchi built three M.67s.

Operational history

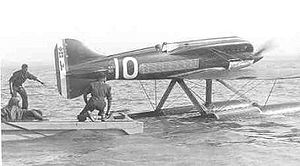

Airplane Picture -Macchi M.67

Picture - Macchi M.67

The M.67s underwent testing on Lake Garda in northern Italy. In August 1929 Regia Aeronautica (Italian Royal Air Force) Captain Giuseppe Motta was killed when his M.67 suddenly dived into the lake during a test flight in which he reached 583 kilometers per hour (362 miles per hour). Italy asked the 1929 race's hosts, the British Royal Aero Club, to postpone the race to allow Italy to correct the flaws in the M.67 and Asso 1000 engine, but the British refused. The Italians decided to enter the two surviving M.67s in the race despite the risk to their pilots, Balbo announcing that "the Italian team is going to England merely to perform a gesture of chivalrous sportsmanship." Italy also entered a Macchi M.52R floatplane in the race.

Airplane Picture - Italy's three entrants in the 1929 Schneider Trophy race. The two M.67s are at left and center; the Macchi M.52R, which took second place, is at right.

Picture - Italy's three entrants in the 1929 Schneider Trophy race. The two M.67s are at left and center; the Macchi M.52R, which took second place, is at right.

The race took place at Calshot Spit in the United Kingdom and began on 7 September 1929, with Lieutenants Remo Cadringher and Giovanni Monti flying the two M.67s. Cadringher's M.67 began the race with an impressive burst of speed, but skidded in the first turn as its cockpit filled with blinding, choking smoke and fumes; Cadringher went into a high-speed spin, pulled out of it over land, then completed one lap at an average speed of 457 kilometers (284 miles) per hour before having to land, unable to see the pylons marking the turns due to smoke in the cockpit. Monti completed the first lap at an average speed of 485.5 kilometers (301.5 miles) per hour, but his M.67's radiator burst as he began the second lap; scalded by steam and boiling water entering his cockpit, Monti managed to make an emergency landing and was taken to a hospital.

The M.52R completed the race, taking second place. During the banquet celebrating the end of the race, Balbo said, "We have finished playing our part as sportsmen. Tomorrow our work as competitors will begin," signalling Italy' intention to be more competitive in the next Schneider Trophy race, scheduled for 1931.

Preserved aircraft

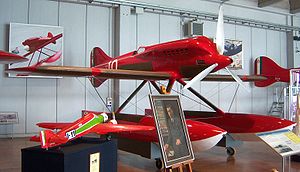

Airplane Picture - M.67

Picture - M.67

An M.67 is preserved in Italy at the Museo storico dell'Aeronautica Militare di Vigna di Valle.

Operators

Italy

Specifications

Data from VašiÄŤek, Radko. "When Seaplanes Ruled the Sky." Aviation History, September 2002.

General characteristics

Crew: 1
Powerplant: 1 x— Isotta-Fraschini Asso ("Ace") 1000 57.26-liter V18 piston, 1,341 kW (1,800 hp)

Performance

Maximum speed: ? km/h (? mph)

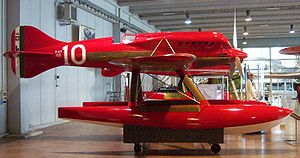

Airplane Picture - A Macchi M.67 preserved in Italy at the Museo storico dell'Aeronautica Militare di Vigna di Valle.

Picture - A Macchi M.67 preserved in Italy at the Museo storico dell'Aeronautica Militare di Vigna di Valle.

Alenia Aermacchi
Schneider Trophy
Newsreel footage of 1929 Schneider Trophy racing teams, British Supermarine S.6A aircraft (#2 and #8), and Italian Macchi M.67 (#10) and Macchi M.52R (#4) aircraft at 1929 Schneider Trophy race

Related development

Macchi M.39

Comparable aircraft

Macchi M.52R

VašiÄŤek, Radko. "When Seaplanes Ruled the Sky." Aviation History, September 2002.
