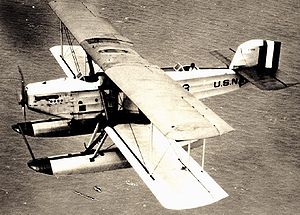

Warbird Picture - T3M-2 floatplane

Martin T3M Aircraft Information

Martin T3M

T3M

Warbird Picture - T3M-2 floatplane

Picture - T3M-2 floatplane

Role: Torpedo-bomber
Manufacturer: Glenn L. Martin Company
First flight: 1926
Introduced: 1926
Retired: 1932
Primary user: United States Navy
Number built: 124
Developed from: Curtiss CS
Variants: Martin T4M

The Martin T3M was an American torpedo bomber of the 1920s. A single engined three seat biplane, it became a standard torpedo bomber of the U.S. Navy, operating from both land bases and from aircraft carriers from 1926 to 1932.

Development and design

Having built 75 examples of the Martin SC, the production version of the Curtiss CS in 1925, the Glenn L. Martin Company was able to offer an improved version when the U.S. Navy had a requirement for an improved torpedo-bomber/scout aircraft. This aircraft, which was designated the T3M-1, first flew in July 1926.

The T3M was a large single engined biplane capable of being fitted with either a conventional tailwheel undercarriage or floats. The fuselage was constructed of welded steel tube in place of the riveted steel frame of the CS/SC,, with the pilot and bombardier seated side by side in the front cockpit situated forward of the wing, with the bombardier having a position under the nose for aiming the aircraft's bombs or torpedoes, while the gunner had a cockpit well aft of the wing, with a radiator slung under the top wing between the cockpits. Power was from a 575 hp (429 kW) Wright T-3B V-12 engine. 24 T3M-1s were built.

As the T3M-1 was underpowered,, a new version was produced with the much more powerful (770 hp/574 kW) Packard 3A-2500 engine. This version, the T3M-2 had revised wings with the upper and lower wings of equal span (while in the T3M-1 the lower wings were of greater span), and the radiator was replaced by two radiators on the fuselage side, allowing the crew to moved to three tandem individual cockpits. The U.S. Navy ordered 100 T3M-2s, one of which was re-engined with Pratt & Whitney Hornet and the Wright Cyclone radial engines as the XT3M-3 and XT3M-4 respectively. These aircraft formed the basis of the Martin T4M that would replace the T3M in service with the U.S. Navy.

Operational history

Airplane Picture - T3M-2s and Curtiss F6Cs on the deck of the carrier USS Lexington

Picture - T3M-2s and Curtiss F6Cs on the deck of the carrier USS Lexington

Deliveries of the T3M-1 to the U.S. Navy started in September 1926. The T3M-1 was not heavily used, however, and was replaced in service by the more powerful T3M-2 from 1927. Although the T3M-2 itself was replaced in front line service by its radial powered development, the T4M, it remained in squadron service until at least 1932.

Variants

T3M-1
Initial production version. Powered by 575 hp (429 kW) Wright T-3B engine. 24 built.
T3M-2
Main production version. One 770 hp (574 kW) Packard 3A-2500 engine. 100 built.
XT3M-3
First T3M-2 re-engined with Pratt & Whitney R-1690 Hornet radial engine.
XT3M-4
XT3M-3 modified by Naval Aircraft Factory to use Wright R-1750 Cyclone.

Operators

Airplane Picture - T3M-2

Picture - T3M-2

United States

United States Marine Corps
United States Navy

Specifications (T3M-2)

Data from United States Navy Aircraft since 1911

General characteristics

Crew: 3
Length: 41 ft 4 in (12.60 m)
Wingspan: 56 ft 7 in (17.25 m)
Height: 15 ft 1 in (4.60 m)
Wing area: 883 ft (82.1 m)
Empty weight: 5,814 lb (2,643 kg)
Loaded weight: 9,503 lb (4,320 kg)
Powerplant: 1x Packard 3A-2500 liquid cooled V-12 engine, 770 hp (574 kW)

Performance

Maximum speed: 109 mph (95 kn, 175 km/h)
Range: 634 mi (551 nmi, 1,020 km)
Service ceiling: 7,900 ft (2,400 m)
Wing loading: 10.8 lb/ft (52.6 kg/m)
Power/mass: 0.081 hp/lb (0.13 kW/kg)
Climb to 5,000 ft: 16.8 min

Armament

1 x flexibly mounted 0.3 in (7.62 mm) machine gun in rear cockpit
1 x torpedo or bombs under fuselage

Related development

Curtiss CS/Martin SC
Martin T4M/Great Lakes TG

Comparable aircraft

Blackburn Ripon
Mitsubishi B2M

Bibliography
