Morane-Saulnier MS.315 Aircraft Information

Morane-Saulnier MS.315

Morane-Saulnier MS.315

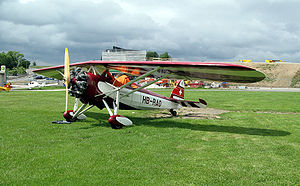

Warbird Picture - Morane-Saulnier MS.317

Picture - Morane-Saulnier MS.317

Role: Primary trainer
National origin: France
Manufacturer: Morane-Saulnier
First flight: 1932
Primary user: French Air Force
Number built: 356

The Morane-Saulnier MS.315 is a primary training monoplane designed and built in France by Morane-Saulnier.

Development

The MS.315 was developed from the earlier MS.300 primary trainer and related variants and first flew in October 1932. The MS.315 is a parasol-wing monoplane with a tailwheel, with divided main landing gear, and powered by a 135hp (101kW) Salmson 9Nc radial engine. A production run of 346 aircraft followed the four prototypes (including 33 built after the Second World War). Five high-powered MS.317/2 variants were also produced for the civil market, and a single MS.316 was built, powered by a Regnier inverted Vee engine.

In the 1960s 40 MS.315 used as civil glider tugs were modified with a 220hp (164kW) Continental W-670K radial engine and re-designated the MS.317.

Variants

MS.315 Production version with a 135hp (101kW) Salmson 9Nc radial engine, 350 built. MS.315/2 Higher powered civil version, five built. MS.316 Variant powered by a Regnier inverted Vee engine, one built. MS.317 1960s conversions with a 220hp (164kW) Continental W-670K radial engine, 40 converted.

Operators

France

French Air Force
French Navy

Specifications (MS.315)

Data from

General characteristics

Crew: 2
Length: 7.60 m (24 ft 11¼ in)
Wingspan: 12.00 m (39 ft 4½ in)
Height: 2.80 m (9 ft 2¼ in)
Wing area: 21.60 m² (232.51 ft²)
Empty weight: 548 kg (1208 lb)
Gross weight: 860 kg (1896 lb)
Powerplant: 1 x— Salmson 9Nc radial engine, 101 kW (135 hp)

Performance

Maximum speed: 170 km/h (106 mph)
Service ceiling: 5500 m (18,045 ft)

Taylor, Michael J. H. (1989). Jane's Encyclopedia of Aviation. London: Studio Editions.
The Illustrated Encyclopedia of Aircraft (Part Work 1982-1985). Orbis Publishing.
