Naval Aircraft Factory TDN

Naval Aircraft Factory TDN Aircraft Information

Naval Aircraft Factory TDN

TDN

Naval Aircraft Factory TDN

Role: Assault drone
National origin: United States
Manufacturer: Naval Aircraft Factory
First flight: 15 November 1942
Primary user: United States Navy
Number built: 104-114

The Naval Aircraft Factory TDN was an early unmanned combat aerial vehicle - referred to at the time as an "assault drone" - developed by the United States Navy's Naval Aircraft Factory during the Second World War. Developed and tested during 1942 and 1943, the design proved moderately successful, but development of improved drones saw the TDN-1 relegated to second-line duties, and none were used in operational service.

Design and development

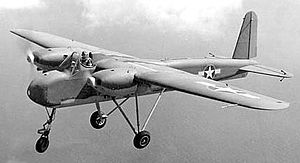

The development of the radar altimeter and television in the early 1940s made remotely guided, bomb- or torpedo-carrying aircraft a practical proposition, and in January 1942, the Naval Aircraft Factory was instructed to initiate the development of such an aircraft, with a go-ahead for prototype construction being given in February. A production contract for 100 aircraft was issued in March, with John S. Kean being assigned as project manager of the TDN-1 project, with the aircraft being designed to be capable of using either television or radar as its guidance system. Constructed mainly from wood, the TDN-1 had a fixed tricycle landing gear, and could be fitted with a conventional cockpit in place of its guidance equipment for test flights.

In an example of the use of companies traditionally uninvolved in the aviation industry to reduce interference with higher priority projects, production of the final thirty aircraft was licensed to the Brunswick-Balke-Collender Company, a Michigan-based manufacturer of bowling balls and billiard tables.

Operational history

One hundred production TDN-1 aircraft were ordered in March 1942. Despite being specifically designed to be a simple, low-performance aircraft, and despite proving promising in testing, the type was considered to be too complicated and expensive for use operationally, and the improved Interstate TDR was selected for development as an alternative, the majority of TDN-1s being used in the test, liaison and training roles, with some being expended as aerial targets.

Variants and operators

United States Navy

XTDN-1 Four prototype aircraft powered by Franklin O-300 engines. TDN-1 Production version of XTDN-1; 100 aircraft produced.

Specifications (TDN-1)

Airplane Picture - TDN-1 aircraft aboard USS Sable.

Picture - TDN-1 aircraft aboard USS Sable.

Data from

General characteristics

Crew: 0-1 (optional pilot)
Length: 37 ft (11 m)
Wingspan: 48 ft (15 m)
Powerplant: 2 x— Lycoming O-435-2 opposed piston engines, 220 hp (160 kW) each
Cruise speed: 145 mph (126 kn; 233 km/h)

Armament

one 2,000-pound (910 kg) bomb or aerial torpedo.

History of unmanned aerial vehicles

Comparable aircraft

Gorgon (U.S. missile)
Interstate TDR
JB-2 Loon
McDonnell LBD Gargoyle

Bibliography

Cunningham, William Glenn (1951). The Aircraft Industry: A study in industrial location. Los Angeles: L.L. Morrison. ASIN B0007DXJL2. http://books.google.com/books?ei=A33lTPG6JsG88ga0wOHcDA&ct=result&id=4uAmAAAAMAAJ&dq=Naval+Aircraft+Factory+TDN&q=TDN#search_anchor. Retrieved 2010-11-18.
Goebel, Greg (2010). "The Aerial Torpedo". Cruise Missiles. VectorSite. http://www.vectorsite.net/twcruz_1.html#m4. Retrieved 2010-11-18.
Newcome, Lawrence R. (2004). Unmanned Aviation: A Brief History of Unmanned Aerial Vehicles. Reston, Virginia: American Institute of Aeronautics and Astronautics. ISBN 978-1563476440. http://books.google.com/books?id=fkKDPM7F7bMC&pg=PA8#v=onepage&q&f=false. Retrieved 2010-11-17.
Parsch, Andreas (2003). "TD Series". Directory of U.S. Military Rockets and Missiles, Appendix 1: Early Missiles and Drones. designation-systems.net. http://www.designation-systems.net/dusrm/app1/td.html#_TDN. Retrieved 2010-11-18.
Parsch, Andreas (2005). "Interstate BQ-4/TDR". Directory of U.S. Military Rockets and Missiles, Appendix 1: Early Missiles and Drones. designation-systems.net. http://www.designation-systems.net/dusrm/app1/bq-4.html. Retrieved 2010-11-17.
Trimble, William F. (1990). Wings for the Navy: A History of the Naval Airraft Factory 1917-1956. Annapolis, MD: Naval Institute Press. ISBN 978-0870216633.
Zaloga, Steven (2008). Unmanned Aerial Vehicles: Robotic Air Warfare 1917-2007. New Vanguard. 144. New York: Osprey Publishing. ISBN 978-1846032431. http://books.google.com/books?id=HH_VZID81rkC&pg=PA68. Retrieved 2010-11-17.
