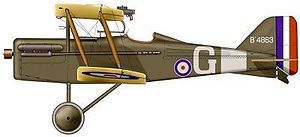

Warbird Picture - James McCudden's S.E.5a

Royal Aircraft Factory S.E.5 Aircraft Information

Royal Aircraft Factory S.E.5

Royal Aircraft Factory S.E.5

Warbird Picture - James McCudden's S.E.5a

Picture - James McCudden's S.E.5a

Role: Single-seat fighter
Manufacturer: various (see text)
Designed by: Henry Folland / John Kenworthy / Major F.W. Goodden
First flight: 22 November 1916
Introduced: March 1917
Primary users: Royal Flying Corps United States Army Air Service Royal Canadian Air Force
Number built: 5,205

The Royal Aircraft Factory S.E.5 was a British biplane fighter aircraft of the First World War. Although the first examples reached the Western Front before the Sopwith Camel and it had a much better overall performance, problems with its Hispano-Suiza engine, particularly the geared-output H-S 8B-powered versions, meant that there was a chronic shortage of S.E.5s until well into 1918 and fewer squadrons were equipped with the type than with the Sopwith fighter. Together with the Camel, the S.E.5 was instrumental in regaining allied air superiority in mid-1917 and maintaining this for the rest of the war, ensuring there was no repetition of "Bloody April" 1917 when losses in the Royal Flying Corps were much heavier than in the Luftstreitkrx¤fte.

Design and development

Airplane Picture - Wooden frame construction

Picture - Wooden frame construction

The S.E.5 (Scout Experimental 5) was designed by Henry P. Folland, John Kenworthy and Major Frank W. Goodden of the Royal Aircraft Factory in Farnborough. It was built around the new 150 hp (112 kW) Hispano-Suiza 8a V8 engine that, while providing excellent performance, was initially under-developed and unreliable. The first of three prototypes flew on 22 November 1916. The first two prototypes were lost in crashes (the first killing the chief test pilot at the Royal Aircraft Factory, Major F. W. Goodden on 28 January 1917) due to a weakness in their wing design. The third prototype underwent modification before production commenced; the S.E.5 was known in service as an exceptionally strong aircraft which could be dived at very high speed.

Airplane Picture - A squadron of S.E.5a aircraft. The wartime censor has scratched out serial numbers leaving the much more revealing squadron markings (those of No. 32 Squadron RAF)

Picture - A squadron of S.E.5a aircraft. The wartime censor has scratched out serial numbers leaving the much more revealing squadron markings (those of No. 32 Squadron RAF)

Like the other significant Royal Aircraft Factory aircraft of the war (B.E.2, F.E.2 and R.E.8) the S.E.5 was inherently stable, making it an excellent gunnery platform but it was also quite manoeverable. It was one of the fastest aircraft of the war at 138 mph (222 km/h), equal at least in speed to the SPAD S.XIII and faster than any standard German type of the period. The S.E.5 was not as effective in a dog fight as the Camel as it was less agile but it was easier and safer to fly, particularly for novice pilots.

The S.E.5 had one synchronised .303-in Vickers machine gun to the Camel's two. It also had a wing-mounted Lewis gun on a Foster mounting, which enabled the pilot to fire at an enemy aircraft from below as well as forward. This was much appreciated by the pilots of the first S.E.5 squadrons as the new "C.C." synchronising gear for the Vickers was unreliable at first. The Vickers gun was mounted on the left side of the fuselage with the breech inside the cockpit. The cockpit was set amidships, making it difficult to see over the long front fuselage, but otherwise visibility was good. Perhaps its greatest advantage over the Camel was its superior performance at altitude - so that (unlike most Allied fighters) it was not outclassed by the Fokker D.VII when that fighter arrived at the front.

Airplane Picture - S.E.5a - Australian War Memorial

Picture - S.E.5a - Australian War Memorial

S.E.5a

Only 77 original S.E.5 aircraft were built before production settled on the improved S.E.5a. The S.E.5a differed from late production examples of the S.E.5 only in the type of engine installed - a geared 200 hp Hispano-Suiza 8b, often turning a large clockwise-rotation four bladed propeller, replacing the 150 hp model. In total 5,265 S.E.5s were built by six manufacturers: Austin Motors (1,650), Air Navigation and Engineering Company (560), Curtiss (1), Martinsyde (258), the Royal Aircraft Factory (200), Vickers (2,164) and Wolseley Motor Company (431). A few were converted as two-seat trainers and there were plans for Curtiss to build 1,000 S.E.5s in the United States but only one was completed before the end of the war. At first airframe construction outstripped the very limited supply of French-built Hispano-Suiza engines and squadrons earmarked to receive the new fighter had to soldier on with Airco DH 5s and Nieuport 24s until early 1918.

The introduction of the 200 hp (149 kW) Wolseley Viper, a high-compression, direct drive version of the Hispano-Suiza made under licence by the Wolseley Motor Company, solved the S.E.5a's engine problems and was adopted as the standard powerplant.

About 38 of the Austin-built S.E.5as were assigned to the American Expeditionary Force with the 25th Aero Squadron getting its aircraft (mostly armed only with the fuselage-mounted Vickers gun) at the very end of the war.

S.E.5b

The S.E.5b was a variant of the S.E.5 with a streamlined nose and wings of unequal span and chord. The single example, a converted S.E.5a first flew in early April 1918. It had a spinner on the propeller and a retractable underslung radiator. The S.E.5b was not a true sesquiplane - as the lower wing had two spars. Its performance was little better than the S.E.5a - the increased drag from the large upper wing seems to have cancelled out any benefit from the better streamlined nose. The S.E.5b was not considered for production; probably it was always intended mainly as a research aeroplane. In January 1919 it was tested with standard S.E.5a wings and in this form survived as a research aircraft into the early twenties.

Airplane Picture - Albert Ball seated in an esrly S.E.5 with original windscreen and high seating position - compare with picture opposite

Picture - Albert Ball seated in an esrly S.E.5 with original windscreen and high seating position - compare with picture opposite

Operational history

The S.E.5 entered service with No. 56 Squadron RFC in March 1917, although the squadron did not deploy to the Western Front until the following month, among other reasons so that the very large and unpopular "greenhouse" windscreens could be replaced with small rectangular screens of conventional design. Pilots also disliked the original high seating position, designed to improve vision over the upper wing, preferring to sit lower (and more comfortably) in the cockpit. The squadron flew its first patrol with the S.E.5 on 22 April. While pilots, some of whom were initially disappointed with the S.E.5, quickly came to appreciate its strength and fine flying qualities, it was universally held to be under-powered and the more powerful S.E.5a began to replace the S.E.5 in June.

At this time 56 Squadron was still the only unit flying the new fighter; in fact it was the only operational unit to be fully equipped with the initial 150 hp S.E.5 - all other S.E.5 squadrons officially used the 200 hp S.E.5a from the outset - although a few S.E.5s were issued to other squadrons due to an acute shortage of the S.E.5a. This shortage resulted in a very slow initial build up of new S.E.5a squadrons, and lasted well into 1918. Once the Wolseley Viper powered model became plentiful many more units re-equipped, until by the end of the war the type was employed by 21 British Empire squadrons as well as two U.S. units. Many of the top Allied aces flew this fighter including Billy Bishop, Andrew Beauchamp-Proctor, Cecil Lewis, Edward Mannock and James McCudden. Legendary British ace Albert Ball was initially disparaging of the S.E.5 but in the end claimed 17 of his 44 victories flying it. McCudden wrote of the S.E.5 "It was very fine to be in a machine that was faster than the Huns, and to know that one could run away just as things got too hot."

Airplane Picture - Albert Ball in the cockpit of his S.E.5

Picture - Albert Ball in the cockpit of his S.E.5

Sholto Douglas who commanded No. 84 Squadron RFC which was initially equipped with the S.E.5a, listed the type's qualities as:

Comfortable, with a good all-round view.
Retaining its performance and manoeuvrability at high level
Steady and quick to gather speed in the dive.
Capable of a very fine zoom.
Useful in both offence and defence.
Strong in design and construction.
Possessing a reliable engine.

Variants

S.E.5
First production version. Single-seat fighter biplane, powered by a 150 hp (112 kW) Hispano-Suiza 8a piston engine.
S.E.5a
Improved production version, powered by a 200 hp (149 kW) Hispano-Suiza 8b V-8 or 200 hp (149 kW) Wolseley Viper piston engine.
S.E.5b
Experimental prototype, with semi-sequiplane wings, streamlined nose and retractable radiator.
Eberhart S.E.5e
S.E.5a assembled from spare parts by American company Eberhart Aeroplane, 180 hp Wright-Hispano E engine and plywood covered fuselages, about 60 built.

Operators

Australia

Australian Flying Corps
No. 2 Squadron AFC in France.
No. 5 (Training) Squadron AFC in the United Kingdom.
No. 6 (Training) Squadron AFC - One aircraft only.
Royal Australian Air Force
No. 1 Squadron RAAF
No. 3 Squadron RAAF
No. 1 Flying Training School RAAF

Canada

Canadian Air Force
Royal Canadian Air Force

Ireland

Irish Air Service
Irish Air Corps

Poland

Polish Air Force
Polish 7th Air Escadrille operated only one S.E.5a in 1920, during Polish-Soviet war

South Africa

South African Air Force

United Kingdom

Royal Flying Corps / Royal Air Force
No. 1 Squadron RAF
No. 17 Squadron RAF
No. 24 Squadron RAF
No. 29 Squadron RAF
No. 30 Squadron RAF
No. 32 Squadron RAF
No. 40 Squadron RAF
No. 41 Squadron RAF
No. 47 Squadron RAF
No. 50 Squadron RAF
No. 56 Squadron RAF
No. 60 Squadron RAF
No. 61 Squadron RAF
No. 64 Squadron RAF
No. 68 Squadron RAF


No. 72 Squadron RAF
No. 74 Squadron RAF
No. 78 Squadron RAF
No. 81 Squadron RAF
No. 84 Squadron RAF
No. 85 Squadron RAF
No. 87 Squadron RAF
No. 92 Squadron RAF
No. 93 Squadron RAF
No. 94 Squadron RAF
No. 111 Squadron RAF
No. 143 Squadron RAF
No. 145 Squadron RAF
No. 150 Squadron RAF
No. 229 Squadron RAF

United States

United States Army Air Service

Survivors and reproductions

Airplane Picture - Shuttleworth Collection's SE5a

Picture - Shuttleworth Collection's SE5a

The Shuttleworth Collection's SE5a at Farnborough 1962, then painted as D7000

An original flying S.E.5a may be seen in the Shuttleworth Collection at Old Warden, England, UK. This aircraft was originally serial F904 of No. 84 Squadron RAF, then flew as G-EBIA from September 1923 to February 1932. It was restored and passed to the Shuttleworth Collection. Re-registered as G-EBIA, it was first painted as D7000, then as F904.

Another four original airframes are statically displayed at: the Science Museum, London, UK; Royal Air Force Museum, London, UK; South African National Museum of Military History, Johannesburg, South Africa; and the Australian War Memorial, Canberra, Australia.

Three very faithful reproductions (designated Se.5a-1) were built by The Vintage Aviator Limited in New Zealand and these fly from Hood Aerodrome, Masterton. Another SE5a project was started in the UK in the 1980s by John Tetley and "Bill" Sneesby. The machine, built using original plans was transferred to The Memorial Flight (based at La Ferte Alais, in France) to be completed and flown. Some parts are original such as the engine, instruments and fuel tank and the machine is painted in the colours of Lt. H. J. 'Hank' Burden of 56 Squadron as of April 1918.

Specifications (S.E.5a)

Airplane Picture - Cooper 25lb bomb

Picture - Cooper 25lb bomb

Data from

General characteristics

Crew: One
Length: 20 ft 11 in (6.38 m)
Wingspan: 26 ft 7 in (8.11 m)
Height: 9 ft 6 in (2.89 m)
Wing area: 244 ft² (22.67 m²)
Empty weight: 1,410 lb (639 kg)
Loaded weight: 1,935 lb (880 kg)
Max takeoff weight: 1,988 lb (902 kg)
Powerplant: 1x— Wolseley Viper water cooled V8 engine, 200 hp (150 kW)

Performance

Maximum speed: 138 mph (222 km/h)
Range: 300 miles (483 km)
Service ceiling: 17,000 ft (5,185 m)
Wing loading: lb/ft² (kg/m²)

Armament

Guns:
1x 0.303 in (7.7 mm) forward-firing Vickers machine gun with Constantinesco interrupter gear
1x .303 in (7.7 mm) Lewis gun on Foster mounting on upper wing
Bombs: 4x 25 lb (11 kg) Cooper bombs, two under each lower wing, to be dropped in 2, 3, 4, 1 order.

Comparable aircraft

SPAD S.XIII
Albatros D.V
Fokker D.VII
Sopwith Camel

Notable pilots of the S.E.5

Albert Ball, VC, DSO and two bars, MC
Mick Mannock, VC, DSO & two Bars, MC & Bar
James McCudden, VC, DSO & Bar, MC & Bar, MM
Captain Andrew (Anthony) Frederick Weatherby Beauchamp-Proctor, VC, DSO, MC and bar, DFC
Cecil Lewis, MC

Bibliography

Bruce, J.M. "The S.E.5: Historic Military Aircraft No. 5". Flight, 17 July 1953. pp. 85-89, 93.
Bruce, J.M. "The S.E.5A". Aircraft in Profile, Volume 1/Part1. Windsor, Berkshire, UK: Profile Publications Ltd., 1965 (Revised 4th edition 1975). ISBN 0-85383-410-5.
Franks, Norman L.R. SE 5/5a Aces of World War 1. Botley, Oxford, UK: Osprey Publications, 2007. ISBN 1-846031-80-X.
Hare, Paul R. The Royal Aircraft Factory. London:Putnam, 1990. ISBN 0-85177-843-7.
Kopański, Tomasz Jan. Samoloty brytyjskie w lotnictwie polskim 1918-1930 (British Aircraft in the Polish Air Force 1918-1930)(in Polish). Warsaw: Bellona, 2001. ISBN 83-11-09315-6.
Sturtivant, Ray ISO and Gordon Page. The SE5 File. Tunbridge Wells, Kent, UK: Air-Britain (Historians) Ltd., 1996. ISBN 0-85130-246-7.
