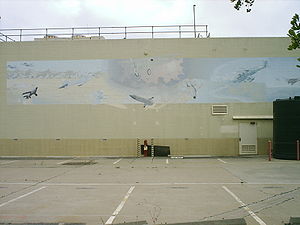

Airplane Picture - Mural on the site of Teledyne Ryan in San Diego Depicting many of the Products Produced by Ryan Aeronautics.

Ryan Aeronautical Information

Ryan Aeronautical

Airplane Picture - Mural on the site of Teledyne Ryan in San Diego Depicting many of the Products Produced by Ryan Aeronautics.

Picture - Mural on the site of Teledyne Ryan in San Diego Depicting many of the Products Produced by Ryan Aeronautics.

The Ryan Aeronautical Company was founded by T. Claude Ryan in San Diego, California in 1934. Part of Teledyne after 1969, Northrop Grumman purchased Teledyne Ryan in 1999. Ryan built several historically and technically significant aircraft, including two famous V/STOL designs, but its most successful production aircraft would be the Ryan Firebee line of unmanned drones used as targets and unmanned air vehicles.

Early aircraft

T.C. Ryan, previously best known for building Charles Lindbergh's transatlantic Spirit of St. Louis, actually had no part in building the famous plane other than founding Ryan Airlines in 1925 . Ryan had been owner or partner in several previous companies, one of which also bore the name Ryan Aeronautical. The Spirit of St. Louis, was not built by the final Ryan Aeronautical entity.

The new company's first aircraft was the Ryan ST or "Sport Trainer", a low-wing tandem-seat monoplane with a 95 hp (71 kW) Menasco B-4 "Pirate" straight-4 engine. Five were built before production switched to the Ryan STA (Aerobatic) with a more powerful 125 hp (93 kW) Menasco C-4 in 1935. This aircraft had enough power for aerobatic display, and it won the 1937 International Aerobatic Championships. A further improved Ryan STA Special was built in 1936, with a supercharged Menasco C-4S with 150 hp (112 kW).

In 1937 and 1938 a second civilian aircraft model was introduced, the Ryan SCW-145 for Sport Coupe, Warner 145 horsepower (108 kW) engine. The SCW was a larger three seater aircraft with a sliding canopy and side-by-side front seating. The prototype SCW was originally powered by a Menasco engine, however prototype testing revealed that more power was needed hence the move to the Warner 145 hp (108 kW), 7-cylinder radial engine for production models. Thirteen examples of the SCW were built, although the last one was assembled from surplus parts decades after the initial production run was finished.

USAAC trainers

Interest from the United States Army Air Corps followed. The Menasco engines proved unreliable, and instead Kinner radial engines were fitted. Aircraft were produced as the PT-16 (15 built), PT-20 (30 built), PT-21 (100 USAAF, 100 USN) and finally as the definitive PT-22 Recruit (1,298 built) ordered in 1941 as pilot training began its rapid expansion.

Ryan also pioneered STOL techniques in its YO-51 Dragonfly observation craft. Three prototypes were built, but no USAAF order came.

Postwar

In the immediate postwar years, Ryan diversified, including even building coffins for a short period. It bought the rights to the Navion light aircraft from North American Aviation in 1947, selling it to both military and civilian customers.

Ryan became involved in the missile and unmanned aircraft fields, developing the Ryan Firebee unmanned target drone, the Ryan Firebird (the first air-to-air missile) among others, as well as a number of experimental and research aircraft.

Ryan acquired a 50% stake in Continental Motors Corporation, the aircraft-engine builder, in 1965.

In the 1950's, Ryan was a pioneer in jet vertical flight with the X-13 Vertijet, a tail sitting jet with a delta wing which was not used in production designs. In the early 1960's, Ryan built the XV-5 Vertifan for the U.S. Army, which used wing and nose mounted lift vans for V/STOL vertical flight. It was flown, crashed after ingesting a test rescue dummy in its fans, and was not made into a production aircraft.

In 1966/67, Ryan was awarded the contract to build the digital Doppler radar system installed aboard the Apollo Lunar Lander.

In 1968 the company was acquired by Teledyne for $128 million and a year later became a wholly owned subsidiary of that company as Teledyne Ryan. Claude Ryan retired as chairman with the Teledyne purchase.

Northrop Grumman purchased Teledyne Ryan in 1999, with the products continuing to form the core of that firm's unmanned aerial vehicle efforts.

Ryan aircraft

FR Fireball (Successful Brief Military Service)
XF2R Dark Shark (Unsuccessful)
VZ-3 Vertiplane (Experimental)
X-13 Vertijet (Experimental)
XV-5 Vertifan (Experimental)
Ryan Firebee (Successful drone)
YO-51 Dragonfly (Prototypes)
