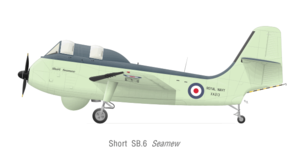

Short Seamew

SB.6 Seamew

Picture - Seamew prototype XA213

Role: Anti-submarine aircraft
Manufacturer: Short Brothers
First flight: 23 August 1953
Retired: 1957
Primary users: Royal Navy Fleet Air Arm Royal Naval Volunteer Reserve
Number built: 19

The Short SB.6 Seamew was a British aircraft designed in 1951 by David Keith-Lucas of Shorts as a lightweight anti-submarine platform to replace the Royal Navy Fleet Air Arm (FAA)'s Grumman Avenger AS 4 with the Reserve branch of the service. It first flew on 23 August 1953, but, due to poor performance coupled with shifting defence doctrine, it never reached service and only 19 were built before the project was cancelled. It has been described as a "camel amongst race-horses".

Design and development

The Short Seamew was selected to fulfill Admiralty Specification M.123D for a simple, lightweight anti-submarine aircraft capable of unassisted operation from any of the Royal Navy's aircraft carriers in all but the worst of conditions. Although specifically designed for naval operations, the Seamew was also intended for land-based use by the RAF. It was to be suitable for mass production and operation by the Air Branch of the Royal Naval Volunteer Reserve (RNVR). This specification was in response to the alarming increase in capabilities of the Soviet submarine forces following the Second World War.

Picture - Seamew prototype XA209, natural metal finish, landing at Farnborough SBAC Show in September 1953

Three prototypes were ordered in April 1952 and the first flight (XA209), piloted by its test pilot, Sqn. Ldr. Walter J. "Wally" Runciman, took place on 23 August 1953. This same aircraft, also piloted by Runciman, took part in the 1953 Farnborough Airshow three weeks later. In 1954 both XA209 and the second prototype XA213 took part at Farnborough, where the following year both prototypes and two production AS Mk 1 models (XE171 and XE172) gave a formation display.

The fourth Seamew prototype (XE175) was flown by Runciman for a series of sales tours in 1956 to Italy (March), Yugoslavia (April) and West Germany (May). It was this same aircraft in which Runciman was killed when it crashed during the Sydenham (Belfast) Air Display on 9 June 1956. Rumours that the crash had been caused by a material failure were current at the time but the accident investigation board did not confirm them.

The MR Mark 2 for use by Coastal Command was similar in every respect to the AS Mk 1 except that it was optimised for land-based use from hastily prepared airstrips. Naval equipment was deleted although manual wing folding was retained. Slightly heavier than the naval version, the MR Mk 2 had oversize low pressure tyres and could carry a higher weapons load.

Design

Picture - "Wally" Runciman climbs into the cockpit for the first flight of the Seamew XA209 prototype

Picture - Prototype XA209, without radome

The pilot and observer were located in tandem cockpits located high up in the front of the deep, narrow fuselage creating a decidedly "curious" profile. They sat atop the Armstrong Siddeley Mamba turboprop in front and the weapons bay to the rear of them. The design had originally called for the tried and tested Rolls-Royce Merlin piston engine but the Royal Navy had made it policy to phase out piston engines, in order that supplies of highly flammable high octane aviation fuel need not be carried in large quantities on ships. The turboprop engine also caused less airframe vibration so the pilot could be sat directly over it and the absence of a piston engine ignition system which would have interefered with the radar scanner mounted below the engine housing.

For simplicity, and so that a nose wheel would not obscure the forward field of the radar scanner, a fixed tail wheel undercarriage was used. The long stroke necessary on the main undercarriage to allow for heavy deck landings while giving the radar scanner and propeller adequate clearance from the ground resulted in an alarming attitude on the ground and the cockpits mounted at a seemingly perilous height. For landing the tail wheel extended so it could land at a more level attitude.

Picture - Prototype XA209 with wings folded

The pilot and observer sat very far forward in order that the pilot could have a reasonable field of downward vision for takeoff and landing and so that both he and the observer had a good field of view for spotting surface vessels even when in level flight.

The large, broad-chord wings featured power-folding and pylons for the carriage of rockets, depth charges, flares and small bombs. The large, slab-like, tailplane was mounted high on the vertical stabiliser, requiring the rudder to be split into upper and lower sections. The fixed undercarriage legs could be jettisoned in the event of ditching.

The weapons bay was 14 ft long and 3 ft wide. By omitting the rotating radar scanner it could be extended to 17 ft in order to carry longer weapons.

Handling Characteristics

The handling characteristics of the Seamew were poor. The prototypes were heavily modified with fixed leading-edge slats, slots added in the trailing-edge flaps, alterations to the ailerons and slats added to the tailplane roots. Although something of an improvement over the initial models, the handling was never wholly satisfactory. Arthur Pearcy wrote "only Short Brothers' test pilot Wally Runciman seemed able to outwit its vicious tendencies and exploit its latent manoeuvrability to the limit."

Picture - A production AS 1 in flight

The stall speed of the Seamew was 50 kt and it required only 50% of engine power to maintain flight. Runciman said "take off and landing are simple and straightforward", "it is, in fact, impossible to bounce the Seamew", and that it's performance in crosswinds was "outstanding".

Operational service

An order was placed in February 1955 for 60 aircraft (split evenly between the FAA and RAF), with Seamew XA213 successfully completing carrier trials on HMS Bulwark in July and December 1955. Naval service flight trials with two Seamews were carried out with 700 Naval Air Squadron in November 1956, which included catapult trials and around 200 takeoffs and landings on HMS Warrior.

The RAF lost interest after four Mk 2s were built with three of them converted to AS1 standard; the fourth (XE175) was flown by S/L W. "Wally" J. Runciman for a series of sales tours in 1956 to Italy (March), Yugoslavia (April) and West Germany (May).

Meanwhile the FAA decided that the RNVR Avengers would be replaced by Seamews, but only four had been taken on charge by the time the RNVR squadrons were disbanded in March 1957 in keeping with the 1957 Defence White Paper, before any Seamews were allocated to them. Seven aircraft eventually delivered to the FAA were scrapped at RNAS Lossiemouth, and the other 11, complete and awaiting delivery, were scrapped at Sydenham. The last surviving Seamew, XE180 which had been purchased by Shorts on 31 August 1959 for ground instruction at its Apprentice Training School, was scrapped in 1967.

Picture - A flight of Short Seamew AS 1s

The Rolls-Royce Heritage Trust has preserved a Seamew engine, which is found at its Coventry branch.

Operators

United Kingdom

Royal Navy
Royal Naval Reserve

Specifications (Seamew AS 1)

Data from

General characteristics

Crew: 2
Payload: 1,844 lb (836 kg) of weapons
Length: 41 ft (12.50 m)
Wingspan: 55 ft (16.75 m)
Wings folded 23 ft (7.01 m)
Height: 13 ft 5in (4.09 m)
Wings folded 15 ft 7.5 in (4.76 m)
Wing area: 550 ft² (51 m²)
Empty weight: 9,795 lb (4,443 kg)
Loaded weight: 14,400 lb (6,804 kg)
Max takeoff weight: 15,000 lb (6,790 kg)
Powerplant: 1x— Armstrong Siddeley Mamba turboprop, 1,590 shp (1,190 kW)
Propellers: Rotol four-bladed propeller
Propeller diameter: 10 ft ()

Performance

Maximum speed: 236 mph (205 knots, 380 km/h)
Range: 750 mi (650 nm, 1,200 km)
Endurance: 4 hours at 120 kt at 5,000 ft
Rate of climb: 1,600 ft/min () initial
Wing loading: 26 lb/ft² (127 kg/m²)
Power/mass: 0.11 hp/lb (180 W/kg)
Take off: 500 ft at 60.7 kt tas into 12 kt wind

Armament

Rockets: Several rockets carried underwing Sonobuoys: 20 28-lb
Bombs:
1x— torpedo
4x— depth charges
275-lb A/S bombs

Comparable aircraft

Fairey Gannet
Grumman Avenger

Citations

Bibliography

Barnes, C.H. with revisions by Derek N. James. Shorts Aircraft since 1900(revised). London: Putnam, 1989. ISBN 0-85177-819-4.
Green, William and Gerald Pollinger. The Observer's Book of Aircraft. London: Frederick Warne & Co. Ltd., 1956.
Pearcy, Arthur. "Short Seamew". Aviation News 6, 19 July 1990.
Runciman, Squadron Leader W.J. Pilot's Flying Log Book. "Squadron Leader W.J. Runciman, A.F.C., D.F.M." Original held by his family, a copy held by P. Sortehaug, 4, William St., Dunedin, NZ.
"The Seamew Calls a Halt to the Rising Cost of Air Power." Shorts Quarterly Review, Vol. 2, No. 3, Autumn 1953.
The Short Seamew Light Anti-submarine Aircraft (promotional brochure). Belfast: Short Brothers and Harland Limited, c. 1953.
Williams, Ray. Fly Navy: Aircraft of the Fleet Air Arm since 1945. London: Airlife Publishing, 1989. ISBN 1-85310-057-9.
Winchester, Jim, ed. "Short Seamew". The World's Worst Aircraft: From Pioneering Failures to Multimillion Dollar Disasters. London: Amber Books Ltd., 2005. ISBN 1-904687-34-2.
