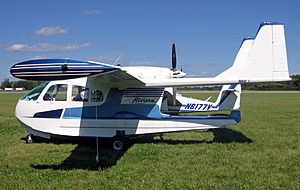

Airplane Picture - FN.333 No.002 built by SIAI-Marchetti in 1962, displayed at EAA AirVenture Oshkosh, in 2010.

SIAI-Marchetti FN.333 Riviera Warbird Information

SIAI-Marchetti FN.333 Riviera

Airplane Picture - FN.333 No.002 built by SIAI-Marchetti in 1962, displayed at EAA AirVenture Oshkosh, in 2010.

Aircraft Picture - FN.333 No.002 built by SIAI-Marchetti in 1962, displayed at EAA AirVenture Oshkosh, in 2010.

Role: Amphibious aircraft
Manufacturer: Fratelli Nardi, SIAI-Marchetti
First flight: 4 December 1952
Introduction: 1962
Status: Still in service in 2010
Primary user: Private pilot owners
Number built: 26

The Nardi FN.333 Riviera, later the SIAI-Marchetti FN.333 Riviera, is an Italian luxury touring amphibian flying-boat designed and developed by Fratelli Nardi in the 1950s and produced in small numbers by Savoia-Marchetti during the following decade.

Development

The FN.333 Riviera was originally developed by the Nardi Company at Aeroporto Forlanini, Milan, Italy. The first prototype Riviera was registered I-KISS, and was a three-seat aircraft. This plane made its maiden flight on 4 December 1952, and was to be the only FN.333 powered by a 145 hp Continental fan-cooled engine. Beginning with the second prototype a more powerful engine was used, as well as the addition of a fourth seat. The second prototype made its first flight on 8 December 1954. The Nardi Company lacked the resources to fully develop the Riviera, and as a result the third aircraft did not fly until 14 October 1956. Improved power for this aircraft was provided by a 240 hp Continental O-470-H engine. This aircraft was designated the FN.333S and was to be the basis for series production. Lacking further resources, Nardi sold the manufacturing rights for the Riviera to the much larger SIAI-Marchetti in March 1959.

This deal resulted in the first series of 10 production Rivieras being manufactured at the SIAI-Marchetti factory in Sesto Calende, Varese near Milano, Italy. The first S.I.A.I.-Marchetti manufactured Riviera was completed in February 1962, and by January 1963 the company had delivered four of the aircraft to customers in the USA. The SIAI-Marchetti version had improved power provided by a 250 hp Continental IO-470-P engine, equipped with fuel injection, and manufactured for a pusher-style aircraft. In 1961 the Riviera became available in the United States, where it was initially sold through the North Star Company of Newark, New Jersey. ServAir Inc. of Detroit sold the Riviera in Detroit, Michigan, and received their first Riviera on 13 July 1962. This aircraft, already complete and ready to fly, was placed in the cargo hold of a ship and transported directly from Italy, arriving in Newark, New Jersey. Excluding this example, most Riviera were shipped partially assembled, and were then completed at Southwest Airmotive before delivery to their owners. Most of the 26 built by SIAI-Marchetti were sold to customers in the United States, but examples were also sold to Norway and Sweden. A pure flying boat version, lacking landing gear and designated FN.333W, was planned but never built.

Design

The Riviera is a unique, though not unattractive design, somewhat similar to the famous Republic Seabee of the 1940s. The major difference between the Riviera and the Seabee is the use of a high twin-boom tail arrangement on the Riviera while the Seabee uses a single conventional tail. The Riviera uses a tricycle landing gear, with the nose gear retracting into the nose and concealed behind two small nose gear doors. As a result, forward visibility is somewhat better in the Riviera than in the Seabee when taxing or taking off on land.

The Riviera is powered by a Continental 250 hp flat 6-cylinder engine mounted above the fuselage in a pusher arrangement. A three-bladed propeller was standard.

Survivors

Out of an original production run of just 26 aircraft over six years less only half a dozen are believed flyable today. Riviera #0110 (N95DR) crashed while attempting an emergency landing in Minden, Nevada - possibly the most photographed Riviera in the world as it was a regular visitor to the EAA Oshkosh, and Clear Lake Splash-Ins.

Specifications

Data from Green

General characteristics

Crew: 1
Capacity: 3
Length: 24 ft (7.3 m)
Wingspan: 34 ft 1 in (10.39 m)
Height: 10 ft 7 in (3.23 m)
Wing area: 163 sq ft (15.1 m)
Empty weight: 2,300 lb (1,043 kg)
Gross weight: 3,270 lb (1,483 kg)
Powerplant: 1 x— Continental IO-470-P , 250 hp (190 kW)

Performance

Maximum speed: 177 mph (285 km/h; 154 kn)
Cruise speed: 137 mph (119 kn; 220 km/h)
Range: 865 mi (752 nmi; 1,392 km)
Service ceiling: 18,500 ft (5,639 m)
Rate of climb: 1,220 ft/min (6.2 m/s)

Comparable aircraft

Colonial Skimmer
Goodyear Duck
Lake Aircraft Amphibian
Republic RC-3 Seabee
Thurston Teal

Related lists

List of seaplanes and flying boats

International Aircraft Directory, third edition (ISBN 978-1-56027-590-9)
Green, William (1965). The Aircraft of the World. Macdonald & Co (Publishers) Ltd. ISBN none.
Taylor, Michael J. H. (1989). Jane's Encyclopedia of Aviation. London: Studio Editions.
The Illustrated Encyclopedia of Aircraft (Part Work 1982-1985). Orbis Publishing. pp. 2594.
