Sopwith Dragon

Sopwith Dragon

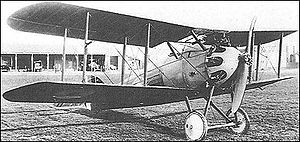

Warbird Picture - Prototype E7990 at Brooklands Airfield

Picture - Prototype E7990 at Brooklands Airfield

Role: Fighter
Manufacturer: Sopwith Aviation Company
First flight: 1918
Primary user: Royal Air Force
Number built: 200
Developed from: Sopwith Snipe

The Sopwith Dragon was a British single-seat fighter biplane developed from the Sopwith Snipe.

Design and development

In April 1918, the sixth Snipe prototype was fitted with a 320hp (239kW) ABC Dragonfly I radial engine. To compensate for the greater weight of the Dragonfly, the fuselage was lengthened by 22 in (56 cm).

The prototype suffered persistent ignition system defects, but performance was encouraging when the Dragonfly engine operated properly. In June 1918, the Royal Air Force issued a contract for 30 Dragonfly engined Snipes, which were subsequently named Dragons. In late November 1918, the RAF cancelled a production order for 300 Snipes and reordered the aircraft as Dragons.

A second prototype was equipped with the larger 360hp (268kW) ABC Dragonfly IA engine. This aircraft did not begin official trials at Martlesham Heath until February 1919. It attained a top speed of 150 mph (240 km/h) at sea level and achieved a service ceiling of 25,000 ft.

Sopwith built approximately 200 Dragon airframes, which were placed in storage pending delivery of their engines. Difficulties with the Dragonfly ultimately proved impossible to resolve. Only a few aircraft were completed with Dragonfly engines, and none were issued to squadrons. The Dragon was finally declared obsolete in April 1923.

Operators

United Kingdom

Royal Air Force

Specifications

General characteristics

Crew: 1
Length: 21 ft 9 in (6.63 m)
Wingspan: 31 ft 1 in (9.47 m)
Height: 9 ft 6 in (2.9 m)
Wing area: 271 ft (25.2 m)
Gross weight: 2132 lb (967 kg)
Powerplant: 1 x ABC Dragonfly IA radial engine, 360 hp (268 kW)

Performance

Maximum speed: 150 mph (240 km/h)
Endurance: 3 hours 30 min
Service ceiling: 25,000 ft (7,600 m)

Armament

2 x forward firing Vickers machine-guns

Related development

Sopwith Snipe
Sopwith Salamander

Davis, Mick. Sopwith Aircraft. Ramsbury, Marlborough, Wiltshire: Crowood Press, 1999. ISBN 1-86126-217-5.
Mason, Francis K. The British Fighter Since 1912. Annapolis, Maryland: Naval Institute Press, 1992. ISBN 1-55750-082-7.
Robertson, Bruce. Sopwith - The Man and His Aircraft. London: Harleyford, 1970. ISBN 0-90043-515-1.
