Utva Trojka

C-3 Trojka

Role: Civil trainer
National origin: Yugoslavia
Manufacturer: Ikarus, Utva
First flight: 1946
Number built: ca.80

The Utva C-3 Trojka (Trey) was a light aircraft built in Yugoslavia shortly after World War II as a result of a government competition to develop a new, domestically-built aircraft with which to equip the country's flying clubs. The winning design was submitted by Boris Cijan and Dragoslav Petkovic and the prototype was built by Ikarus as the Ikarus 251. Series production took place at Utva as the C-3. It was a conventional, low-wing cantilever monoplane with fixed tailwheel undercarriage. The pilot and instructor sat side-by-side under an expansive canopy. The type remained in production until the mid 1950s with later examples powered by the more powerful Walter Mikron 4.

Specifications

General characteristics

Crew: Two, pilot and instructor
Length: 8.84 m (29 ft 0 in)
Wingspan: 10.49 m (34 ft 5 in)
Height: 2.08 m (6 ft 10 in)
Wing area: 15.5 m² (16.7 ft²)
Empty weight: 374 kg (824 lb)
Gross weight: 602 kg (1,328 lb)
Powerplant: 1 x— Walter Mikron III, 49 kW (65 hp)

Performance

Maximum speed: 166 km/h (103 mph)
Range: 605 km (376 miles)
Service ceiling: 3,900 m (12,800 ft)

Comparable aircraft

LWD Żak - Zlin Z-22 Junak

Taylor, Michael J. H. (1989). Jane's Encyclopedia of Aviation. London: Studio Editions. pp. 430-31.
Simpson, R. W. (1995). Airlife's General Aviation. Shrewsbury: Airlife Publishing. pp. 396.
"Utva BC-3 Trojka". Insignia: 144. Summer 1999.

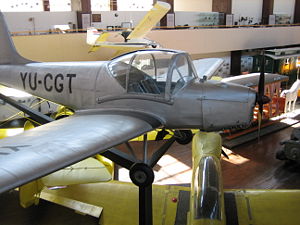

Utva Trojka Pictures
