Vickers F.B.14

Vickers F.B.14 Aircraft Information

Vickers F.B.14

Vickers F.B.14

Vickers F.B.14

Role: Fighter, reconnaissance biplane
National origin: United Kingdom
Manufacturer: Vickers
First flight: 1916
Primary user: Royal Flying Corps
Number built: 100+

The Vickers F.B.14 was a British two-seat fighter/reconnaissance biplane designed and built by Vickers Limited. About 100 were built for the Royal Flying Corps but saw only limited use as it was designed for a larger engine which was not available when production commenced and it did not meet performance expectations.

Design and development

The F.B.14 was a conventional single-bay biplane with two tandem open cockpits and a fixed tailskid landing gear. It was designed to use a new engine, the 230 hp (170 kW) BHP inline engine (later to become the Siddeley Puma). The steel-tube airframe was completed in mid-1916, but the engine was not ready and it was fitted with a 160 hp (120 kW) Beardmore engine instead. The aircraft was underpowered with the Beardmore engine and suffered reliability problems and over 50 production aircraft were delivered to the Royal Flying Corps without engines. A more reliable engine was tested, but the 120 hp (90 kW) Beardmore did not help meet the performance required. Attempts to fit alternate engines resulted in a number of variants with the most successful being a Rolls-Royce Eagle IV Vee engine. The aircraft performance was inferior to the contempary Bristol F.2B, however, and further development of the F.B.14 was abandoned.

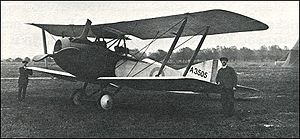

Airplane Picture - Vickers F.B.14

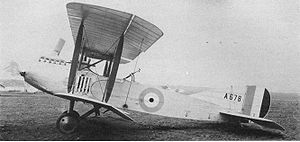

Picture - Vickers F.B.14

The F.B.14 saw limited operational use, with some being sent to Mesopotamia, with seven being used in home defence Squadrons. The Rolls-Royce powered F.B.14D, while being used for testing of an experimental gunsight at Orfordness in July 1917, engaged a German air raid and claimed an unconfirmed shoot-down of a Gotha bomber off Zeebrugge.

Variants

F.B.14 Production aircraft powered by a 160 hp (120 kW) Beardmore engine, 104 built by Vickers at Weybridge. F.B.14A Re-engined with a 150 hp (110 kW) Lorraine-Dietrich Vee engine, one built. F.B.14D Re-engined with a 250 hp (190 kW) Rolls-Royce Eagle IV engine and fitted with increased span two-bay wings. F.B.14F Re-engined with a 150 hp (112 kW) RAF 4a air-cooled V-12 engine.

Operators

United Kingdom

Royal Flying Corps

Specifications (F.B.14)

Data from Vickers Aircraft since 1908

General characteristics

Crew: 2
Length: 28 ft 5 in (8.66 m)
Wingspan: 39 ft 6 in (12.04 m)
Height: 10 ft 0 in (3.05 m)
Wing area: 427 ft² (39.7 m²)
Empty weight: 1662 lb (755 kg)
Gross weight: 2603 lb (1183 kg)
Powerplant: 1 x— Beardmore engine, 160 hp (119 kW)

Performance

Maximum speed: 99.5 mph ( km/h)
Endurance: 3 hours 45 min
Service ceiling: 10,000 ft (3,050 m)

Armament

1 x— forward-firing .303 in (7.7 mm) Vickers machine gun
1 x— .303 in (7.7 mm) Lewis Gun fitted on a Scarff ring in rear cockpit

Andrews, C.F.; Morgan, E.B. (1988). Vickers Aircraft since 1908 (Second ed.). London: Putnam. ISBN 0-85177-815-1.
Taylor, Michael J. H. (1989). Jane's Encyclopedia of Aviation. London: Studio Editions.
The Illustrated Encyclopedia of Aircraft (Part Work 1982-1985). Orbis Publishing.
