Westland Wallace Aircraft Information

Westland Wallace

Westland Wallace

Westland Wallace

Role: Two-seat general-purpose biplane
Manufacturer: Westland
First flight: 31 October 1931
Introduced: 1933
Retired: 1943
Status: out of service
Primary user: Royal Air Force
Produced: 1933-1936
Number built: 104 + 68 conversions from Wapitis

The Westland Wallace was a British two-seat, general-purpose biplane of the Royal Air Force, developed by Westland as a follow-on to their successful Wapiti. As the last of the inter-war general purpose biplanes, it was used by a number of frontline and Auxiliary Air Force Squadrons. Although the pace of aeronautical development caused its rapid replacement in front line service, its useful life was extended into the Second World War with many being converted into target tugs and wireless trainers. In 1933 a Westland Wallace became the first aircraft to fly over Mount Everest, as part of the Houston Mount Everest Expedition.

Design and development

In 1931, Westland produced the PV-6, a private-venture development of its successful Wapiti. This updated aircraft embodied a number of improvements including a lengthened fuselage, brakes and wheel spats on the undercarriage and a new engine. By this time both the appearance and performance differed considerably from the standard Wapiti, so the company designated it the "PV6 Wallace." Compared with the earlier Wapiti, the Wallace was 20 inches (0.5 m) longer, incorporated an improved undercarriage and was powered by a 655-hp (488-kW) Bristol Pegasus IV engine. The first batches of MK I Wallaces were conversions of Wapitis, a total of 68 powered by 570-bhp (425-kW) Pegasus IIM3 engines.

Westland designed an improved version, the Mk II which fitted with a more powerful engine and the then-novel idea of an enclosed canopy over both crew positions. This offered greater comfort for the crew and improved the rear gunner's aim by protecting him from the slipstream. Three Wallace Is (K4346-K4348) were later converted to Mk II standards, including fitting the closed canopy.

Operational history

The original PV-6 prototype, registered G-ACBR (and also known as the Houston-Wallace) along with Westland PV-3 G-ACAZ, was part of the Houston Everest Expedition, named after Lucy, Lady Houston the patron, an attempt to fly over Mount Everest. Both aircraft received modifications that included fitting heating and oxygen equipment, fully enclosing the rear cockpits and using highly supercharged Bristol Pegasus IS 3 engines. Flown by Flight Lieutenant D.F. McIntyre, the two aircraft became the first to fly over Mount Everest on 3 April 1933.

Most of the Wallaces served with the Auxiliary Air Force: 501, 502, 503 and 504 squadrons beginning with the converted Wapitis early in 1933. Others operated with the Anti-Aircraft Co-operation Flight at RAF Biggin Hill. The last Wallace was completed in October 1936.

When withdrawn from the general purpose role, many Wallaces were converted into target tugs. A total of 83 Wallaces remained in service at the beginning of the Second World War. The last were withdrawn in 1943.


Westland PV-6 - Prototype, later converted to military configuration as a Wallace I.
Wallace Mk I - Conversion from Wapiti powered by a 570-hp (425-kW) Bristol Pegasus IIM3 engine, 68 converted.
Wallace Mk II - New aircraft with glazed cockpit and powered by a 680-hp (506-kW) Bristol Pegasus IV engine, 104 built.


United Kingdom

Royal Air Force
No. 501 Squadron RAF
No. 502 Squadron RAF
No. 503 Squadron RAF
No. 504 Squadron RAF

Specifications (Westland Wallace II)

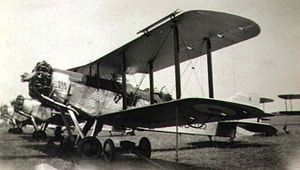

Airplane Picture - Westland Wallace Mk II

Picture - Westland Wallace Mk II

Data from The Hamlyn Concise Guide to British Aircraft of World War II

General characteristics

Crew: 2
Length: 34 ft 2 in (10.41 m)
Wingspan: 46 ft 5 in (14.15 m)
Height: 11 ft 6 in (3.51 m)
Wing area: 488 ft (45.34 m)
Empty weight: 3,840 lb (1,742 kg)
Max takeoff weight: 5,750 lb (2,608 kg)
Powerplant: 1x Bristol Pegasus IV radial piston, 680 hp (507 kW)


Maximum speed: 158 mph (137 knots, 254 km/h) at 15,000 ft (4,570 m)
Cruise speed: 135 mph (117 knots, 217 km/h)
Range: 470 miles (409 nm, 756 km)
Service ceiling: 24,100 ft (7,435 m)


Guns: 2 x 0.303 inch (7.7 mm) machineguns
Bombs: total of 580 lb (263 kg) of bombs

Comparable aircraft

Hawker Hardy
Vickers Vincent
Westland Wapiti

Related lists

list of aircraft of the Royal Air Force


James, Derek N. Westland Aircraft since 1915. London:Putnam Aeronautical Books, 1991. ISBN 0 85177 847 X.
James, Derek. "To The Top of the World". Aeroplane. Vol 36 No. 4, Issue No 420, April 2008, pp. 20-25.
Mondey, David. The Hamlyn Concise Guide to British Aircraft of World War II. London: Aerospace Publishing, 1994. ISBN 1-85152-668-4.
Thetford, O.Aircraft of the Royal Air Force 1918-57.London: Putnam, 1957.
