Vultee XP-54 Aircraft Information

Vultee XP-54

XP-54

Role: Fighter
National origin: United States
Manufacturer: Vultee Aircraft
First flight: 15 January 1943
Status: Canceled
Primary user: United States Army Air Forces
Number built: 2
Variants: XP-68 Tornado

The Vultee XP-54 Swoose Goose was a prototype fighter built by the Vultee Aircraft Company for the United States Army Air Forces (USAAF).

Design and development

Vultee had submitted a proposal in response to a U.S. Army Air Corps request for an unusual configuration. The Vultee design won the competition, beating the Curtiss XP-55 Ascender and the Northrop XP-56 Black Bullet. Vultee designated it Model 84, a descendant of their earlier Model 78. After completing preliminary engineering and wind tunnel tests, a contract for a prototype was awarded on 8 January 1941. A second prototype was ordered on 17 March 1942. Although it appeared to be a radical design, its actual performance was lackluster and the project was subsequently canceled.

The XP-54 was designed with a pusher engine in the aft part of the fuselage. The tail was mounted rearward between two mid-wing booms, with the 12-ft propeller between them. The design included a "ducted wing section" developed by the NACA that enabled installation of cooling radiators and intercoolers in the inverted gull wing. The Pratt & Whitney X-1800 engine was initially proposed as the powerplant but after its development was discontinued, the liquid-cooled Lycoming XH-2470 was substituted.

In September 1941, the XP-54 mission was changed from low altitude to high altitude interception. Consequently, a turbo-supercharger and heavier armor had to be added, and the estimated empty weight increased from 11,500 to 18,000 lb (5,200 to 8,200 kg).

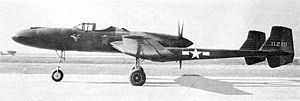

Airplane Picture - The Swoose Goose

Picture - The Swoose Goose

The XP-54 was unique in numerous ways. The pressurized cockpit required a complex entry system: the pilot’s seat acted as an elevator for cockpit access from the ground. The pilot lowered the seat electrically, sat in it, and raised it into the cockpit. Bail-out procedure was complicated by the pressurization system and necessitated a downward ejection of the pilot and seat in order to clear the propeller arc. Also, the nose section could pivot through the vertical, three degrees up and six degrees down. In the nose, two 37 mm T-9 cannon were in rigid mounts while two .50 cal machine guns were in movable mounts. Movement of the nose and machine guns was controlled by a special compensating gun sight. Thus, the cannon trajectory could be elevated without altering the flight attitude of the airplane. The large nose section gave rise to its whimsical nickname, the Swoose Goose, inspired by a song about Alexander who was half swan and half goose: "Alexander was a swoose."

Operational history

Flight tests of the first prototype, 41-1210, began on 15 January 1943. Initial trials showed performance substantially below guarantees. At the same time, development of the XH-2470 engine was discontinued and, although it appeared possible to substitute the Allison V-3420 engine without substantial airframe changes, the projected delay and costs resulted in a decision not to consider production buys.

The prototypes continued to be used in an experimental program until problems with the Lycoming engines and lack of spare parts caused termination. The second prototype, 42-108994 (but mistakenly painted as 42-1211) equipped with an experimental GE supercharger, only made one flight before it was relegated to a "parts plane" in order to keep the first prototype in the air.

Specifications (XP-54)

Data from Green and Swanborough 1978, p. 84.

General characteristics

Crew: one, pilot
Length: 54 ft 9 in (16.69 m)
Wingspan: 53 ft 10 in (16.41 m)
Height: 14 ft 6 in (4.42 m)
Wing area: 456 ft (42.4 m)
Empty weight: 15,262 lb (6,923 kg)
Loaded weight: 18,233 lb (8,270 kg)
Max takeoff weight: 19,337 lb (8,771 kg)
Powerplant: 1x Lycoming XH-2470-1 liquid-cooled piston engine, 2,300 shp (1,715 kW each)

Performance

Maximum speed: 381 mph at 28,500 ft (613 km/h at 8,700 m)
Range: 500 mi (805 km)
Service ceiling: 37,000 ft (11,300 m)
Rate of climb: 2,300 ft/min (11,7 m/s)
Wing loading: 40 lb/ft (196 kg/m)
Power/mass: 0.13 hp/lb (0.20 kW/kg)

Armament

2 x 37 mm T-12/T-13 cannon
2 x .50 cal M2 Browning machine guns

Hyper engine

Comparable aircraft

Kyūshū J7W
XP-55 Ascender
XP-56 Black Bullet
XP-68 Tornado
Saab 21
Bell XP-52

Bibliography

Balzer, Gerald H. American Secret Pusher Fighters of World War II: XP-54, XP-55, and XP-56. North Branch, Minnesota: Specialty Press, 2008. ISBN 1-58007-125-2.
Green, William. War Planes of the Second World War, Volume Four: Fighters. London: MacDonald & Co. (Publishers) Ltd., 1961 (Sixth impression 1969). ISBN 0-356-01448-7.
Green, William and Gordon Swanborough. WW2 Aircraft Fact Files: US Army Air Force Fighters, Part 2. London: Macdonald and Jane's Publishers Ltd., 1978. ISBN 0-354-01072-7.
Thompson, Jonathan. Vultee Aircraft 1932-1947. Santa Ana, CA: Narkiewicz/Thompson, 1992. ISBN 0-913322-02-4.
