Yakovlev Yak-1

Yak-1

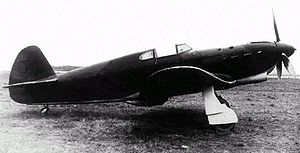

Picture - Early-model Yak-1 of Soviet Air Force

Role: Fighter
Manufacturer: Yakovlev OKB
Designed by: Alexander Sergeevich Yakovlev
First flight: 13 January 1940
Introduced: 1940
Retired: 1950
Primary user: Soviet Air Force
Produced: 1940-1944
Number built: 8,700
Variants: Yak-3 Yak-7 Yak-9

Fabrication of Yak-1 and Yak-1b

The Yakovlev Yak-1 was a World War II Soviet fighter aircraft. Produced from early 1940, it was a single-seat monoplane with a composite structure and wooden wings.

The Yak-1 was extremely manoeuvrable, fast and well armed, and, just as importantly, it was easy to maintain and reliable. It formed an excellent basis for subsequent developments from the Yakovlev bureau. In fact it was the founder of a family of aircraft, with some 37,000 being built. As a reward, the designer was awarded the Order of Lenin (Russian: Орден Ленина, Orden Lenina) - the highest decoration bestowed by the Soviet Union - a 100,000 rouble prize, plus a Zis motor car.

Design and development

Prior to World War II Yakovlev was best known for building light sports aircraft, his Yak-4 light bomber impressed the Soviet government enough to order the OKB to design a new fighter with a Klimov M-106 V-12 liquid-cooled engine. Formal specifications released on 29 July 1939, called for two prototypes - I-26-1 with a top speed of 620 km/h (385 mph) at 6,000 m (16,685 ft), combat range of 600 km (375 mi), a climb to 10,000 m (32,808 ft) of under 11 minutes, and armament of 2 x� 7.62 mm ShKAS machine guns and 1 x� 12.7 mm (0.5 in) Berezin BS heavy machine gun, and I-26-2 with a turbocharged M-106 engine with a top speed of 650 km/h (404 mph) at 10,000 m (32,808 ft) and armament of 2 x� 7.62 mm (.3 in) ShKAS machine guns. The design took full advantage of Yakovlev OKB's experience with sports aircraft and promised agility as well as high top speed. Since the M-106 was delayed, the design was changed to incorporate the Klimov M-105P V-12 engine, with a 20 mm (.8 in) ShVAK cannon in the "vee" of the engine block.

I-26-I first flew on 13 January 1940. The prototype suffered from oil overheating problems which were never completely resolved resulting in 15 emergency landings during early testing. Then, on 27 April 1940, I-26-1 crashed, killing its test pilot Yu.I. Piontkovskiy. The investigation of the crash found that the pilot performed two consecutive barrel rolls at low altitude which was in violation of test flight plan. It was believed that during the first roll, the main landing gear became unlocked, causing it to crash through the wing during the second roll. It has been hypothesized that Piontkovskiy's deviation from the flight plan was caused by frustration that his aircraft was being used for engine testing while I-26-2, built with the lessons of I-26-1 in mind, was already performing aerobatics.

Technical issues with subassemblies provided by different suppliers raised the I-26-2's weight 400 kg (882 lb) above projected figures, which restricted the airframe to only 4.4 G while overheating oil was still a problem. The many defects caused I-26-2 to fail government testing in 1940. Fortunately for Yakovlev, its competitors I-200 (future Mikoyan-Gurevich MiG-3) and I-301 (future LaGG-3) also failed testing. Requested improvements were incorporated into I-26-3 which was delivered for testing on 13 October 1940. Although it passed on 9 December 1940, the aircraft was still very much unfinished with unresolved engine problems.

Troublesome and slow testing and development must have been quite worrisome for Soviet officials considering the fact that the I-26 was ordered into production under the name Yak-1 on 19 February 1940, a mere month after I-26-1 made its maiden flight. The goal of this gamble was to reduce lag time between prototype and production aircraft. As a backup, the I-200 and I-301 were also ordered into production. Although the Yak-1 was slower than the I-200 and less heavily armed than the I-301, it enjoyed the advantage of having been started earlier which gave it a consistent lead in testing and development over its competitors. Beginning of the Great Patriotic War on 22 June 1941 made development and implementation of several other upcoming promising designs like Polikarpov I-185 unfeasible. The fact that Yakovlev might have been Stalin's personal favorite may have also played in the Yak-1's favor.

Simultaneous manufacturing and testing of a design that required as many improvements as I-26 wreaked havoc on the production lines. Almost 8,000 changes were made to the aircraft's blueprints by 1941 with an additional 7,000 implemented the following year with 5,000 more changes coming in 1942. Production was further slowed by shortages of engines, propellers, radiators, wheels and cannons. Shortages of quality materials resulted in plywood being torn off the wings on several aircraft. To make matters worse, Factory No.292 which was the main manufacturer of Yak-1s was bombed on 23 June 1943 and burned to the ground. Amazingly, production resumed among the ruins on 29 June. Due to loose tolerances, each aircraft was essentially unique with workers performing the final assembly having the unenviable task of mating what often proved to be somewhat dissimilar components. For example, left and right main landing gear could be of different lengths and different angles relative to the aircraft which required adjusting their attachments to ensure an even stance for the completed aircraft. Parts were often non-interchangeable between aircraft. Production of Yak-1 ended in July 1944 with somewhere around 8,700 built.

Operational history

At the onset of Great Patriotic War on 22 June 1941, 425 Yak-1 were built, although many of these were en route or still disassembled. Just 92 machines were fully operational in the Western Military Districts - but most were lost in the very first days of the war. Yak-1 was designed with the goal of providing direct coverage of the Il-2 attack planes from enemy fighters. Thus, most of the air combat took place below 4,000 m (13,123 ft), at low altitudes where Yak-1 performed the best. The Yak-1 proved to have a significant advantage over its Soviet competitors. A full circle turn took just 17 seconds in the Yak-1M. The MiG-3, which had the best high-altitude performance, did poorly at low and medium altitudes and its light armament made it unsuitable even for ground attack. The LaGG-3 experienced a significant degradation in performance (as much as 100 km/h/62 mph on some aircraft) compared to its prototypes due to the manufacturer's inexperience with its special wooden construction which suffered from warping and rotting when exposed to the elements. The Yak-1's plywood covering also suffered from the weather but the steel frame kept the aircraft largely intact.

The aircraft's major problem early in deployment was fuel leaks caused by failure of spot-welded fuel tanks from vibration. Also troublesome was the fact that the canopy could not be opened under certain conditions in earlier models, potentially trapping the pilot in a falling aircraft. As the result, some pilots had the sliding portion of the canopy removed altogether. The first 1,000 Yak-1 had no radios at all. Installation of radio equipment became common by spring 1942 and obligatory by August 1942. But Soviet radios were notoriously unreliable and short-ranged so they were frequently removed to save weight.

Like most early carburetor-equipped engines, the M-105 could not tolerate negative G forces which starved it of fuel. Moreover, they suffered breakdowns of magnetos and speed governors, and emitted oil from the reduction shaft.

The Yak-1 was better than Bf 109E but inferior to Bf 109F - its main opponent - in rate of climb at all altitudes. And although it could complete a circle at the same speed (20-21 seconds at 1,000 meters ) as a Bf 109, its lack of agility made dogfights difficult, demanding high levels of concentration. In comparison, a Bf 109, with its automatic flaps, had a lower stall speed and was more stable in sharp turns and vertical aerobatic figures. A simulated combat between a Yak (with M-105PF engine) and a Bf 109F revealed that the Messerschmitt had only marginally superior manoeuvrability at 1,000 meters (3,300 ft), though the German fighter could gain substantial advantage over the Yak-1 within four or five nose-to-tail turns. At 3,000 meters (9,800 ft) the capabilities of the two fighters were nearly equal, combat essentially reduced to head-on attacks. At altitudes over 5,000 meters ( 16,400 ft) the Yak was more manoeuvrable. The engine’s nominal speed at low altitudes was lowered to 2,550 rpm and the superiority of the Bf 109F at these altitudes was reduced.

Its armament was too light but to reduce weight, modifications were made both on front line and on about thirty production aircraft: the 7,62 mm ShKAS machine-guns were removed, retaining only the single ShVAK cannon. Neverthesless, those lighter aircraft were popular with experienced pilots, for whom the reduction in armament was acceptable, and combat experience in November 1942 showed a much improved kill-to-loss ratio. Also, in the autumn of 1942 the Yak-1B appeared with the more powerful M-105P engine and a single 12,7 mm UBS machine gun instead of the two ShKAS. Although this did not increase the total weight of fire by much, the UBS machine-gun was much more effective than the two 7,62 mm ShKAS. Moreover, the simple VV ring sight replaced the PBP gun-sight, because of the very poor quality of the lenses of the latter. The Yak-1 had a light tail and it was easy to tip over and to hit the ground with the propeller. Often technicians had to keep the tail down and that could lead to accidents, with aircraft taking off with technicians still on the rear fuselage. Nonetheless, the Yak-1 was well-liked by its pilots. For Soviet pilot Nikolai G. Golodnikov, overall, in its tactical and technical characteristic, the Yak-1B was equal to the Messerschmitt Bf 109G. French Normandie-Niemen squadron selected the primitive model Yak-1M (that had a cut-down fuselage to allow all-round vision) when it was formed, in March 1943. Twenty-four of these aircraft were sent to the elite all-female 586 IAP whose pilots included the world's only female aces: Katya Budanova, with 11, and Lydia Litvyak (11 plus three shared). Litvyak, the most famous fighter pilot woman of all times, flew Yak-1 “Yellow 44”, with aerial mast, at first in 296.IAP and then with 73.Gv.IAP, until her death in combat, on 1 August 1943. Yak-1s were also the first type operated by the 1 Pułk Lotnictwa Myśliwskiego "Warszawa" ("1st Polish Fighter Regiment 'Warsaw'").

The importance of this type in World War II is often underestimated. Soviet naming conventions obscure the fact that the Yak-1 and its successors - the Yak-7, Yak-9 and Yak-3 - are essentially the same design, comparable to the numerous Spitfire or Bf 109 variants. Were the Yaks considered as one type, the 37,000 built would constitute the most produced fighter in history. That total would also make the Yak one of the most prolific aircraft in history, roughly equal to the best known Soviet ground attack type of Word War II, the IL-2 Shturmovik. But losses were proportionally high, in fact the highest of all fighters type in service in Ussr: in 1941-1945 VVS KA lost 3,336 Yak-1s; 325 in 1941, 1,301 the following year, 1,056 in 1943, 575 in 1944 and 79 in 1945.

Variants

I-26 (a.k.a. Ya-26) - The first prototype of the Yak-1 and progenitor of all Yakovlev's piston-engined fighters of World War II. Of mixed steel tube and wood construction the lightweight I-26 displayed promising performance and was produced as the Yak-1.
UTI-26 - The third and fourth I-26s were completed as dual control trainers, produced as a fighter as the Yak-7.
I-28 () - High-altitude interceptor prototype with Klimov M-105PD engine developed from I-26-2. Differed from I-26 in having an all-metal fuselage and tail and automatic, leading-edge slats on slightly smaller and reshaped wings. One aircraft was built, first flying on 1 December 1940. It did not enter production due to many deficiencies of the engine but served as the basis for high-altitude versions of Yak-7 and Yak-9.
I-30 (Yak-3) - Development of I-26 with an all-metal wing with leading-edge slats, weight and space savings were utilized for additional armament and greater fuel capacity. Two prototypes built - I-30-1 armed with 3 x� 20 mm (0.8 in) ShVAK cannons and 2 x� 7.62 mm (0.3 in) ShKAS machine guns, and I-30-2 with two additional ShKAS. It did not enter production. The name Yak-3 was re-used for a different fighter. See Yakovlev Yak-3.
Yak-1 - Single-seat fighter aircraft. Intitial production version.
Yak-1b - ("b" was an unofficial designation; after October 1942, all Yak-1s were built to this standard). New bubble canopy with lowered rear fuselage, increased armor, ShKAS machine guns replaced with a single 12.7 mm (0.5 in) Berezin UBS, electrical and pneumatic firing of the weapons instead of the mechanical system, new control stick based on the Messerschmitt Bf 109 design, new gunsight, airtight fuselage, retractable tailwheel, improved engine cooling, Klimov M-105PF engine with better low-altitude performance. The first flight (aircraft No.3560) took place in June 1942, with aircraft entering production in August. A total of 4,188 were built.
Yak-1M - Yak-3 prototype with a smaller wing, revised cooling intakes, reduced overall weight and upgraded engine. Two were built.
Yak-7UTI - Initial production version of the UTI-26.
Yak-7 - Conversions of Yak-7UTI and new production of fighter version of Yak-7UTI.
Several other Yak-1 variants did not receive special designations. These include prototypes with Klimov VK-106 and Klimov VK-107 engines, production aircraft capable of carrying external fuel tanks, production aircraft with the ability to carry 6 x� RS-82 rockets or 2 x� 100 kg (220 lb) bombs, and lightened versions for air defense.

Operators

France

Free French Air Force
Normandie-Niemen Fighter Squadron

Poland

Air Force of the Polish Army
1st Polish Fighter Regiment "Warsaw"

Soviet Union

Soviet Air Force

Yugoslavia

SFR Yugoslav Air Force
111th Fighter Aviation Regiment (1944-1948)
113th Fighter Aviation Regiment (1944-1948)
112nd Fighter Aviation Regiment (1944-1945)
2nd Training Aviation Regiment (1946-1948)
101st Training-Fighter Aviation Regiment (1948-1950)
104th Training Aviation Regiment (1948-1950)

Specifications (Yak-1b)

General characteristics

Crew: One
Length: 8.5 m (27 ft 11 in)
Wingspan: 10.0 m (32 ft 10 in)
Height: m (ft)
Wing area: 17.2 m� (185.1 ft�)
Empty weight: 2,394 kg (5,267 lb)
Loaded weight: 2,883 kg (6,343 lb)
Max takeoff weight: kg (lb)
Powerplant: 1x� Klimov M-105PF V-12 liquid-cooled engine, 880 kW (1,180 hp)

Performance

Maximum speed: 592 km/h at altitude (368 mph)
Range: 700 km (435 mi)
Service ceiling: 10,050 m (32,972 ft)
Rate of climb: 15.4 m/s (3,038 ft/min)
Wing loading: 168 kg/m� (34 lb/ft�)
Power/mass: 0.31 kW/kg (0.19 hp/lb)

Armament

1 x� 20 mm (0.8 in) ShVAK cannon, 1 x� 12.7 mm (0.5 in) Berezin UBS machine gun. One-second salvo weight of fire 2 kg (4.4 lb) with both the cannon and the machine gun using high-explosive ammunition.

Related development

Yakovlev Yak-7
Yakovlev Yak-9
Yakovlev Yak-3

Comparable aircraft

Curtiss P-40
Messerschmitt Me 109
Supermarine Spitfire
Macchi C.202
Rogožarski IK-3

Bibliography

Angelucci, Enzo and Paolo Matricardi. World Aircraft: World War II, Volume II (Sampson Low Guides). Maidenhead, UK: Sampson Low, 1978. ISBN 0-562-00096-8.
Bergstrx�m, Christer. Bagration to Berlin: The Final Air Battles in the East, 1944-1945. Hersham, UK: Classic Publications, 2008. ISBN 978-1-903223-91-8.
Donald, David and Jon Lake, eds. Encyclopedia of World Military Aircraft. London: AIRtime Publishing, 1996. ISBN 1-880588-24-2.
Drabkin, Artem. The Red Air Force at War: Barbarossa and The Retreat to Moscow, Recollections of Fighter Pilots on the Eastern Front. Barnsley, South Yorkshire, UK: Pen & Sword Military, 2007. ISBN 1-84415-563-3.
Ethell, Jeffrey L. Aircraft of World War II: Glasgow, Harper Collins Publisher, 1995. ISBN 0-00-470849-0.
Gordon, Yefim and Dmitri Khazanov. Soviet Combat Aircraft of the Second World War, Volume One: Single-Engined Fighters. Earl Shilton, Leicester, UK: Midland Publishing Ltd., 1998. ISBN 1-85780-083-4.
Green, William. Warplanes of the Second World War, Volume Three: Fighters. London: Macdonald & Co. (Publishers) Ltd., 1961 (seventh impression 1973). ISBN 0-356-01447-9.
Green, William and Gordon Swanborough. WW2 Aircraft Fact Files: Soviet Air Force Fighters, Part 2. London: Macdonald and Jane's Publishers Ltd., 1978. ISBN 0-354-01088-3.
Gunston, Bill. Aircraft of World War 2. London: Octopus Books Limited, 1980. ISBN 0-7064-1287-7.
Gunston, Bill. Encyclopedia of Russian Aircraft 1875-1995. London: Osprey, 1995. ISBN 1-85532-405-9.
Gunston, Bill. The Illustrated Directory of Fighting Aircraft of World War II. London: Salamander Book Limited, 1998. ISBN 1-84065-092-3.
Kopenhagen, W., ed. Das grox�e Flugzeug-Typenbuch (in German). Stuggart, Germany: Transpress, 1987. ISBN 3-344-00162-0.
Jackson, Robert. Aircraft of World War II: Development, Weaponry, Specifications. Leicester, UK: Amber Books, 2003. ISBN 1-85605-751-8.
Liss, Witold. The Yak 9 Series (Aircraft in Profile number 185). Leatherhead, Surrey, UK: Profile Publications Ltd., 1967.
Matricardi, Paolo. Aerei Militari: caccia e ricognitori. (in Italian) Milano, Mondadori Electa S.p.A., 2006. NO ISBN
Mellinger, George. Yakovlev Aces of World War 2. Botley, UK: Osprey Publishing Ltd., 2005. ISBN 1-84176-845-6.
Morgan, Hugh. Gli assi Sovietici della Seconda guerra mondiale (in Italian). Edizioni del Prado/Osprey Aviation, 1999. ISBN 84-8372-203-8.
Morgan, Hugh. Soviet Aces of World War 2. London: Reed International Books Ltd., 1997. ISBN 1-85532-632-9.
Шавров В.Б. История конструкций самолетов в СССР 1938-1950 гг. (3 изд.). Kniga: Машиностроение, 1994 (Shavrov, V.B. Istoriia konstruktskii samoletov v SSSR, 1938-1950 gg.,3rd ed. History of Aircraft Design in the USSR: 1938-1950). Kniga, Russia: Mashinostroenie, 1994. ISBN 5-217-00477-0.
Snedden, Robert. World War II Combat Aircraft. Bristol, UK: Parragon Books, 1997. ISBN 0-7525-1684-1.
Stapfer, Hans-Heiri. Yak Fighters in Action (Aircraft number 78). Carrollton, Texas: Squadron/Signal Publications, Inc., 1986. ISBN 0-89747-187-3.
Степанец А.Т. Истребители ЯК периода Великой Отечественной войны. Kniga: Машиностроение, 1992. (Stepanets, A.T. Istrebiteli Yak perioda Velikoi Otechestvennoi voiny (Yak Fighters of the Great Patriotic War). Kniga, Russia: Mashinostroenie, 1992. ISBN 5-217-01192-0.
Williams, Anthony G. and Emmanuel Gustin. Flying Guns: The Development of Aircraft Guns, Ammunition and Installations 1933-45. Ramsbury, UK: Airlife, 2003. ISBN 978-1-84037-227-2.
