Bell XP-83 Aircraft Information

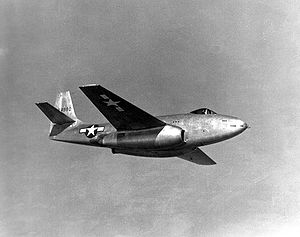

Airplane Picture - S/n 44-84990 in test flight over Wright Field, May 1945

Picture - S/n 44-84990 in test flight over Wright Field, May 1945

Role: Escort fighter
Manufacturer: Bell Aircraft Corporation
Designed by: Charles Rhodes
First flight: 25 February 1945
Status: Project cancelled 1947
Primary user: United States Army Air Forces (intended)
Number built: 2
: Program cost
Developed from: P-59 Airacomet

The Bell XP-83 was a United States prototype escort fighter designed by the Bell Aircraft Corporation during World War II. It first flew in 1945. As an early jet fighter, its limitations included a lack of power and it was soon eclipsed by more advanced designs.

Design and development

The early jet fighters consumed fuel at a prodigious rate, which severely limited their range and endurance. In March 1944, the United States Army Air Forces requested Bell to design a fighter with increased endurance, and formally awarded a contract for two prototypes on 31 July 1944.

Bell had been working on its "Model 40" interceptor design since 1943. It was redesigned as a long-range escort fighter, retaining the general layout of the P-59 Airacomet. The two General Electric J33-GE-5 turbojet engines were located in each wing root, which left the large and bulky fuselage free for fuel tanks and armament. The fuselage was an all-metal semimonocoque, capable of carrying 1,150 gal (4,350 l) of fuel; in addition, two 250 gal (950 l) drop tanks could be carried. The cabin was pressurized, and the canopy a small and low bubble type. The armament was to be six 0.5 in (12.7 mm) machine guns in the nose.

Testing

Early wind tunnel reports had pinpointed directional instability but the "fix" of a larger tail would not be ready in time for flight testing. The first prototype was flown on 25 February 1945, by Bell's chief test pilot Jack Woolams, who found it to be underpowered and unstable. The limited flight testing provided satisfactory flight characteristics although spins were restricted until the larger tailfin was installed. The second prototype did incorporate the extended tail and an aileron boost system. One unique characteristic was the XP-83's refusal to "slow down" due to its sleek aerodynamic shape and lack of drag brakes; test pilots were forced to fly very long and flat landing approaches.

The first prototype was used in 1946 as a ramjet testbed, with an engineer's station located in the fuselage behind the pilot and on 14 September 1945 one of the ramjets caught fire - the pilot "Slick" Goodlin and engineer Charles Fay had to parachute out. The second prototype flew on 19 October and was scrapped in 1947. Apart from range, the XP-83 was inferior to Lockheed's P-80 Shooting Star, and the XP-83 project was canceled in 1947.

Specifications (XP-83)

Data from War Planes of the Second World War

General characteristics

Crew: 1 pilot (engineer's station fitted to first prototype, with an entrance door under the fuselage)
Length: 44 ft 10 in (13.67 m)
Wingspan: 53 ft 0 in (16.15 m)
Height: 15 ft 3 in (4.65 m)
Wing area: 431 sq ft (40.0 m)
Empty weight: 14,105 lb (6,400 kg)
Loaded weight: 24,090 lb (10,930 kg)
Max takeoff weight: 27,500 lb (12,500 kg)
Powerplant: 2x General Electric J33-GE-5 turbojets, 4,000 lbf (18 kN) each

Performance

Maximum speed: 522 mph (453 kn, 840 km/h) at 15,660 ft (4,775 m)
Range:
Internal fuel: 1,730 mi (1,500 nmi, 2,785 km)
With drop tanks 2,050 mi (1,780 nmi, 3,300 km)
Service ceiling: 45,000 ft (14,000 m)
Rate of climb: 5,650 ft/min (28.7 m/s)
Time to altitude: 11.5 min to 30,000 ft (9,100 m)
Wing loading: 56 lb/sq ft (273 kg/m)
Thrust/weight: 0.33

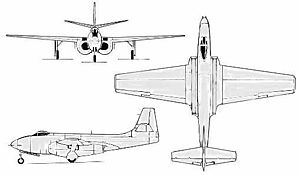

Warbird picture - Bell XP-83

Armament

Guns:
6 x .50 in (12.7 mm) M2 machine guns or
6 x .60 in (15.2 mm) T17E3 machine guns or
4 x 20 mm (0.79 in) Hispano cannons or
1 x 37 mm (1.46 in) cannon in the nose

Related development

P-59 Airacomet

Bibliography

Carpenter, David M. Flame Powered: The Bell XP-59A Airacomet and the General Electric I-A Engine. Boston: Jet Pioneers of America, 1982. ISBN 0-9633387-0-6. (Page 59 is about the XP-83.)
Green, William. War Planes of the Second World War: Fighters, Volume Four. London: Macdonald, 1961 (6th impression 1969). ISBN 0-356-01448-7.
Green, William and Gordon Swanborough. WW2 Aircraft Fact Files: US Army Air Force Fighters, Part 1. London: Macdonald and Jane's Publishers Ltd., 1977. ISBN 0-356-08218-0.
Knaack, Marcelle Size. Encyclopedia of US Air Force Aircraft and Missile Systems: Volume 1 Post-World War II Fighters 1945-1973. Washington, DC: Office of Air Force History, 1978. ISBN 0-912799-59-5.
Koehnen, Richard C. "Bell's No Name Fighter." Airpower, Vol. 12, no. 1. January 1982.
Pelletier, Alain J. Bell Aircraft Since 1935. Annapolis, MD: Naval Institute Press, 1992. ISBN 1-55750-056-8.
