Grumman S-2 Tracker Aircraft Information

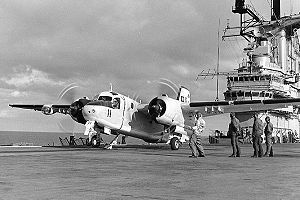

Warbird Picture - An S-2E ready for launching from the USS Bennington (CVS-20)Picture: An S-2E ready for launching from the USS Bennington (CVS-20)

Role - ASW aircraft
Manufacturer - Grumman
First flight - 4 December 1952
Introduced - February 1954
Retired - 1976, USN
Status - active with Argentine Navy
Primary users - US Navy, Royal Canadian Navy, Royal Australian Navy, Argentine Navy, Republic of China Navy
Number built - 1,284
Variants - C-1 Trader, E-1 Tracer

The Grumman S-2 Tracker (previously S2F) was the first purpose-built, single airframe anti-submarine warfare (ASW) aircraft to enter service with the US Navy.

Its predecessor, the AF-2 Guardian was the first purpose-built aircraft system for ASW, using two airframes, one with the detection gear, and the other with the weapons.

Design and development

Canadian Forces CP-121 Tracker from VU-33 folds its wings while taxiing at CFB Moose Jaw in 1982Picture: Canadian Forces CP-121 Tracker from VU-33 folds its wings while taxiing at CFB Moose Jaw in 1982

Grumman's design (model G-89) was for a large high-wing monoplane with twin Wright Cyclone radial engines. Both the two prototypes XS2F-1 and 15 production aircraft, S2F-1 were ordered at the same time, on 30 June 1950. First flight was 4 December 1952, and production aircraft entered service, with VS-26, in February 1954.

Follow-on versions included the WF Tracer and TF Trader, which became the E-1 Tracer and C-1 Trader in the tri-service designation standardization of 1962. The S-2 carried the nickname "Stoof" (S-two-F) throughout its military career; and the E-1 Tracer variant with the large overhead radome was called the "stoof with a roof.".[1]

Grumman produced 1,185 Trackers. Another 99 aircraft carrying the CS2F designation were manufactured in Canada under license by de Havilland Canada. U.S.-built versions of the Tracker were sold to various nations, including Australia, Japan and Taiwan.
Operational history

The Tracker was eventually superseded for U.S. military use by the S-3 Viking — the last USN Tracker squadron (VS-37 with S-2G models) was disestablished in 1976, but a number live on as firefighting aircraft. Trackers continued to provide excellent service with the naval forces of other countries for years after the U.S. discontinued them. For example, the Royal Australian Navy continued to use Trackers as front line ASW assets until the mid 1980s.


Argentine S-2T Turbo TrackerPicture: Argentine S-2T Turbo Tracker

The Argentine Navy received its first S-2A models on the 1960s and later the improved S-2E. They were embarked on the ARA 25 de Mayo aircraft carrier and used in the COD, Maritime Patrol and ASW roles. In the 1990s, six remaining airframes where refurbished by Israel Aerospace Industries with turboprop engines as S-2T Turbo Trackers. With the retirement of Argentina's only aircraft carrier, the Trackers are annually deployed on board Brazilian Navy NAe São Paulo during joint exercises ARAEX and TEMPEREX.[2]


The Royal Australian Navy operated two Squadrons of S-2E and S-2G variants from 1967 until 1984. VS-816 front line squadron, although based at Nowra, frequently embarked the Majestic class aircraft carrier HMAS Melbourne, as part of the 21st Carrier Air Group whenever that ship was deployed. VC-851 training squadron was based at NAS Nowra, HMAS Albatross.

CDF S-2F3AT Turbine Tracker landing at Fox Field, Lancaster, California, while fighting the North FirePicture: CDF S-2F3AT Turbine Tracker landing at Fox Field, Lancaster, California, while fighting the North Fire

During about 20 years of operation of the Tracker, the RAN lost only one S-2 during aircraft operations due to an accident at sea. However, in the mid 1970s a deliberately lit fire in a hangar at Nowra destroyed or badly damaged a large proportion of the RAN's complement of Trackers. These were subsequently replaced with ex-USN aircraft. The replacement aircraft were all S-2Gs, including the original aircraft modified by the USN to that status. This saw the introduction of AQA-7 acoustic gear into RAN service and all RAN operational Trackers were subsequently modified to this standard. The AQA-7 significantly enhanced the RAN's ASW capability.


CDF S-2T on the Sawtooth Complex fire, 2006Picture: CDF S-2T on the Sawtooth Complex fire, 2006

In 1954, de Havilland Canada entered into a contract to build Trackers under license to replace the outmoded TBM-3E Avengers being used by the Royal Canadian Navy. A total of 99 Canadian-built Trackers would enter service starting in 1956. From 1957 onwards, these aircraft operated from the newly-deployed aircraft carrier HMCS Bonaventure and various shore bases. In order to fit aboard Bonaventure, the Canadian Trackers had their length reduced from the standard S2F length of 43 ft, 6 in (13.26 m) to an even 42 feet (12.80 m), and due to the reduced yaw moment of the shorter fuselage, an additional hydraulic booster was added in the tail assembly to reduce rudder effort in the case of an engine-out situation.[3] In 1960, 17 active-duty CS2F-1 aircraft were transferred to the Royal Netherlands Navy. In 1964, a pair of CS2F-1 aircraft were stripped of armament and ASW electronics, converted to transports, and subsequently used for carrier onboard delivery. The CS2F-1, -2, and -3 were redesignated as the CP-121 Mk.1, Mk. 2, and Mk. 3 respectively following the unification of Canadian forces in 1968.

After Bonaventure was decommissioned in 1970, all remaining Canadian Trackers were transferred to shore bases. This limited their usefulness for ASW patrols, and between 1974 and 1981, all but 20 were gradually placed in storage and the remainder were stripped of their ASW gear. The remaining active-duty Trackers served until 1990 doing fisheries protection and maritime patrol duties. A handful of Trackers were kept in flying condition until the late 1990s but were no longer used for active service.[4][5]

A single Grumman-built S2F-1, serial number X-500, was sold to the RCN before Canadian production commenced. It was initially used for quality control purposes during Canadian production, and was later given a new RCN serial number, upgraded to CS2F-1 standards, and used to train RCN ground and maintenance personnel. This aircraft was placed in storage in 1972 and was undergoing restoration in March 2008.


Argentine Tracker operating from NAe São PauloPicture: Argentine Tracker operating from NAe São Paulo

Northrop Grumman received a contract for the conversion of 32 S-2T Trackers (from 25 S-2Es and 7 S-2Gs) in service with the Republic of China Air Force in late 1980s. Only 27 were ultimately converted due to a shortage of parts supplied by Northrop Grumman resulting in the use of remaining conversion kits as spare parts. The 27 S-2Ts were transferred to the ROC Navy Aviation Command on 1 July 1999 and while the ROCN continues to operate the type, less than half of the fleet is in operational condition, will be replaced by 12 rebuilt P-3C from US Navy.

The conversion involved: 2 Garret/Honeywell TPE-331-15AW turboprop engines, each rated at 1,227 kW (1,645 shp), with four-blade propellers. The upgrade also included new mission equipment of AN/AQS-92F digital sonobuoy processor, A/NARR-84 99-channel sonobuoy receiver, Litton AN/APS-504 radar, AN/ASQ-504 MAD and AN/AAS-40 FLIR. The new turboprop engines resulted in a payload increase of 500 kg. Usually carries depth charges, Mk. 44, and Mk 46 lightweight ASW homing torpedoes.
Civilian use

View from an Australian Tracker on final approach to Australian aircraft carrier HMAS MelbournePicture: View from an Australian Tracker on final approach to Australian aircraft carrier HMAS Melbourne

In the late 1980s and early 90s Conair Aviation of Abbotsford, British Columbia, Canada took possession of retired U.S. and Canadian Trackers and converted them into Firecats, with a retardant tank replacing the torpedo bay. The Firecats were made in two variants, a piston engine Firecat and a turboprop-powered Turbo Firecat.


Two prototype anti-submarine warfare aircraft powered by 1,450 hp R-1820-76WA engines.
Designation of the first 15 production aircraft used for development, redesignated YS-2A in 1962.

Picture: Canadian-made CS2F-2 Tracker

Canadian-made CS2F-2 TrackerS2F-1
Initial production variant with two 1,525 hp R-1820-82WA engines, re-designated S-2A in 1962, 740 built.
Trainer conversion of S2F-1, redesignated TS-2A in 1962.
Utility conversion of S2F-1, redesignated US-2A in 1962.
S2F-1 conversion with Julie/Jezebel detection equipment, redesignated S-2B in 1962. Survivors converted to US-2B after removal of ASW gear.
S2F-1S fitted with updated Julie/Jezebel equipment, redesignated S-2F in 1962.

Dutch Grumman S-2 TrackerPicture: Dutch Grumman S-2 Tracker

As S2F-1 with asymmetrical (port-side) extension of bomb bay, slightly enlarged tail surfaces, 77 built, most redesignated S-2C in 1962.
Photo reconnaissance conversion of S2F-2, redesignated RS-2C in 1962.
Utility conversion of S2F-2/S-2C, redesignated US-2C in 1962. Some were used as target tugs.
Enlarged forward fuselage, enlarged tail surfaces, additional fuel capacity, and enlarged engine nacelles bays for 32 sonobouoys, redesignated S-2D in 1962, 100 built.
As S2F-3 but with Julie/Jezebel equipment, redesignated S-2E in 1962, 252 built.
YS2F-1 redesignated in 1962.
S2F-1 redesignated in 1962.

Picture: Peruvian Navy S-2E Trackers

Peruvian Navy S-2E TrackersTS-2A
S2F-1T training version redesignated in 1962 and 207 conversion from S-2A.
S-2A converted as light transports/target tugs, 51 conversions.
S2F-1S redesignated in 1962.
Utility and target tug conversions of S-2A and S-2B, Most S-2Bs were converted and 66 S-2As.
S2F-2 redesignated in 1962.
S2F-2P photo-reconnaissance version redesignated in 1962.
S2F-2U utility version redesignated in 1962.
S2F-3 redesignated in 1962.
Proposed self-contained night attack aircraft to be developed under Operation Shed Light; none produced.
Electronic trainer conversion of the S-2D.
Utility conversion of the S-2D.
S2F-3S redesignated in 1962.
Japan Maritime Self-Defense Force S2F-1 at Kanoya Air BaseS-2F
S2F-1S1 redesignated in 1962.

Picture: Japan Maritime Self-Defense Force S2F-1 at Kanoya Air Base

Transport conversion of S-2F.
S-2E conversions with updated electronics.
Initial production run of anti-submarine warfare aircraft for Canada based on S2F-1. 42 built by De Havilland Canada.[4]
Improved version of CS2F-1 with Litton Industries tactical navigation equipment. 57 built by De Havilland Canada.[4]
New designation given to 43 CS2F-2 aircraft upgraded with additional electronics.
US Navy S-2 Tracker on the port catapult of USS Lexington awaiting of take-off, 22 January 1963CP-121
New designation given to all CS2F-1, -2, and -3 aircraft following unification of Canadian military in 1968.

Picture: US Navy S-2 Tracker on the port catapult of USS Lexington awaiting of take-off, 22 January 1963

Military S-2T Turbo Tracker For Taiwan
27 out of 32 upgraded S-2E and S-2G turboprop engines conversion by Northrop Grumman in 1990s for then Taiwan/ROC Air Force, now operates by Taiwan/ROC Navy aviation.
S-2T Turbo Tracker
Civil conversion
Civil firefighter conversion.
Civil conversion.
Marsh S-2F3AT Turbo Tracker
Australian Tracker 845 "in the chocks" prepares to launch from HMAS Melbourne, 1979Turboprop conversion, powered by two Garrett TPE331 engines;[6] 22 operated by the CDF

Picture: Australian Tracker 845 "in the chocks" prepares to launch from HMAS Melbourne, 1979

Conair Firecat or Turbo Firecat
Civil conversion as a single-seat firefighting aircraft.

- For the crew trainer/transport version based on the Tracker refer to C-1 Trader
- For the Airborne Early Warning version based on the Trader refer to E-1 Tracer


Military Operators


- Argentine Navy

Tracker 848 about to take the wire aboard HMAS Melbourne, 1980Australia

Picture: Tracker 848 about to take the wire aboard HMAS Melbourne, 1980

- Royal Australian Navy


- Brazilian Air Force used Trackers on behalf of the navy until their retirement. They operated from the aircraft carrier NAeL Minas Gerais.


- Royal Canadian Navy
- Canadian Forces


- Italian Air Force


- Japan Maritime Self-Defense Force received 50 S2F-1 in 1957 from US, and operated until 1984. After received,6 S2F-1 are remodeled 4 S2F-U and 2 S2F-C. S2F-1 is nicknamed Aotaka(????, Blue Hawk). A S2F-1 is displayed in Kanoya Air Base,Kanoya, Kagoshima.

South Korea

- Republic of Korea Navy


- Royal Netherlands Navy received in 1960 17 CS2F-1 aircraft formerly used by the Royal Canadian Navy. These aircraft were operated from land bases as well as from the light carrier Karel Doorman until a fire in 1968 took that ship out of Dutch service.


- Peruvian Navy operated with S-2E and S-2G from 1975 until 1989, they were assigned to Naval Aviation Squadron N°12 (Escuadron Aeronaval N°12). A total of 12 S-2E were bought from the US Navy in 1975 and 4 S-2G in 1983.

Republic of China (Taiwan)

- Republic of China Navy Taiwan currently operates 26 S-2T, not all operational (upgrade from S-2E and S-2G, will be replaced by 12 rebuilt P-3C Orions from US Navy).


- Air Division of the Royal Thai Navy


- Turkish Navy Aerial Wing

United States

- United States Navy operated their Trackers between 1954 and 1976.
- United States Marine Corps operated some Trackers.


- Uruguayan Navy received the first three S-2A Trackers on 10 April 1965 to the Capitan Curbelo Navy Base. On 15 September 1982 one S-2G arrived. On 2 February 1983, another two S-2Gs arrived. By September 2004 the remaining Uruguayan Trackers were not in flight condition.


- Venezuelan Navy

Civil Operators

Many retired Trackers were sold to private owners for fire-fighting duties. Some were rebuilt and re-engined with turboprop engines.


- Conair Group Inc. received TS-2A/Conair Firecat (G-89).
- Saskatchewan Environment received TS-2A/Conair Firecat (G-89).

French Sécurité Civile S-2FT Tracker used for fire-fighting dutiesFrance

Picture: French Sécurité Civile S-2FT Tracker used for fire-fighting duties

- Sécurité Civile received US-2A/Conair Turbo Firecat (G-89).


- KLM - Royal Dutch Airlines operated S-2 Tracker (G-89/G-121/S2F) - ex-Dutch Navy Tracker was used by KLM to train their mechanics.

United States

- California Department of Forestry & Fire Protection received S-2F3AT Turbo Tracker (G-121)
- Hemet Valley Flying Service received TS-2A(FF) Tracker (G-89)
- Marsh Aviation received S-2A(FF) Tracker (G-89)
- Sis-Q Flying Service received TS-2A Tracker (G-89/S2F-1T)
- Aero Union, in addition to being an operator, Aero Union devekioed the prototype S-2 tankers for the State of California in 1973. [7]

Specifications (S-2F)

General characteristics

- Crew: four (two pilots, two detection systems operators)
- Length: 43 ft 6 in (13.26 m)
- Wingspan: 72 ft 7 in (22.12 m)
- Height: 17 ft 6 in (5.33 m)
- Wing area: 485 ft² (45.06 m²)
- Empty weight: 18,315 lb (8,310 kg)
- Loaded weight: 23,435 lb (10,630 kg)
- Max takeoff weight: 26,147 lb (11,860 kg)
- Powerplant: 2x Wright R-1820-82WA radial engines, 1,525 hp (kW) each


- Maximum speed: 280 mph (450 km/h) at sea level
- Cruise speed: 150 mph (240 km/h)
- Range: 1,350 mi (2,170 km) or 9 hours endurance
- Service ceiling: 22,000 ft (6,700 m)


- 2x homing torpedoes (Mk. 41, Mk. 43, or Mk. 34), depth charges (Mk. 54), or mines in the bomb bay
- 6x underwing hardpoints for torpedoes, depth charges, or rockets

Related development

- C-1 Trader
- E-1 Tracer

Comparable aircraft

- AF Guardian
- Fairey Gannet
- Breguet Alizé
- S-3 Viking

Aircraft on Display

- S2-E Tracker, s/n 151627, on the flight deck of the USS Yorktown (CV-10) at the Patriot's Point Naval and Maritime Museum in Charleston, SC.
- CP-121 Tracker, s/n 121176, Atlantic Canada Aviation Museum


1. O'Rourke, G.G., CAPT USN. "Of Hosenoses, Stoofs, and Lefthanded Spads". United States Naval Institute Proceedings, July 1968.
2. Pictorial and historical data (Spanish)
3. McQuarrie 1990, p. 121.
4. a b c "Grumman Tracker." Shearwater Aviation Museum. Retrieved: 27 March 2008.
5. a b Tate, Colonel D.H. "Grumman CS2F / CP-121 Tracker." Canada Aviation Museum Aircraft. Retrieved: 22 March 2009.
6. FAA registry entry showing manufacturer, model and engine type


- Hotson, Fred W. The de Havilland Canada Story. Toronto: CANAV Books, 1983. ISBN 0-07-549483-3.
- McQuarrie, John. Canadian Wings. Toronto: McGraw Hill Ryerson, 1990. ISBN 0-07-551010-3.
- Winchester, Jim (ed.). "Grumman S-2E/F/G/UP Tracker." Modern Military Aircraft (Aviation Factfile). Rochester, Kent, UK: Grange Books plc, 2004. ISBN 1-84013-640-5.
