Lockheed F-104 Starfighter Aircraft Information

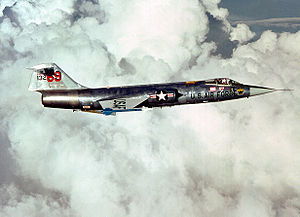

Airplane picture - A Fokker-built, German-owned F-104G in USAF markings in August 1979

Picture: A Fokker-built, German-owned F-104G in USAF markings in August 1979

Role - Interceptor aircraft, fighter-bomber
Manufacturer - Lockheed
First flight - 4 March 1954
Introduction - 20 February 1958
Retired - 2004 (Italy)
Primary users - Luftwaffe, United States Air Force, Japan Air Self-Defense Force, Turkish Air Force
Number built - 2,575
Unit cost - US$1.42 million (F-104G)[1]
Developed from - Lockheed XF-104
Variants - Lockheed NF-104A, Canadair CF-104, Aeritalia F-104S, CL-1200 Lancer and X-27

The Lockheed F-104 Starfighter was an American single-engined, high-performance, supersonic interceptor aircraft that served with the United States Air Force (USAF) from 1958 until 1967. One of the Century Series of aircraft, it continued in service with Air National Guard units until it was phased out in 1975. The National Aeronautics and Space Administration (NASA) flew a small mixed fleet of F-104 types in supersonic flight tests and spaceflight programs until they were retired in 1994.[2] Several two-seat trainer versions were produced, the most numerous being the TF-104G.

USAF F-104Cs saw service during the Vietnam War, and F-104A aircraft were deployed by Pakistan briefly during the Indo-Pakistani wars. Republic of China Air Force F-104s also engaged the People's Liberation Army Air Force over the disputed island of Kinmen. A set of modifications produced the F-104G model, which won a NATO competition for a new fighter-bomber.

The ultimate production version of the F-104 was the F-104S all-weather interceptor designed by Aeritalia for the Italian Air Force, and equipped with radar-guided AIM-7 Sparrow missiles. An advanced F-104 with a high-mounted wing, known as the CL-1200 Lancer, did not proceed. The project was cancelled at the mock-up stage in favor of other lightweight fighters such as the F-16. A total of 2,578 Starfighters were eventually produced, mostly by NATO members.[3] The F-104 served with the air forces of over a dozen nations The operational service of the Starfighter ended with its retirement by the Italian Air Force in May 2004, some 46 years after its introduction in 1958 by the USAF.

The poor safety record of the Starfighter brought the aircraft into the public eye, especially in Luftwaffe service. The subsequent Lockheed bribery scandals surrounding the original purchase contracts caused considerable political controversy in Europe and Japan.

Airplane picture - Four-aircraft formation of F-104A-5-LODevelopment

Picture: Four-aircraft formation of F-104A-5-LO

Clarence "Kelly" Johnson, the chief engineer at Lockheed's Skunk Works, visited Korea in December 1951 and spoke with fighter pilots about what sort of aircraft they wanted. At the time, the U.S. pilots were confronting the MiG-15 with F-86 Sabres, and many of the American pilots felt that the MiGs were superior to the larger and more complex American design. The pilots requested a small and simple aircraft with excellent performance.[4]

On his return to the United States, Johnson immediately started the design of just such an aircraft. In March, his team was assembled; they studied several aircraft designs, ranging from small designs at 8,000 lb (3,629 kg), to fairly large ones at 50,000 lb (23,680 kg). The L-246 remained essentially identical to the L-083 Starfighter as eventually delivered.[4]

The design was presented to the Air Force in November 1952, and they were interested enough to create a new proposal and invite several companies to participate. Three additional designs were received: the Republic AP-55, an improved version of its prototype XF-91 Thunderceptor; the North American NA-212, which would eventually evolve into the F-107; and the Northrop N-102 Fang, a new General Electric J79-powered design. Although all were interesting, Lockheed had an insurmountable lead, and was granted a development contract in March 1953. The prototype was given the designation XF-104.[5]

Work progressed quickly, with a mock-up ready for inspection at the end of April, and work starting on two prototypes late in May. At the time, the J79 engine was not ready; both prototypes were instead designed to use the Wright J65 engine, a licensed version of the Armstrong Siddeley Sapphire. The first prototype was completed by early 1954, and started flying in March. The total time from design to first flight was about two years; this was a very short time then and is an unheard of time today, when several years is typical.

In order to achieve the desired performance, Lockheed chose a minimalist approach: a design that would achieve high performance by wrapping the lightest, most aerodynamically efficient airframe possible around a single powerful engine. The emphasis was on minimizing drag and mass.

Airplane picture: Lockheed F-104A-10-LODesign

Wings and tail surfaces

Picture: Lockheed F-104A-10-LO

The F-104 featured a radical wing design. Most jet fighters of the period used a swept-wing or delta-wing planform. This allowed a reasonable balance between aerodynamic performance, lift, and internal space for fuel and equipment. Lockheed's tests, however, determined that the most efficient shape for high-speed, supersonic flight was a very small, straight, mid-mounted, trapezoidal wing. The new wing design was extremely thin, with a thickness-to-chord ratio of only 3.36% and an aspect ratio of 2.45. The wing's leading-edges were so thin (0.016 in/0.41 mm) and sharp that they presented a hazard to ground crews, and protective guards had to be installed during ground operations. The thinness of the wings meant that fuel tanks and landing gear had to be contained in the fuselage. The hydraulic cylinders driving the ailerons had to be only 1 in (25 mm) thick to fit. The wings had both leading- and trailing-edge flaps. The small, highly-loaded wing resulted in an unacceptably high landing speed, so a boundary layer control system (BLCS) of blown flaps was incorporated, bleeding engine air over the trailing-edge flaps to improve lift. The system was a boon to safe landings, although it proved to be a maintenance problem in service, and landing without the BLCS could be a harrowing experience.[6]

The stabilator (horizontal tail surface) was mounted atop the fin to reduce inertia coupling. Because the vertical fin was only slightly shorter than the length of each wing and nearly as aerodynamically effective, it could act as a wing on rudder application (a phenomenon known as Dutch roll). To offset this effect, the wings were canted downward, giving 10° anhedral.[6]

Fuselage

The Starfighter's fuselage had a high fineness ratio, i.e., it was slender, tapering towards the sharp nose, and a small frontal area. The fuselage was tightly packed, containing the radar, cockpit, cannon, fuel, landing gear, and engine. This fuselage and wing combination provided extremely low drag except at high angle of attack (alpha), at which point induced drag became very high. As a result, the Starfighter had excellent acceleration, rate of climb and potential top speed, but its sustained turn performance was poor. A later modification on the F-104A/B allowed use of the takeoff flap setting to M1.8/550 knots, which materially improved maneuverability. It was sensitive to control input, and extremely unforgiving to pilot error.

NACA wind tunnel tested a model of the F-104 to evaluate its stability, and found it became increasingly unstable at higher angles of attack, to the point that there was a recommendation to limit the servo-control power that generated those higher angles, and to shake the stick to warn the pilot. In the same report, NACA stated that the wingtip tanks, possibly because of their stabilizing fins, somewhat reduced the model's instability problems at high angles of attack.

Detail of F-104G's J79 turbojet exhaust (the red coloring has been added by the museum).

Engine

Picture: Detail of F-104G's J79 turbojet exhaust (the red coloring has been added by the museum).

The F-104 was designed to use the General Electric J79 turbojet engine,[7] fed by side-mounted intakes with fixed inlet cones optimized for supersonic speeds. Unlike some supersonic aircraft, the F-104 does not have variable-geometry inlets. Its thrust-to-drag ratio was excellent, allowing a maximum speed well in excess of Mach 2: the top speed of the Starfighter was limited more by the aluminum airframe structure and the temperature limits of the engine compressor than by thrust or drag (which gives an aerodynamic maximum speed of Mach 2.2). Later models used uprated marks of the J79, improving both thrust and fuel consumption significantly.
Ejection seat

Early Starfighters used a downward-firing ejection seat (the Stanley C-1), out of concern over the ability of an upward-firing seat to clear the tailplane. This presented obvious problems in low-altitude escapes, and some 21 USAF pilots failed to escape their stricken aircraft in low-level emergencies because of it. The downward-firing seat was soon replaced by the Lockheed C-2 upward-firing seat, which was capable of clearing the tail, although it still had a minimum speed limitation of 104 mph (170 km/h). Many export Starfighters were later retro-fitted with Martin-Baker zero-zero ejection seats, which had the ability to successfully eject the pilot from the aircraft even at zero altitude and zero airspeed.[8]

Avionics

The initial USAF Starfighters had a basic AN/ASG-14T ranging radar, TACAN, and a AN/ARC-34 UHF radio. The later international fighter-bomber aircraft had a much more advanced Autonetics NASARR radar, a simple infrared sight, a Litton LN-3 inertial navigation system, and an air data computer.

In the late 1960s, Lockheed developed a more advanced version of the Starfighter, the F-104S, for use by the Italian Air Force as an all-weather interceptor. The F-104S received a NASARR R21-G with a moving-target indicator and a continuous-wave illuminator for semi-active radar homing missiles, including the AIM-7 Sparrow and Selenia Aspide. The missile-guidance avionics forced the deletion of the Starfighter's internal cannon. In the mid-1980s surviving F-104S aircraft were updated to ASA standard (Aggiornamento Sistemi d'Arma, or Weapon Systems Update), with a much improved, more compact Fiat R21G/M1 radar.

Airplane picture - M61 cannon installation of a Luftwaffe F-104G

Picture: M61 cannon installation of a Luftwaffe F-104G

Armament

The basic armament of the F-104 was the 20 mm (.79 in) M61 Vulcan Gatling gun. The Starfighter was the first aircraft to carry the new weapon, which had a rate of fire of 6,000 rounds per minute. The cannon, mounted in the lower part of the port fuselage, was fed by a 725-round drum behind the pilot's seat. It was omitted in all the two-seat models and some single-seat versions, including reconnaissance aircraft and the early Italian F-104S; the gun bay and ammunition tank were usually replaced by additional fuel tanks. Two AIM-9 Sidewinder air-to-air missiles could be carried on the wingtip stations, which could also be used for fuel tanks. The F-104C and later models added a centerline pylon and two underwing pylons for bombs, rocket pods, or fuel tanks. The centerline pylon could carry a nuclear weapon; a "catamaran" launcher for two additional Sidewinders could be fitted under the forward fuselage, although the installation had minimal ground clearance and made the seeker heads of the missiles vulnerable to ground debris. The F-104S models added a pair of fuselage pylons beneath the intakes available for conventional bomb carriage. The F-104S had an additional
pylon under each wing, allowing for a maximum of nine.

Two-seat trainer

Several two-seat training versions of the Starfighter were produced. They were generally similar to the single-seater, but the additional cockpit required removing the cannon and some internal fuel (very early versions of the F-104B did have a cannon fitted but it became impractical for many reasons). The nose landing gear bay was repositioned and the strut retracted rearwards. Two-seaters were combat-capable with Sidewinder missiles, and, despite a slightly larger vertical fin and increased weight, had similar performance to the early model single-seat aircraft.

Operational history

USAF Air Defense Command

Airplane picture: Lockheed F-104A-20-LO of the 83rd Fighter Interceptor Squadron at Taeyan Air Base, Taiwan, on 15 September 1958, during the Quemoy Crisis

Picture: Lockheed F-104A-20-LO of the 83rd Fighter Interceptor Squadron at Taeyan Air Base, Taiwan, on 15 September 1958, during the Quemoy Crisis (Operation Jonah Able).

The F-104A initially served briefly with the USAF Air Defense Command / Aerospace Defense Command (ADC) as an interceptor, although neither its range nor armament were well-suited for that role. The first unit to become operational with the F-104A was the 83rd Fighter Interceptor Squadron on 20 February 1958, at Hamilton AFB, California. After just three months of service, the unit was grounded after a series of engine-related accidents. The aircraft were then fitted with the J79-3B engine and another three ADC units equipped with the F-104A. The USAF reduced their orders from 722 Starfighters to 155.[9] After only one year of service these aircraft were handed over to ADC-gained units of the Air National Guard, although it should be noted that the F-104 was intended as an interim solution while the ADC waited for delivery of the F-106 Delta Dart.[10]

USAF Tactical Air Command

The subsequent F-104C entered service with Tactical Air Command as a multi-role fighter and fighter-bomber. The 479th Tactical Fighter Wing at George AFB, California, was the first unit to equip with the type in September 1958. Although not an optimum platform for the theater, the F-104 did see limited service in the Vietnam War. Again, in 1967, these TAC aircraft were transferred to the Air National Guard.

Lockheed F-104A-15-LOs in flight with Lockheed EC-121

Lockheed F-104A-15-LOs in flight with Lockheed EC-121.

Vietnam War

Commencing with the Operation Rolling Thunder campaign, the Starfighter was used both in the air-superiority role and in the air support mission; although it saw little aerial combat and scored no air-to-air kills, Starfighters were successful in deterring MiG interceptors.[11] Starfighter squadrons made two deployments to Vietnam, the first being from April 1965 to November 1965, flying 2,937 combat sorties. During that first deployment, two Starfighters were shot down by ground fire. One was shot down by a Chinese MiG-19 (Shenyang J-6) when the F-104 strayed over the border, and two F-104s were lost to a mid-air collision associated with that air-to-air battle.[12] The 476th Tactical Fighter Squadron deployed to Vietnam in April 1965 through July 1965, losing one Starfighter; and the 436th Tactical Fighter Squadron deployed to Vietnam in July 1965 through October 1965, losing four.[13]

Starfighters returned to Vietnam when the 435th Tactical Fighter Squadron deployed from June 1966 until July 1967, in which time they flew a further 2,269 combat sorties, for a total of 5,206 sorties. Nine more F-104s were lost: two F-104s to ground fire, three to surface-to-air missiles, and the final four losses were operational (engine failures).[14][page needed] The Starfighters rotated and/or transitioned to F-4 Phantoms in July 1967, having lost a total of 14 F-104s to all causes in Vietnam.[15] F-104s operating in Vietnam were upgraded in service with APR-25/26 radar warning receiver equipment, and one example is on display in the Air Zoo in Kalamazoo, Michigan.[16][page needed]

The USAF was less than satisfied with the Starfighter and procured only 296 examples in single-seat and two-seat versions. At the time, USAF doctrine placed little importance on air superiority (the "pure" fighter mission), and the Starfighter was deemed inadequate for either the interceptor or tactical fighter-bomber role, lacking both payload capability and endurance compared to other USAF aircraft. Its U.S. service was quickly wound down after 1965, and the last USAF Starfighters left active service in 1969. It continued in use with the Puerto Rico Air National Guard until 1975.[16]

The last use of the Starfighter in US markings was training German pilots for the Luftwaffe, with a wing of TF-104Gs and F-104Gs based at Luke Air Force Base, Arizona. Although operated in USAF markings, these aircraft (which included German-built aircraft) were owned by Germany. They continued in use until 1983.[17]

1967 Taiwan Strait Conflict

On 13 January 1967, four Republic of China (Taiwan) Air Force F-104G aircraft engaged a formation of 12 MiG-19s of the People's Liberation Army Air Force over the disputed island of Kinmen. Two MiG-19s were claimed shot down with one F-104 also lost.[18]

India-Pakistan Wars

At dawn on 6 September 1965, Flight Lieutenant Aftab Alam Khan in an F-104 claimed a Dassault Mystère IV destroyed over West Pakistan and another damaged, marking the start of aerial combat in the Indo-Pakistani War of 1965. It is claimed as the first combat kill by any Mach 2 aircraft, and the first missile kill for the Pakistan Air Force. Indian sources dispute this claim.[19] The PAF lost one F-104 Starfighter during the 1965 operations, scoring two kills in return. However, one of the F-104 Starfighter's victims was an Alize aircraft which belonged to the Indian Navy, which was shot down when a Starfighter was returning home from an aborted mission.[20]

The Starfighter was also instrumental in intercepting an Indian Air Force Folland Gnat earlier, on 3 September 1965. F-104s were vectored to intercept the Gnat flying over Pakistan, returning to its home base. The F-104s, closing in at supersonic speed, caused the Gnat pilot to lower the undercarriage and land at a nearby disused Pakistani airfield to surrender. The Indian AF claims Squadron Leader Brij Pal Singh (who later rose to be an Air Marshal) made a navigation error that led him to land on the Pakistani airstrip. Singh was taken as a POW and later released.[20] The IAF Gnat is now displayed at the PAF Museum, Karachi.

During the Indo-Pakistani War of 1971, four F-104As were lost in combat against the IAF MiG-21s. One pilot successfully ejected from his F-104 over shark-infested waters, but was never found.[21] According to Western military analysts, the Indian MiG-21s had clearly "won" the much anticipated air combat between the MiG-21 and the F-104 Starfighter.[22]

Federal German Air Force F-104G displayed at the Deutsches Museum

International service

Picture: Federal German Air Force F-104G displayed at the Deutsches Museum.

Picture: German F-104G reconnaissance displayed in on the air base in Schleswig, Schleswig-Holstein.

German F-104G reconnaissance displayed in on the air base in Schleswig, Schleswig-Holstein

At the same time that the F-104 was falling out of U.S. favor, the Luftwaffe/Federal German Air Force was looking for a foreign-designed multi-role combat aircraft to operate in support of a missile defence system.[23]The Starfighter was presented and reworked to convert it from a fair-weather fighter into an all-weather ground-attack, reconnaissance and interceptor aircraft, as the F-104G. This was chosen over the English Electric P.1, Grumman Super Tiger and Northrop N-156.[24] The aircraft found a new market with other NATO countries, and eventually a total of 2,578 of all variants of the F-104 were built in the U.S. and abroad for various nations. Several countries received their aircraft under the U.S.-funded Military Aid Program (MAP). The American engine was retained but built under license in Europe, Canada and Japan. The Lockheed ejector seats were retained initially but were replaced later in some countries by the statistically safer Martin-Baker zero-zero ejection seat.

The so-called "Deal of the Century" produced substantial income for Lockheed. However, the resulting Lockheed bribery scandals caused considerable political controversy in Europe and Japan. In Germany, the Minister of Defence Franz Josef Strauss was accused of having received at least US$10 million for West Germany's purchase of the F-104 Starfighter in 1961.[25] Prince Bernhard of the Netherlands later confessed to having received more than US$1 million in bribes. In the 1970s it was revealed that Lockheed had engaged in an extensive campaign of bribery of foreign officials to obtain sales, a scandal that nearly led to the downfall of the ailing corporation.

The international service of the F-104 began to wind down in the late 1970s, being replaced in many cases by the F-16 Fighting Falcon, but it remained in service with some air forces for another two decades. The last operational Starfighters served with the Italian AMI, which retired them on 31 October 2004.

Chuck Yeager in the cockpit of an NF-104, 4 December 1963

Flying the F-104

Picture: Chuck Yeager in the cockpit of an NF-104, 4 December 1963

F-104A flight envelope

The Starfighter was the first combat aircraft capable of sustained Mach 2 flight, and its speed and climb performance remain impressive even by modern standards. If used appropriately, with high-speed surprise attacks and good use of its exceptional thrust-to-weight ratio, it could be a formidable opponent, although being lured into a turning contest with a slower, more maneuverable opponent (as Pakistani pilots were with Indian Hunters in 1965) was perilous. The F-104's large turn radius was mainly due to the high speeds involved, and its high-alpha stalling and pitch-up behavior was known to command respect.

Takeoff speeds were in the region of 219 mph (352 km/h), with the pilot needing to swiftly raise the landing gear to avoid exceeding the limit speed of 299 mph (481 km/h). Climb and cruise performance were outstanding; unusually, a "slow" light illuminated on the instrument panel at around Mach 2 to indicate that the engine compressor was nearing its limiting temperature and the pilot needed to throttle back. Returning to the circuit, the downwind leg could be flown at 242 mph (389 km/h) with "land" flap selected, while long flat final approaches were typically flown at speeds around 207 mph (333 km/h) depending on the weight of fuel remaining. High engine power had to be maintained on the final approach to ensure adequate airflow for the BLC (Boundary Layer Control) system; consequently pilots were warned not to cut the throttle until the aircraft was actually on the ground. A drag chute and effective brakes shortened the Starfighter's landing roll.[26]

Safety record

The safety record of the F-104 Starfighter became high profile news especially in Germany in the mid-1960s, and lingers in the minds of the public even to this day. Some operators lost a large proportion of their aircraft through accidents, although the accident rate varied widely depending on the user and operating conditions; the Luftwaffe lost about 30% of aircraft in accidents over its operating career,[27] and Canada lost over 50% of its F-104s.[28] The Spanish Air Force, however, lost none.[29][30] The Starfighter was a particular favorite of the Aeronautica Militare Italiana (Italian Air Force), although the AMI's accident rate was far from the lowest of Starfighter users.

The Class A mishap rate(write off) of the F-104 in USAF service was 26.7 accidents per 100,000 flight hours as of June 1977,[31] (30.63 through the end of 2007[32]), the highest accident rate of any USAF Century Series fighter. By comparison, the rate of the F-102 Delta Dagger was 14.2/100,000[31] (13.69 through 2007[33]), and the mishap rate for the F-100 Super Sabre was 16.25 accidents per 100,000 flight hours.[34]

Notable U.S. Air Force pilots who lost their lives in F-104 accidents include Major Robert H. Lawrence, Jr. and Captain Iven Kincheloe. Civilian (retired USAAF) pilot Joe Walker died in a midair collision with an XB-70 Valkyrie while flying an F-104. Chuck Yeager was nearly killed when he lost control of an NF-104A during a high-altitude record-breaking attempt. He lost the tips of two fingers and was hospitalized for a long period with severe burns after the flight.

General characteristics

The F-104 series all had a very high wing loading (made even higher when carrying external stores), which demanded that sufficient airspeed be maintained at all times. The high angle of attack area of flight was protected by a stick shaker system to warn the pilot of an approaching stall, and if this was ignored a stick kicker system would pitch the aircraft's nose down to a safer angle of attack; this was often overridden by the pilot despite flight manual warnings against this practice. At extreme high angles of attack the F-104 was known to "pitch-up" and enter a spin, which in most cases was impossible to recover from. Unlike the twin-engined F-4 Phantom II for example, the F-104 with its single engine lacked the safety margin in the case of an engine failure, and had a very poor glide ratio without thrust.
Early problems

The J79 was a new engine that continued to be developed during the YF-104A test phase and in service with the F-104A. The engine featured variable incidence compressor stator blades, a design feature that altered the angle of the stator blades automatically with altitude and temperature. A condition known as "T-2 reset", a normal function that made large stator blade angle changes, caused several engine failures on takeoff. It was discovered that large and sudden temperature changes (from being parked in the sun to getting airborne) were falsely causing the engine stator blades to close and choke the compressor. The dangers presented by these engine failures were compounded by the downward ejection seat which gave the pilot little chance of a safe exit at low level. The engine systems were subsequently modified and the ejection seat changed to the more conventional upward type. Uncontrolled tip-tank oscillations sheared one wing off of an F-104B; this problem was apparent during testing of the XF-104 prototype and was eventually resolved by filling the tank compartments in a specific order.[35]
Later problems

A further engine problem was that of uncommanded opening of the variable thrust nozzle (usually through loss of engine oil); although the engine would be running normally at high power, the opening of the nozzle resulted in a drastic loss of thrust. A modification program installed a manual nozzle closure control which reduced the problem. The engine was also known to suffer from afterburner blow out on takeoff or even non-ignition resulting in a major loss of thrust, which could be detected by the pilot—the recommended action was to abandon the takeoff. The first fatal accident in German service was caused by this. Some aircrews experienced uncommanded "stick kicker" activation at low level when flying straight and level, so F-104 crews often flew with the system de-activated. Asymmetric flap deployment was another common cause of accidents, as was a persistent problem with severe nosewheel "shimmy" on landing which usually resulted in the aircraft leaving the runway and in some cases even flipping over onto its back.[36]

Luftwaffe F-104G in USAF markings

Picture: Luftwaffe F-104G in USAF markings

German service

The introduction of a highly technical aircraft type to a newly reformed air force was fraught with problems. Many pilots and ground crew had settled into civilian jobs after World War II and had not kept pace with developments, with pilots being sent on short "refresher" courses in slow and benign-handling first generation jet aircraft. Ground crew were similarly employed with minimal training and experience. Operating in poor North West European weather conditions (vastly unlike the fair weather training conditions at Luke AFB in Arizona) and flying at high speed and low level over hilly terrain, a great many accidents were attributed to controlled flight into terrain or water, (CFIT). Luftwaffe losses totaled 110 pilots.[37]

Many Canadian losses were attributed to the same cause as both air forces were primarily operating over West Germany. An additional factor was that the aircraft were parked outside in adverse weather conditions (snow, rain etc.) where the moisture affected the delicate avionic systems. It was further noted that the Lockheed C-2 ejection seat was no guarantee of a safe escape and the Luftwaffe retro-fitted the much more capable Martin Baker GQ-7A seat from 1967, and many operators followed suit. In 1966 Johannes Steinhoff took over command of the Luftwaffe and grounded the entire F-104 fleet until he was satisfied that problems had been resolved or at least reduced. In later years, the German safety record improved, although a new problem of structural failure of the wings emerged. Original fatigue calculations had not taken into account the high number of g-force loading cycles that the German F-104 fleet was experiencing, and many airframes were returned for depot maintenance where their wings were replaced, while other aircraft were simply retired. Towards the end of Luftwaffe service, some aircraft were modified to carry an ADR or "black box" which could give an indication of what might have caused the accident.[38] Erich Hartmann who had commanded one of Germany's first jet fighter-equipped squadrons and was a former World War II fighter ace [39] had deemed the F-104 to be an unsafe aircraft with poor handling characteristics for aerial combat and had judged the fighter unfit for Luftwaffe use, even before its introduction, to the dismay of his superiors.[40]

Normal operating hazards

The causes of a large number of aircraft losses were the same as for any other similar type. They included: birdstrikes (particularly to the engine), lightning strikes, pilot spatial disorientation, and mid-air collisions with other aircraft. A particularly notable accident occurred on 19 June 1962 when a formation of four F-104F aircraft, practicing for the type's introduction-into-service ceremony, crashed together after descending through a cloud bank. This accident was explained as probable spatial disorientation of the lead pilot, and formation aerobatic teams were consequently banned by the Luftwaffe from that day on.[41]

Lockheed XF-104 in flight

Variants

Picture: Lockheed XF-104 in flight

Picture: A Lockheed YF-104A, 55-2961, NASA number 818. First NASA flight on 27 August 1956, last operational flight on 26 August 1975 – 1,439 flights over this period.

A Lockheed YF-104A, 55-2961, NASA number 818. First NASA flight on 27 August 1956, last operational flight on 26 August 1975 - 1,439
  flights over this period

A total of 2,578 F-104s were produced by Lockheed and under license by various foreign manufacturers. Principal variants included:

XF-104

Two prototype aircraft equipped with Wright J65 engines (the J79 was not yet ready); one aircraft equipped with the M61 cannon as an armament test bed. Both aircraft were destroyed in crashes.
YF-104A
17 pre-production aircraft used for engine, equipment, and flight testing. Most were later converted to F-104A standard.

F-104A
A total of 153 initial production versions were built.[7] In USAF service from 1958 through 1960, then transferred to ANG until 1963 when they were recalled by the USAF Air Defense Command for the 319th and 331st Fighter Interceptor Squadrons. Some were released for export to Jordan, Pakistan, and Taiwan, each of whom used it in combat. In 1967 the 319th F-104As and Bs were re-engined with the J79-GE-19 engines with 17,900 lbf (79.6 kN) of thrust in afterburner; service ceiling with this engine was in excess of 73,000 ft (22,250 m). In 1969 all the F-104A/Bs in ADC service were retired. On 18 May 1958, an F-104A set a world speed record of 1,404.19 mph (2,259.82 km/h).

NF-104A

Three demilitarized versions with an additional 6,000 lbf (27 kN) Rocketdyne LR121/AR-2-NA-1 rocket engine, used for astronaut training at altitudes up to 120,800 ft (36,820 m). An accident on 10 December 1963 involving Chuck Yeager was loosely depicted in the motion picture The Right Stuff, although the aircraft in the film was not an actual NF-104A.

QF-104A
A total of 22 F-104As converted into radio-controlled drones and test aircraft.

F-104B
Tandem two-seat, dual-control trainer version of F-104A, 26-built.[7] Enlarged rudder and ventral fin, no cannon and reduced internal fuel, but otherwise combat-capable. A few were supplied to Jordan, Pakistan and Taiwan.

F-104C at the National Museum of the United States Air Force, Wright-Patterson AFB, OH

F-104C

Picture: F-104C at the National Museum of the United States Air Force, Wright-Patterson AFB, OH.

Fighter bomber versions for USAF Tactical Air Command, with improved fire-control radar (AN/ASG-14T-2), centerline and two wing pylons (for a total of five), and ability to carry one Mk 28 or Mk 43 nuclear weapon on the centerline pylon. The F-104C also had in-flight refuelling capability. On 14 December 1959, an F-104C set a world altitude record of 103,395 ft (31,515 m), 77 built.

F-104D
Dual-control trainer versions of F-104C, 21 built.[7]

F-104DJ
Dual-control trainer version of F-104J for Japanese Air Self-Defense Force, 20 built by Lockheed and assembled by Mitsubishi.

F-104F
Dual-control trainers based on F-104D, but using the upgraded engine of the F-104G. No radar, and not combat-capable. Produced as interim trainers for the Luftwaffe. All F-104F aircraft were retired by 1971; 30 built.

Lockheed F-104G

Picture: Lockheed F-104G

F-104G
1,122 aircraft of the main version produced as multi-role fighter bombers. Manufactured by Lockheed, and under license by Canadair and a consortium of European companies which included Messerschmitt/MBB, Dornier, Fiat, Fokker and SABCA. The type featured strengthened fuselage and wing structure, increased internal fuel capacity, an enlarged vertical fin, strengthened landing gear with larger tires and revised flaps for improved combat maneuvering. Upgraded avionics included a new Autonetics NASARR F15A-41B radar with air-to-air and ground mapping modes, the Litton LN-3 inertial navigation system (the first on a production fighter) and an infrared sight.

RF-104G
189 tactical reconnaissance models based on F-104G,[7] usually with three KS-67A cameras mounted in the forward fuselage in place of cannon.

TF-104G
220 combat-capable trainer version of F-104G;[7] no cannon or centerline pylon, reduced internal fuel. One aircraft used by Lockheed as a demonstrator with the civil registration number L104L, was flown by Jackie Cochran to set three women’s world speed records in 1964. This aircraft later served in the Netherlands.

F-104H
Projected export version based on a F-104G with simplified equipment and optical gunsight. Not built.

F-104J
Specialized interceptor version of the F-104G for the Japanese ASDF, built under license by Mitsubishi for the air-superiority fighter role, armed with cannon and four Sidewinders; no strike capability. Some were converted to UF-104J radio-controlled target drones and destroyed. Total of 210 built, three built by Lockheed, 29 built by Mitsubushi from Lockheed built components and 178 built by Mitsubishi.[7]

F-104N
Three F-104Gs were delivered to NASA in 1963 for use as high-speed chase aircraft. One, piloted by Joe Walker, collided with an XB-70 on 8 June 1966.

F-104S in original camouflage scheme with Sparrow missiles mounted under the wings, c. 1969

F-104S

F-104S in original camouflage scheme with Sparrow missiles mounted under the wings, c. 1969

246 Italian versions produced by FIAT, one aircraft crashed prior to delivery and is often not included in the total number built. Forty planes were delivered to the Turkish Air Force and the rest to the Italian Air Force (Aeronautica Militare Italiana).[42] The F-104S was upgraded for the interception role having NASARR R-21G/H radar with moving-target indicator and continuous-wave illuminator for SARH missiles (initially AIM-7 Sparrow), two additional wing and two underbelly hardpoints (increasing the total to nine), more powerful J79-GE-19 engine with 11,870 lbf (53 kN) and 17,900 lbf (80 kN) thrust, and two additional ventral fins for increased stability. The M61 cannon was sacrificed to make room for the missile avionics in the interceptor version but retained for the fighter-bomber variants. Up to two Sparrow; and two, theoretically four or six Sidewinder missiles were carried on all the hardpoints except the central (underbelly), or seven 750 lb (340 kg) bombs (normally two–four 500-750 lb/227–340 kg). The F-104S was cleared for a higher maximum takeoff weight, allowing it to carry up to 7,500 lb (3,400 kg) of stores; other Starfighters had a maximum external load of 4,000 lb (1,814 kg). Range was up to 780 mi (1,250 km) with four tanks.[43]

F-104S-ASA
(Aggiornamento Sistemi d'Arma – "Weapon Systems Update") – 150 upgraded F-104S with Fiat R21G/M1 radar with frequency hopping, look-down/shoot-down capability, new IFF system and weapon delivery computer, provision for AIM-9L all-aspect Sidewinder and Selenia Aspide missiles. It was first flown in 1985.[7]

F-104S-ASA/M
(Aggiornamento Sistemi d'Arma/Modificato – "Weapon Systems Update/Modified") – 49 airframes upgraded in 1998 to ASA/M standard with GPS, new TACAN and Litton LN-30A2 INS, refurbished airframe, improved cockpit displays. All strike-related equipment was removed. The last Starfighters in combat service, they were withdrawn in December 2004 and temporarily replaced by the F-16 Fighting Falcon, while awaiting Eurofighter Typhoon deliveries.

CF-104

200 Canadian-built versions, built under license by Canadair[7] and optimized for nuclear strike, having NASARR R-24A radar with air-to-air modes, cannon deleted (restored after 1972), additional internal fuel cell, and Canadian J79-OEL-7 engines with 10,000 lbf (44 kN)/15,800 lbf (70 kN) thrust.

CF-104D
38 dual-control trainer versions of CF-104, built by Lockheed, but with Canadian J79-OEL-7 engines.[7] Some later transferred to Denmark, Norway and Turkey.

Operators

The Starfighters, a civilian demonstration team in Florida, operates three ex-Canadian Military CF-104 Starfighters (1 CF-104D and 2 CF-104's).[45] Another is owned and operated by a private collector[46] in Arizona.

The F-104 was operated by the militaries of the following nations.

Belgium
Canada
Republic of China
Denmark
Germany
Greece
Italy
Japan
Jordan
Netherlands
Norway
Pakistan
Spain Spain
Turkey
United States

USAF F-104C at Wings Over the Rockies Museum

Aircraft on display
Picture: USAF F-104C at Wings Over the Rockies Museum
RDAF F-104G at Flyvestation Aalborg, Denmark Picture: RDAF F-104G at Flyvestation Aalborg, Denmark
Luftwaffe F-104G at Lasham Picture: Luftwaffe F-104G at Lasham
F-104G 22+40 at Le Bourget Museum, France Picture: F-104G "22+40" at Le Bourget Museum, France

F-104

- RCAF CF-104A, RCAF s/n 12700 is on display at the Canadian Aviation Museum, Ottawa, Ontario, Canada.[47]
- RCAF CF-104, RCAF s/n 104783 is on display at the Atlantic Canada Aviation Museum.[48]
- USAF F-104A is on display at Robins Air Force Base, Georgia, United States.[49]
- USAF F-104A, AF Ser. No. 56-780 (formerly 56-779), is on display at Cavanaugh Flight Museum, Addison, Texas.[50]
- NASA F-104A, N818NA, is hanging from the ceiling of the Smithsonian's National Air and Space Museum in Washington, D.C.
- F-104A is on display at the Pakistan Air Force Museum, in Karachi, Pakistan.[51][52]
- USAF F-104C, AF Ser. No. 56-0934 is on display at the Museum of Flight in Seattle, Washington.[53]
- USAF F-104C, AF Ser. No. 56-0910, is on display at the Wings Over the Rockies Air and Space Museum (former Lowry AFB) in Denver, Colorado[54]
- USAF F-104C, AF Ser. No. 56-0914, is on display at the National Museum of the United States Air Force at Wright-Patterson AFB in Dayton, Ohio.[55]
- F-104C, AF Ser. No. 57-0916, is on display at the Virginia Air & Space Center in Hampton, Virginia.[56]
- F-104D, AF Ser. No. 57-1314 is on display at the Castle Air Museum at the former Castle AFB in Atwater, California.[57]
- F-104D, AF Ser. No. 57-1331 is on display at the Air Force Armament Museum, at Eglin AFB, Florida.[58]
- F-104G, Royal Danish Air Force s/n R-771, is displayed at the entrance to Flyvestation Aalborg, Aalborg, Denmark.
- F-104G, R-756, is displayed outside at the Midland Air Museum, Coventry, England.[59][60]
- GAF F-104G, Luftwaffe s/n 22+35, is on display at Lasham airfield, England, 2006.[61]
- GAF F-104G, Luftwaffe s/n 22+58, is preserved at the "Traditionsgemeinschaft JaboG-34", in Memmingen, Germany.[62][63]
- GAF F-104G, Luftwaffe s/n 20+47, is on external display at the Internationales Luftfahrtmuseum, Manfred Pflumm, in Villingen-Schwenningen, Germany.[64]
- GAF F-104G, Luftwaffe s/n 25+74 (painted as MFG1 22+22) is on external display at the Deutsches Marinemueum in Wilhelmshaven, Germany.[65]
- GAF F-104G, Luftwaffe s/n 20+81 (painted as 23+81) reconnaissance is on display at the air base in Schleswig, Schleswig-Holstein, Germany[66]
- GAF F-104G/CCV, Luftwaffe s/n 98+36, is preserved at the Wehrtechnische Studiensammlung Koblenz, Germany
- F-104G is on static display at the Middle East Technical University, Ankara, Turkey.[67]
- F-104G cn 7118 22+40 is on display at the Musée de l'Air et de l'Espace,[68] Le Bourget Airport, Paris, France.
- GAF F-104G Starfighter, Luftwaffe s/n 26+23, is preserved at the Air Museum of Spain, in Madrid, Spain. The aircraft is an ex-Luftwaffe machine which retains its German markings on the left side but is unusually painted with Spanish markings on the right side.[69]
- F-104G is on static display at The Air Victory Museum, South Jersey Regional Airport, Lumberton, New Jersey (Painted as RNLAF s/n "D-8090" but is actually ex-Belgian Air Force s/n FX-81).[70]
- RNLAF F-104G, Royal Netherlands Air Force s/n D-8331, is on static display in the Science Museum Oklahoma in Oklahoma City, Oklahoma.[71]
- JASDF F-104J, s/n 36-8515 is preserved on display at Kakamigahara Aerospace Museum, Kakamigahara, Japan.[72]
- JASDF F-104J, (cn 3052) s/n 36-8552 is preserved on display in the Family Spot Park in Chichibetsu City near Hokkaido AFB, Japan.[73]
- NASA F-104N, N811NA, flown by Neil Armstrong, is on static display at the Embry-Riddle Aeronautical University Prescott, Arizona campus.[74]
- NASA F-104N, N812NA, is on display at Lockheed Palmdale, Calif. "Skunk Works" facility.[75]

Specifications (F-104G)

Data from Quest for Performance[76]

General characteristics

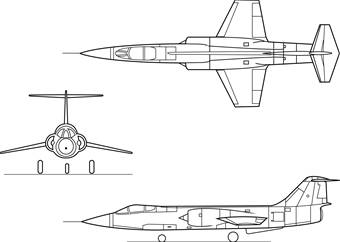

Orthographically projected diagram of
 the F-104 Starfighter.

- Crew: 1
- Length: 54 ft 8 in (16.66 m)
- Wingspan: 21 ft 9 in (6.36 m)
- Height: 13 ft 6 in (4.09 m)
- Wing area: 196.1 ft² (18.22 m²)
- Airfoil: Biconvex 3.36% root and tip
- Empty weight: 14,000 lb (6,350 kg)
- Loaded weight: 20,640 lb (9,365 kg)
- Max takeoff weight: 29,027 lb (13,170 kg)
- Powerplant: 1× General Electric J79-GE-11A afterburning turbojet
- Dry thrust: 10,000 lbf (48 kN)
- Thrust with afterburner: 15,600 lbf (69 kN)
- Zero-lift drag coefficient: 0.0172
- Drag area: 3.37 sq ft (0.31 m²)
- Aspect ratio: 2.45

Performance

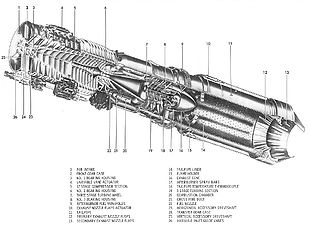

J79 with components labeled

- Maximum speed: 1,328 mph (1,154 kn, 2,125 km/h)
- Combat radius: 420 mi (365 nmi, 670 km)
- Ferry range: 1,630 mi (1,420 nm, 2,623 km)
- Service ceiling: 50,000 ft (15,000 m)
- Rate of climb: 48,000 ft/min (244 m/s)
- Wing loading: 105 lb/ft² (514 kg/m²)
- Thrust/weight: 0.54 with max. takeoff weight (0.76 loaded)
- Lift-to-drag ratio: 9.2

Armament

- Guns: 1 × 20 mm (0.79 in) M61 Vulcan gatling gun, 725 rounds
- Hardpoints: 7 with a capacity of 4,000 lb (1,814 kg) and provisions to carry combinations of:
- Missiles: 4 × AIM-9 Sidewinder
- Other: * Other: Bombs, rockets, or other stores

Popular culture

F-104 air starter

The Starfighter was featured in music and film. The German controversy over the Starfighter's contract and its toll on pilots inspired a rock concept album by Robert Calvert of Hawkwind, called Captain Lockheed and the Starfighters. It repeated the commonplace grim joke in Germany that the cheapest way of obtaining a Starfighter was to buy a small patch of land and simply wait.[77] After Kai-Uwe von Hassel succeeded Strauss as minister of defence, his son Oberleutnant Joachim von Hassel died in a Starfighter crash. This event was the topic of the Welle:Erdball song, "Starfighter F-104G".

Stock footage of F-104s was used when a U.S. Air Force F-104 intercepted the USS Enterprise in the Star Trek first season episode, "Tomorrow is Yesterday". In the remastered version of the episode, the stock footage was replaced by Computer-Generated Imagery.

An F-104G Starfighter in the guise of an NF-104A was featured in the 1983 film The Right Stuff.

The 1964 movie The Starfighters, about the training and operations of F-104 crews was subsequently featured in episode #612 of Mystery Science Theater 3000. The film starred future US Congressman Robert Dornan.

Nicknames

The Starfighter was commonly called the "missile with a man in it"; a name swiftly trademarked by Lockheed for marketing purposes. The term "Super Starfighter" was used by Lockheed to describe the F-104G in marketing campaigns, but fell into disuse. In service, American pilots called it the "Zipper" or "Zip-104" because of its prodigious speed. The Japan Air Self-Defense Force called it Eiko ("Glory"). A less charitable name appeared, "The Flying Coffin" from the translation of the common German public name of Fliegender Sarg. The F-104 was also called Witwenmacher ("Widowmaker"), or Erdnagel ("ground nail") – the official military term for a tent peg.[78] The Pakistani AF name was Badmash ("Hooligan"), while among Italian pilots its spiky design earned it the nickname Spillone ("Hatpin"), along with Bara volante ("Flying coffin"). Canadian pilots sometimes referred to it as the "Widowmaker".[79]

The engine made a unique howling sound at certain throttle settings which led to NASA F-104B Starfighter N819NA being named Howling Howland.[78]

- Century Series
- Zero length launch
- North American Eagle

Related development

- Lockheed XF-104
- Lockheed NF-104A
- Canadair CF-104
- Aeritalia F-104S
- CL-1200 Lancer and X-27

Comparable aircraft

- F-11 Tiger
- Dassault Mirage III
- Northrop F-5
- EWR VJ 101
- English Electric Lightning
- Saunders-Roe SR.177

References
Notes

1. a b Knaack 1978.
2. F-104 Starfighter, NASA, 1 February 2005.
3. Matricardi 2006, p. 129.
4. a b Bowman 2000, p. 26.
5. Bowman 2000, p. 32.
6. a b Bowman 2000, p. 28.
7. a b c d e f g h i j Donald, David, ed. "Lockheed F-104 Starfighter". The Complete Encyclopedia of World Aircraft. Barnes & Nobel Books, 1997. ISBN 0-7607-0592-5.
8. Ejection seats of the F-104 Retrieved: 6 February 2008
9. Ferdinand C.W. Käsmann 1994 p.84
10. Bowman 2000, p. 39.
11. Thompson 2004, p. 155.
12. Smith and Herz 1992.
13. Thompson 2004, p. 157.
14. Hobson
15. Two Cs from the 435th Retrieved: 6 February 2008.
16. a b Hobson 2001
17. Fricker and Jackson 1996, p. 74.
18. Bowman 2000, p. 165.
19. Jagan and Chopra, 2006.
20. a b Claims and Counter Claims, Pakdef.info. Retrieved: 6 February 2008.
21. "Indian Air Force: Down the Memory Lane." Indian MoD. Retrieved: 29 July 2008.
22. Coggins, Ed. Wings That Stay on. Turner Publishing Company, 2000. ISBN 1563115689, 9781563115684.
23. Flight 14 February 1958 p 95
24. Flight 17 January 1958 p72
25. "The Lockheed Mystery." Time, 13 September 1976. Retrieved: 6 February 2008.
26. Bowman 2000, pp. 40, 43.
27. Fricker and Jackson 1996, p. 92.
28. Fricker and Jackson 1996, p.78.
29. Fricker and Jackson 1996, p.97.
30. Spanish F-104 history Retrieved: 9 August 2009
31. a b Bowman 2000, p. 21.
32. USAF Safety & Inspection Center
33. USAF Safety & Inspection Center
34. Jenkins 2005, p. 46.
35. Drendel 1976, p. 22.
36. Bowman 2000
37. "Too gung-ho." New Scientist, Vol. 199, No. 2666, 26 July 2008, p. 17.
38. Reed 1981, p. 46.
39. Weal 1995, p. 164.
40. Toliver and Constable 1985, pp. 285–286.
41. Kropf 2002, Ch. 10.
42. Matricardi 2006, p. 130.
43. Sgarlato 2004
44. Bowman 2000, Appendix II.
45. Starfighters F-104 Demo Team web site Retrieved: 6 February 2008.
46. Baugher on See 5303 (104633), civil registry: N104JR , "Lockheed CF-104D Starfighter", American Military Aircraft, 20 January 2003. Retrieved: 24 February 2009.
47. "Lockheed F-104A Starfighter." Canada Aviation Museum. Retrieved 10 March 2009.
48. "RCAF CF-104." Atlantic Canada Aviation Museum. Retrieved 26 September 2009.
49. "USAF F-104A." museumofaviation.org. Retrieved: 7 December 2009.
50. "USAF F-104A,." cavanaughflightmuseum.com. Retrieved: 7 December 2009.
51. "F-104A." Pakistan Air Force Museum. Retrieved: 7 December 2009.
52. "F-104A." Pakistan Air Force Museum. Retrieved: 7 December 2009.
53. "Collections » Aircraft » Lockheed F-104C." The Museum of Flight. Retrieved: 10 March 2009.
54. "Aircraft on Exhibit." Wings Over the Rockies Air & Space Museum. Retrieved: 7 December 2009.
55. "Lockheed F-104C Starfighter Fact Sheet." National Museum of the USAF. Retrieved: 18 May 2008.
56. "F-104C." vasc.org. Retrieved: 7 December 2009.
57. "Lockheed F-104D Starfighter." Castle Air Museum. Retrieved: 10 March 2009.
58. "F-104D." Air Force Armament Museum. Retrieved: 7 December 2009.
59. On loan from the USAF Museum.
60. "F-104G." Midland Air Museum. Retrieved: 6 February 2008.
61. "GAF F-104G." Luftfahrt Museum: Second World War Aircraft Preservation Society Retrieved: 6 February 2008.
62. "Project restoration of a Starfighter." F104G.de. Retrieved: 7 December 2009.
63. "F-104 Display." 916-starfighter.de. Retrieved: 7 December 2009.
64. Flugplatz-Scwenningen.de "F-104G (in German language)." flugplatz-schwenningen.de. Retrieved: 22 October 2008.
65. "F-104G." Jetjournal-Gallerie.net. Retrieved: 17 March 2009.
66. "GAF F-104G." 916-starfighter.de. Retrieved: 7 December 2009.
67. "F-104 Starfighter photos on METU campus." metu.edu.tr. Retrieved: 7 December 2009.
68. "F-104G." 916-starfighter.de. Retrieved: 7 December 2009.
69. "F-104G Starfighter, 26+23." 916-starfighter.de. Retrieved: 22 October 2008.
70. "F-104G on static display." Wreckhunters.be. Retrieved: 22 October 2008.
71. "RNLAF F-104G." International F-104 Society. Retrieved: 22 October 2008.
72. Kakamigahara Aerospace Museum Retrieved: 12 April 2008.
73. "JASDF F-104J." i-f-s.nl. Retrieved: 7 December 2009.
74. "Where Are They Now? The NASA Dryden Flight Research Center's Historic Aircraft." NASA/Dryden Flight Research Center, October 8, 2008. Retrieved: 7 December 2009.
75. "F-104N." Airliners.net. Retrieved: 22 October 2008.
76. Loftin, LK, Jr. Quest for Performance: The Evolution of Modern Aircraft. NASA SP-468 Quest for Performance Retrieved: 22 April 2006.
77. Bashow 1990, p. 93. Quote: "...just buy an acre of land anywhere in Germany, Sooner or later..."
78. a b Bashow 1986, p. 16.
79. Cold Lake Airforce Museum, Cold Lake Airforce Museum.

Bibliography

- Bashow, David L. Starfighter: A Loving Retrospective of the CF-104 Era in Canadian Fighter Aviation, 1961-1986. Stoney Creek, Ontario: Fortress Publications Inc., 1990. ISBN 0-919195-12-1.
- Bashow, David L. "Starwarrior: A First Hand Look at Lockheed's F-104, One of the Most Ambitious Fighters ever Designed!" Wings Vol. 16, no. 3, June 1986.
- Bowman, Martin W. Lockheed F-104 Starfighter. Ramsbury, Marlborough, Wiltshire, UK: Crowood Press Ltd., 2000. ISBN 1-86126-314-7.
- Donald, David, ed. Century Jets. Norwalk, Connecticut: AIRtime Publishing, 2003. ISBN 1-880588-68-4.
- Drendel, Lou. F-104 Starfighter in action, Aircraft No. 27. Carrollton, Texas: Squadron/Signal Publications, 1976. ISBN 0-89747-026-5.
- Fricker, John and Paul Jackson. "Lockheed F-104 Starfighter". Wings of Fame. Volume 2 1996., p. 38-99. Aerospace Publishing. London. ISBN 1-874023-69-7.
- Green, William and Gordon Swanborough. The Great Book of Fighters. St. Paul, Minnesota: MBI Publishing, 2001. ISBN 0-7603-1194-3.
- Higham, Robin and Carol Williams. Flying Combat Aircraft of USAAF-USAF (Vol.2). Manhattan, Kansas: Sunflower University Press, 1978. ISBN 0-8138-0375-6.
- Hobson, Chris. Vietnam Air Losses, USAF, USN, USMC, Fixed-Wing Aircraft Losses in Southeast Asia 1961–1973. North Branch, Minnesota: Specialty Press, 2001. ISBN 1-85780-115-6.
- Jackson, Paul A. German Military Aviation 1956-1976. Hinckley, Leicestershire, UK: Midland Counties Publications, 1976. ISBN 0-904597-03-2.
- Jagan, Mohan P.V.S. and Samir Chopra. The India-Pakistan Air War of 1965. New Delhi: Manohar, 2006. ISBN 81-7304-641-7.
- Jenkins, Dennis R. "Hun Heaven, The Super Sabre Dance." Wings Magazine, Vol. 35 No. 12, December 2005.
- Käsmann, Ferdinand C.W. Die schnellsten Jets der Welt (German language) Planegg 1994 ISBN 3-925505-26-1.
- Kinzey, Bert. F-104 Starfighter in Detail & Scale. Blue Ridge Summit, Pennsylvania: TAB books, 1991. ISBN 1-85310-626-7.
- Knaack, Marcelle Size. Encyclopedia of USAF Aircraft and Missile Systems: Vol 1 Post-WW II Fighters 1945-1973. Washington, DC: Office of Air Force History, 1978. ISBN 0-912799-59-5
- Kropf, Klaus. German Starfighters. Hinckley, Leicestershire, UK: Midland Counties Publications, 2002. ISBN 1-85780-124-5.
- Matricardi, Paolo. Aerei militari: Caccia e ricognitori Volume 1. Milano, Mondadori Electa, 2006. NO ISBN.
- Nicolli, Ricardo. "Starfighters in the AMI". Air International Volume 31, No. 6, December 1986, pp. 306–313, 321–322.
- Pace, Steve. Lockheed F-104 Starfighter. Oscela, Wisconsin: Motorbooks International, 1992. ISBN 0-87938-608-8.
- Pace, Steve. X-Fighters: USAF Experimental and Prototype Fighters, XP-59 to YF-23. St. Paul, Minnesota: Motorbooks International, 1991. ISBN 0-87938-540-5.
- Reed, Arthur. F-104 Starfighter – Modern Combat Aircraft 9. London: Ian Allan Ltd., 1981. ISBN 0-7110-1089-7.
- Sgarlato, Nico. "F-104 Starfighter" (in Italian). Delta editions, Great Planes Monograph series, February 2004.
- Smith, Philip E. and Peggy Herz. Journey Into Darkness: the Gripping Story of an American Pow's Seven Years Trapped Inside Red China During the Vietnam War. New York: Pocket Books, 1992. ISBN 0-671-72823-7.
- Stachiw, Anthony L. and Andrew Tattersall. CF104 Starfighter (Aircraft in Canadian Service). St. Catharine's, Ontario: Vanwell Publishing Limited, 2007. ISBN 1-55125-114-0.
- Thompson, J. Steve with Peter C. Smith. Air combat manoeuvres. Hersham (Surrey), Ian Allan Publishing, 2008. ISBN 978-1-903223-98-7.
- Thompson, Warren. "Starfighter in Vietnam". International Air Power Review. Volume 12, Spring 2004. Norwalk, Connecticut, USA: AirTime Publishing. 2004. ISBN 1-880588-77-3.
- Toliver, Raymond F. and Trevor J. Constable. Holt Hartmann vom Himmel! (in German) Stuttgart, Germany: Motorbuch Verlag, 1985. ISBN 3-87943-216-3
- Upton, Jim. Warbird Tech - Lockheed F-104 Starfighter. North Branch, Minnesota: Specialty Press, 2003. ISBN 1-58007-069-8.
- USAF Class A mishap rates through the end of 2007. Kirtland AFB, NM: USAF Safety and Inspection Center, 2007.
- van der Zeeuw, Ton. "Lockheed F-104G Starfighter." Vliegend in Nederland 2 (in Dutch). Eindhoven, Netherlands: Flash Aviation, 1987. ISBN 978-90-71553-03-5.
- Weal, John. "Jagdeschwader 'Richthofen': Phoenix Twice Risen". Wings of Fame, Volume 1, 1995. London: Aerospace Publishing, pp. 142—165. ISBN 1-874023-68-9.

Living Warbirds: The best warbirds DVD series.

Source: WikiPedia

eXTReMe Tracker
