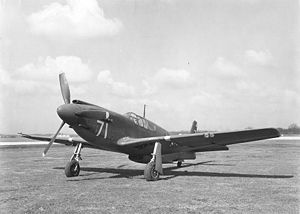

Airplane Pictures - North American A-36A Role: Ground-attack/dive bomber
Manufacturer: North American Aviation
Designed by: Edgar Schmued
First flight: October 1942
Introduced: 1942
Retired: 1945
Primary users: United States Army Air Forces, Civilian air racer
Number built: 500
Unit cost: $49,000[1]
Developed from: P-51 Mustang

North American Aviation A-36 Apache/Invader Aircraft Information

Role: Ground-attack/dive bomber
Manufacturer: North American Aviation
Designed by: Edgar Schmued
First flight: October 1942
Introduced: 1942
Retired: 1945
Primary users: United States Army Air Forces, Civilian air racer
Number built: 500
Unit cost: $49,000[1]
Developed from: P-51 Mustang

The North American A-36 Apache/Invader was the ground-attack/dive bomber version of the North American P-51 Mustang, from which it could be distinguished by the presence of rectangular, slatted dive brakes above and below the wings. A total of 500 A-36 dive bombers served in North Africa, the Mediterranean, Italy and the China-Burma-India theater during World War II before being withdrawn from operational use in 1944.

Design and development

With the introduction of the North American Mustang I with the RAF Army Co-operation Squadrons in February 1942, the new fighter began combat missions as a low-altitude reconnaissance and ground-support aircraft. Supplementing the Curtiss P-40 Tomahawks already in service, Mustang Is were first supplied to No. 26 Squadron RAF, then rapidly deployed to ten additional squadrons by June 1942. First used in combat over Dieppe on 19 August 1942, a No. 414 (RCAF) Squadron Mustang downed the formidable Focke-Wulf Fw 190, the first victory for a Mustang.[2] Despite the limiting high-altitude performance of the Allison V-1710 engine, the RAF was enthusiastic about its new mount which "performed magnificently."[3]

During the Mustang I's successful combat initiation, North American's president Howard "Dutch" Kindelberger pressed the newly redesignated U.S. Army Air Forces (USAAF) for a fighter contract for the essentially similar P-51, 47 of which had passed into the USAAF when the Lend-Lease contract with Britain ran out of funds. The P-51 utilized four 20 mm Hispano wing cannon in place of the original four .30 in (7.62 mm) M1919 Browning machine guns and two .50 in (12.7 mm) M2 Browning machine guns mounted in the wings and two .50 in (12.7 mm) "chin" machine guns. No funds were available for new fighter contracts in fiscal year 1942, but General Oliver P. Echols and Fighter Project Officer Benjamin S. Kelsey[4] wanted to ensure the P-51 remained in production.[5]

Since appropriations were available for an attack aircraft, Echols specified modifications to the P-51 to turn it into a dive bomber. The contract for 500 A-36A aircraft fitted with bomb racks and dive brakes was signed by Kelsey on 16 April 1942[6] even before the first flight of the P-51 in May 1942.[7] With orders on the books, North American Aviation (NAA) began modifying the P-51 to accept the bomb shackles were already tested in a "long-range ferry" program RAF had stipulated.[8] Engineering studies totaling 40,000 hours and wind tunnel testing with a ?-scale model was completed in June 1942. Utilizing the basic P-51 airframe and Allison engine, structural reinforcing "beefed up" several high stress areas and "a set of hydraulically operated dive brakes were installed in each main wing plane."[9] Due to the slightly inboard placement of the bomb racks and unique installation of four cast aluminum dive brakes, a complete redesign of the P-51 wing was required.[10]

The USAAF also had 310 P-51As on order that were differentiated by having provision for drop tanks, an armament of only four wing-mounted 0.50 in (12.7 mm) Browning machine guns and an Allison V-1710-81 1,200 hp (895 kW). Like the A-36A, the P-51A was fitted with bomb racks but was not intended for use primarily as a fighter-bomber.[11]
A-36A at NAA Inglewood

Airplane Pictures - A-36A at NAA Inglewood(Image: A-36A at NAA Inglewood)

The first A-36A (42-83663) was rolled out of the NAA Inglewood plant in September 1942, rapidly going through flight testing with the first flight in October and deliveries commencing soon after of the first production machines. The A-36A continued the use of nose-mounted .50 in (12.7 mm) machine guns along with wing armament of four .50 in (12.7 mm) caliber machine guns. Another major alteration was the use of a sea level-rated Allison V-1710-87, that delivered 1,325 hp (988 kW) at 3,000 ft (914 m) driving a 10 ft 9 in (3.28 m)-diameter three bladed Curtiss-Electric propeller. This engine, however, had greatly reduced output above 12,000 ft (3,658 m). The main air scoop inlet was redesigned, in parallel with that on the P-51A, to become a fixed unit with a larger opening, replacing the earlier scoop which could be lowered into the airstream. In addition, again in common with the P-51A, the A-36 carburetor air intake was later fitted with a tropical air filter to stop sand and grit being ingested into the engine.[6][12]

Operational history

Airplane Pictures - A-36A training unit(Image: A-36A training unit)

The A-36A-1-NA "Apache" (although Apache was the A-36A's official name, it was rarely used)[13] joined the 27th Fighter Bomber Group composed of four squadrons based at Rasel Ma in French Morocco in April 1943 during North Africa.[13] The 27th had a mixed component of Douglas A-20 Havocs and A-36As while the second operational unit, the 86th Fighter Bomber Group (Dive) arrived in March 1943 with the first pilots trained and qualified on the A-36A.[14][15] On 6 June 1943, both of these A-36A units flew combat missions directed against the island of Pantelleria. The island fell to Allied attack and became the home base for the two A-36A groups during the invasion of Sicily. The A-36A proved to be a potent weapon; it could be put into a vertical dive at 12,000 ft (3,658 m), deploying its dive brakes, limiting the dive speed to 390 mph (628 km/h). Pilots soon recognized that extending the dive brakes after "peel-off" led to some unequal extension of the brakes due to varying hydraulic pressure, setting up an invariable slight roll which impeded aiming. Proper technique soon cured this anomaly and, subsequently, pilots achieved extremely consistent results.[6] Depending on the target and defences, the bomb release took place between 2,000ft and 4,000 ft (610 and 1,219 m), followed by an immediate sharp "pull up."[9]

Dive brakes in the wings gave the A-36A greater stability in a dive; however, a myth has arisen that they were they were useless due to malfunctions or because of the danger of deploying them and that they should be wired closed.[16] Capt. Charles E. Dills, 27th Fighter-Bomber Group, 522d Fighter Squadron, XIIth Air Force emphatically stated in a postwar interview: "I flew the A-36 for 39 of my 94 missions, from 11/43 to 3/44. They were never wired shut in Italy in combat. This 'wired shut' story apparently came from the training group at Harding Field, Baton Rouge, LA."
A-36 of the 86th Bombardment Group (Dive), "284067" coded A, lost to flak 14 January 1944.[17]

Airplane Pictures - A-36 of the 86th Bombardment Group (Dive), (Image: A-36 of the 86th Bombardment Group (Dive), "284067" coded A, lost to flak 14 January 1944)

However, tactical reconnaissance training with P-51 and A-36 aircraft had delivered some disquieting accident rates. At one time, A-36 training had resulted in the type having "the highest accident rate per hour's flying time"[18] of any USAAF aircraft. The most serious incident involved an A-36A shedding both wings when its pilot tried to pull out from a 450 mph (724 km/h) dive.[14] Combat units flying the A-36A were ordered to restrict their approach to a 70° "glide" attack and refrain from using dive brakes.[19] This order was generally ignored by experienced pilots but some units did wire dive brakes shut until modifications were made to the hydaulic actuators.[19] Nevertheless, the A-36 was used with great success as a dive-bomber, acquiring a reputation for precision, sturdiness and silence.[20]

By late May 1943, 300 A-36As had been deployed to the Mediterranean Theater, with many of the first batch sent to the 27th to re-build the group following losses as well as completing the final transition to an all-A-36A unit.[14] Both groups were actively involved in air support during the Sicilian campaign, becoming especially adept at "mopping" up enemy gun positions and other strong points as the Allies advanced. During this operation, the 27th Group circulated a petition to adopt the name "Invader" for their rugged little bomber, receiving unofficial recognition of the more fitting name.[14] Despite the name change, most combat reports preferred the name "Mustang" for all of the variants.[21] The Germans gave it a flattering if fearsome accolade, calling the A-36As, "screaming helldivers."[20]

Besides dive bombing, the A-36A racked up aerial victories, totalling 84 enemy aircraft downed and creating an "ace", Lieutenant Michael T. Russo from the 27th Fighter Bomber Group (ultimately, the only ace using the Allison-engined Mustang).[13] As fighting intensified in all theaters where the A-36A operated, the dive bomber began to suffer an alarming loss rate with 177 falling to enemy action.[13] The main reason for the attrition was the hazardous missions that placed the A-36A "on the deck" facing murderous ground fire. German defences in southern Italy included placing cables across hill tops to snare the attacking A-36As.[22] Despite establishing a "reputation for reliability and performance," the one "Achilles' heel" of the A-36A (and the Mustang) remained its vulnerable cooling system leading to many of the losses.[23] By June 1944, A-36As in Europe were replaced by Curtiss P-40s and Republic P-47 Thunderbolts.[6]
Lt Col Charles "Mac" McMillin sitting in an A-36A in India, 1945. He had finished his 100 missions and was an instructor in a replacement training unit (RTU) while awaiting orders home.

Airplane Pictures - Lt Col Charles 'Mac' McMillin sitting in an A-36A in India, 1945. He had finished his 100 missions and was an instructor in a replacement training unit (RTU) while awaiting orders home(Image: Lt Col Charles "Mac" McMillin sitting in an A-36A in India, 1945. He had finished his 100 missions and was an instructor in a replacement training unit (RTU) while awaiting orders home)

A-36As had also served with the 311th Fighter Bomber Group in the China-Burma-India theater. The 311th had arrived in Dinjan, India by late summer 1943 after being shipped across the Pacific via Australia.[24] Two squadrons were equipped with the A-36A while the third flew P-51As. Tasked with reconnaissance, dive bombing, attack and fighter missions, the A-36A was outclassed by its main opposition, the Nakajima Ki-43 "Oscar." The light and highly agile Japanese fighter could outmaneuver the A-36A at all altitudes but did have some weak points- it was lightly armed and offered little protection for pilot or fuel tanks. However, the A-36A fought at a significant disadvantage, having to carry out long-range missions often at altitudes above the "Hump" that meant its Allison engine was below peak performance. In a fighter escort mission over Burma, three A-36As were lost without scoring a single victory. The A-36A CBI missions continued throughout 1943-1944 with indifferent results. The A-36A remained in service in small numbers throughout the remaining year of the war, some being retained in the US as training aircraft.

"The type's relatively brief service life should not camouflage the fact that it made a major contribution to the Allied war effort"[13] especially in the Mediterranean and it amounted to the first USAAF combat use of a Mustang variant.[22]


Airplane Pictures - A-36A 'Margie H' at the National Museum of the United States Air Force(Image: A-36A "Margie H" at the National Museum of the United States Air Force)

Relatively few A-36As survived the war and the subsequent postwar retirement and scrapping of obsolete types. One A-36A, bearing race number #44, owned and flown by Kendall Everson, was entered in the 1947 Kendall Trophy Race. The old warhorse was able to reach 377.926 mph, finishing second to the winning P-51D flown by Steve Beville.[25]

A-36A (USAAF Serial #42-83665/N39502) is on display at the National Museum of the United States Air Force in Dayton, Ohio. It was obtained from Charles P. Doyle of Rosemount, Minnesota in 1971. This aircraft was restored by the 148th Fighter-Interceptor Group of the Minnesota Air National Guard under the command of Colonel Wayne C. Gatlin. It is displayed as "Margie H", the A-36A flown by Captain Lawrence Dye of the 16th Fighter-Bomber Squadron in Tunisia, Sicily, and Italy.[26]

There are at least three A-36s undergoing restoration.

The Warhawk Air Museum in Caldwell, Idaho has A-36A (USAAF Serial #42-83738/N4607V) under restoration for future display.

A-36As currently under restoration to flying condition include:

A-36A (USAAF Serial #42-83731/N251A) owned by Tom Friedkin in Chino, California (presently being refurbished at the Planes of Fame Museum after her return from the Flying Legends 2002 Air Display at Duxford)
The Collings Foundation A-36A being restored by American Aero Services in New Smyrna Beach, Florida.

Specifications (A-36A)

General characteristics

Crew: 1
Length: 32 ft 3 in (9.83 m)
Wingspan: 37 ft 0.25 in (11.28 m)
Height: 12 ft 2 in (3.71 m)
Loaded weight: 10,000 lb (4535 kg)
Powerplant: 1× Allison V-1710-87 liquid-cooled piston V12 engine, 1,325 hp (988 kW)


Maximum speed: 365 mph (315 kn, 590 km/h)
Cruise speed: 250 mph (215 kn, 400 km/h)
Range: 550 mi (478 nmi, 885 km)
Service ceiling: 25,100ft (7650 m)


6 × 0.50 in (12.7 mm) M2 Browning machine guns
Up to 1,000 lb (454 kg) of bombs on two underwing hardpoints

Related development

P-51 Mustang
